2002-2003 Indian Chief Powerplus 100 Motorcycle Service Manual

DESCRIPTION:

2002-2003 Indian Chief Powerplus 100 Motorcycle Service Manual provides service procedures for the Indian POWERPLUS 100 engine. There are nine sections including sections that cover Troubleshooting and Maintenance in addition to Engine Disassembly and Assembly The Engine Removal and Installation section contains sub-sections that concentrate on removing chassis components and engine accessory items in preparation for performing in—chassis repairs from rocker box to cylinder and piston replacement. If a complete rebuild is required, the remaining sub-sections provide

IMAGES:

TABLE OF CONTENTS:

lntroduction
Component and Systems Description
Component Locations
troubleshooting
Symptom-Related Diagnostics
Basic Engine Tests
Maintence
Maintenance Schedule
Engine Maintenance Procedures
Changing Engine oil
Oil Filter Replacement
Cleaning the Tappet Screen
Spark Plug Replacement
Engine Removal and Installation
Tools required
Removing Classis Components and Engine Accessories
Engine Removal
Engine lnstallation
Installing Chassis Components and Engine Accessories
Engine Disassembly and Assembly
Tools required

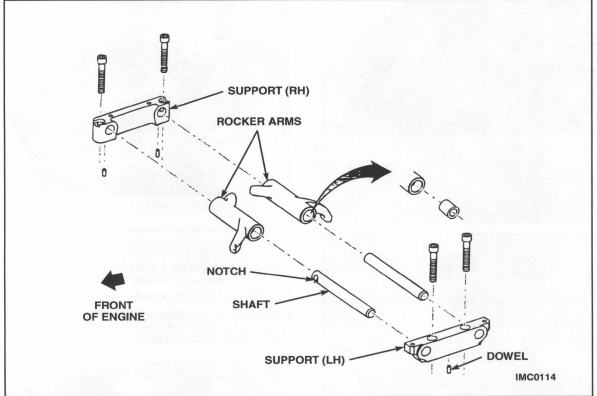

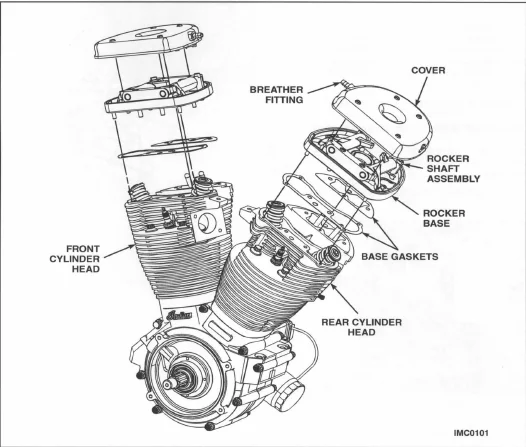

Rocker Box Procedures

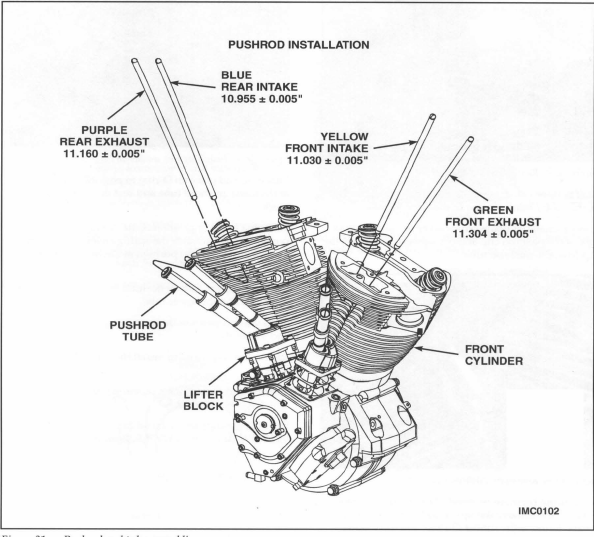

Pushrod and Tube Removal and Installation
Cylinder Head Procedures
Cylinder and Piston Assembly Procedures
Alternator Rotor/Stator Removal and Installation
Lifter Block Removal and Installation
Oil Pump Removal and Installation
Ignition Cover Housing/Rotor Removal and lnstallation
Cam,Breather Valve and Pinion Gear Removal and lnstallation
CrankcaseDisassemblyandAssembly
Specifications
General
Fits and Tolerances
Fastener Torque Values
Lubricants and Sealants
Required Tools
Available Special Tools
Tool Drawings
