2004 Chrysler Pacifica Service Manual – FWD & AWD Repair Guide

Description

2004 Chrysler Pacifica Service Manual – FWD & AWD Repair Guide

The 2004 Chrysler Pacifica Service Manual – FWD & AWD Repair Guide brings together the service information used throughout the Pacifica’s mechanical, electrical, body, climate-control, and emissions systems. The vehicle identification material identifies Chrysler Pacifica front-wheel-drive and all-wheel-drive configurations, the Premium and Sport series codes, and the 2004 model year. It also identifies the 3.5L V6 24-valve gasoline (MPI) engine and four-speed automatic transaxle coding used in the manual.

This is a large, system-by-system service reference rather than a short maintenance booklet. Across 1,720 PDF pages it moves from identification and basic service data into component diagnosis, removal, installation, disassembly, assembly, adjustment, specifications, torque values, wiring, and system operating information. Illustrations accompany procedures throughout, including suspension components, driveline assemblies, electrical circuits, service locations, and component relationships.

File Details

• Manual type: Service Manual
• Brand and model: Chrysler Pacifica
• Model year: 2004
• Configurations identified: Pacifica FWD and Pacifica AWD
• Engine identified: 3.5L V6 cyl. 24-Valve Gasoline (MPI)
• Language: English
• Page count: 1,720 pages
• File format: PDF

Vehicle Identification and Service Data

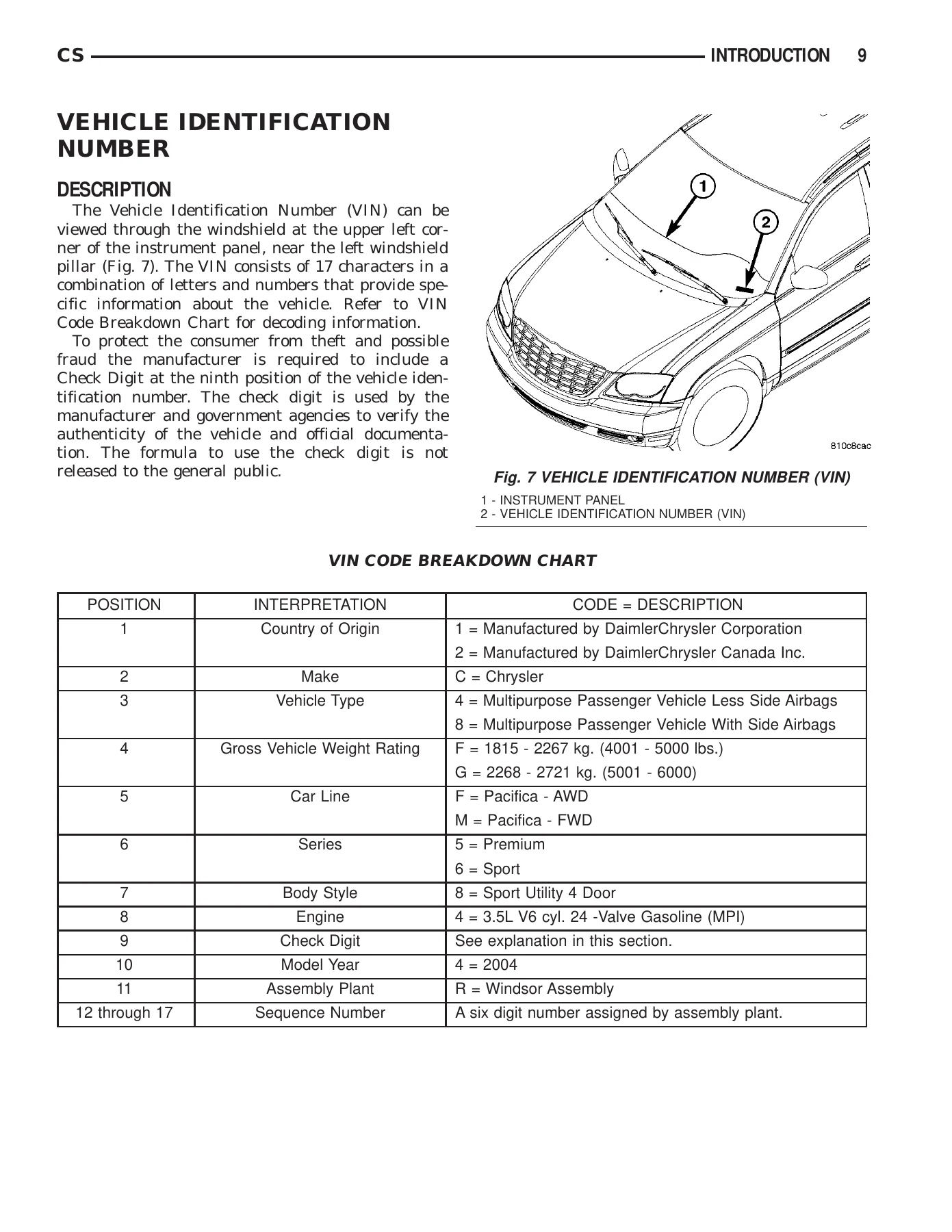

The introductory material explains the body code plate, fastener identification, fastener usage, international symbols, metric conversions, torque references, VIN decoding, certification labeling, and VECI labeling. The VIN chart identifies the Pacifica AWD and FWD car lines, Premium and Sport series codes, Sport Utility 4 Door body style, the 3.5L V6 24-valve gasoline (MPI) engine, 2004 model year coding, and Windsor Assembly plant coding. That identification material helps connect the procedures and specifications to the vehicle configuration being serviced.

The lubrication and maintenance group contains fluid information, capacities, fill/check references, lubrication points, maintenance schedules, hoisting, jump starting, towing, and vehicle storage procedures. For the 3.5L application, the manual gives service data such as 87 L (23 gal.) gasoline fuel-tank capacity, 5.2 L (5.5 qts.) engine-oil capacity including filter, and 9.9 L (10.5 qts.) cooling-system capacity including the heater and recovery/reserve bottle filled to MAX. It also lists service-fill and overhaul-fill values for the four-speed automatic transaxle and separate capacities for AWD components. Schedule A and Schedule B maintenance information is included for different operating conditions.

Chapters Covered

• Introduction
  • Body Code Plate; Fastener Identification and Usage; International Symbols; Metric System; Torque References; VIN and vehicle labels
• 0 Lubrication & Maintenance
  • Fluid Types and Capacities; Maintenance Schedules; Hoisting; Jump Starting; Towing; Vehicle Storage

  IMAGES PREVIEW







• 2 Suspension
  • Front Suspension; Rear Suspension; Wheel Alignment
• 3 Differential & Driveline
  • Front and Rear Half Shafts; Propeller Shaft; Rear Driveline Module
• 5 Brakes
  • Base Brakes; Antilock Brake System; brake diagnosis, bleeding, service and specifications
• 7 Cooling
• 8A Audio/Video
• 8B Chime/Buzzer
• 8C Clock
• 8E Electronic Control Modules
• 8F Engine Systems
• 8G Heated Systems
• 8H Horn
• 8I Ignition Control
• 8J Instrument Cluster
• 8L Lamps
• 8M Message Systems
• 8N Power Systems
• 😯 Restraints
• 8P Speed Control
• 8Q Vehicle Theft Security
• 8R Wipers/Washers
• 8T Navigation/Telecommunication
• 8W Wiring
• 9 Engine
• 11 Exhaust System
• 13 Frame & Bumpers
• 14 Fuel System
• 19 Steering
• 21 Transmission/Transaxle
• 22 Tires/Wheels
• 23 Body
  • Body service, weatherstrips, structure, opening dimensions, sealing, structural adhesive and weld-location information
• 24 Heating & Air Conditioning
  • Front and Rear Controls; Front and Rear Distribution; Plumbing; performance tests and system specifications
• 25 Emissions Control
  • Evaporative Emissions; Exhaust Gas Recirculation; On-Board Diagnostics
• Component and System Index

Taken as a whole, these groups give the technician a route from symptom and system identification to testing, component access, removal and installation, tightening specifications, adjustment, and verification. The manual does not stop at routine servicing: major groups contain detailed component-level procedures and technical drawings that show how assemblies fit together and where fasteners, connectors, sensors, seals, links, shafts, and other service points are located.

Suspension, Alignment and Driveline Repair Depth

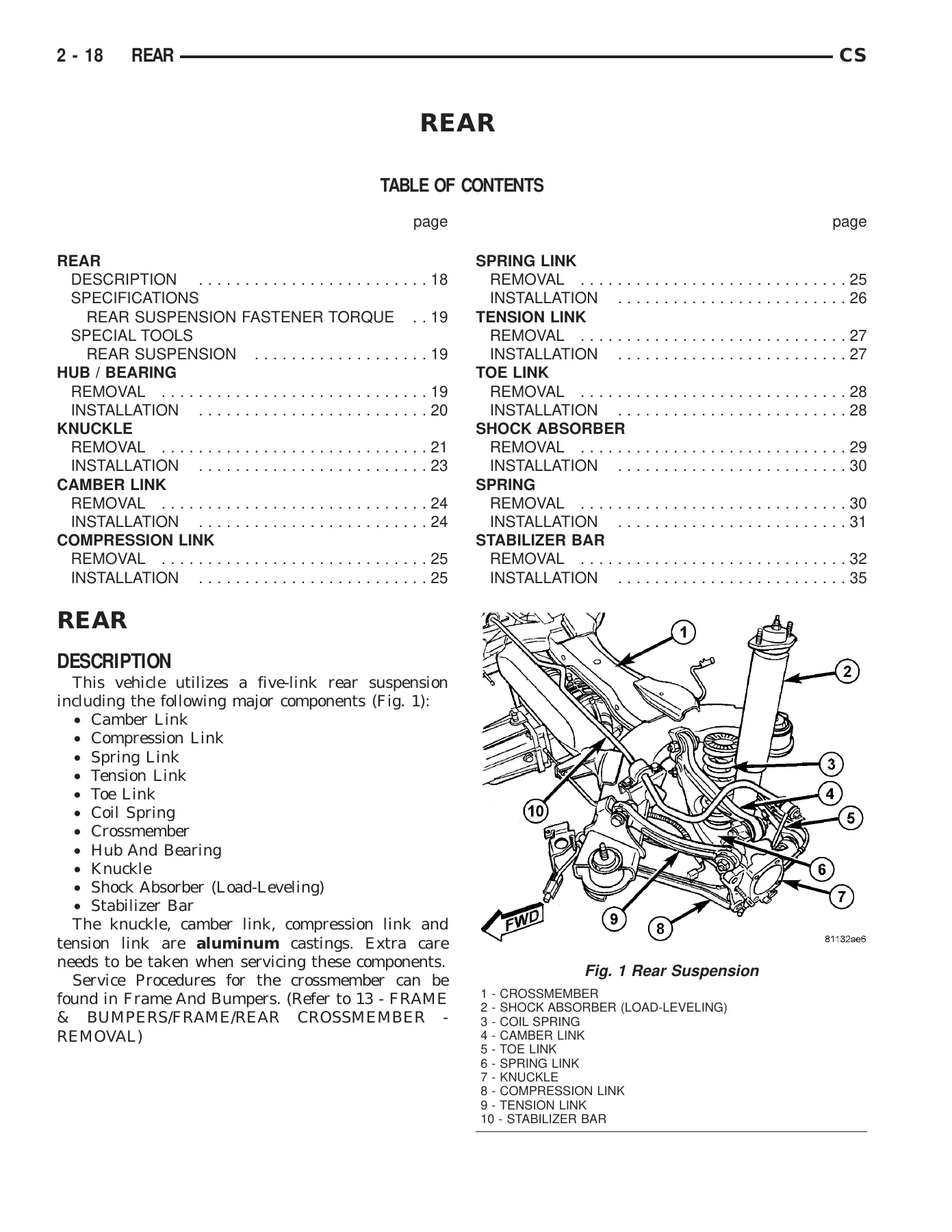

The suspension section illustrates the depth of the service information. Front suspension coverage includes hub and bearing diagnosis, steering knuckle service, lower ball-joint checks, lower-control-arm procedures, stabilizer-bar service, and strut removal, disassembly, assembly, and installation. The rear section covers the five-link suspension layout, hub and bearing, knuckle, camber link, compression link, spring link, tension link, toe link, shock absorber, coil spring, and stabilizer bar. Fastener torque charts appear alongside procedures, and special tools are identified where the procedure calls for them.

Wheel-alignment material covers camber, caster, toe, toe-out on turns, dynamic toe pattern, steering-axis inclination, included angle, thrust angle, suspension and steering diagnosis, alignment setup and adjustment, and curb-height measurement. The service manual supplies preferred settings and acceptable ranges, while the procedures explain the order in which rear toe and front toe are set and how front camber can be corrected when the specified service package is used.

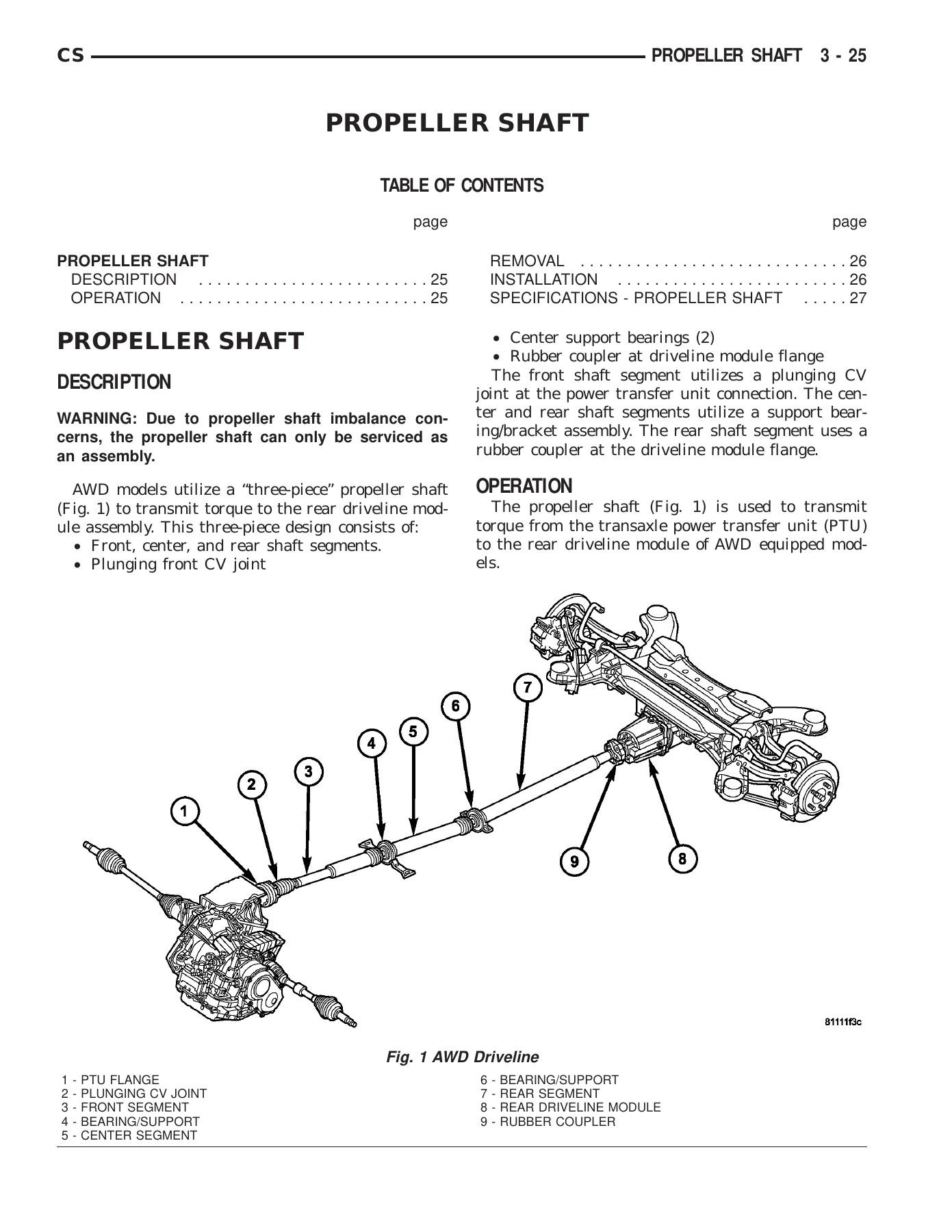

The differential and driveline group extends through front and rear half shafts, inner and outer CV boots, the AWD propeller shaft, and the rear driveline module. Front half-shaft coverage includes diagnosis for clicking, vibration, clunking, and shudder conditions plus removal, installation, and boot service. AWD material illustrates the three-piece propeller shaft, its center support bearings and rubber coupler, and the rear driveline module with the bi-directional overrunning clutch, viscous coupling, and differential assembly. The module section includes operating theory, noise diagnosis, removal, disassembly, assembly, installation, fluid procedures, seals, and component service.
