Chevrolet Spark 0.8L 1.0L Sirius D3 D4 Service Manual – Engine, Transaxle, Brakes, Electrical, HVAC

Description

Chevrolet Spark 0.8L & 1.0L Sirius D3/D4 Service Manual

This Chevrolet Spark 0.8L 1.0L Sirius D3 D4 Service Manual is a full workshop reference for the Spark equipped with the 0.8L SOHC and 1.0L SOHC engines running Siemens Sirius D3 and Sirius D4 engine management (with FENIX 5MR reference material for the 0.8L SASCO variant). It brings together engine performance, drivetrain, chassis, brake, electrical, and HVAC procedures into a single PDF, so one document covers the major systems on the vehicle rather than forcing you to track down separate volumes.

The manual is written for technicians and experienced DIY owners. Torque values, resistance values, voltage references, terminal pin-outs, and enable conditions are printed directly alongside the procedures, so you can diagnose and repair with the numbers in front of you instead of guessing.

File Details

• Manual type: Service Training Manual / Instructor Guide
• Brand: Chevrolet
• Models covered: Chevrolet Spark 0.8L SOHC, Chevrolet Spark 1.0L SOHC
• Engines: 0.8L SOHC (FENIX 5MR / Sirius D3), 1.0L SOHC (Sirius D4)
• Language: English technical content with Spanish chapter titles and contents pages
• Page count: 191 pages
• File format: PDF

Chapters Covered

• Motor Sirius D4 (Engine)
  • Engine and ECM Type: 0.8 and 1.0L
  • ECM Inputs and Outputs
  • Upstream and Post Oxygen Sensors
  • Engine Coolant Temperature Sensor (ECT)
  • Intake Air Temperature Sensor (IAT)
  • Main Throttle Idle Actuator (MTIA)
  • Vehicle Speed Sensor (VSS for A/T)
  • Manifold Absolute Pressure Sensor (MAP)
  • Crankshaft Position Sensor (CKP)
  • Camshaft Position Sensor (CMP)
  • Knock Sensor
  • A/C Evaporator Thermistor
  • Power Steering Pressure Switch
  • Rough Road Detection
  • Fuel Injector
  • EI System (Electronic Ignition)
  • Electronic Exhaust Gas Recirculation (EEGR)
  • Controlled Charcoal Canister Purge (CCCP) Solenoid
  • ECM and Diagnosis, DTC Reference
• Caja de Cambios Manual (Manual Transaxle)
  • Clutch and Specifications
  • Clutch Special Tools
  • Drive Shaft Parts
  • Manual Transaxle Overview
  • Shift Control and Reverse Gear Miss-Shift Prevention
  • Gear Train
  • Differential
  • Maintenance and Fluid Change
  • Gear Shift Control Cable Removal and Installation
  • Transaxle Special Tools
• Suspension and Steering
  • Front Suspension and Rear Suspension
  • Front Toe Adjustment
  • Rear Wheel Bearing Adjustment
  • Power Steering System and Pump
  • Control Valve Unit and Operation
  • Power Steering Pressure Switch
  • Steering Column
  • Steering Gear Parts and Rack
  • Straight Ahead Check
  • System Pressure Test
  • Bleeding the System
  • Pre-Loading the Steering Gear
• Brakes and ABS
  • Brake System and Specifications
  • Front Brakes (Disc)
  • Rear Brakes (Drum)
  • Parking Brake
  • Master Cylinder
  • Fluid Lines (ABS)
  • Lining Inspection and Rotor Inspection
  • Need for ABS, ABS Stop, Electronic Brake Distribution
  • EBC 430 System and Block Diagram
  • Wheel Speed Sensor
  • Hydraulic Control Unit and ECBM
  • Isolation Valve / Dump Valve
  • LPA / HPA, Return Pump Motor and Return Pump
  • ABS Warning Light
  • Normal / Isolation / Dump / Reapply Modes
  • Proportioning Function and DTCs
• Electrical
  • Supplemental Restraint System (SRS)
  • Airbag Deployment Condition and Timing
  • Electronic Sensing and SDM
  • Steering Wheel Coil Module
  • Wiring Harness and Airbag Warning Lamp
  • Diagnostic Fault Codes and Diagnosis
  • Keyless Entry System, Transmitter, Receiver and Key Coding
  • Immobilizer System, ICU, ECM and Key Coding
  • Body Wiring, Engine Harness, Instrument Harness, Body Harness, Rear Door Harness
• HVAC
  • Air Conditioning Schematic and Specifications
  • Control Panel
  • Compressor and Cooling Fan
  • Condenser, Receiver-Drier, Dual Cut Switch
  • Evaporator and Thermistor
  • Expansion Valve and Heater Core
  • A/C and Non-A/C Routing Diagrams

Across its 191 pages, the Chevrolet Spark 0.8L 1.0L Sirius D3 D4 Service Manual moves from the engine management side — sensor-by-sensor diagnostics, ECM pin-outs, injector testing, and DTC tables — through the drivetrain and chassis, then into ABS hydraulics, SRS and keyless/immobilizer electronics, and finally the HVAC circuit. For the Spark owner or independent tech, that means the manual supports a genuinely wide range of jobs: chasing a P0107 or P0171 on a Sirius D4, measuring an upstream O2 sensor heater at 6 ohms, checking MTIA throttle position signal voltage at idle, adjusting front toe, pre-loading the steering gear, testing rear wheel bearing end play, bleeding the power steering system, servicing the clutch and gear train, rebuilding the differential, tracing an ABS isolation valve circuit, diagnosing an SRS fault code, coding a new immobilizer key, or checking compressor cut-off conditions at the evaporator thermistor.

What makes this Chevrolet Spark service manual useful in practice is not just the breadth but the specificity. The engine section gives reference voltages at ignition ON (4.8–5.2 V for ECT and IAT circuits, 4.5–5.5 V for MAP reference), resistance tables across temperature, injector static and dynamic flow rates, and fuel cut-off and re-wetting RPMs. The transaxle chapter lists gear ratios, oil capacity, and the shift cable adjustment torque. The brakes chapter carries ABS relay operating voltage, wheel speed sensor air gaps and resistances, and the full EBC 430 DTC list. The HVAC chapter prints the compressor cut-off thresholds for CTS, evaporator thermistor, RPM, and dual cut-off switch. These are the numbers you actually need on the tool bench, and they are printed as tables and call-outs rather than buried in prose.

Systems and Diagnostics Coverage

The diagnostic content spans the ECM input/output map, oxygen sensor closed-loop behavior, MAP and knock sensor signal ranges, crankshaft and camshaft position sensor circuit checks, EGR enable conditions, canister purge solenoid resistance and duty control, and rough road detection through the ABS controller or hall sensor. On the brake side, the manual walks through normal braking, isolation mode, dump mode, reapply mode, and the proportioning function, with the EBCM pin-out, isolation and dump valve construction, LPA and HPA function, and return pump operation all illustrated. The electrical section covers SRS deployment conditions, safing sensor and crash sensor operation, warning lamp bulb check, and full diagnostic fault code tables, plus keyless entry arming, alarm, disarming and re-synchronization, and immobilizer virgin/learned/neutral modes with key coding procedure.

Because this is a service training manual / instructor guide that spans several Spark systems, it is strongest when used as a system-level reference for the 0.8L and 1.0L SOHC platforms. It is not a single-system booklet — it is the full training volume, which is exactly what you want when one vehicle needs engine, drivetrain, chassis, brake, electrical, and HVAC information in one place.

Why This Manual Matters

Correct procedures and correct specifications are what separate a repair that lasts from a comeback. Reading the wrong resistance value for a CKP sensor, guessing at MTIA signal voltage, or skipping the steering gear pre-load sequence can turn a straightforward job into repeat labour. This Chevrolet Spark Sirius D3 D4 manual puts the reference values, torque figures, and step-by-step inspection routines in one PDF, so the information is on hand when the vehicle is on the lift or in the bay.

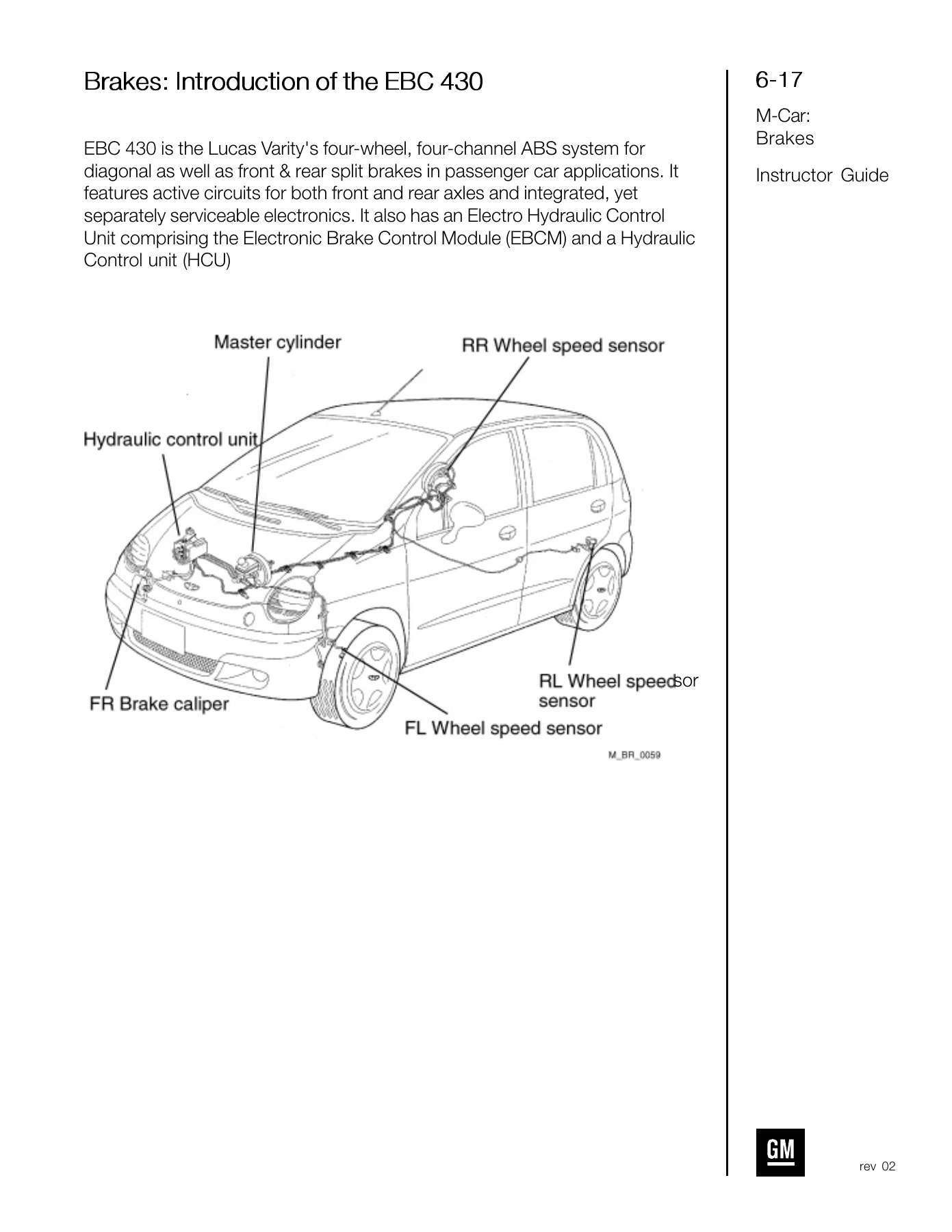

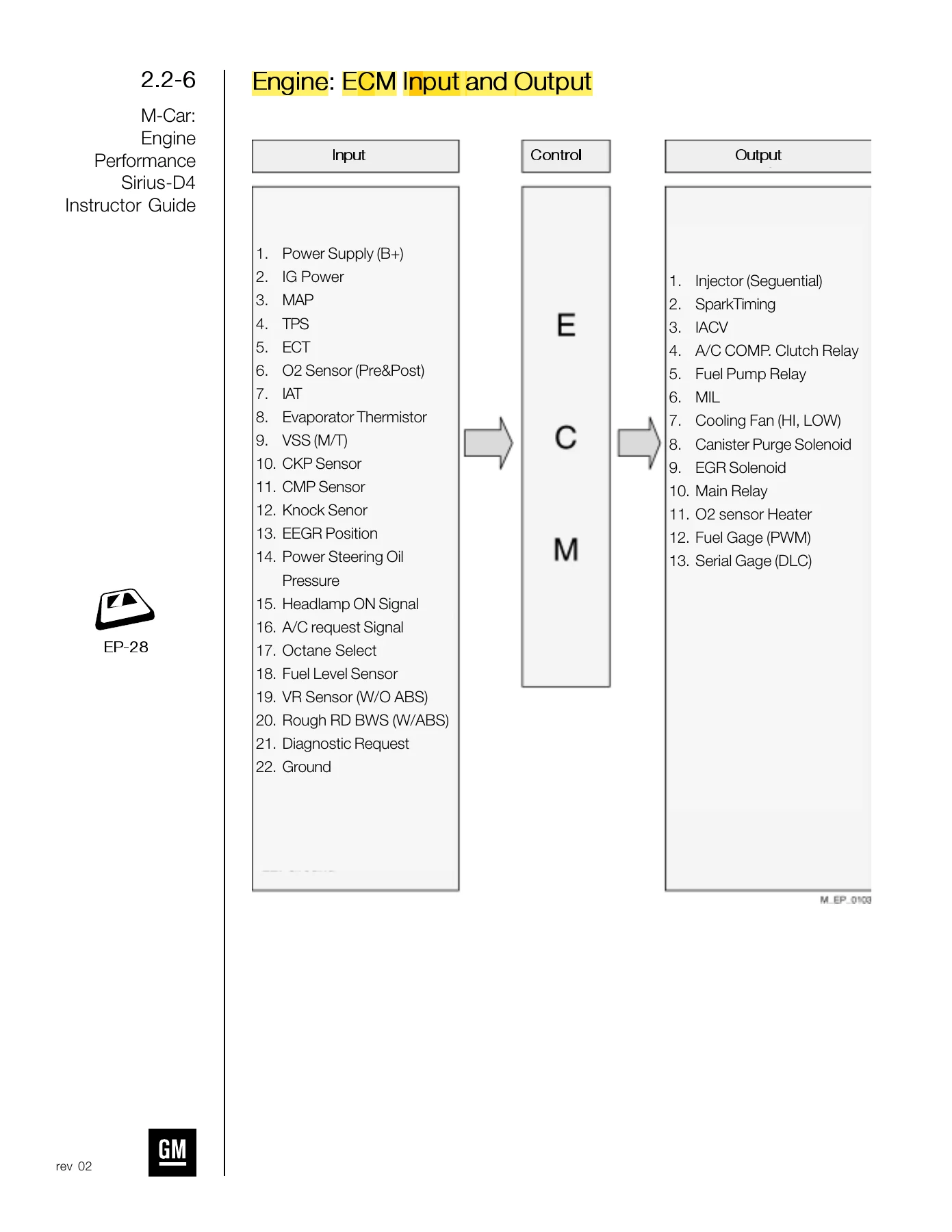

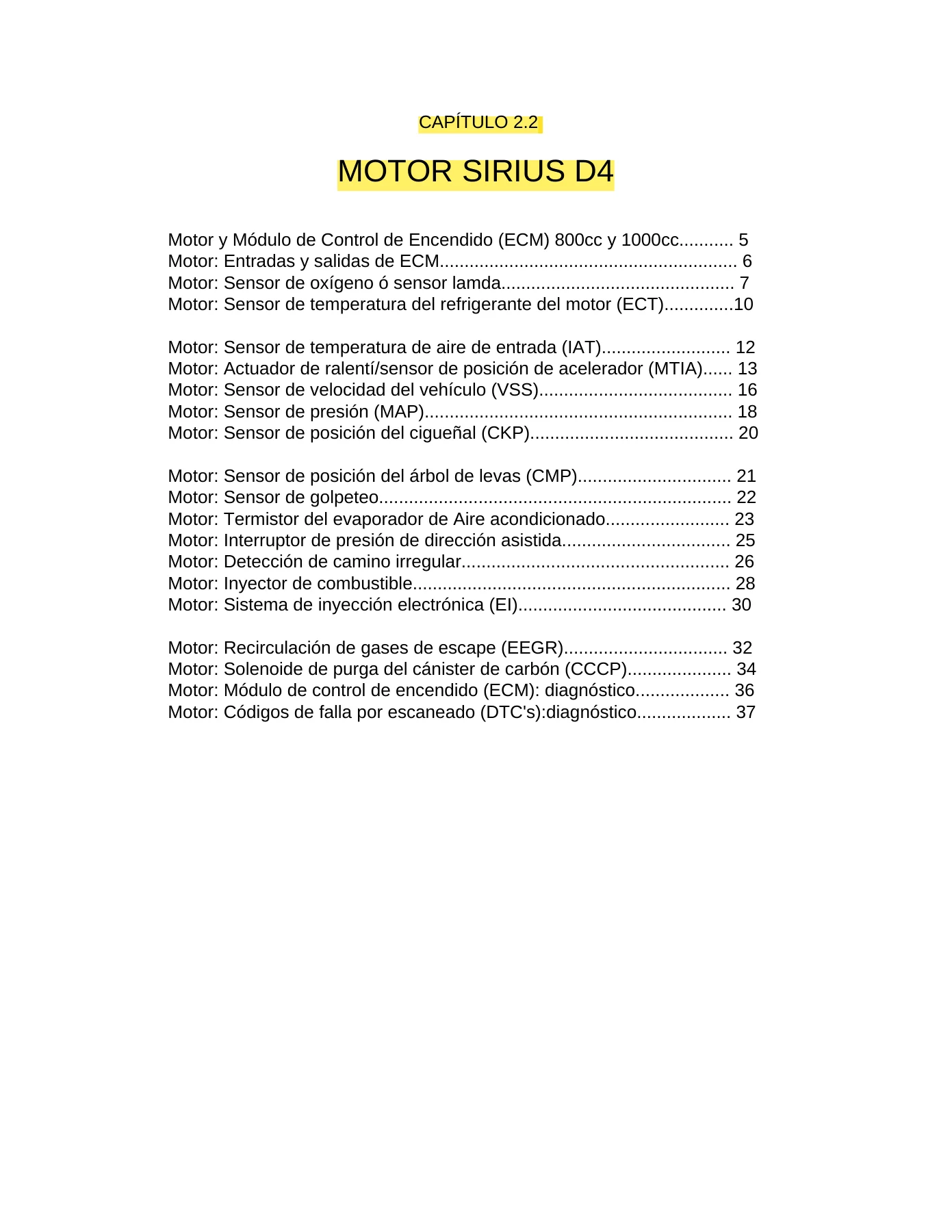

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as an instant PDF download — no shipping, no waiting for a physical book. Open it on a laptop, tablet, or phone in the workshop, print only the pages you need for the job at hand, and keep the full 191-page reference available for the next repair. Whether you are servicing a 0.8L SOHC with FENIX 5MR management or a 1.0L SOHC with Sirius D4, the Chevrolet Spark 0.8L 1.0L Sirius D3 D4 Service Manual gives you the procedures, specs, and diagrams to work through the job properly.
