2005 Yamaha BT1100 5JN4-AE1 Supplementary Service Manual

Description

2005 Yamaha BT1100 5JN4-AE1 Supplementary Service Manual

This 2005 Yamaha BT1100 Supplementary Service Manual is the companion workshop document for the BT1100, identified by model code 5JN4 and supplement reference 5JN4-AE1. Produced by Yamaha Motor Italia S.p.A. and issued as a first edition in September 2004, it is a 117-page PDF written for Yamaha dealers and qualified motorcycle mechanics. Inside are the model-specific specifications, torque values, wear limits, procedures, wiring data and diagnostic routines needed to service and repair the BT1100 correctly. Because it is a supplementary volume, it is intended to be used alongside the base BT1100 service manual rather than as a stand-alone replacement for it.

File Details

• Manual type: Supplementary Service Manual
• Brand: Yamaha
• Model: BT1100 (model code 5JN4 / supplement 5JN4-AE1)
• Language: English
• Page count: 117 pages
• File format: PDF
• Edition: First edition, September 2004
• Publisher: Yamaha Motor Italia S.p.A.
• Printed in: Italy

Chapters Covered

• General Information — chapter structure, illustrated symbols, lubrication and replacement symbols, safety notations and the important-information key.
• Specifications — general specifications, maintenance specifications for the engine, chassis specifications, electrical specifications, engine and chassis tightening torques, general torque specifications and the metric-to-imperial conversion table.
• Periodic Inspections and Adjustments — periodic maintenance and lubrication interval chart, front brake lever position adjustment, and fuse checking and replacement.

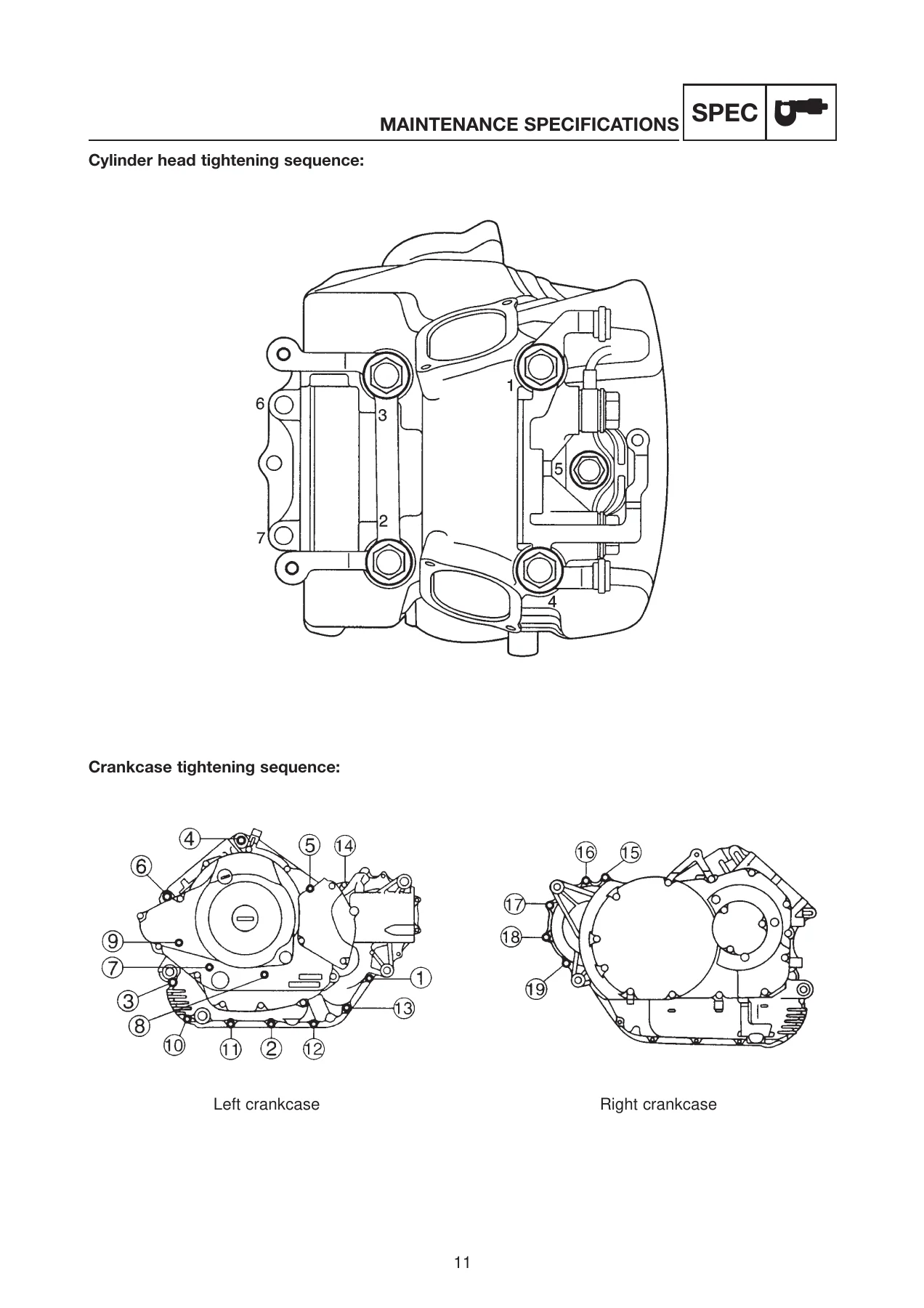

• Engine — engine removal sequence including seat, storage compartment, side covers, fuel tank, air filter case, carburetor and exhaust system, carburetor removal, lubrication chart and oil circuit diagrams, and the cylinder head and crankcase tightening sequences.
• Carburetor — carburetor assembly removal and the surrounding intake, breather and connection layout.
• Chassis — front brake master cylinder removal and disassembly, front brake caliper removal and disassembly, handlebar removal and installation, and steering head / lower bracket removal.
• Electrical — electrical component locations, switch continuity checks, bulb and bulb-socket testing, immobilizer system description with key registration, and self-diagnosis error codes.
• Troubleshooting — immobilizer, ignition, electric starting, charging, lighting, signaling, fuel pump and carburetor heater systems.

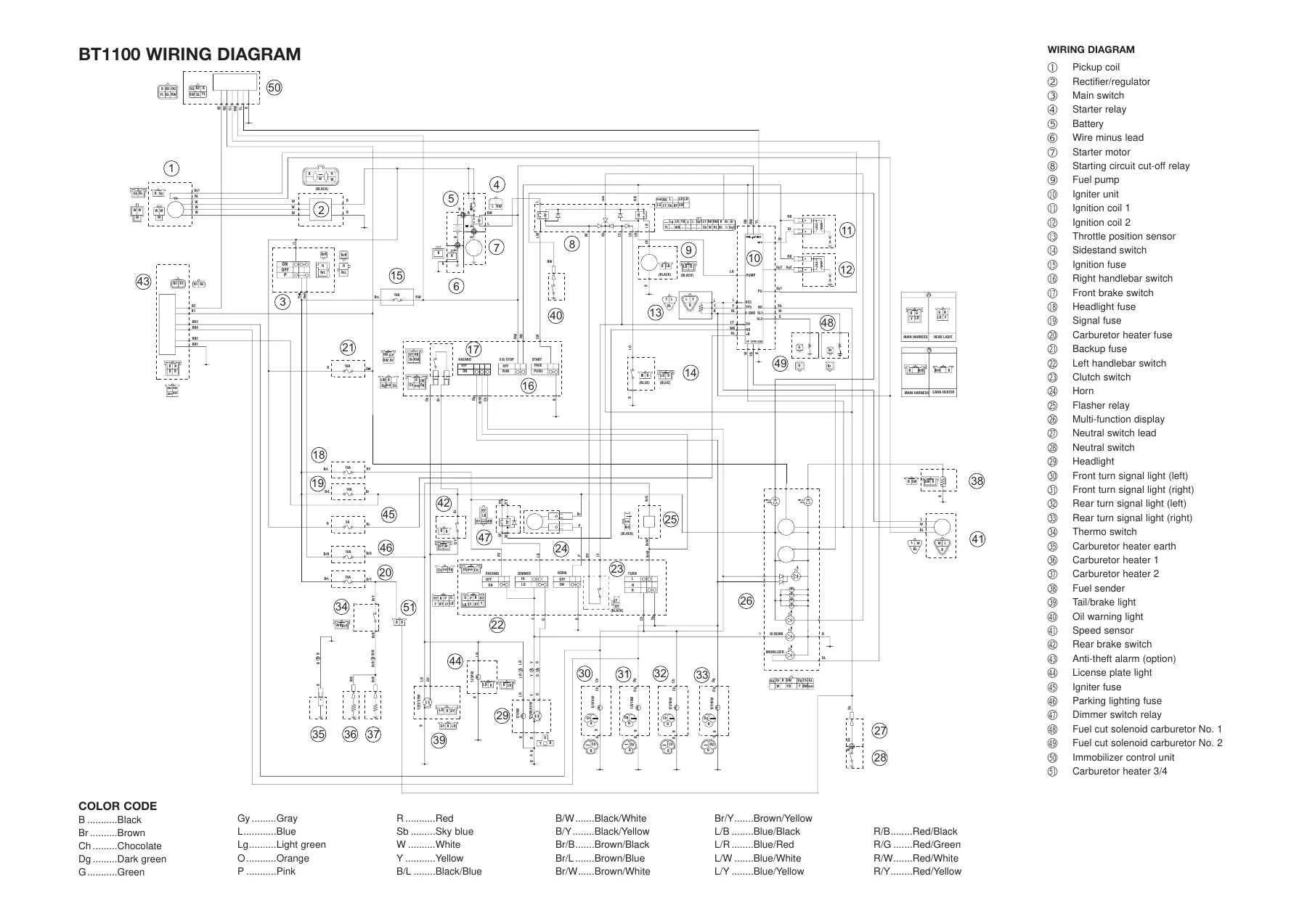

• Wiring Diagram — full machine circuit diagram with colour-code legend.

Read together, these chapters give a technician the model-specific numbers and sequences that separate a correct BT1100 repair from an approximate one. The engine chapter documents the air-cooled V-twin’s removal and reinstallation order, the lubrication circuit, and the correct bolt-tightening sequence for the cylinder head and crankcase — a detail that matters on a V-twin where an incorrect pattern can distort a mating face. The specifications chapter pairs each standard value with the wear limit Yamaha publishes, so a cylinder bore, camshaft lobe, camshaft-to-cap clearance or wheel runout can be measured against the factory figure rather than guessed at.

Specifications and Electrical Data

This Yamaha BT1100 5JN4-AE1 supplementary service manual carries the numbers a workshop actually reaches for: the 1,063 cc air-cooled four-stroke SOHC V-twin with a 95 × 75 mm bore and stroke and 8.3:1 compression, a 1,000 kPa compression pressure target, and 3.0 L / 3.1 L / 3.6 L engine oil capacities for periodic change, filter replacement and total fill respectively. It also lists the hypoid SAE 80 (API GL4) final gear oil quantity, front fork air spring data with a 0.537 L oil capacity and 117 mm oil level on Fork oil 10W, and the 17 × MT3.50 front and 17 × MT5.50 rear cast aluminium wheel dimensions with runout limits.

On the electrical side the document details the T.C.I. ignition with a 189–231 Ω pickup coil, the F6T552/MITSUBISHI ignition coil primary and secondary resistances, the F4T654/MITSUBISHI A.C. magneto rated at 14V 350W at 5,000 r/min, and the SH650D-11/SHINDENGEN regulator rectifier with its 14.1–14.9 V no-load regulated voltage. A 12 V battery, an SM-13/MITSUBA 0.6 kW starter motor and an MS5F-421/JIDECO starter relay with a 180 A rating round out the starting circuit. The immobilizer chapter explains the code re-registering key, standard key registration procedure and standby-mode behaviour, while the self-diagnosis chapter tabulates the error codes the tachometer needle signals for the throttle position sensor, fuel-cut solenoids, ignition coils and speed sensor.

Why the BT1100 Supplementary Manual Matters

Working on a motorcycle without the factory procedure and torque figures is a gamble on safety-critical parts. Brake caliper bolts, master cylinder unions, steering head ring nuts, swingarm pivot and shock absorber fasteners all carry specific values in this manual, and the torque tables list them alongside the thread size and quantity so nothing has to be estimated. The wiring routing diagrams show where the harness, throttle cables, brake hoses and spark plug leads are meant to sit, which prevents chafing and tension faults that later show up as intermittent electrical trouble.

Diagnostic trees in the troubleshooting chapter walk through the starting circuit cut-off relay, the fuel pump relay, the dimmer switch relay, the thermo switch and the carburetor heaters step by step, with the pocket tester probe placements and expected readings given inline. That structure lets a technician isolate a fault instead of replacing parts on suspicion, and the same applies to the charging-system checks, the immobilizer voltage tests and the lighting and signaling voltage tests.

IMAGES PREVIEW

Instant PDF Delivery

The 2005 Yamaha BT1100 5JN4-AE1 supplementary service manual is delivered as an instant PDF download after checkout — no shipping, no waiting for a physical book. The file opens on a workshop PC, laptop, tablet or phone, and any page covering a torque value, wiring colour or diagnostic step can be printed and taken to the bike. Whether you are a Yamaha dealer technician, an independent mechanic or an owner tackling your own maintenance, this 117-page supplementary manual gives you the BT1100-specific reference material to do the job properly.
