2007 Isuzu N-Series 4HK1-TC Diesel Engine Workshop Manual PDF – LG4HK-WE-0761

Description

2007 Isuzu N-Series 4HK1-TC Diesel Engine Workshop Manual

This Isuzu N-Series 4HK1-TC engine workshop manual is the complete service documentation for the 2007 model year N-Series equipped with the 4HK1-TC diesel engine. Published under document number LG4HK-WE-0761 by Isuzu Motors Limited Service Marketing Department in August 2006, this 301-page PDF provides the technical depth needed to diagnose, repair, and overhaul the 4HK1-TC and its supporting systems. Every procedure, specification, and torque value is drawn directly from the original Isuzu engine service documentation.

File Details

• Manual type: Engine Workshop Manual
• Brand: Isuzu
• Model: N-Series
• Engine: 4HK1-TC
• Model year: 2007
• Document number: LG4HK-WE-0761
• Edition: First edition, August 2006
• Language: English
• Page count: 301 pages
• File format: PDF

Chapters Covered

• 6A — Engine Mechanical (4HK1-TC): Service precautions, troubleshooting, main data and specifications, special tools, engine assembly removal and installation, engine mount, cylinder head cover, PCV hose, inlet cover, turbocharger and exhaust manifold, timing gear train, rocker arm shaft assembly, camshaft assembly, valve stem seal and valve spring, cylinder head, piston and connecting rod, flywheel, front cover, crankshaft front oil seal, crankshaft rear oil seal, crankshaft, cylinder block, lubrication system, oil filter assembly, oil filter cartridge, oil cooler, oil pan, oil pump, oil pressure switch, air cleaner element
• 6B — Cooling System: Service precautions, functional check, water pump, thermostat, engine coolant temperature sensor, radiator and intercooler, drive belt
• 6C — Fuel System: Service precautions, troubleshooting, fuel system check, fuel filter assembly, fuel filter element, fuel injector, fuel supply pump, fuel rail, fuel sedimenter switch, fuel tank, fuel gauge unit
• 6D — Engine Electrical: Service precautions, battery, charging system, generator, starting system, starter, preheating system, glow plug replacement
• 6F — Exhaust System: EGR system, EGR valve and EGR cooler, exhaust system, exhaust pipe, exhaust brake system, exhaust brake

What This 4HK1-TC Engine Manual Covers

The 4HK1-TC is a 5.2-liter inline four-cylinder diesel engine built for the Isuzu N-Series cab-over commercial truck platform. This manual addresses both the 4HK1-TCS and 4HK1-TCN variants, covering the complete engine assembly from cylinder head to oil pan, along with the cooling, common rail fuel injection, electrical, and exhaust aftertreatment systems that support it. The document is organized into five sections, each opening with service precautions and safety information before moving into removal, inspection, repair, and installation procedures.

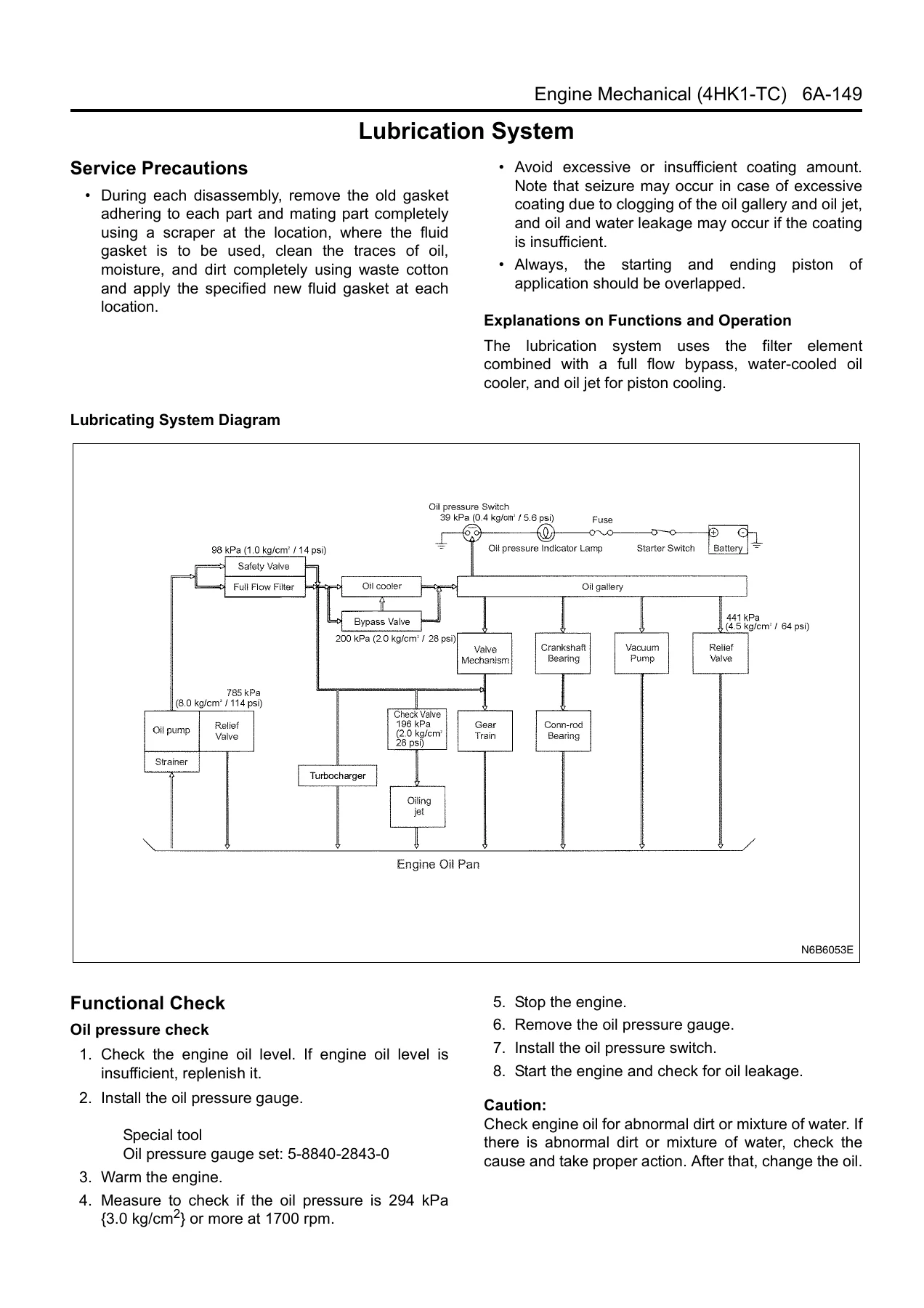

Section 6A, Engine Mechanical, is the largest portion of the manual and provides the foundation for any major engine work. It details the removal and installation of the engine assembly, including the proper lifting and support points, and walks through the timing gear train with backlash and end clearance measurements. The cylinder head section covers valve guide replacement, valve seat inspection and repair, valve stem seal installation, and the precise cylinder head bolt tightening sequence using the angular tightening method. Piston and connecting rod procedures include piston ring gap measurement, connecting rod bearing selection, piston pin clearance checks, and the correct orientation of the piston front mark and connecting rod forging mark. Crankshaft service covers main bearing clearance measurement with Plastigage, thrust clearance, journal diameter inspection, and the tufftriding surface treatment check. The lubrication system chapter includes oil pump disassembly, gear clearance measurement, oil cooler element replacement, and oil pressure switch testing.

Section 6B covers the cooling system, including the water pump, dual wax-pellet thermostats with 82°C and 85°C opening temperatures, the engine coolant temperature sensor with its resistance-to-temperature relationship, and the radiator and intercooler assembly. Drive belt adjustment for both the 50A and 80A generator configurations is included, with deflection specifications for new and reused belts.

Section 6C is dedicated to the common rail fuel system, one of the most technically demanding areas of the 4HK1-TC. It includes the fuel system check diagnostic table, fuel injector removal and installation with the injector ID code programming procedure, fuel supply pump timing and installation, fuel rail pressure limiter and sensor service, and fuel filter element replacement. The fuel injector ID code registration process is documented step by step, including the 22-figure input sequence required for ECM programming.

Section 6D covers engine electrical systems: battery testing and charging, generator disassembly and brush inspection, starter motor unit repair including armature and field coil testing, and the preheating system with glow plug replacement and resistance specifications.

Section 6F addresses the exhaust system, including the EGR valve and EGR cooler removal and installation sequence, the DPD (Diesel Particulate Diffuser) assembly with differential pressure sensor and exhaust temperature sensor service, exhaust brake operation and inspection, and the complete exhaust pipe routing from front pipe to tail pipe.

Technical Depth for Professional 4HK1-TC Service

This Isuzu 4HK1-TC workshop manual is not a generic overview. It contains the actual measurement values, torque specifications, and service limits that Isuzu technicians use in the field. For example, cylinder liner inner diameter is specified at 115.021–115.050 mm, piston diameter at 114.930–114.969 mm, and the piston-to-liner clearance at 0.052–0.120 mm. Valve clearance is set at 0.4 mm for both intake and exhaust when cold. Cylinder head bolt tightening follows a three-step process: 98 N·m, then 147 N·m, then a 30°–60° angular turn, with a final verification that M14 bolts reach at least 167 N·m. Connecting rod bolts use a similar angular method: 39 N·m followed by 60° then 30°. These are the exact values a technician needs to reassemble the 4HK1-TC correctly.

The manual also provides wear limits so you can determine whether a component can be reused or must be replaced. Camshaft lobe height limits are 51.8 mm for intake and 53.5 mm for exhaust. Valve stem diameter limits are 7.88 mm intake and 7.80 mm exhaust. Cylinder liner wear limit is 115.20 mm. Crankshaft journal diameter limits are 81.891–81.925 mm depending on journal number, with a tuffride layer check using copper ammonium chloride solution to verify the surface treatment is intact. The fuel system diagnostic table walks through vacuum testing at 8 inHg, fuel return volume measurement at 15 ml, and injector return flow at 3 ml to isolate fuel delivery problems.

The EGR system section explains the electronic control logic, including how the ECM uses engine speed, coolant temperature, and barometric pressure to calculate EGR valve opening, and how the EGR position sensor provides feedback for closed-loop control. The exhaust brake system section covers the vacuum-operated power chamber, butterfly valve inspection, and the operational check that confirms the valve touches its stopper at idle.

Why This Isuzu N-Series Engine Manual Matters

When you are repairing a 4HK1-TC diesel engine, the difference between a correct repair and a comeback is in the details. The common rail fuel system operates at extremely high pressure and is highly sensitive to foreign matter. The injector ID codes must be programmed into the ECM after replacement, or the engine will not run correctly. The cylinder head bolts use an angular tightening method that requires a torque wrench and angle gauge. The timing gear train must be aligned with the crankshaft and idle gear marks, or the engine will not start or will run poorly. This manual gives you the sequence, the values, and the precautions for every one of these procedures.

Whether you are a fleet technician maintaining a fleet of N-Series trucks, an independent shop taking on a 4HK1-TC engine repair, or an owner-operator who wants to understand the equipment, this 2007 Isuzu N-Series 4HK1-TC engine workshop manual provides the information you need. The PDF is delivered instantly after purchase, with no shipping and no waiting. It can be viewed on any device, printed for the shop, and used alongside the vehicle as you work. The 301-page document is the complete engine service reference for the 4HK1-TC, covering every system from the cylinder head to the exhaust tail pipe.

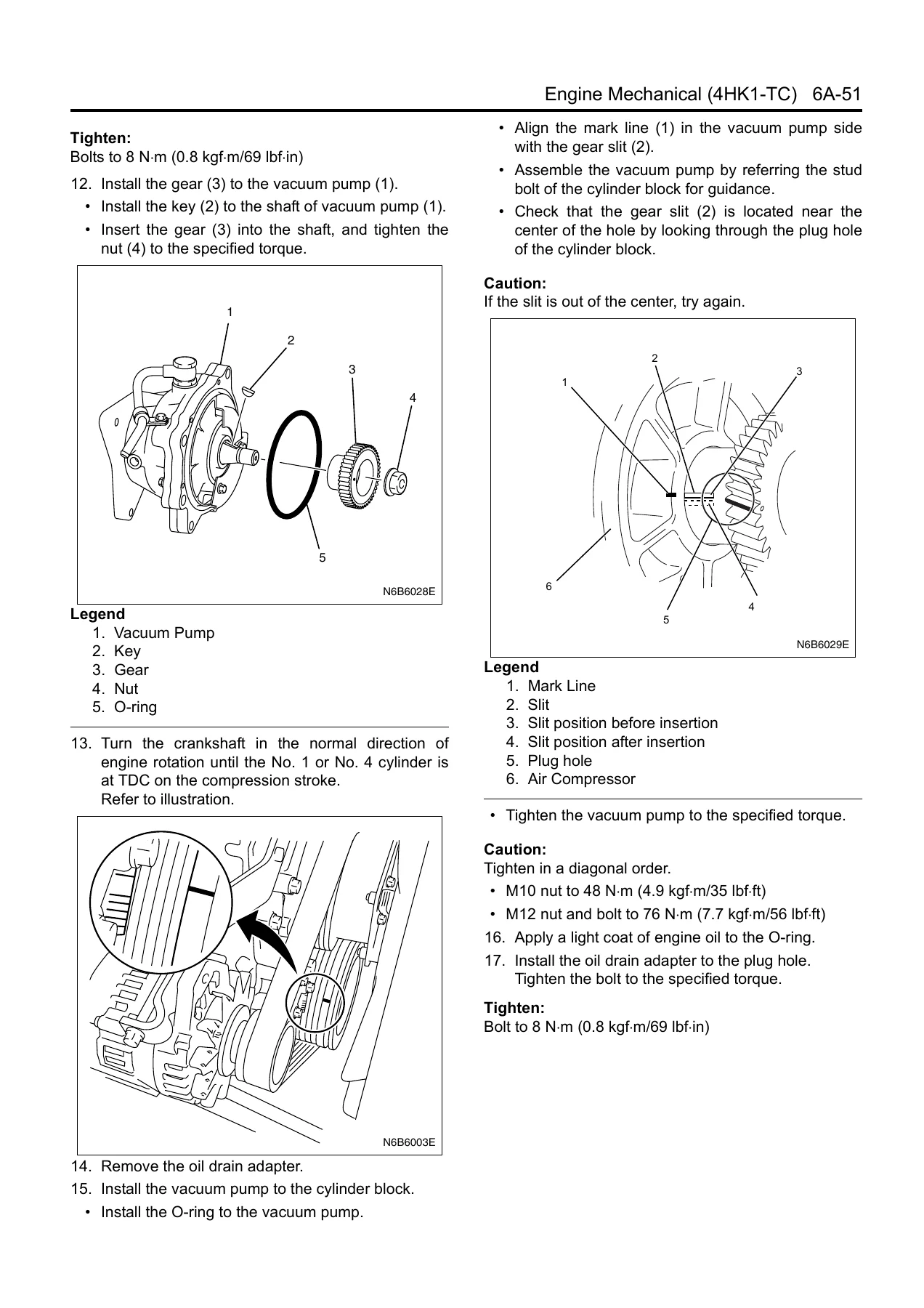

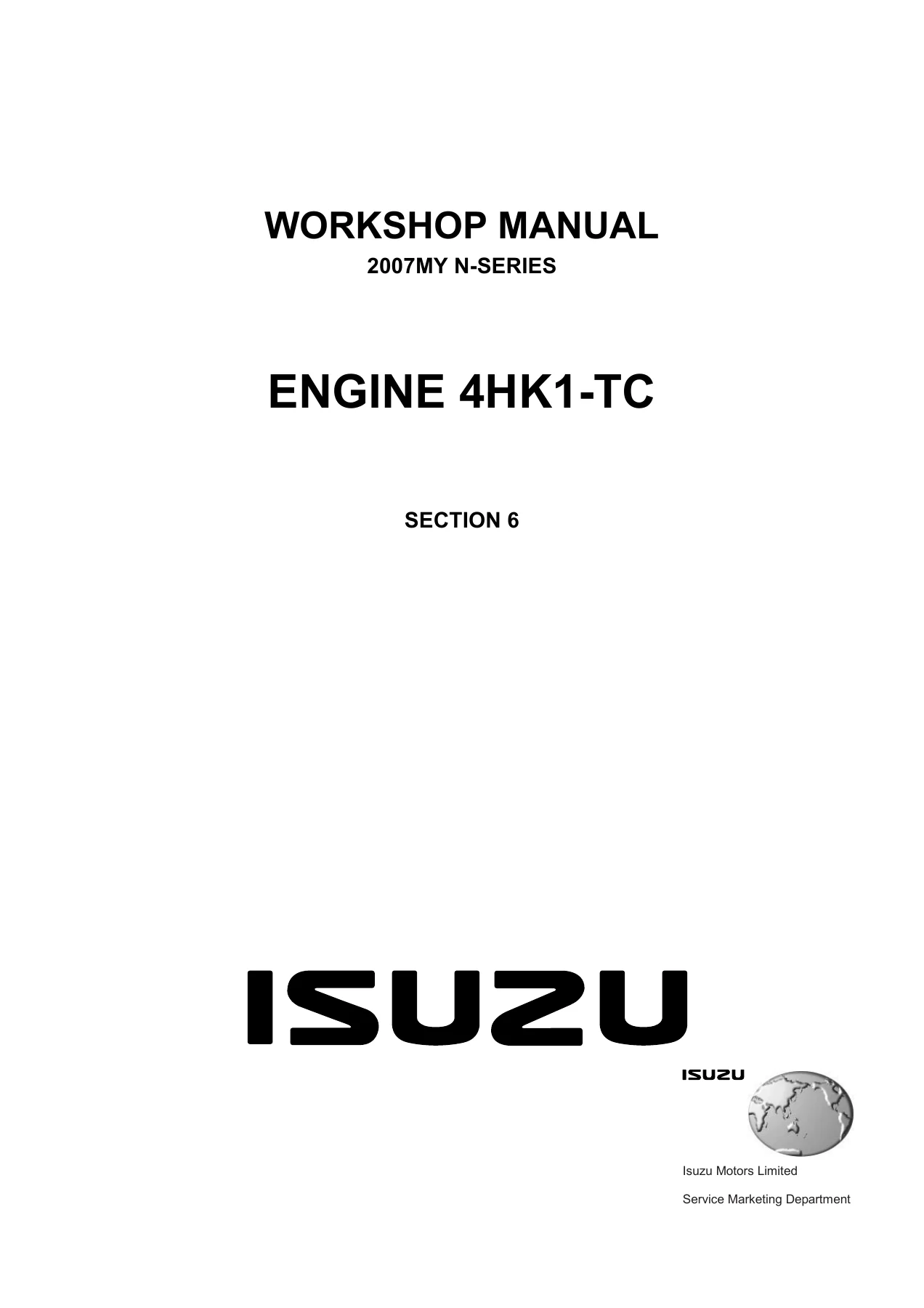

IMAGES PREVIEW
