2009-2010 Isuzu N Series 4JJ1 Engine Control System Workshop Manual
Original price was: $39.95.$23.95Current price is: $23.95.
379-page PDF workshop manual covering the Engine Control System for 2009/2010MY Isuzu N Series vehicles with the 4JJ1 engine. Includes engine-control diagnostics, DTC procedures, wiring and routing diagrams, ECM and sensor connector information, scan-tool data, fuel-rail and injection controls, EGR, turbocharger, DPD, symptom diagnosis, ECM replacement and service programming procedures.
Description

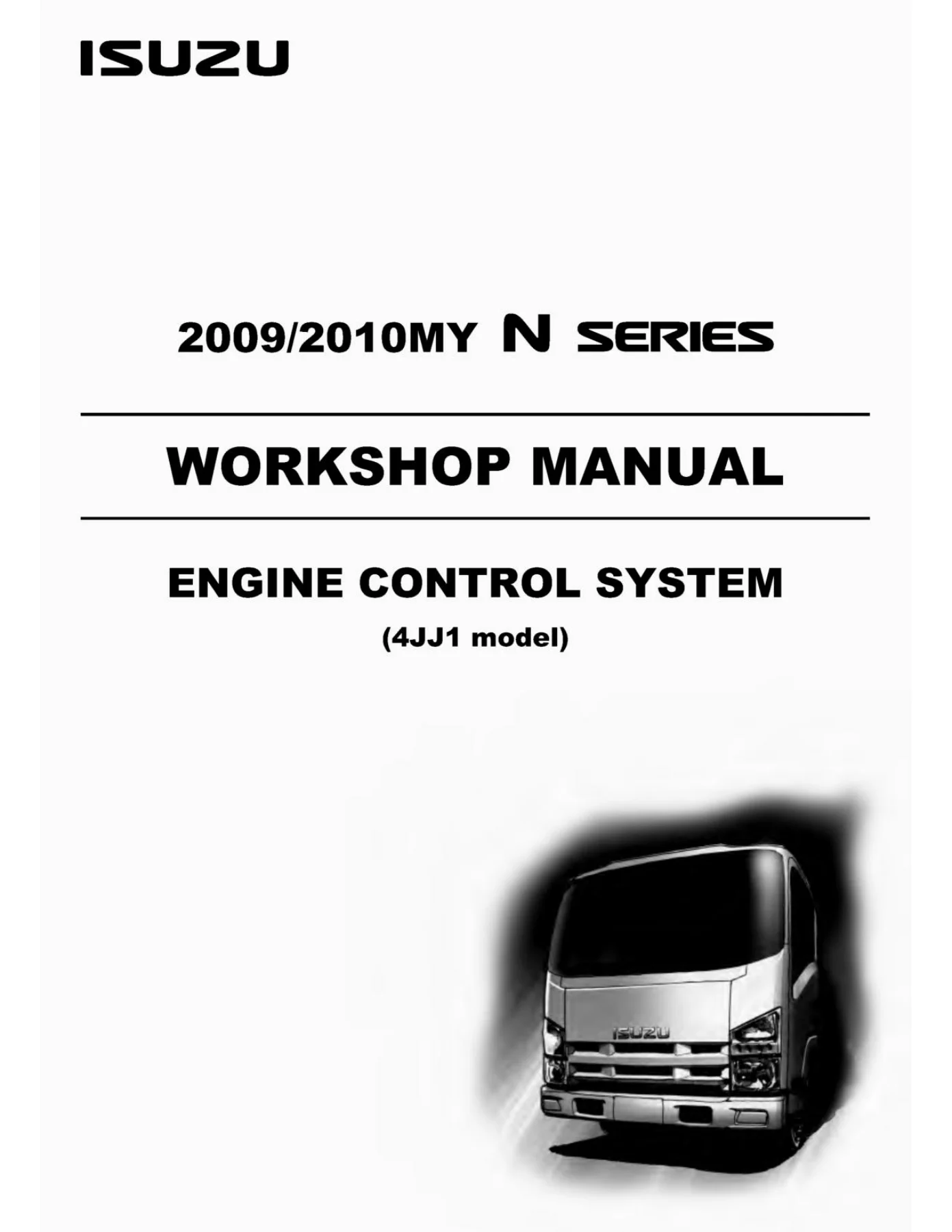

The 2009-2010 Isuzu N Series 4JJ1 Engine Control System Workshop Manual
A focused 379-page technical reference for diagnosing, testing and servicing the electronic engine-control systems used with the 4JJ1 engine. It covers the 2009/2010MY N Series and identifies NLR, NMR, NNR, NPR and NLS model applications within the component-location information. Rather than covering every vehicle system, this volume concentrates specifically on the Engine Control System section, giving technicians detailed procedures for ECM-controlled fuel injection, sensors, actuators, emissions controls, turbocharger control, DPD operation, electrical diagnosis and driveability troubleshooting.
Engine Control System Coverage for the 4JJ1
This Isuzu N Series 4JJ1 workshop manual is built around practical fault diagnosis. The opening material establishes specifications and diagnostic references, followed by wiring overviews, fuel and vacuum routing diagrams, component locations and connector information. The manual then moves deeply into diagnostic system checks, scan-tool data, individual diagnostic trouble codes, symptom-based troubleshooting, system checks, ECM replacement and programming, component descriptions and special tools.
The coverage is particularly useful when a fault involves several interacting systems. Engine speed, fuel rail pressure, boost pressure, intake air flow, coolant temperature, fuel temperature, accelerator-pedal signals, EGR position, intake throttle position, exhaust temperatures, exhaust differential pressure and other ECM inputs are treated as part of an integrated diagnostic process. The manual provides the technician with normal scan-tool references, circuit information and step-by-step decision tables so that testing can proceed logically rather than by replacing components without confirmation.
This manual is specifically the Engine Control System volume for the 4JJ1. It is not a complete N Series chassis, brake, transmission, body or full engine-mechanical workshop manual. Some procedures direct the technician to other workshop-manual sections when work extends beyond the engine-control system itself.
File Details
- Manual type: Workshop Manual – Engine Control System
- Brand and model: Isuzu N Series, 4JJ1 model
- Model year coverage: 2009/2010MY
- Language: English
- Page count: 379 pages
- File format: PDF
- Document number: LG4JJED-WE-1091
- Edition: Fifth Edition
- Publication: Oct., 2013
Chapters Covered
- Specifications
- Temperature vs Resistance
- Altitude vs Barometric Pressure
- Diagnostic Trouble Code Type Definitions
- Diagnostic Trouble Code List
- Overview Wirings

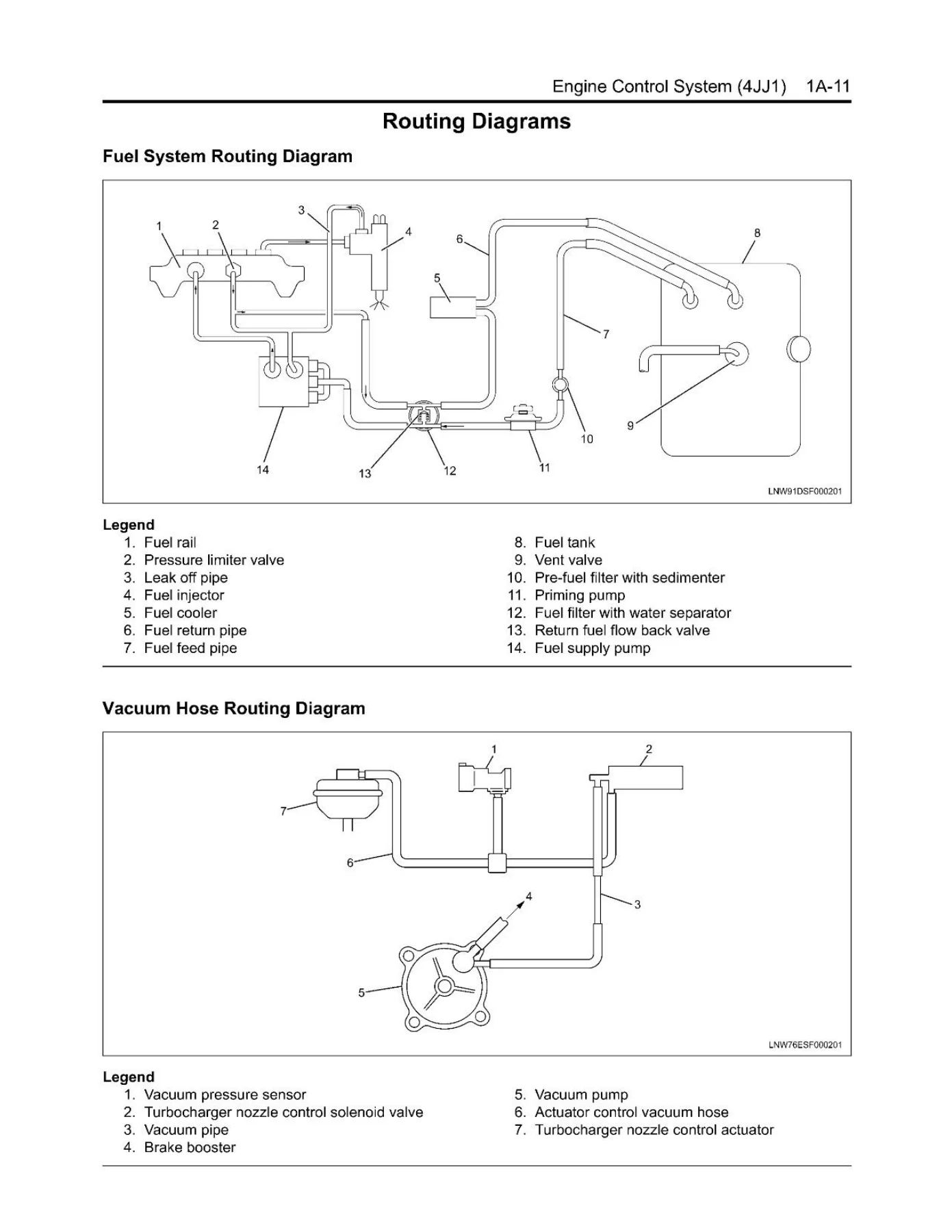

- Routing Diagrams
- Fuel System Routing Diagram
- Vacuum Hose Routing Diagram
- Component Locator

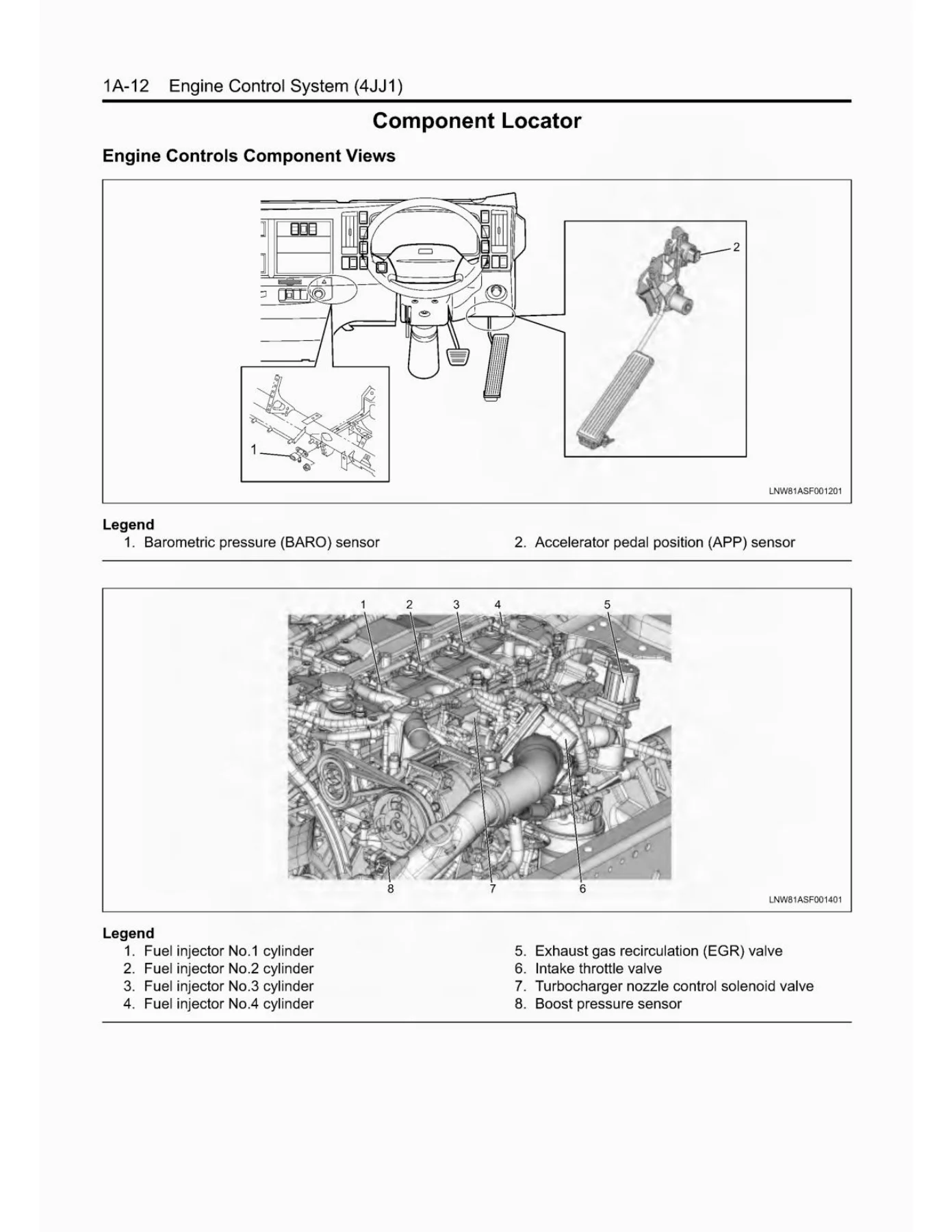

- Engine Controls Component Views
- Engine Control Module Connector End Views
- Engine Control Connector End Views
IMAGES PREVIEW
- Diagnostic Information and Procedures
- Engine Control System Check Sheet
- Diagnostic Starting Point – Engine Controls
- Diagnostic System Check – Engine Controls
- Scan Tool Data List
- Scan Tool Data Definitions
- Scan Tool Output Controls
- Scan Tool Does Not Power Up
- Scan Tool Does Not Communicate with CAN Device
- Engine Cranks but Does Not Run
- Diagnostic trouble code circuit and system testing
- Control System Checks
- EGR Control System Check
- Glow Control System Check
- Engine Warm Up Control System Check
- Exhaust Brake Control System Check
- Diesel Particulate Defuser Control System Check
- Symptoms – Engine Controls
- Intermittent Conditions
- Hard Start
- Rough, Unstable, or Incorrect Idle and Stalling
- High Idle Speed
- Cuts Out
- Surges
- Lack of Power, Sluggishness or Sponginess
- Hesitation, Sag or Stumble
- Abnormal Combustion Noise
- Poor Fuel Economy
- Excessive Smoke – Black Smoke
- Excessive Smoke – White Smoke
- DPD System Manual Regeneration Frequently
- DPD System Regeneration Long Time
- Repair Instructions
- Engine Control Module Replacement
- Service Programming System Description
- Service Programming System Remote Procedure
- Service Programming System Pass-Thru Procedure
- Description and Operation
- Engine Control Module Description
- Engine Control Component Description
- Fuel System Description
- Fuel System Component Description
- Fuel Injection System Description
- Exhaust Gas Recirculation System Description
- Turbocharger Description
- Diesel Particulate Defuser System Description
- Special Tools and Equipment
Together, these sections give a technician a structured route from identifying the complaint to checking communication, reviewing stored DTCs, comparing scan-tool values, locating components and connectors, testing circuits and actuators, confirming repairs and completing ECM-related service operations where required.
Extensive DTC and Driveability Diagnosis
A major portion of the 2009-2010 Isuzu N Series 4JJ1 Engine Control System Workshop Manual is devoted to diagnostic trouble codes. The manual includes DTC definitions and detailed testing for faults involving crankshaft and camshaft correlation, turbocharger boost control, exhaust throttle control, fuel rail pressure, fuel pressure regulation, injectors, mass air flow, intake air temperature, engine coolant temperature, throttle position, fuel temperature, EGR operation, glow circuits, exhaust temperature sensing, vehicle speed, ECM voltage and internal faults, communication systems, DPD operation, accelerator pedal position and other engine-control circuits.
Individual diagnostic sections explain the circuit involved, the conditions required for the code to run, the conditions that cause the code to set, ECM actions when the fault occurs, clearing conditions, diagnostic aids and step-by-step circuit or system testing. Many procedures identify the relevant ECM terminals, sensor or actuator connector pins and expected measurements. This makes the manual useful both for electrical fault tracing and for determining whether a problem originates with a sensor, actuator, wiring circuit, control module or associated mechanical system.
Symptom diagnosis is also extensive. Separate procedures address hard starting, unstable or incorrect idle, stalling, high idle speed, cutting out, surging, lack of power, hesitation, abnormal combustion noise, poor fuel economy, black smoke, white smoke and DPD regeneration concerns. These symptom charts complement the DTC procedures when a vehicle has a driveability complaint without an immediately obvious code-based cause.
Scan-Tool Data and Functional Tests
The manual provides a detailed scan-tool data list with typical values at engine idle and at 1700 RPM under specified operating conditions. Parameters include engine speed, desired idle speed, calculated engine load, coolant and intake temperatures, fuel temperature, mass air flow, barometric pressure, desired and actual boost pressure, fuel rail pressure, accelerator-pedal position, EGR position, intake throttle data, cylinder fuel compensation, vehicle speed, ignition and battery voltage, switch states, DPD information and exhaust-system parameters.
Definitions explain what the scan-tool parameters represent and how the ECM derives or interprets them. This is valuable when comparing an abnormal signal against expected operation. The output-control section goes further by covering commanded tests for fuel pressure control, pre-injection, injection timing, injector forced drive, cylinder balance, intake throttle, EGR solenoid operation, turbocharger solenoid control, glow relay, exhaust brake, exhaust throttle, fuel-supply-pump learning functions and DPD-related reset and regeneration controls.
Wiring, Connectors and Component Locations
Electrical diagnosis is supported by overview wiring diagrams and dedicated connector references. The Isuzu 4JJ1 engine control workshop manual shows ECM connector end views along with terminal functions, wire colors and test-adapter references. Separate connector information is provided for engine-control components such as the accelerator pedal position sensor, boost-pressure sensor, barometric-pressure sensor, crankshaft and camshaft position sensors, EGR valve, engine coolant temperature sensor, exhaust differential-pressure sensor, exhaust-temperature sensors, fuel injectors, fuel rail pressure sensor and regulator, fuel-temperature sensor, MAF/IAT sensor, intake throttle valve, glow plug, PTO controls, idle-up sensor, turbocharger nozzle control solenoid, VNT vacuum-pressure sensor and vehicle-speed sensor.
Component-location illustrations help identify where control-system parts are fitted on the vehicle and engine. The manual distinguishes locations for NLR/NMR, NNR/NPR and NLS applications where appropriate. Fuel-system and vacuum-hose routing diagrams provide an additional visual reference for tracing lines and understanding how the fuel rail, injectors, filters, supply pump, vacuum pump and turbocharger-control hardware are connected.
Fuel Injection, Turbocharger, EGR and DPD Systems
The common-rail fuel-control material covers interaction between the fuel supply pump, fuel rail pressure regulator, fuel rail pressure sensor, injectors and ECM. Diagnostic routines address low or high rail pressure, regulator performance, fuel-system leakage, injector circuit faults and cylinder-balance testing. The manual also provides procedures and descriptions for the turbocharger nozzle control system, including boost-pressure and vacuum-related diagnosis.
EGR diagnosis combines position sensing, solenoid control and system checks, while intake-throttle and exhaust-throttle controls are included in both circuit testing and functional output tests. For the diesel particulate defuser system, the manual covers DPD-related sensors, exhaust differential pressure, exhaust temperatures, regeneration status, manual and slow regeneration functions, regeneration faults, particulate accumulation and symptom procedures for frequent or excessively long regeneration.
ECM Replacement and Programming
For control-module service, the manual includes Engine Control Module replacement procedures together with Service Programming System information. Both remote and pass-thru SPS procedures are included. Diagnostic sections repeatedly identify cases where a replacement ECM must be programmed or learned, and the manual also notes programming or learning requirements associated with certain fuel-system components and control functions.
This is especially useful after a confirmed control-module fault or component replacement because the work does not necessarily end with installing hardware. The manual provides the engine-control-specific information needed to understand the required follow-up programming, learning or reset steps within the scope of this volume.
Use the Manual for Accurate Engine-Control Service
The 2009-2010 Isuzu N Series 4JJ1 Engine Control System Workshop Manual gives owners, technicians and repair professionals a detailed reference for diagnosing no-start conditions, driveability complaints, warning-lamp and DTC faults, fuel-pressure problems, sensor and actuator circuits, CAN communication issues, EGR and turbocharger control, DPD regeneration concerns and ECM-related service. Following the documented test sequence, connector information, scan-tool values and system descriptions helps reduce guesswork and supports repairs based on the correct procedures and specifications for the 4JJ1 engine-control system.
Delivery is by instant PDF after purchase, with no physical shipping required. The manual can be opened on a computer, tablet or compatible mobile device and pages may be printed when a paper reference is more convenient at the vehicle or workbench.
