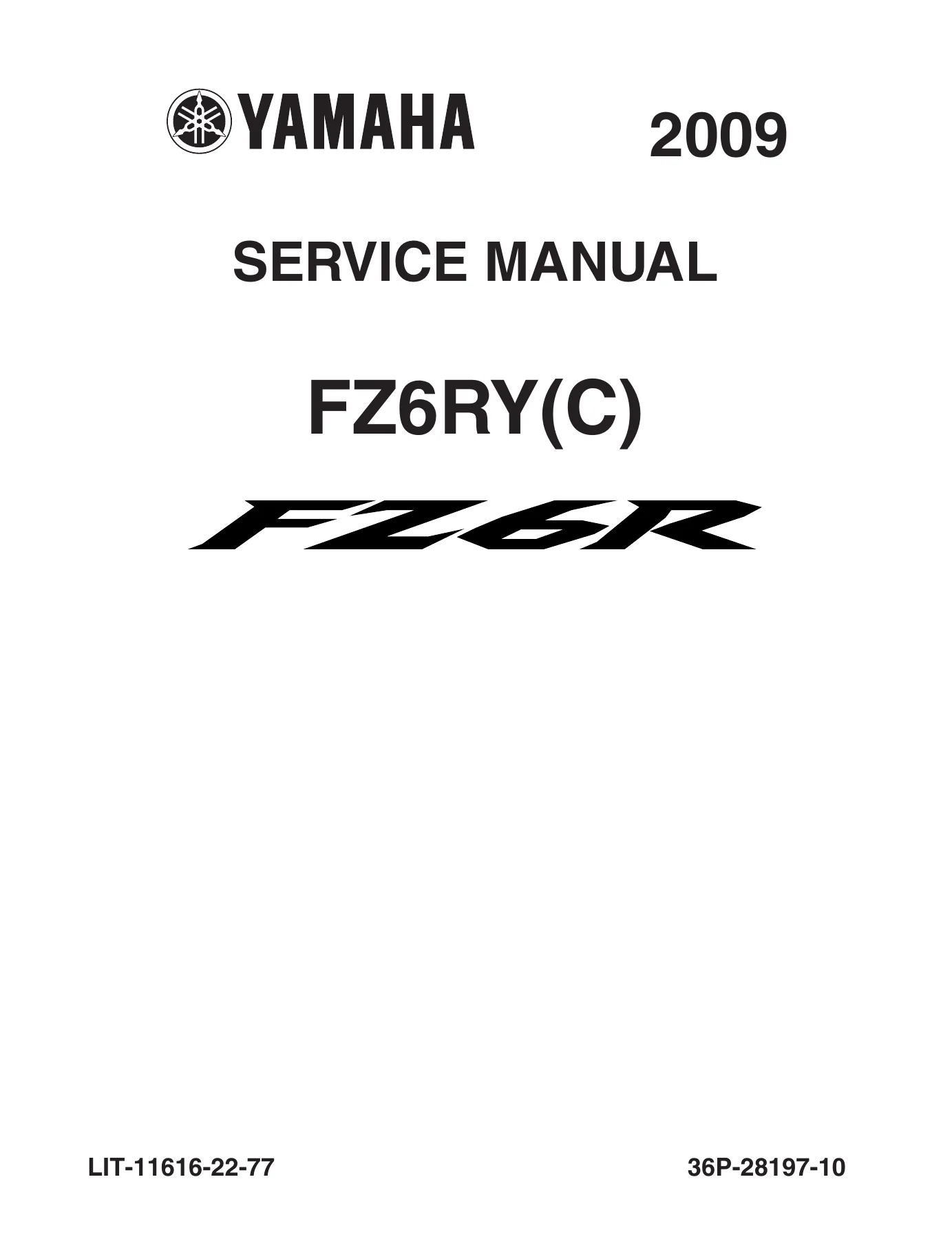

2009 Yamaha FZ6RY FZ6RYC Service Repair Manual – LIT-11616-22-77

Description

2009 Yamaha FZ6RY FZ6RYC Service Repair Manual – LIT-11616-22-77

The 2009 Yamaha FZ6RY FZ6RYC Service Repair Manual – LIT-11616-22-77 is a detailed service reference for the FZ6RY and FZ6RYC. It is organized around the work a mechanic performs on the motorcycle: identification and preparation, specifications, periodic checks, chassis service, engine overhaul, cooling and fuel-system work, electrical diagnosis, and symptom-based troubleshooting. Procedures are presented in sequential steps, with exploded diagrams used throughout removal and disassembly sections and job charts showing parts, order of work, notes, special tools and technical data.

File Details

• Manual type: Service Manual
• Brand: Yamaha
• Model: FZ6RY(C)
• Covered models: FZ6RY 36P1 (U49), FZ6RY 36P4 (U49), FZ6RYC 36P2 (CAL), FZ6RYC 36P5 (CAL)
• Language: English
• Page count: 420 pages
• File format: PDF
• Part number: LIT-11616-22-77
• Additional manual number: 36P-28197-10
• Edition: First edition, December 2008

What This Yamaha FZ6RY Service Manual Covers

This manual goes well beyond routine maintenance. The specification section establishes the dimensional, engine, chassis and electrical reference values used elsewhere in the book, while the repair chapters show how assemblies are removed, checked and installed. The engine section includes work on the camshafts, cylinder head, valves, starter clutch, oil pump, clutch, crankcase, crankshaft and transmission. Chassis coverage extends from wheels and hydraulic brakes to the fork, steering head, rear suspension, swingarm and chain drive. Dedicated chapters also cover the radiator, oil cooler, thermostat, water pump, fuel tank, throttle bodies, injectors, air-induction system and California canister.

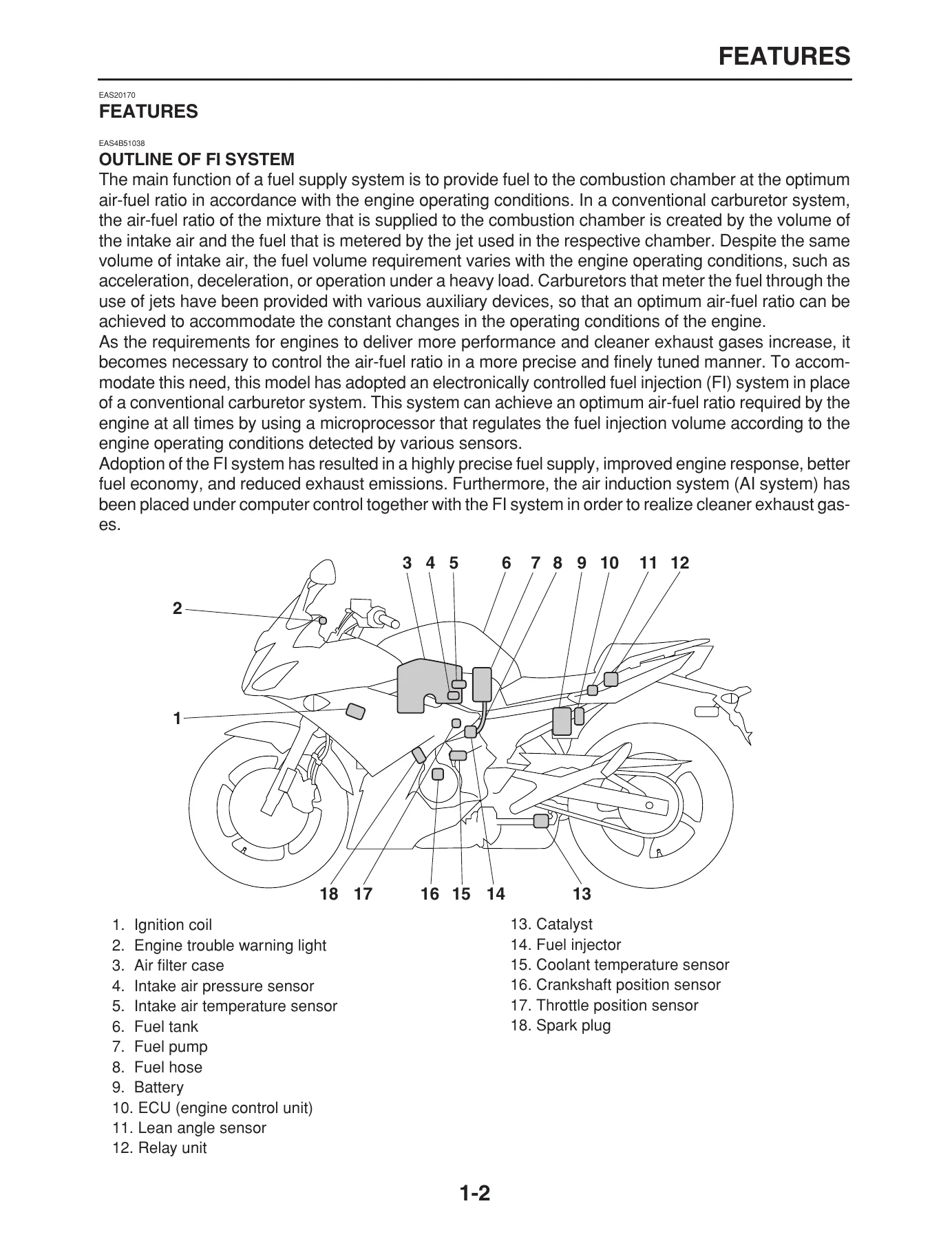

For electrical work, the manual contains circuit diagrams and troubleshooting paths for ignition, electric starting, charging, lighting, signaling, cooling, fuel injection and the fuel-pump system. The fuel-injection section includes ECU self-diagnostic functions, fail-safe actions, diagnostic mode and troubleshooting details. Electrical component checks cover switches, bulbs, fuses, battery, relays, ignition components, sensors, starter motor, stator coil, rectifier/regulator, horn, fuel sender and radiator fan motor. This makes the 2009 Yamaha FZ6RY FZ6RYC Service Repair Manual – LIT-11616-22-77 useful both for planned service and for tracing a fault to a system or component.

Specifications, Service Data and Adjustment Information

The manual provides a concentrated specifications chapter before the main service procedures. It identifies the 599.8 cm3 liquid-cooled 4-stroke DOHC engine with a forward-inclined parallel 4-cylinder arrangement, and records model-specific dimensions, weights, engine data, chassis data and electrical specifications. Service information includes tightening torques, lubrication points, lubricant types, oil-flow diagrams, cooling-system diagrams and detailed cable and hose routing. Values such as valve clearance, compression pressure, fuel pressure, fluid quantities, brake dimensions, wheel runout limits, suspension data and electrical test values are integrated with the applicable procedures.

Periodic maintenance is also treated as a working service chapter rather than a simple interval list. It includes the emission-control maintenance chart and general maintenance and lubrication chart, followed by procedures for spark plugs, valve-clearance adjustment, engine idle, throttle-body synchronization, brake service, tires, drive chain, steering, suspension, engine oil, oil pressure, coolant, control cables, battery, fuses and headlight adjustment. Where a task requires a special tool or a particular tightening value, the manual supplies that information alongside the procedure.

Chapters Covered

• General Information
  • Identification: vehicle identification number and model label
  • Features: FI system and instrument functions
  • Important information for removal, disassembly and replacement parts
  • Gaskets, oil seals, O-rings, bearings, circlips and connections
  • Special tools
• Specifications
  • General, engine, chassis and electrical specifications
  • General, engine and chassis tightening torques
  • Engine and chassis lubrication points and lubricant types
  • Engine oil lubrication charts and diagrams
  • Cooling-system diagrams and cable routing
• Periodic Checks and Adjustments
  • Emission-control and general maintenance schedules
  • Fuel line, spark plugs, valve clearance, idle speed and throttle-body synchronization
  • Air filter, clutch, brakes, wheels, tires, steering, drive chain and suspension
  • Engine oil, oil pressure, coolant, battery, fuses, cables and headlight service
• Chassis
  • General chassis and body/cowling removal
  • Front and rear wheels
  • Front and rear hydraulic brakes
  • Handlebar, front fork and steering head
  • Rear shock absorber, swingarm and chain drive
• Engine
  • Engine removal and installation
  • Camshafts, timing chain and cylinder head
  • Valves, valve guides, valve seats and valve springs
  • Generator, starter clutch, pickup rotor and electric starter
  • Oil pump, oil strainer, oil nozzles and oil pan
  • Clutch and shift shaft
  • Crankcase, crankshaft, connecting rods, pistons and rings
  • Transmission, shift forks and shift drum
• Cooling System
  • Radiator and oil cooler
  • Thermostat
  • Water pump
• Fuel System
  • Fuel tank and fuel pump
  • Throttle bodies and throttle-body joints
  • Fuel injectors, injector pressure and fuel pressure
  • Throttle-position sensor adjustment
  • Air-induction system
  • Canister for California models
• Electrical System
  • Ignition system
  • Electric starting system
  • Charging, lighting and signaling systems
  • Cooling-system electrical diagnosis
  • Fuel-injection system, ECU self-diagnosis and diagnostic mode
  • Fuel-pump system
  • Electrical component testing
• Troubleshooting
  • Starting failures and incorrect engine idling speed
  • Poor medium- and high-speed performance
  • Gear-shifting faults, shift-pedal faults and jumping out of gear
  • Clutch faults
  • Overheating and overcooling
  • Poor braking performance
  • Front-fork faults and unstable handling
  • Lighting and signaling faults

  IMAGES PREVIEW







Taken together, these chapters provide a connected service path from diagnosis and measurement through disassembly, inspection, repair and reassembly. A technician can move from a symptom or scheduled maintenance item to the appropriate specification, component diagram, test procedure and tightening information without relying on a single generic maintenance chart.

Repair Procedures and Diagrams for Practical Workshop Use

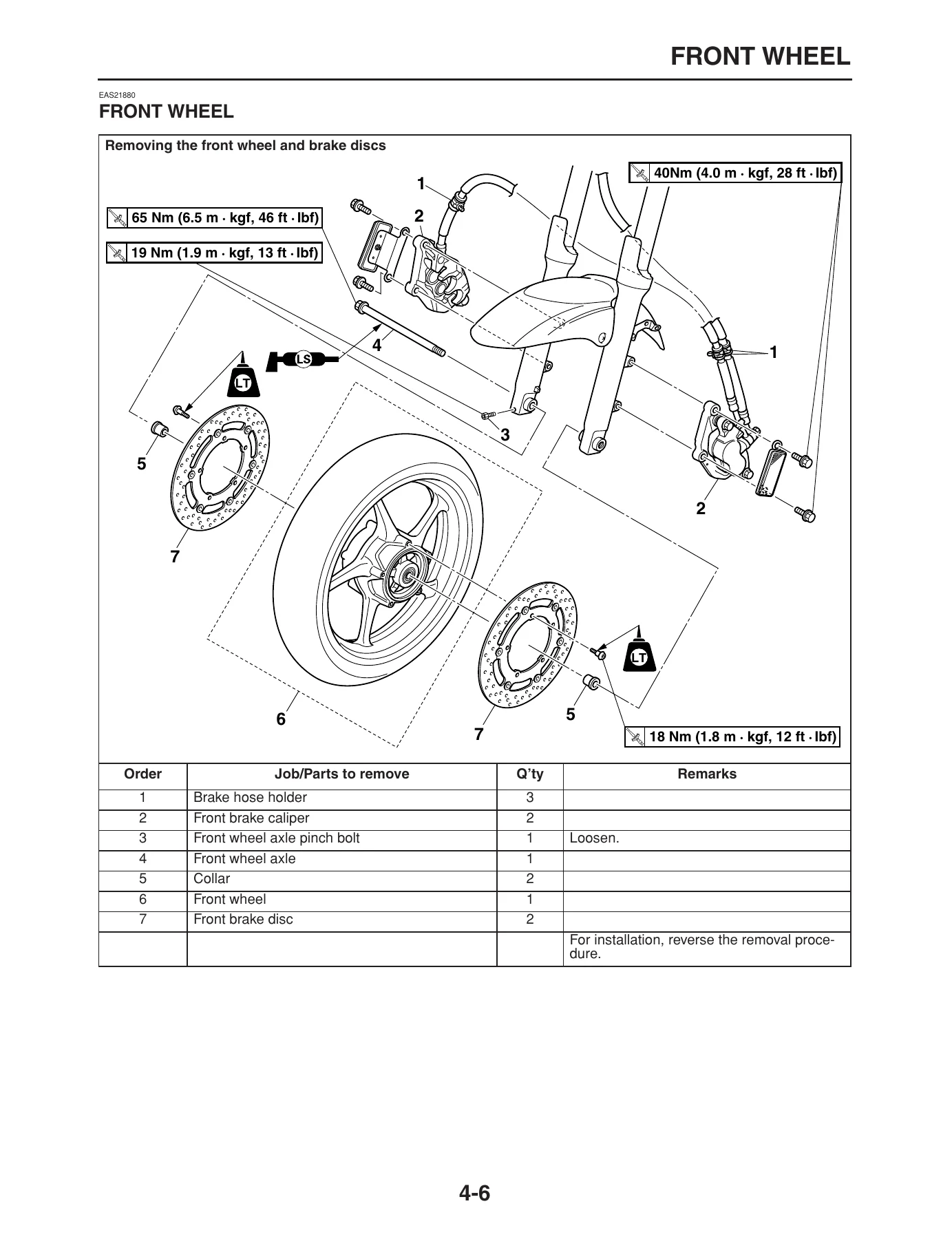

The procedure pages are strongly illustrated. Exploded assembly views identify removal order and individual components, while dedicated diagrams show lubrication flow, cooling-system layout, cable routing, hose routing and electrical circuits. The manual also identifies required special tools for jobs such as compression testing, steering work, fork service, valve work, clutch holding, flywheel removal, cooling-system pressure testing, fuel-pressure testing and electrical measurement. These references are especially useful when a repair involves several related systems and correct assembly order matters.

Examples of the work supported by the manual include measuring and adjusting valve clearance; synchronizing the throttle bodies; changing engine oil and coolant; checking oil pressure; servicing front and rear brakes; adjusting drive-chain slack and steering-head tension; removing and checking wheels, bearings and sprockets; disassembling and assembling engine components; checking cylinder, piston, crankshaft and transmission parts; servicing the radiator, thermostat and water pump; checking fuel injectors and pressure; and tracing electrical faults through circuit diagrams and diagnostic steps.

Get the Correct Procedures and Specifications in One PDF

The 2009 Yamaha FZ6RY FZ6RYC Service Repair Manual – LIT-11616-22-77 gives you the procedures, diagrams, inspection points, service limits, adjustment values and tightening information needed to approach maintenance, diagnosis and repair methodically. Using the specified sequence and reference values is important when checking wear, setting clearances, assembling engine and chassis components, routing hoses or wiring, and diagnosing fuel-injection or electrical problems.

Delivery is instant as a PDF after purchase. There is no physical book and no shipping delay. Open the manual on a computer, tablet or phone, keep it available beside the motorcycle while you work, and print the pages you need for the job.
