2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual

Description

2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual

The full 2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual produced by Yamaha Motor Co., Ltd. Covers the XJ6S (36C1), XJ6SA (36D1) and XJ6SY (36C2) models built around the 599.8 cc liquid-cooled, forward-inclined parallel four-cylinder DOHC engine. Everything a technician needs to service, diagnose, strip and rebuild these machines is contained inside one document: general information, complete specifications, periodic maintenance, chassis work, engine overhaul, cooling, fuel injection, electrical systems and step-by-step troubleshooting.

What This 2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual Covers

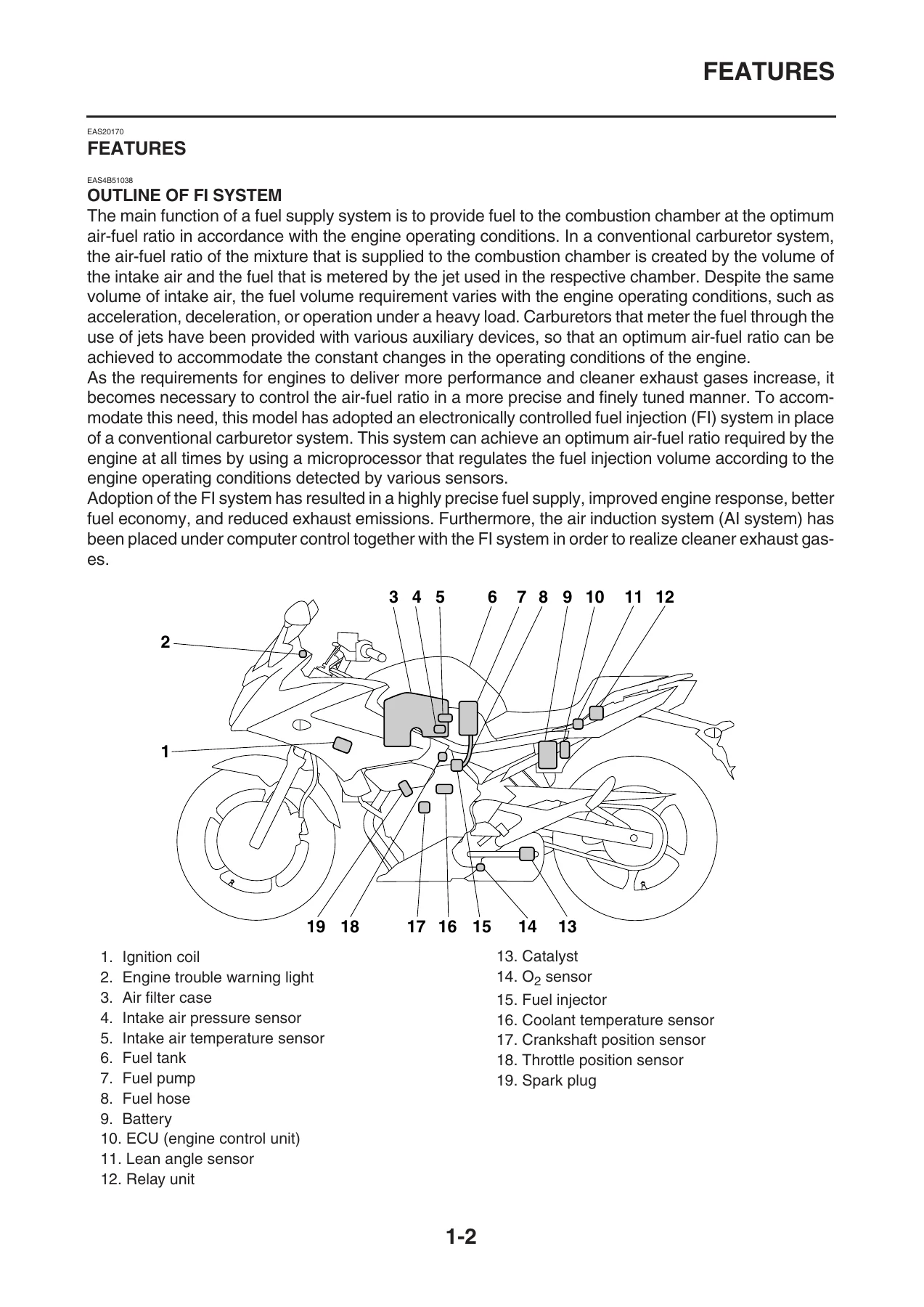

This is not a quick-start guide. It is the same service manual structure Yamaha technicians work from, laid out chapter by chapter so each system can be looked up independently. The 2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual begins with a general information chapter covering identification, vehicle identification number location, the model label, and a full outline of the fuel injection system. From there it moves into specifications, then into the procedures themselves.

Periodic Checks and Adjustments

Routine maintenance is covered in its own chapter for the XJ6S, XJ6SA and XJ6SY. Valve clearance adjustment, engine idling speed, throttle body synchronization, clutch cable free play, brake fluid level, front and rear brake pad checks, brake bleeding, tyre and wheel inspection, drive chain slack and lubrication, steering head adjustment, handlebar position, cable lubrication, engine oil level and oil changes, oil pressure measurement, coolant level, coolant replacement, brake light switch adjustment, battery charging, fuse checks and headlight bulb replacement are all documented with the correct values and torque figures. The periodic maintenance chart for the emission control system is included so intervals can be planned accurately.

Chassis

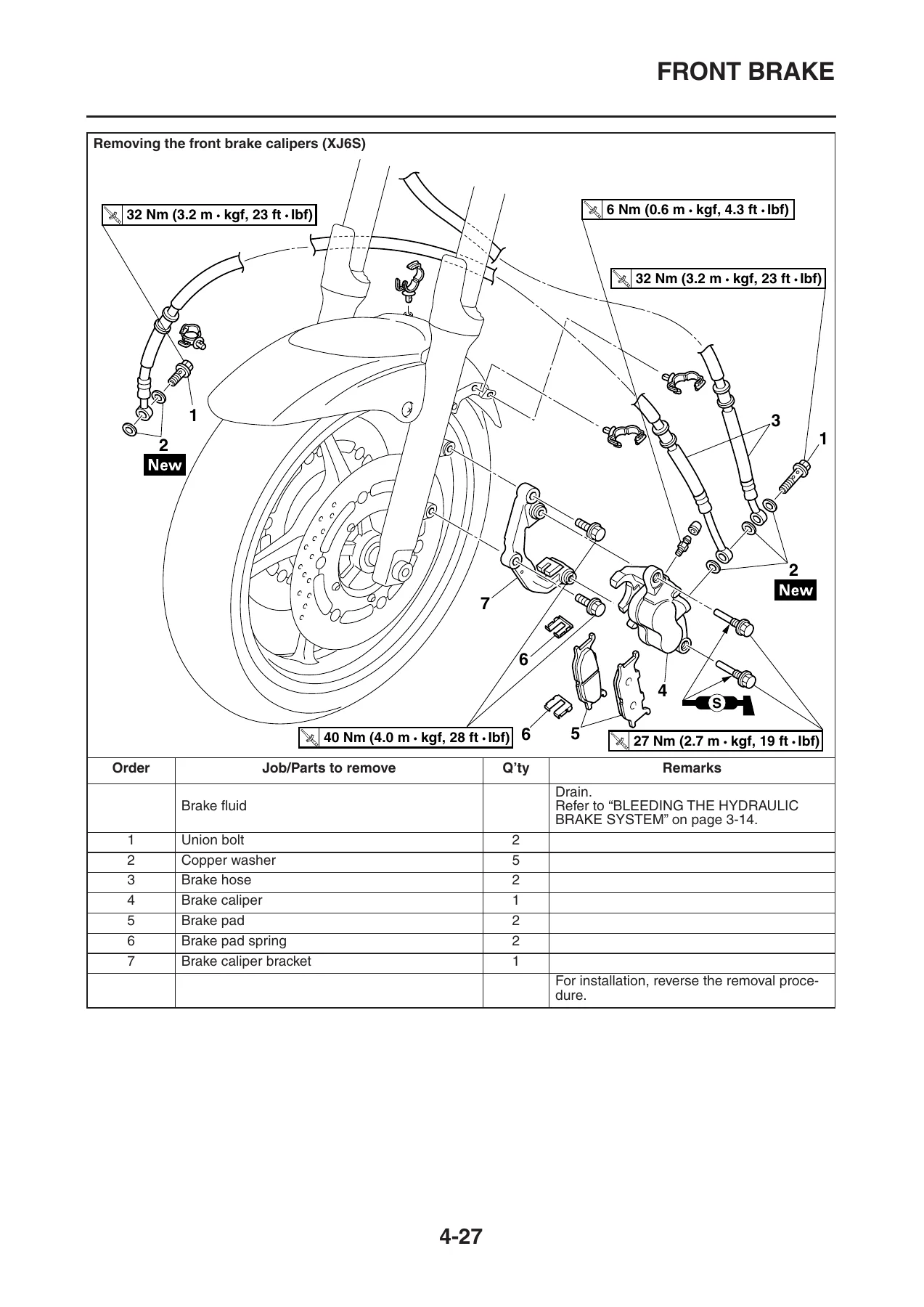

The chassis section of this 2009 Yamaha XJ6 Diversion service manual walks through the front wheel, rear wheel, front brake, rear brake, ABS, handlebar, front fork, steering head, rear shock absorber, swingarm and chain drive. Exploded diagrams open each removal and disassembly procedure and are numbered in the order the jobs should be performed, with an accompanying job instruction chart listing parts, quantities and notes. Front brake caliper disassembly, master cylinder overhaul, brake disc measurement, wheel bearing replacement, fork oil level setting and steering head bearing replacement are all covered in detail.

Engine

Engine content starts with removal and installation of the complete unit and then breaks down into camshafts, cylinder head, valves and valve springs, generator and starter clutch, pickup rotor, electric starter, oil pump, clutch, shift shaft, crankcase, crankshaft and transmission. Each component is covered with disassembly, inspection, measurement, wear limits, assembly and installation steps. Where a special tool is needed, the tool name and part number are called out alongside the procedure. Camshaft lobe dimensions, camshaft runout limits, valve stem-to-guide clearance, piston-to-cylinder clearance, piston ring end gaps, connecting rod oil clearance, crankshaft runout, clutch plate thickness and transmission runout limits are all listed with the standard range and the wear or service limit.

Cooling System and Fuel System

The cooling chapter covers the radiator, oil cooler, thermostat and water pump, including radiator cap opening pressure testing, thermostat opening temperature and water pump seal and bearing replacement. The fuel system chapter covers the fuel tank, fuel pump, throttle bodies, injectors and the air induction system. Fuel pressure testing, injector pressure testing, throttle body cleaning, throttle position sensor adjustment and reed valve inspection are all documented.

Electrical System and Diagnostics

The electrical chapter is the largest part of this manual and carries the wiring diagrams for both the XJ6S 2009 and the XJ6SA 2009, complete with the full colour code table. Circuit diagrams are provided for the ignition system, electric starting system, charging system, lighting system, signaling system, cooling system, fuel injection system, fuel pump system, immobilizer system and the ABS. Troubleshooting is written as a logical check sequence so a fault can be traced step by step rather than guessed at.

The fuel injection section includes the ECU self-diagnostic function, fail-safe actions, the diagnostic mode and the full fault code troubleshooting details. Fault codes 12 through 70 and Er-1 through Er-4 are each given probable causes, check points, sensor inspection procedures and reinstatement methods. The ABS section for the XJ6SA covers the hydraulic unit, wheel sensors, sensor rotors, ABS warning light behaviour, hydraulic unit operation tests and its own fault code table with reinstatement confirmation methods for each code.

Troubleshooting

A dedicated troubleshooting chapter closes the manual with diagnostic guides for starting failures, incorrect engine idling speed, poor medium and high speed performance, faulty gear shifting, shift pedal problems, jumping out of gear, clutch faults, overheating, overcooling, poor braking performance, front fork faults, unstable handling and lighting or signaling faults. Each entry lists the possible causes grouped by system so the technician can work from the most likely to the least likely.

Why This Manual Matters for the XJ6S, XJ6SA and XJ6SY

The XJ6 Diversion range uses a fuel injection system and, on the XJ6SA, an anti-lock braking system with its own ECU, hydraulic unit and wheel sensors. Working on either without the correct procedures, torque values and diagnostic sequences is how parts get damaged and faults get missed. This 2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual gives the actual tightening sequences for the cylinder head and crankcase, the correct service limits, the tightening torques for every major fastener, and the diagnostic flow for the FI and ABS systems that a generic repair guide simply cannot provide.

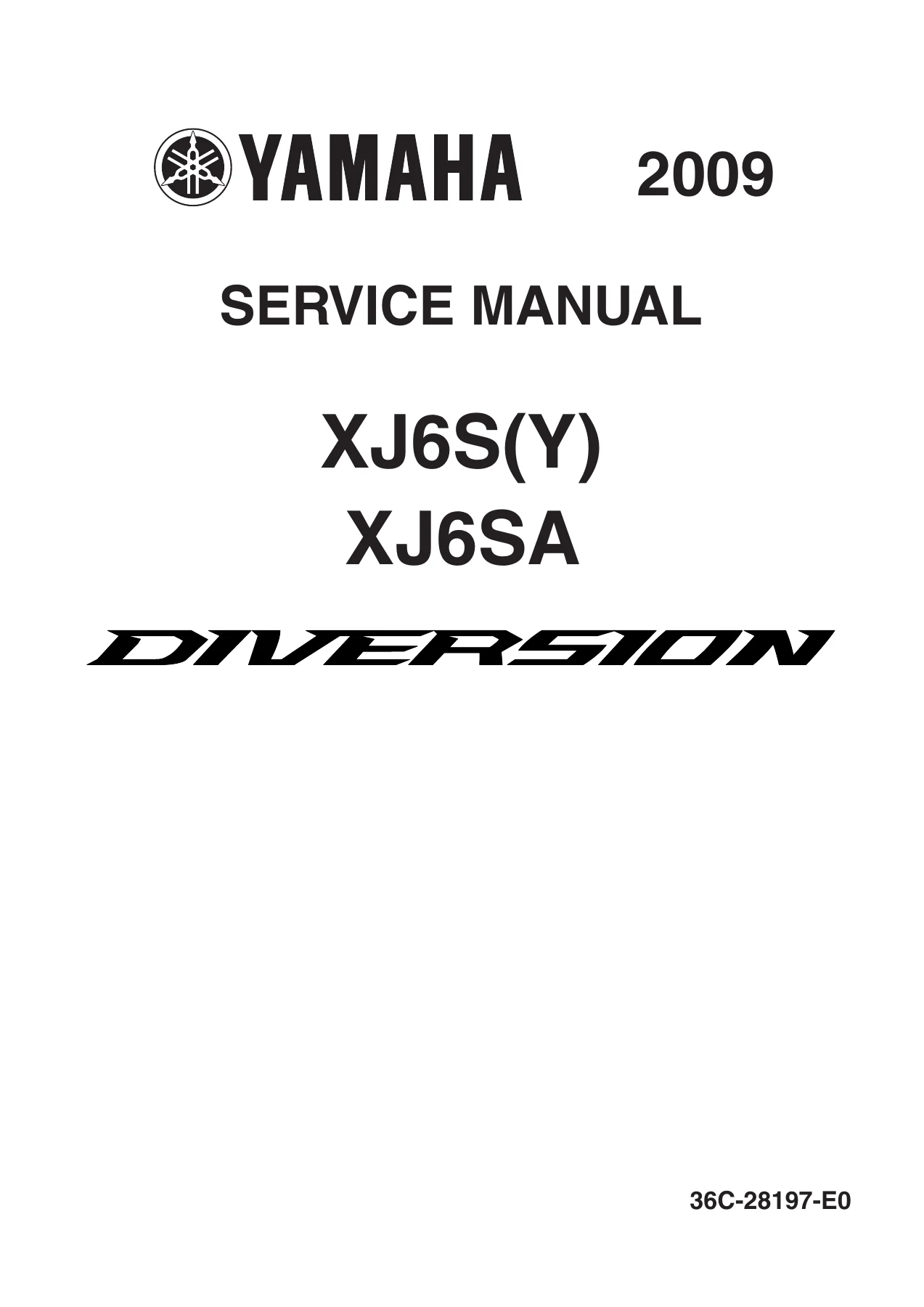

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as an instant PDF download after payment. There is no shipping and nothing to wait for. Once downloaded it can be opened on a laptop, tablet or phone in the workshop, printed for the bench, or kept on a device for reference at the bike. Having the full 2009 Yamaha XJ6S XJ6SA XJ6SY Diversion Service Manual on hand means the correct procedure, the correct specification and the correct diagnostic path are always within reach.
