2009 Yamaha Zuma 50cc Motorcycle Service Manual – PDF Download

Description

2009 Yamaha Zuma 50cc Motorcycle Service Manual

FILE DETAILS:

2009 Yamaha Zuma 50cc Motorcycle Service Manual

FILE TYPE:PDF
DOWNLOADABLE:YES
MANUAL LANGUAGE:ENGLISH
PAGES:267

DESCRIPTION:

2009 Yamaha Zuma 50cc Motorcycle Service Manual

This manual is intended as a handy, easy-to-read reference book for the mechanic. Comprehensive explanations of all installation, removal, disassembly, assembly, repair and check procedures are laid out with the individual steps in sequential order.
1 The manual is divided into chapters. An abbreviation and symbol in the upper right corner of each page indicate the current chapter. Refer to “SYMBOLS”.
2 Each chapter is divided into sections. The current section title is shown at the top of each page, except in Chapter 3 (“PERIODIC CHECKS AND ADJUSTMENTS”), where the sub-section title(s) appears.
3 Sub-section titles appear in smaller print than the section title.
4 To help identify parts and clarify procedure steps, there are exploded diagrams at the start of each removal and disassembly section.
5 Numbers are given in the order of the jobs in the exploded diagram. A circled number indicates a disassembly step.
6 Symbols indicate parts to be lubricated or replaced. Refer to “SYMBOLS”.
7 A job instruction chart accompanies the exploded diagram, providing the order of jobs, names of parts, notes in jobs, etc.
8 Jobs requiring more information (such as special tools and technical data) are described sequentially.

TABLE OF CONTENTS:

2009 Yamaha Zuma 50cc Motorcycle Service Manual

GENERAL INFORMATION
SPECIFICATIONS
PERIODIC INSPECTION AND
ADJUSTMENT
ENGINE OVERHAUL
CARBURETION
CHASSIS
ELECTRICAL
TROUBLESHOOTING

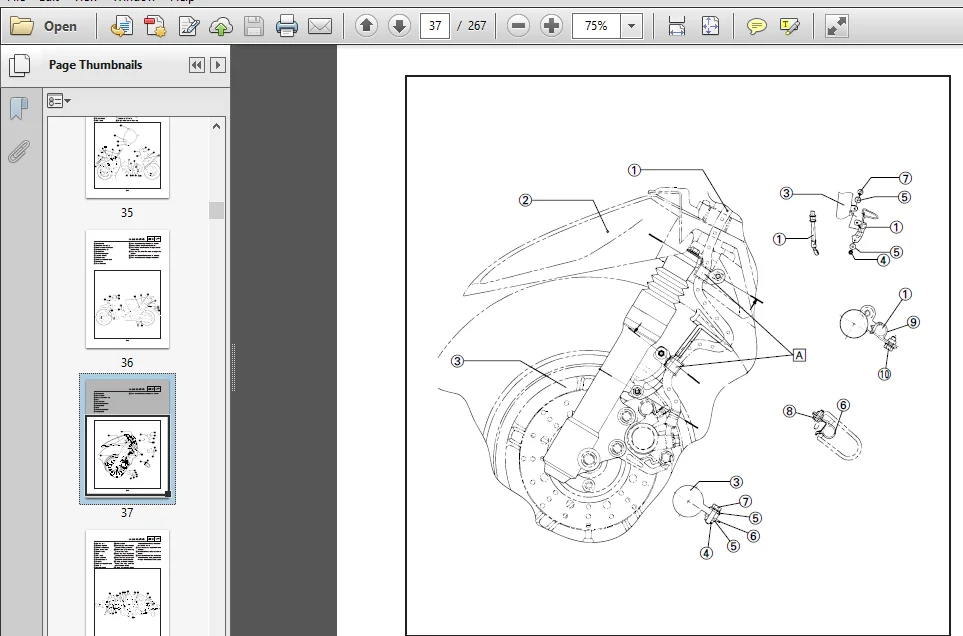

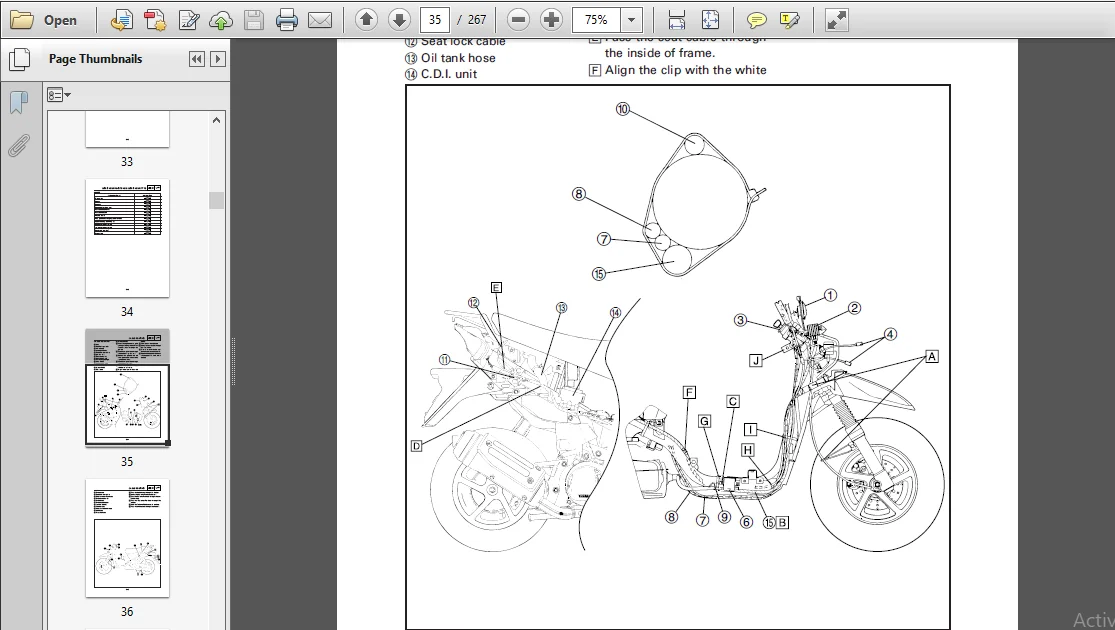

SCREENSHOT OF THE MANUAL:

2009 YAMAHA ZUMA 50CC MOTORCYCLE SERVICE MANUAL – PDF DOWNLOAD:

PLEASE NOTE:
⦁ This is the SAME exact manual used by your dealers to fix your vehicle.
⦁ The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
⦁ Any queries / doubts regarding your purchase, please feel free to contact [email protected]
