2014 Cat Hand Tools & Shop Supplies Manual – PDF DOWNLOAD

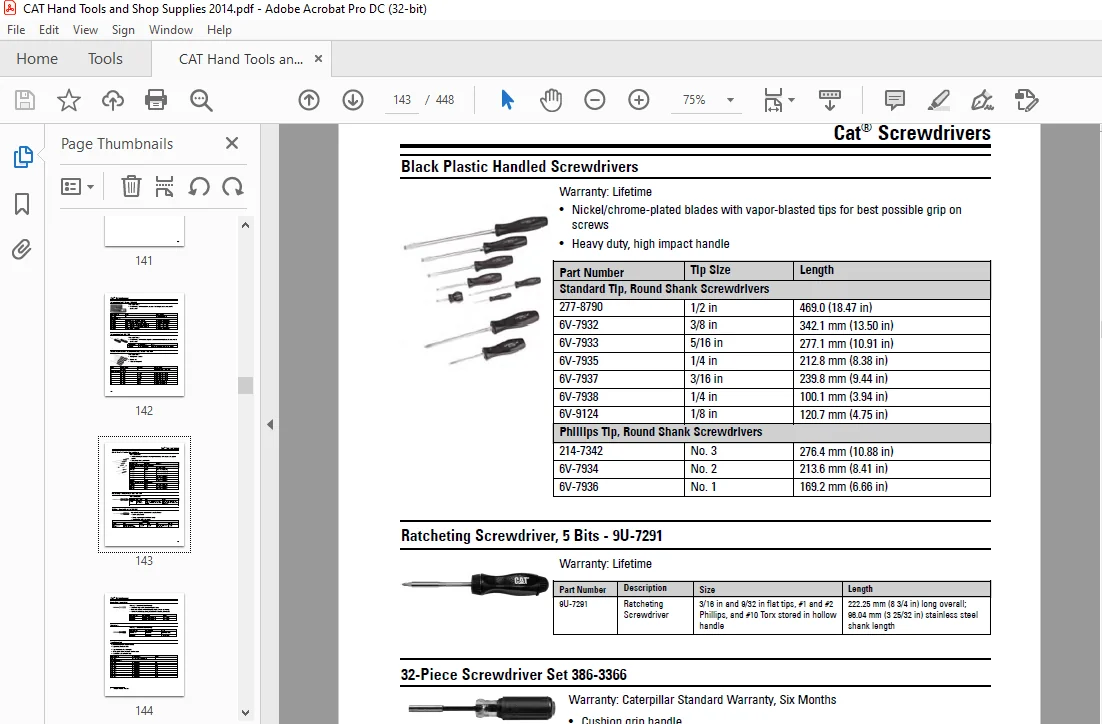

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
2014 Cat Hand Tools & Shop Supplies Manual – PDF DOWNLOAD
Introduction
Hand Tools and Shop Supplies
The Hand Tools and Shop Supplies catalog incorporates all of the shop supplies, general purpose hand tools, tool
boxes, and personal safety items for dealer and customer service shops.
Ordering Procedure
Most products listed in PECJ0003-03 are stocked at Cat® parts facilities. All products in PECJ0003-03 can be ordered
through the Cat Parts Distribution system using existing stock or emergency ordering procedures.
Prices
Prices are subject to change without notice. Standard dealer payment terms apply for any product ordered from this
catalog (whether it is stocked or direct shipped).
Warranty Claims Process
Customers:
In the event that a warranty claim needs to be filed, contact your Cat dealer.
Dealers:
The products offered in this catalog are covered by the standard six-month Caterpillar warranty unless they are covered
by a manufacturer warranty. Where possible, the warranty type is listed in the product details. The most up-todate
information on warranty type and length is available in the Cat Dealer Numerical Parts Record (NPR) system.
For more warranty information and a sample claims form, visit dealer.cat.com/toolsandsupplies.
Questions
Customers:
Contact your local Cat Dealer with any questions you may have about the products listed in this catalog.
TABLE OF CONTENTS:
2014 Cat Hand Tools & Shop Supplies Manual – PDF DOWNLOAD
Introduction 3
Hand Tools 5
Tool Sets — Hand Tool Sets 12
Tool Sets — Field Tool Sets 27
Wrenches — Cat® Standard Wrenches 29
Wrenches — Cat® Ratcheting Wrenches 34
Wrenches — Cat® Angle Wrenches 37
Wrenches — Adjustable Wrenches 40
Wrenches — Pipe Wrenches 41
Wrenches — Chain Wrenches 43
Wrenches — Filter Wrenches 44
Wrenches — Hex Wrenches 45
Wrenches — Special Application Wrenches 48
Wrenches — Crowfoot Wrenches 52
Ratchets and Sockets — Ratchet and Socket Sets 55
Ratchets and Sockets — Ratchets and Repair Kits 60
Ratchets and Sockets — Ratchet Handles and Breaker Bars 62
Ratchets and Sockets — Cat® Sockets – 3/8 inch Drive 64
Ratchets and Sockets — Cat® Sockets – 1/4 inch Drive 68
Ratchets and Sockets — Cat® Sockets – 1/2 inch Drive 70
Ratchets and Sockets — Impact Socket Sets – 3/8 inch Drive 73
Ratchets and Sockets — Impact Socket Sets – 1/2 in Square Drive 77
Ratchets and Sockets — Impact Socket Sets – 3/4 in Square Drive 80
Universal and Swivel Socket Sets – 3/8 inch Square Drive 81
Universal and Swivel Socket Sets – 1/2 inch Drive 83
Ratchets and Sockets — Twist Sockets – 3/8 inch Square Drive 85
Ratchets and Sockets — Individual Sockets 86
Ratchets and Sockets — Special Application Sockets 104
Ratchets and Sockets — Extensions/Adapters 111
Pneumatic Tools — Impact Wrenches 114
Pneumatic Tools — Sanders and Polishers 119
Pneumatic Tools — Grinders 121
Pneumatic Tools — Drills 122
Pneumatic Tools — Air Hammers 123
Pneumatic Tools — Ratchet 124
Pneumatic Tools — Shears 125
Pneumatic Tools — Engraver 126
Pneumatic Tools — Air Guns 127
Pneumatic Tools — Spray Guns 129
Torque Tools — Torque Wrenches, Adapters, and Extensions 130
Torque Tools — Torque Testers 135
Grease Guns 137
Cat® Screwdrivers 140
Cat® Pliers 144
Hammers and Slide Sledges 147
Chisels and Punches 152
Pry Bars 154
Miscellaneous Hand Tools — Knives, Saws and Cutting Tools 156
Miscellaneous Hand Tools — Levels, Measuring Tools and Gauges 163
Miscellaneous Hand Tools — Seal Picks 169
Miscellaneous Hand Tools — Brushes 170
Miscellaneous Hand Tools — Miscellaneous 173
Last updated: July 2014
Table of Contents
2
Tool Boxes 179
Shop Supplies 191
Abrasives — Brushes 200
Abrasives — Discs 203
Abrasives — Wheels 215
Abrasives — Miscellaneous 226
Metal Cutting — Drill Bits 237
Metal Cutting — Taps and Dies 243
Metal Cutting — Extractors 253
Metal Cutting — Cutting Torch Equipment 258
Metal Cutting — Miscellaneous 259
Metal Repair 260
Caps and Plugs 275
Vises 288
Battery Service Equipment 292
Lighting and Electrical Products — Flashlights and Batteries 301
Lighting and Electrical Products — Work Lights and Extension Cords 306
Lighting and Electrical Products — Miscellaneous 312
Personal Protective Equipment — Gloves 317
Personal Protective Equipment — Safety Vests 331
Personal Protective Equipment — Eye Protection 332
Personal Protective Equipment — Hearing Protection 340
Personal Protective Equipment — Hard Hats 343
Personal Protective Equipment — Breathing Protection 344
Personal Protective Equipment — First Aid Kits 346
Personal Protective Equipment — Welding Protection 350
Contamination Control 352
Fluid Sampling Equipment 355
Towels and Wipers 360
Absorbents and Spill Kits — Absorbents 365
Absorbents and Spill Kits — Spill Kits 371
Floor Mats 375
Tape 377
Packing Supplies and Equipment 383
Miscellaneous — Padlocks 391
Miscellaneous — Ladders 393
Miscellaneous — Janitorial Products 394
Miscellaneous — Highway Warning Kit 396
Miscellaneous — Sprayers 397
Miscellaneous — Miscellaneous Products 398
Paint — Cat® Paint 404
Paints — Paint Thinner 406
Maintenance Chemicals — Soaps and Cleaners 407
Maintenance Chemicals — Adhesives and Sealants 413
Maintenance Chemicals — Lubricants 415
Maintenance Chemicals — Metal Working 418
Maintenance Chemicals — Testing Products 419
Maintenance Chemicals — Rust Preventatives 422
Maintenance Chemicals — Miscellaneous Chemicals 423
Part Number Index 427
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
