2015 Yamaha MT-09 Tracer MT09TRA MT09TRAF Service Manual

Description

Complete Workshop Documentation for Yamaha MT-09 Tracer

The 2015 Yamaha MT-09 Tracer MT09TRA MT09TRAF Service Manual provides authoritative, dealer-level technical guidance for maintaining, troubleshooting, and repairing Yamaha high-performance sport-touring motorcycles. Developed directly by Yamaha Motor Co., Ltd., this publication provides factory-trained mechanics and serious motorcycle enthusiasts with clear, sequential disassembly instructions, detailed assembly drawings, precision tolerances, and complete system overhauls. Whether you are conducting routine periodic maintenance, synchronizing throttle bodies, adjusting valve shims, or rebuilding the hydraulic brake system, this comprehensive manual gives you every exact technical figure required to get the job done correctly.

File Details

• Document Type: Factory Service Manual
• Brand: Yamaha
• Model: MT-09 Tracer (MT09TRA / MT09TRAF)
• Model Year: 2015
• Publication Part Number: 2PP-28197-E0
• Manual Code: EAS20002
• Edition / Release Date: First Edition, June 2014
• Language: English
• Page Count: 560 pages
• File Format: PDF

Model & Frame Coverage

This genuine Yamaha MT-09 Tracer service manual encompasses full technical support for both base and national model designations, covering European, Oceanian, and global specifications:

• MT09TRA: Model codes 2SC1 (AUT, BEL, CHE, CYP, CZE, DEU, DNK, ESP, FIN, GBR, GRC, HUN, IRL, ITA, NLD, NOR, POL, PRT, SVK, SVN, SWE, TUR), 2SC2 (BEL, FRA), 2SC3 (RUS), 2SC9 (AUT, BEL, CHE, CYP, CZE, DEU, DNK, ESP, FIN, GBR, GRC, HUN, IRL, ITA, NLD, NOR, POL, PRT, SVK, SVN, SWE, TUR, ZAF), 2SCA (BEL, FRA), and 2SCB (RUS)
• MT09TRAF: Model code 2SC4
• Serial Number & Production Ranges: Specific engine and chassis running changes are documented for European MT09TRA models from VIN RN29F0011886, RN29F015339, and RN29G003516 onward, as well as Oceanian MT09TRAG models from RN29K 0000556 and RN29K000696 onward.
• Engine Architecture: 847 cm³ liquid-cooled, 4-stroke, DOHC, inline 3-cylinder engine with 4 valves per cylinder.

Chapters Covered

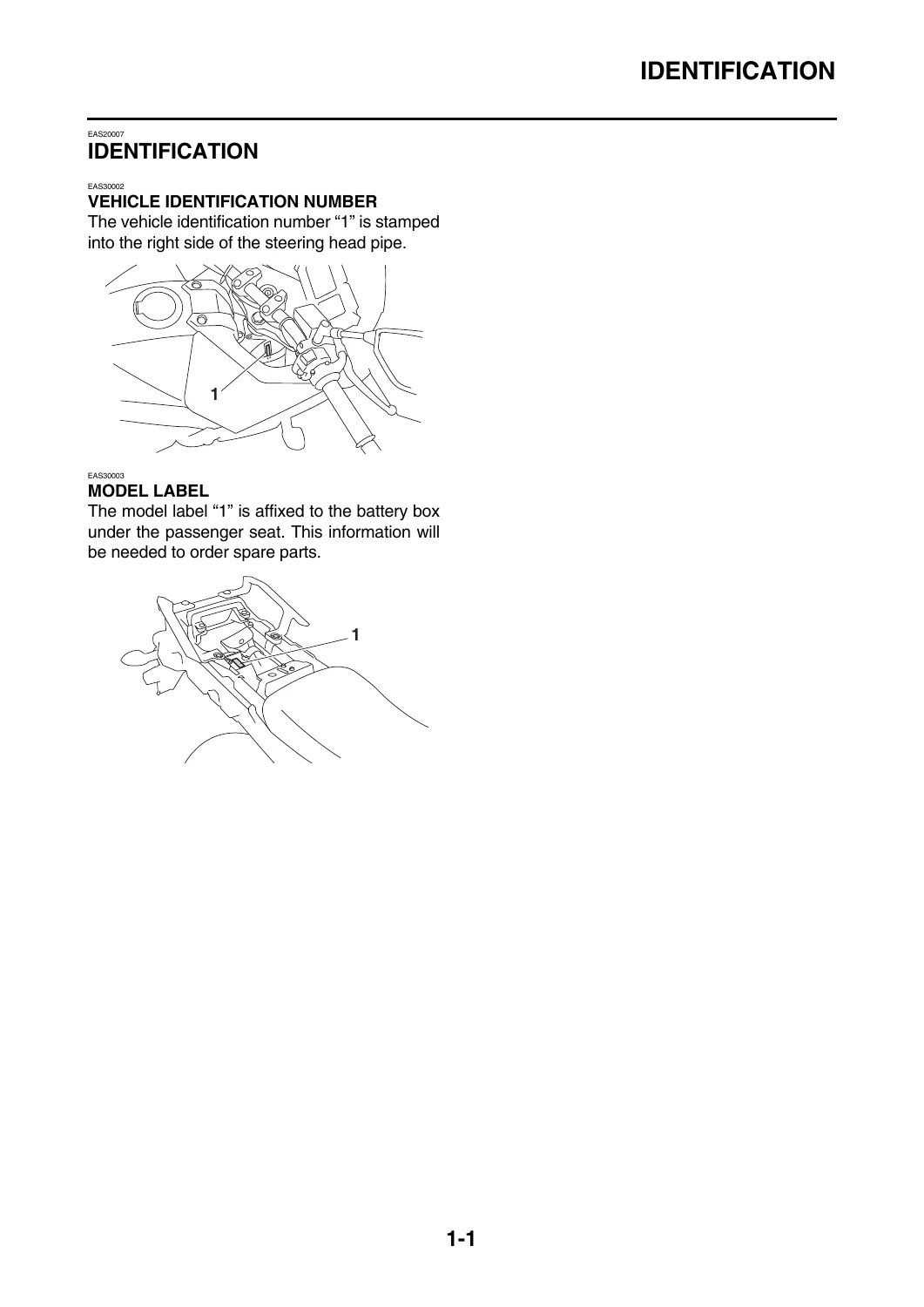

• General Information: Vehicle Identification Numbers (VIN) and Model Label Locations, Outline and Principles of the Electronic Fuel Injection (FI) System, Yamaha Chip Controlled Throttle (YCC-T) Mechanism, Anti-Lock Brake System (ABS) Hydraulic Operation and Diagnostic Flow, Traction Control System (TCS) Control Architecture, Multi-Function Meter Unit and On-Screen Menu Configuration, D-Mode (Drive Mode) Profiles, General Safety and Removal Preparation, Basic Service Guidelines for Gaskets, Seals, Bearings, and Quick Fasteners, Special Workshop Service Tools.
• Specifications: General Machine Dimensions and Curb Weight, Engine Specifications (Bore, Stroke, Compression Ratio, Camshaft Lobes, Valve Dimensions, Piston Tolerances, Oil Pressures), Chassis Specifications (Frame, Caster, Trail, Wheels, Tires, Brake Discs, Telescopic Forks, Rear Shock), Electrical Specifications (Ignition TCI, ECU Models, Sensors, Battery, Lighting, Fuse Ratings), Comprehensive Engine and Chassis Tightening Torques, Lubrication Points and Lubricant Application Charts, Engine Oil Routing Diagrams, Cooling System Fluid Circulation Schemes, Factory Cable and Wire Harness Routing Diagrams.
• Periodic Checks and Adjustments: Periodic Maintenance and Lubrication Charts for Emission and General Systems, Fuel Lines and Breather Hose Routing, Spark Plug Inspection and Gapping, Valve Clearance Measurement and Pad Replacement Calculation, Engine Idling Speed and ISC Learning Value Confirmation, Throttle Body Synchronization, Exhaust Gas Volume (CO Density) Setting Mode, Air Filter Element Replacement, Clutch Lever Free Play Adjustment, Brake Fluid Inspection and Hydraulic ABS System Bleeding, Drive Chain Slack Adjustment and Chain Cleaning, Steering Head Bearing Adjustment and Torque Sequences, Front Fork Preload and Rebound Damping Setup, Rear Shock Preload and Damping Adjustment, Engine Oil and Oil Filter Cartridge Renewal, Engine Oil Pressure Verification, Engine Coolant Flush and Replacement, Throttle Cable Free Play, Headlight Beam Alignment.
• Chassis Disassembly and Overhaul: General Chassis Panel Removal (Rider and Passenger Seats, Seat Height Position Adjuster, Grab Bars, Rear Side Covers, Mudguard Assembly, Tail/Brake Light, Fuel Tank Covers, Front Side Cowlings, Windshield Adjustment System, Air Filter Case, Electrical Trays), Front Wheel Removal, Hub Disassembly, Bearing Replacement, Wheel Static Balancing, Front Wheel Speed Sensor and Rotor Gap Inspection, Rear Wheel Hub Disassembly, Rear Drive Hub Damper Replacement, Sprocket Renewal, Front Brake Pad Replacement, Front Master Cylinder Overhaul, Front Radial Caliper Rebuilding, Rear Brake Disc and Caliper Servicing, Rear Master Cylinder Overhaul, ABS Hydraulic Unit Assembly Removal and Solenoid Operation Testing, Handlebar and Switchgear Removal, Front Fork Leg Disassembly, Damping Rod Service, Seal Installation, Steering Head Bearing Race Replacement, Rear Shock Absorber and Relay Arm Linkage Overhaul, Swingarm Inspection and Pivot Bushing Service, Final Drive Chain Removal and Riveting.

Together, these chapters equip the technician with every procedural step, component breakdown, and diagnostic pathway needed to maintain the 2015 Yamaha Tracer 900 platform at peak operating performance and factory reliability.

Advanced Electronic & Engine Management Systems

Modern motorcycles demand sophisticated diagnostics, and this Yamaha MT09TRA MT09TRAF repair manual outlines every electronic system in full engineering detail. Learn how the ECU coordinates the dual microprocessors of the YCC-T system to calculate throttle valve movement every 1/1000th of a second based on accelerator position sensor (APS) inputs, gear position, and crankshaft speeds. Step-by-step diagnostic sequences allow you to enter self-diagnosis modes directly through the instrument cluster to test electrical circuits, calibrate the CO exhaust volume for each cylinder individually, read trouble codes from the immobilizer system, and clear ABS/TCS faults. Technicians also gain access to precise sensor resistances, such as the 5.40–6.60 kΩ at 0°C rating for the intake air temperature sensor and 1.08–2.52 kΩ for the accelerator position sensor.

Critical Technical Specifications & Clearances

Working on the 847 cm³ triple requires adherence to exact mechanical specifications. This manual provides every essential tolerance straight from Yamaha service engineering:

IMAGES PREVIEW

• Valve Clearances (Cold): Intake: 0.11–0.20 mm (0.0043–0.0079 in); Exhaust: 0.26–0.30 mm (0.0102–0.0118 in).
• Spark Plugs: NGK CPR9EA9 with an electrode gap of 0.8–0.9 mm (0.031–0.035 in), torqued to 13 Nm (1.3 m·kgf, 9.4 ft·lbf).
• Engine Compression: Standard 1530 kPa at 680 r/min; service range 1330–1710 kPa (189.2–243.2 psi).
• Engine Oil Capacity: 3.40 L total dry engine overhaul; 2.70 L with oil filter cartridge replacement; 2.40 L standard oil change. Recommended oil: Yamalube SAE 10W-40 (API SG or higher, JASO MA).
• Cooling System: Total capacity 1.93 L including radiator routes, plus 0.25 L in reservoir tank.
• Suspension Fluid & Adjustments: Front fork uses Yamaha Suspension Oil 01; capacity is 444.0 cm³ (174 mm level) in the left leg and 431.0 cm³ (175 mm level) in the right leg.

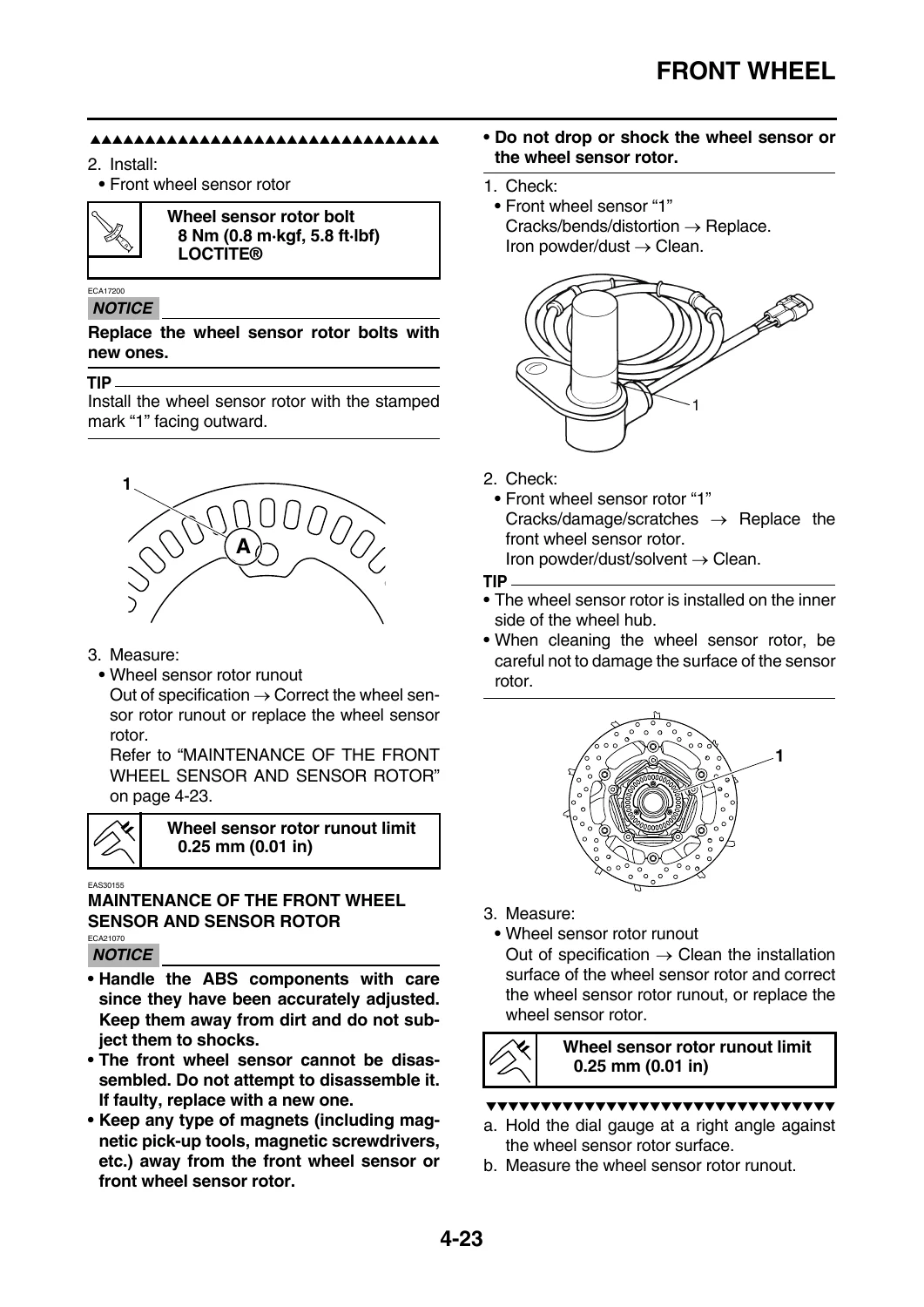

• ABS Sensor Air Gaps: Front wheel sensor clearance to rotor: 0.9–1.5 mm; Rear wheel sensor clearance: 0.7–1.4 mm.
• Drive Chain Slack: 5.0–15.0 mm (0.20–0.59 in) measured on the centerstand; wear limit 25.0 mm.
• Critical Fastener Torques: Rear wheel axle nut: 150 Nm; Front wheel axle: 65 Nm; Front axle pinch bolt: 23 Nm; Front brake caliper mounting bolts: 35 Nm; Clutch boss nut: 125 Nm; Generator rotor bolt: 75 Nm; Steering stem nut: 110 Nm.

Professional Workshop Capability & Instant Access

Having the original 2015 Yamaha MT-09 Tracer MT09TRA MT09TRAF Service Manual on hand ensures that every repair, routine service, and complex overhaul is completed safely, accurately, and to exact factory standards. Guessing at fastener tightening torques, skipping multi-angle cylinder head torque procedures, or improperly routing hydraulic lines can lead to costly component failure or dangerous handling issues. With this workshop manual, you have the identical procedural charts, exploded parts diagrams, and troubleshooting flows used by certified Yamaha dealership mechanics worldwide.

This manual is delivered as an instant digital PDF download immediately following your purchase. There are no shipping wait times, physical book delays, or damaged pages to worry about. The document is fully compatible with Windows, macOS, Android, and iOS devices, allowing you to view detailed wiring layouts and disassembly diagrams on your smartphone, tablet, laptop, or desktop workshop terminal. You can also print individual sections or specific exploded views to keep beside your workstation in the garage without worrying about shop grime.
