2018 Caterpillar 426F2 Backhoe Loader Side Shift Parts Manual M0076910-13

Description

2018 Caterpillar 426F2 Backhoe Loader Side Shift Parts Manual M0076910-13

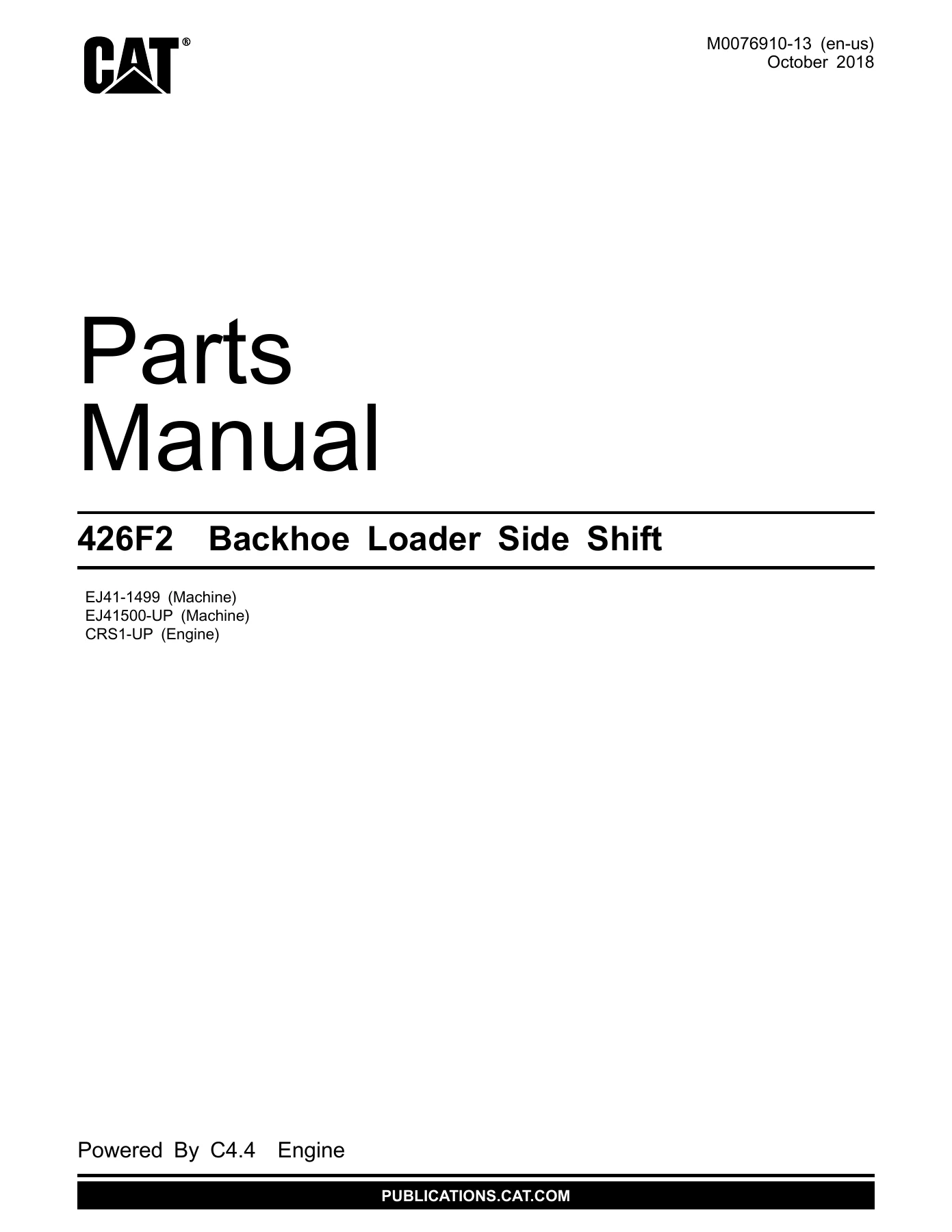

This is the complete 2018 Caterpillar 426F2 Backhoe Loader Side Shift Parts Manual, published under document number M0076910-13 for machines starting at serial EJ41-UP. It is the same illustrated parts catalog used to identify, order and assemble every serviceable group on the 426F2 Side Shift machine, from the primary engine arrangement and transmission right through to the operator station, work tools and shipping equipment.

File Details

• Manual type: Parts Manual (illustrated parts catalog)
• Brand: Caterpillar (Cat)
• Model: 426F2 Backhoe Loader Side Shift
• Document number: M0076910-13
• Publication date: 2018
• Machine serial: EJ41-UP
• Engine arrangement: 352-1451, engine serial CRS1-UP, 69 Brake kW (92 BHP) at 2200 RPM
• Language: English
• Page count: 667
• File format: PDF

Chapters Covered

The 2018 Caterpillar 426F2 Backhoe Loader Side Shift Parts Manual M0076910-13 is organized in the standard Cat parts catalog structure, with each section presenting exploded illustrations alongside serviceable consist lists and full Cat part numbers. The main divisions are:

• General Information
• Machine Arrangement

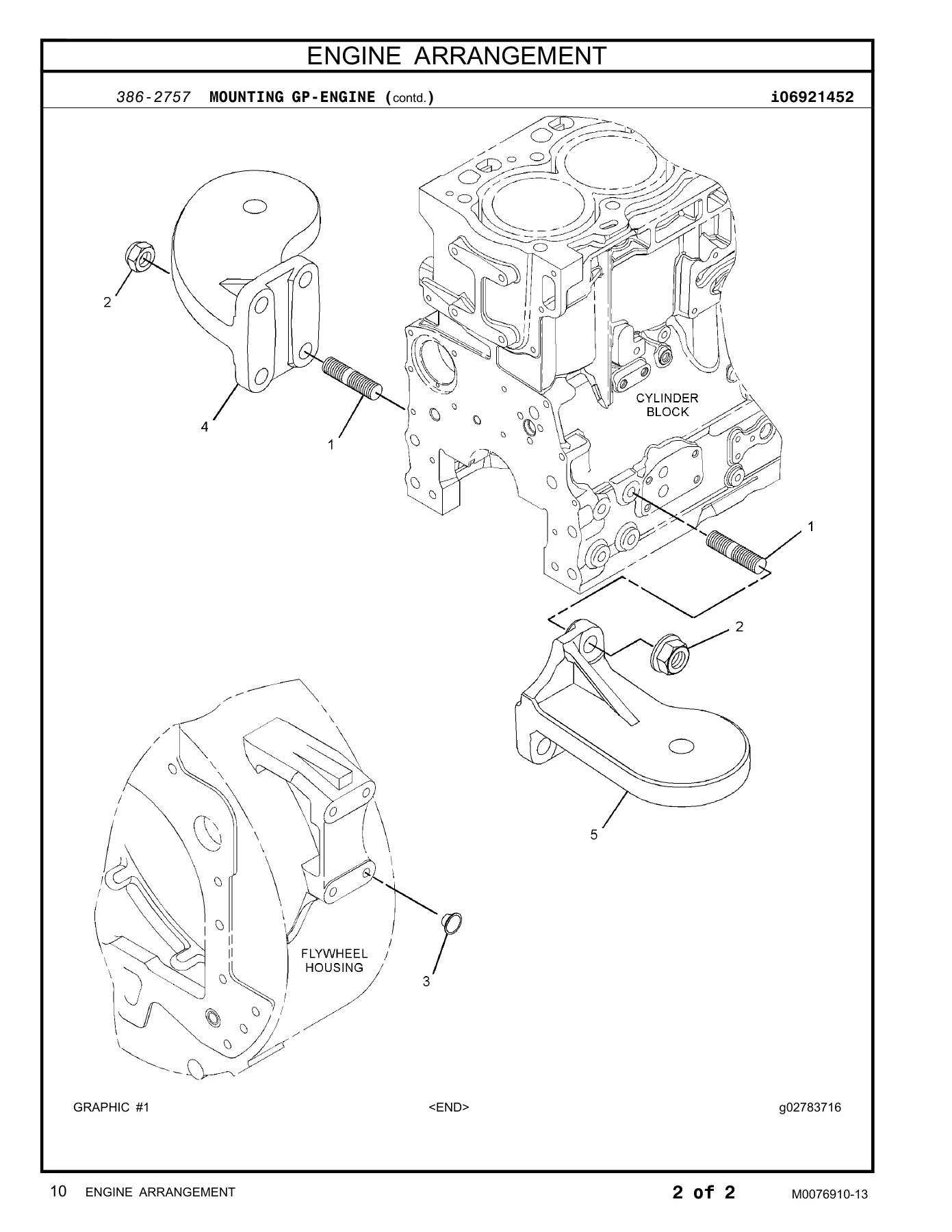

• Engine Arrangement
• Basic Engine (camshaft, cylinder block, cylinder head, crankshaft, flywheel, front housing, oil pan, piston and rod)
• Lubrication System
• Cooling System

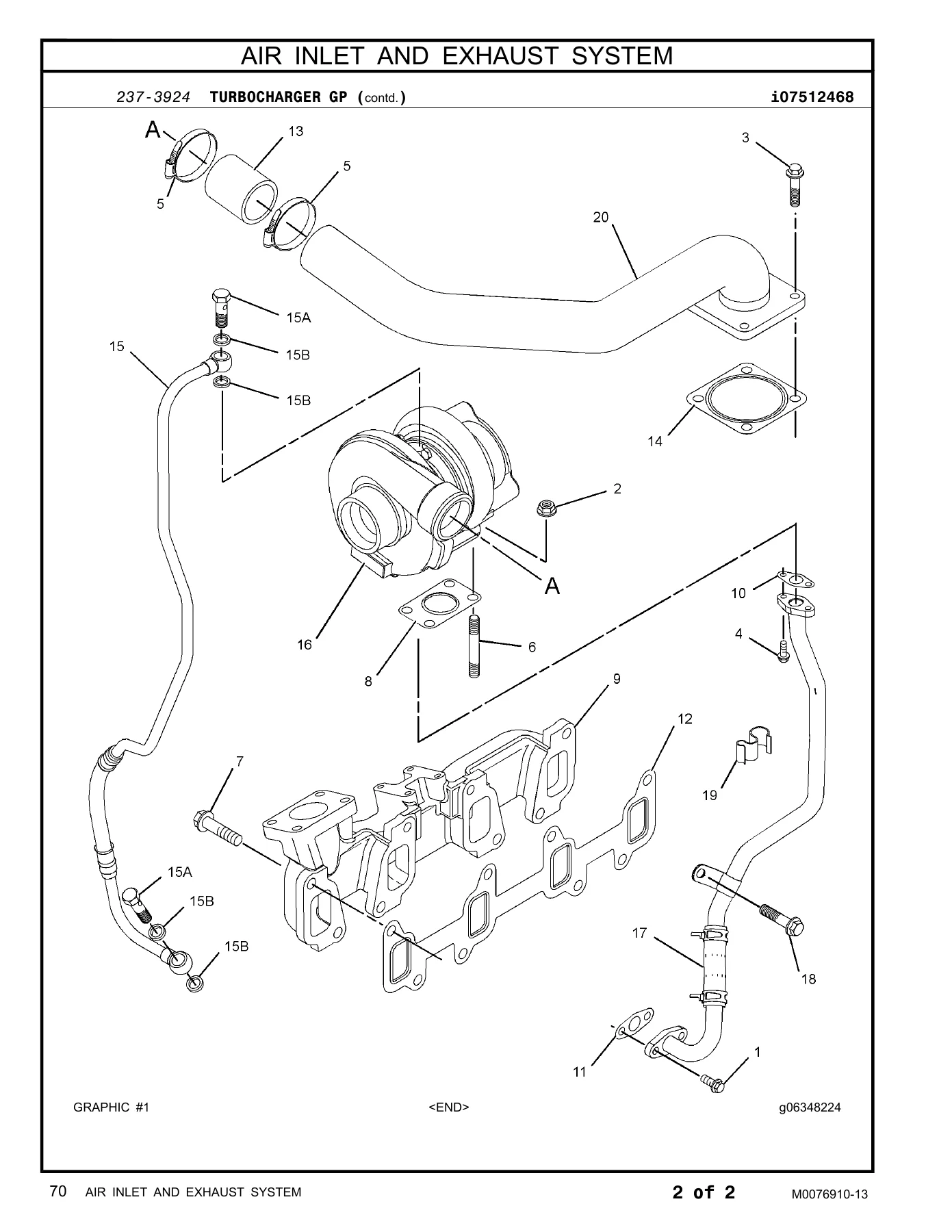

• Air Inlet and Exhaust System
• Fuel System
• Electrical and Starting System
• Power Train (axles, transmission, torque converter, differential, drive shafts, wheels and tires)
• Braking System
• Steering System
• Frame and Body
• Hydraulic System
• Implements (loader arms, backhoe boom and stick, stabilizers)
• Work Tools (buckets, couplers, forks, teeth)
• Operator Station (cab, canopy, HVAC, seat, controls, glazing)
• Service Equipment and Supplies

Altogether, this 426F2 Side Shift parts manual is the reference that answers the question every backhoe owner and dealer parts counter runs into: what is the correct part number for this group, on this machine, at this serial number. Every illustration is broken down by reference number and the corresponding parts list gives the group, quantity and any indented sub-components, so you can trace a wear item back to the assembly it belongs to and order the exact piece Cat built into the machine.

What You Can Do With This Parts Manual

Because this is the complete M0076910-13 catalog, it supports the full range of parts identification tasks on the 426F2 Side Shift. You can build a rebuild parts list for the 352-1451 engine arrangement – camshaft, cylinder head, pistons, connecting rods, oil pump, water pump, turbocharger – or dig into the power train and pull the exploded parts list for the direct drive transmission, the 4-wheel drive axle assemblies, the torque converter and the flexible coupling drive. Steering and brake groups, including the service brake control, parking brake control and metering pump, are covered down to seals, bushings and internal components. On the hydraulic side, the manual covers the implement pump and mounting, the hydraulic tank and mounting, the control valve banks (2-bank, 3-bank, 6-bank and 7-bank), cylinders for the boom, stick, bucket, swing, stabilizer, lift and tilt, plus the lines, manifolds and ride control components.

Coverage For The Full 426F2 Side Shift Machine

The operator station coverage includes the cab and canopy configurations, the heater and air conditioner groups, doors, glazing, wipers, mirrors, seat and suspension groups, and the numerous console, control and trim parts that surround the operator. The frame and body section gives you the loader frame, sliding frame, swing frame, hood and guard groups, counterweights, fenders, grille and identification plates. Machine arrangement entries such as the Backhoe AR, Chassis AR, Loader AR, Common AR, Power Train AR, Hydraulic AR and the regional and cold weather attachment arrangements let you confirm which groups belong to which configuration before ordering.

Ordering The Right Part The First Time

Cat machines are identified by Product Identification Number and by serialized components such as the engine, transmission and axles, and this manual preserves those serial-number breaks throughout. Sections are captioned with S/N references like EJ41-UP or CRS1-UP, so you can confirm the correct version of a group before purchase. Illustrations use reference letters and numbers that map directly to parts list entries, and non-serviced part numbers are shown in italics so you know immediately which numbers are only structural references and which numbers can actually be ordered.

Who This Manual Is For

This 2018 Caterpillar 426F2 Backhoe Loader Side Shift Parts Manual M0076910-13 is intended for machine owners maintaining their own equipment, independent repair shops rebuilding Cat components, and dealer parts personnel who need a clean reference copy of the standard catalog. It is also useful when building a repair estimate: you can walk the exploded views, list every gasket, seal, bushing, bearing and hardware item, and price the job accurately before the machine goes into the shop.

Delivery

IMAGES PREVIEW

The manual is delivered as an instant PDF download after payment – no shipping, no waiting on a paper copy, and no physical handling risk. It opens on any device that reads PDF files, including phones, tablets, laptops and desktop workstations, and can be printed page by page if you prefer a paper copy at the bench. Keep it in your service library and you have the correct exploded parts reference for the 426F2 Side Shift on hand whenever a rebuild, reseal or replacement is on the schedule.
