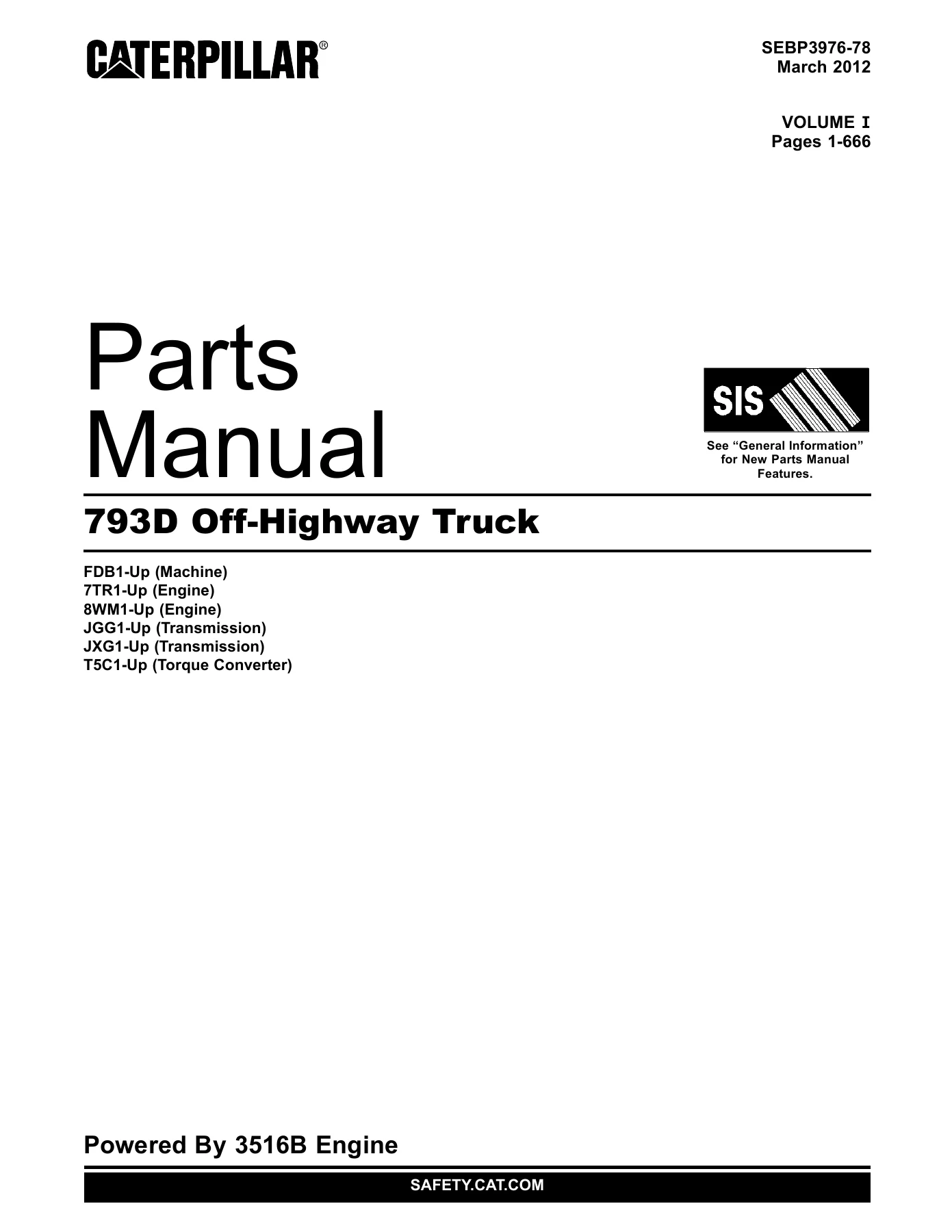

Caterpillar 793D Off-Highway Truck Parts Manual 2012 – SEBP3976-78 Volume I PDF

Description

File Details

• Manual type: Parts Manual
• Brand: Caterpillar
• Model: 793D Off-Highway Truck
• Publication number: SEBP3976-78
• Volume: Volume I (pages 1-666)
• Date: 2012
• Language: English
• File format: PDF
• Serial number prefixes covered: FDB1-Up (Machine), 7TR1-Up (Engine), 8WM1-Up (Engine), JGG1-Up (Transmission), JXG1-Up (Transmission), T5C1-Up (Torque Converter)

Chapters Covered

The Caterpillar 793D Off-Highway Truck Parts Manual SEBP3976-78 Volume I is organized into the standard Caterpillar parts-book grouping, with a full table of contents at the front, a maintenance parts index, an alphabetical index and a numerical part number index at the back. The major sections are listed below.

• General Information – product and dealer information, repair alternatives, remanufactured components, supplemental coolant additives, maintenance parts index, alphabetical index, machine arrangement, chassis AR, common AR, installation AR-truck, option AR-cab
• Engine – engine AR, engine AR-complete, engine AR-high altitude application, installation AR-engine, basic engine, adapter GP-flywheel housing
• Basic Engine – air compressor GP, base GP-valve cover, camshaft GP, cover GP-cylinder block, cover GP-flywheel housing, cover GP-front housing, cover GP-sound suppression, cover GP-valve mechanism, crankshaft GP, cylinder block AS, cylinder block GP, cylinder head AS, cylinder head GP, damper GP, dowel GP-cylinder block, drive GP-accessory, drive GP-auxiliary, flywheel GP, gear GP-front, gear GP-rear, governor GP-air compressor, guard GP-belt, guard GP-damper, housing GP-flywheel, housing GP-front, idler GP-belt, kit-gasket, lifting GP-engine, lines GP-air compressor, mounting GP-alternator, pan GP-oil, piston & rod GP, seal GP-crankshaft, support GP-engine, trunnion GP-engine, valve mechanism GP
• Lubrication System – breather GP, extension GP-drain, filler GP-engine oil, filter GP-engine oil, fumes disposal GP, gauge GP-oil level, lines GP-engine oil, lines GP-fan drive, lines GP-prelubrication, lines GP-turbocharger oil, metering GP-engine oil, oil change GP-high speed, prelubrication AR-engine, pump GP-engine oil, pump GP-scavenge, valve & mtg GP-oil metering, valve GP-solenoid
• Cooling System – connection GP-water, cooler GP-engine oil, cooling AR, core GP-engine oil cooler, core GP-oil cooler, cover GP-radiator cap, fan GP-suction, housing & regulator GP, lines GP-oil cooler, lines GP-water, mounting GP-radiator, pump GP-auxiliary water, pump GP-water, radiator GP, shield GP-water manifold, tube AS, valve GP-coolant sampling
• Air Inlet and Exhaust System – aftercooler GP-treated water, aftercooler GP-water, air cleaner & mounting GP, air cleaner GP, bypass GP-exhaust, cartridge GP-turbocharger, cover GP-sound suppression, exhaust AR, lines GP-air, lines GP-turbocharger air, manifold GP-exhaust, mounting GP-muffler, muffler GP, pipe GP-exhaust, shield GP-manifold, strap GP-mounting, support GP-turbocharger, turbocharger GP, valve GP-solenoid
• Fuel System – filter GP-fuel, filter GP-primary fuel, filter GP-water sep & fuel, injector GP-fuel, lines GP-fuel filter, lines GP-fuel injection, manifold GP-fuel, mounting GP-fuel tank, pump GP-fuel injection, pump GP-fuel priming, pump GP-fuel prm & prim filter, pump GP-fuel transfer, tank & filter AR-fuel, tank AS-fuel, tank GP-fuel
• Electrical and Starting System – alarm GP, alternator GP-charging, battery & wiring GP, battery GP, block GP-junction, box & mtg GP-object detection, camera GP, camera AR, circuit breaker GP, control & mtg GP-electronic, control GP-air starting, control GP-engine electronic, control GP-unprogrammed, cover GP-module connector, electronics GP-machine, electronics GP-monitor, electronics GP-power train, harness AS-cab, harness AS-dash, harness AS-engine, harness AS-monitor, harness AS-sensor, harness AS-wiring, heater GP-engine oil, heater GP-fuel, heater GP-jacket water, kit-object detection, kit-wiring, lamp GP-dome, lamp GP-flood, lamp GP-head, lamp GP-payload signal, lamp GP-signal, lighting GP-flood & head, lighting GP-signal, lines GP-air starting, mounting GP-camera, mounting GP-sensor, panel GP-circuit breaker, sensor GP-exhaust temperature, sensor GP-fuel level, sensor GP-liquid level, sensor GP-object detection, sensor GP-position, sensor GP-speed, sensor GP-temperature, software GP-monitor, starting aid GP-ether, starting AR-air, starting AR-electric, starting motor GP-air, starting motor GP-electric, switch GP-bypass, switch GP-disconnect, switch GP-liquid level, switch GP-rocker, switch GP-start, wiring GP-cab, wiring GP-camera, wiring GP-chassis, wiring GP-engine, wiring GP-fender, wiring GP-lighting, wiring GP-monitor, wiring GP-object detection, wiring GP-platform, wiring GP-prelubrication, wiring GP-rear, wiring GP-sensor, wiring GP-service center, wiring GP-transmission control
• Power Train – actuator GP-rotary, axle & mounting GP, case & parts GP-planetary, control GP-transmission hyd, cooler AR-rear axle oil, cooler GP-rear axle oil, differential & bevel gear GP, differential GP, drive GP-final, filter GP-oil, gear GP-transfer, housing GP-rear axle, kit-drive train, kit-final drive bearing, kit-transmission bearing, lines GP-power train cooler, lines GP-power train filter, lines GP-power train oil, lines GP-rear axle lubrication, planetary GP-transmission, power train AR, pump & motor GP-rear axle, pump GP-gear, rim GP, rim GP-demountable, rim GP-single, screen GP, screen GP-magnetic, shaft GP-drive, shaft GP-pump drive, slip joint GP, spindle GP, support GP-axle housing, torque converter GP, transmission AR, valve GP-lockup clutch & sync, valve GP-lube relief, valve GP-pressure control, valve GP-relief, valve GP-selector & press control, valve GP-solenoid, valve GP-traction control, valve GP-transmission control, wheel & brake GP, wheel AR, wheel AR-final drive & brake, wheel GP-final drive & brake
• Frame and Body – body & canopy AS, boss GP-frame, cover & mtg GP-stairway, extension AS-tail, fastener GP-handrail, fender GP, frame AS, frame GP, grill GP-radiator, guard GP-drive shaft, guard GP-hydraulic tank, handrail GP, hood GP-truck, ladder GP, latch GP-hood, lubrication GP-automatic, mirror GP, mounting AR-truck body, mounting GP-platform, mounting GP-suspension, mounting GP-truck body, pump GP-electric drive, pump GP-lubrication, sideboard AS-body, stairway AR, step GP, suppression GP-sound, suspension AR, suspension GP-front, suspension GP-rear, tread GP-non-skid, walkway GP
• Braking System – accumulator GP-brake, air dryer GP, brake GP-service & parking, control GP-parking brake, control GP-service brake, cylinder GP-air, cylinder GP-air/hydraulic, filter GP-oil, indicator GP-brake wear, kit-brake, lines GP-service brake, pump & motor GP-brake release, slack adjuster GP, tank GP-air, tank GP-brake, valve & mtg GP-brake, valve GP-air control, valve GP-brake, valve GP-check, valve GP-modulating, valve GP-relief, valve GP-solenoid
• Steering System – accumulator GP-steering, arm GP-steering, cylinder GP-steering, filter & lines GP-steering, filter GP-oil, head GP-pump, lines GP-steering, link GP-steering, pump GP-metering, pump GP-piston, steering column GP, steering column GP-adjustable, tank & filter GP-steering, valve GP-pump control, valve GP-relief, valve GP-solenoid, valve GP-steering
• Hydraulic System – accumulator GP-hydraulic, cylinder GP-hoist, drive GP-pump, filter GP-oil, head GP-motor, head GP-pump, hydraulic AR, lines GP-hoist, lines GP-hydraulic, lines GP-hydraulic fan, lines GP-hydraulic oil cooler, motor GP-piston, pump & mtg GP-hydraulic, pump & mtg GP-hydraulic fan, pump GP-gear, pump GP-piston, rotating GP-motor, rotating GP-pump, tank GP-hydraulic, valve GP-control, valve GP-diverter, valve GP-makeup, valve GP-motor control, valve GP-pump control, valve GP-relief
• Operator Station – adjuster GP-seat, air conditioner GP, cab AR, cab GP, cab GP-enclosed ROPS, console GP-operator, control GP-hoist, control GP-retarder, control GP-steering, dash GP, display GP-monitor, door GP-cab, horn GP-air, module GP-message center, monitor AR-payload, mounting GP-cab, panel GP-instrument, panel GP-sound suppression, seat belt GP, seat GP, seat GP-adjustable, seat GP-companion, seat GP-suspension, window GP, window GP-cab, wiper GP-window
• Service Equipment and Supplies – cap GP-protection, chock GP-wheel, film GP, kit-cylinder head gasket, plate & film GP, protection GP-vandalism, service center AR, service center GP
• Part Number Index – numerical listing of every part number with its page reference

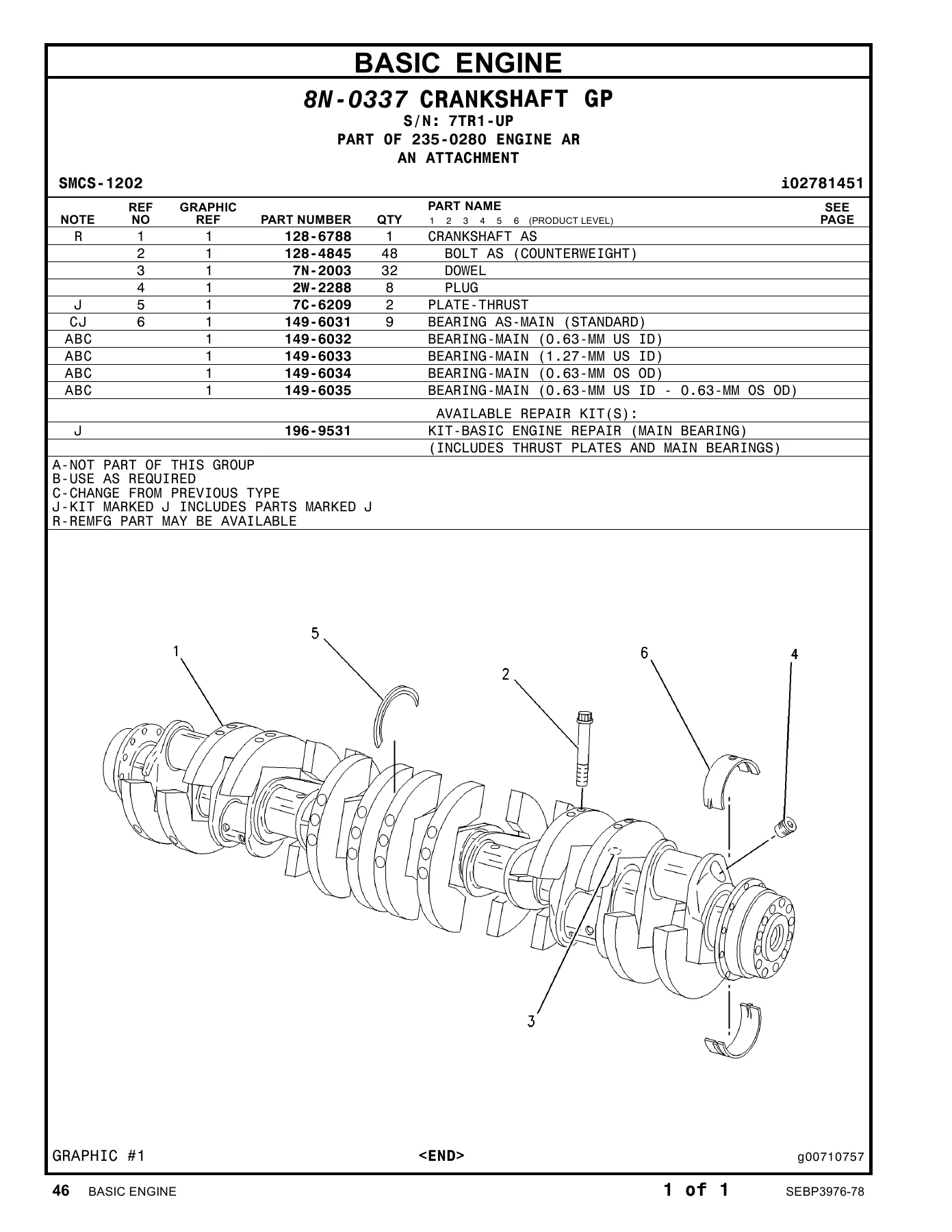

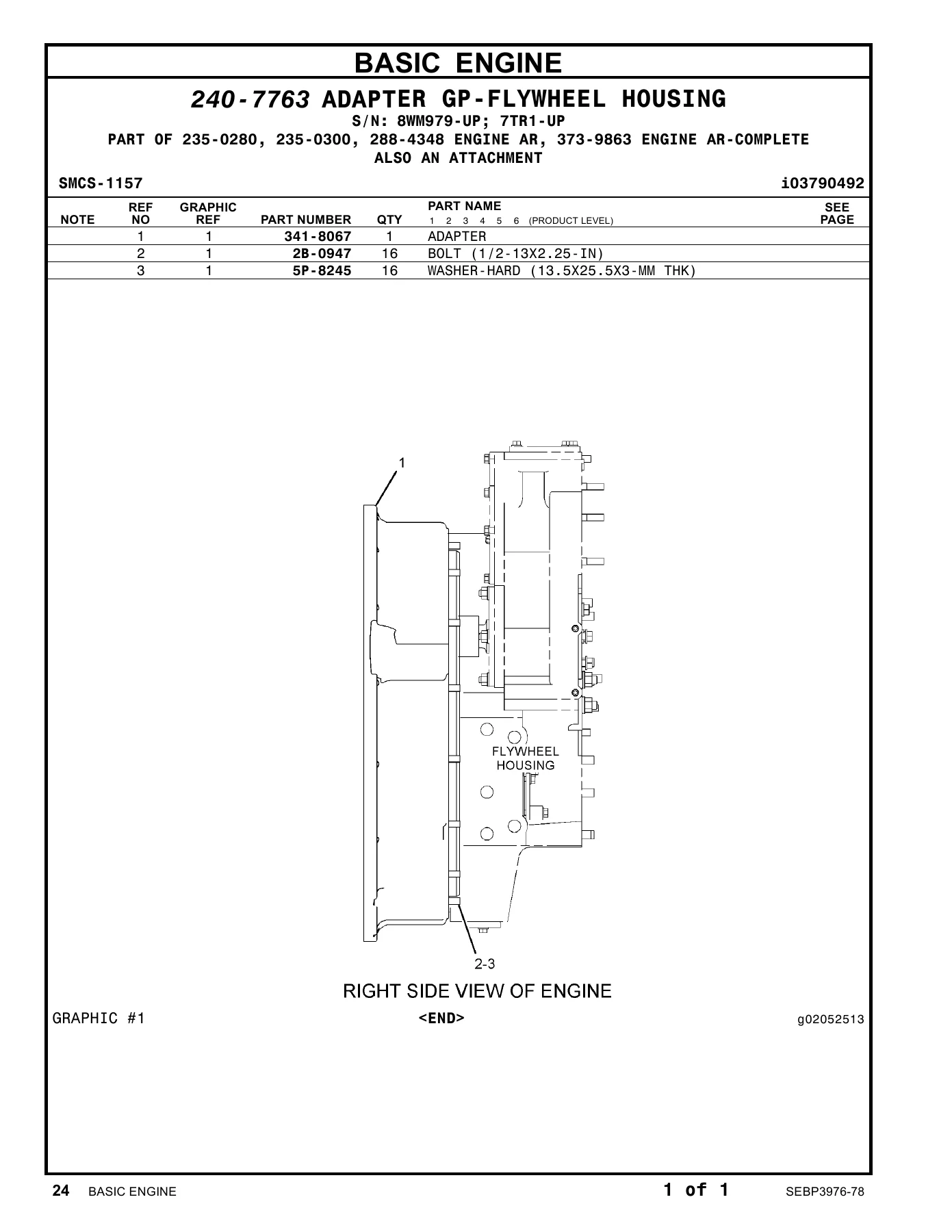

With more than 660 pages of exploded illustrations and serviceable consist lists, this Caterpillar 793D Off-Highway Truck Parts Manual gives a technician the complete illustrated parts breakdown for one of the largest Cat mining trucks. Every assembly is drawn in the standard Caterpillar exploded-view format with a numbered reference list pointing to the part number, quantity and description, so a mechanic can identify the exact component on a machine, confirm that it matches the serial prefix on the truck in front of them, and order the correct replacement from a Cat dealer without guesswork.

What This Parts Manual Gives You

Unlike a service or repair manual, a Caterpillar parts book does not walk you through procedures – it shows you what every system is built from, item by item, and how the pieces physically relate to each other. On the 793D that matters more than on a small machine because the truck has sixteen-cylinder engine architecture, a torque converter and planetary transmission, hydraulic fan drive, rear axle oil cooling, air-over-hydraulic braking, and a hydraulic hoist system with telescoping cylinders. The manual covers all of these as distinct information elements, each with its own illustration and part list.

Each caption is labelled with the serial-number break that applies, so the same part group can be checked against FDB1-Up machines as well as the engine serial prefixes 7TR1-Up and 8WM1-Up, the JGG1-Up and JXG1-Up transmissions and the T5C1-Up torque converter. Where a design change took place Caterpillar lists a replacement part number and a “C” note (change from previous type), so older trucks and later trucks are both covered. Remanufactured parts are marked with an “R” note, and non-serviced link parts are shown in italic so you can see where a lower-level consist list takes over.

How the Manual Is Structured

The main sections follow the machine itself: General Information first, then Machine Arrangement and Engine, then the systems (Basic Engine, Lubrication, Cooling, Air Inlet and Exhaust, Fuel, Electrical and Starting), then Power Train, Frame and Body, Braking, Steering, Hydraulic and Operator Station, and finally Service Equipment and Supplies. Each information element opens with a caption giving the part number, the part name, the “part of” reference and any serial number breaks, followed by a numbered illustration and its parts list.

Three indexes make lookups fast. The Maintenance Parts Index at the front lists the most frequently used consumables – filters, caps, breathers, seals, circuit breakers and seat belts – with quantity, where used, and page number. The alphabetical Index in the middle gives every information element with a page reference. The Part Number Index at the back is a numerical listing of every part number and its page, so if you already have a part number you can jump straight to the correct illustration.

Who This Manual Is For

This book is written for the shop floor. Heavy-equipment mechanics rebuilding a 793D engine, driveline or hydraulic system will use it to identify seals, gaskets, bearings, fasteners, housings and complete assemblies. Parts counter staff and dealer personnel will use it to confirm the correct number against a machine serial. Fleet owners maintaining a 793D in a mining application will use it to build a stocked-parts list and to plan rebuilds. Field service technicians working on the torque converter, transmission, rear axle or final drives will use the exploded views to see how parts stack before disassembly.

Why the Manual Matters

Getting a part number wrong on a machine of this size is expensive – in downtime, in freight, and in the risk of damaging adjacent components while a wrong part is being fitted. The Caterpillar 793D Off-Highway Truck Parts Manual SEBP3976-78 Volume I is the reference that removes that guesswork by tying every part to a serial-number range and to an illustration. It is the same document the dealer parts counter uses to build an order, so what you see in the book is what is on the shelf.

Delivery

IMAGES PREVIEW

The manual is delivered as an instant-download PDF. There is no shipping, no waiting on a physical book, and no regional availability issue – payment clears, the file is yours, and it opens on any laptop, tablet, phone or shop PC. Pages can be printed and taken to the machine, and individual illustration pages can be enlarged on screen for close inspection of the exploded views. Whether you are rebuilding one truck or supporting a fleet of 793D Off-Highway Trucks, this Caterpillar parts manual gives you the full illustrated parts breakdown in a single searchable PDF file.
