Description

2021 Yamaha MT-07 Service Manual – MT07M / MT07MC

This is the complete 2021 Yamaha MT-07 Service Manual carrying Yamaha part number LIT-11616-34-63 — the full workshop reference written for the MT07M and MT07MC platforms. From the opening identification pages through to the final wiring diagram, it covers every major system on the bike: the 689 cc inline twin, the chassis, the ABS brake circuit, the fuel injection system and the self-diagnostic routines that keep them all talking to each other.

The 2021 Yamaha MT-07 service manual is written for technicians working on the real machine: torque values are given per fastener, service limits are stated with wear tolerances, and every removal or installation sequence is laid out in order. Whether you are adjusting valve clearance, rebuilding a front fork leg, replacing the clutch, bleeding the ABS hydraulic unit or chasing a DTC, this manual shows the process, the tooling and the specification to finish the job correctly.

File Details

• Manual type: Service Manual (workshop repair reference)
• Brand: Yamaha
• Models covered: MT07M, MT07MC
• Model year: 2021
• Language: English
• File format: PDF
• Document number: LIT-11616-34-63
• First edition: December 2020
• Publisher: Yamaha Motor Corporation, U.S.A.

Chapters Covered

• 1. General Information – Identification, model label, vehicle identification number

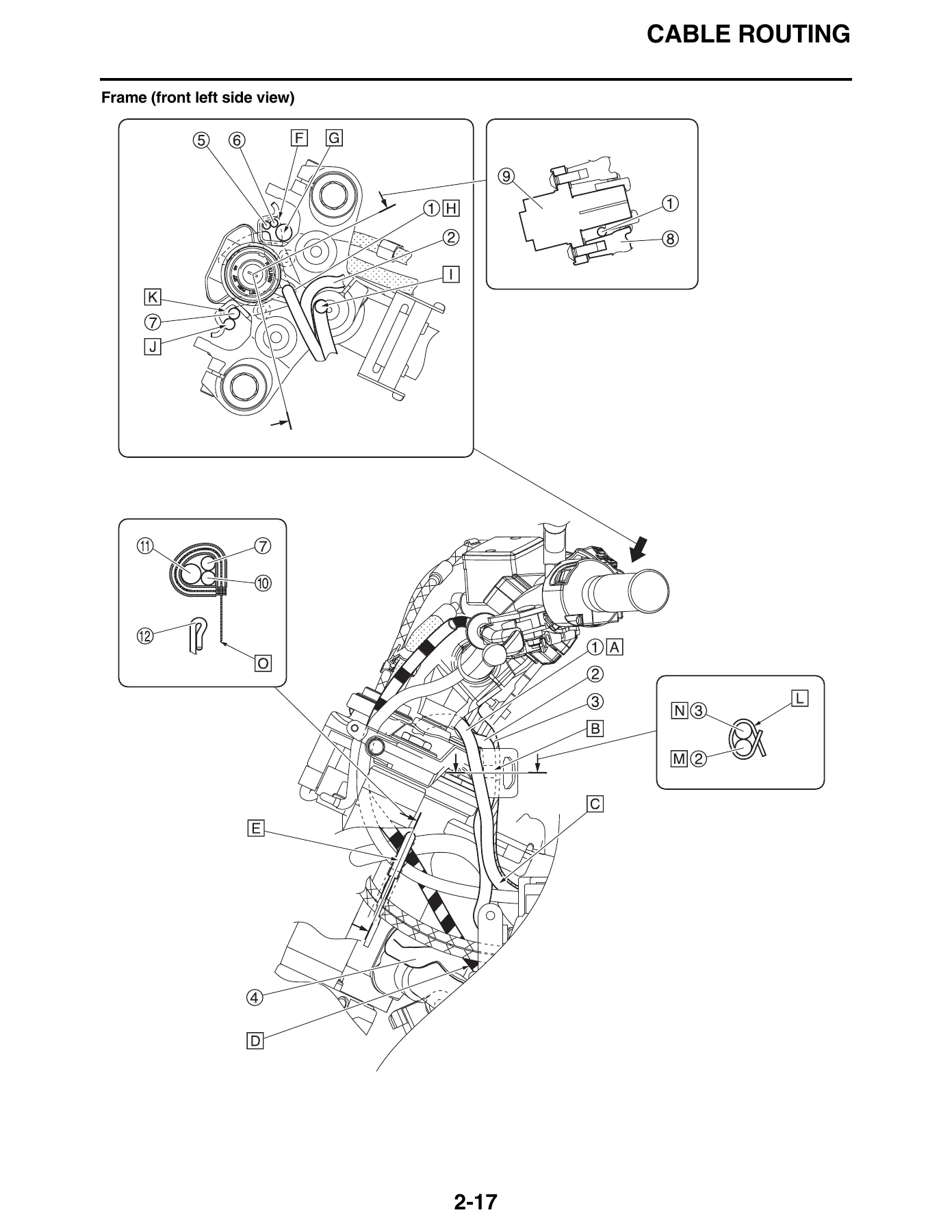

• 2. Specifications – General, engine, chassis and electrical specifications; tightening torques; cable routing
• 3. Periodic Checks and Adjustments – Maintenance charts, valve clearance, idling speed, throttle body synchronization, brake adjustment, drive chain, coolant, battery, fuses
• 4. Chassis – General chassis, front wheel, rear wheel, front brake, rear brake, ABS, handlebar, front fork, steering head, rear shock absorber assembly, swingarm, chain drive
• 5. Engine – Lubrication system, engine inspection, engine removal, camshafts, cylinder head, valves and valve springs, generator and starter clutch, electric starter, clutch, shift shaft, oil pump, oil pan, crankcase, connecting rods and pistons, crankshaft and balancer shaft, transmission
• 6. Cooling System – Radiator, oil cooler, thermostat, water pump
• 7. Fuel System – Fuel tank, air filter, throttle bodies
• 8. Electrical System – Ignition system, electric starting system, charging system, lighting system, signaling system, cooling system, fuel pump system, electrical components
• 9. Self Diagnostic – Self-diagnostic function, ECU and ABS circuit diagrams, DTC tables, event code tables, diagnostic code procedures

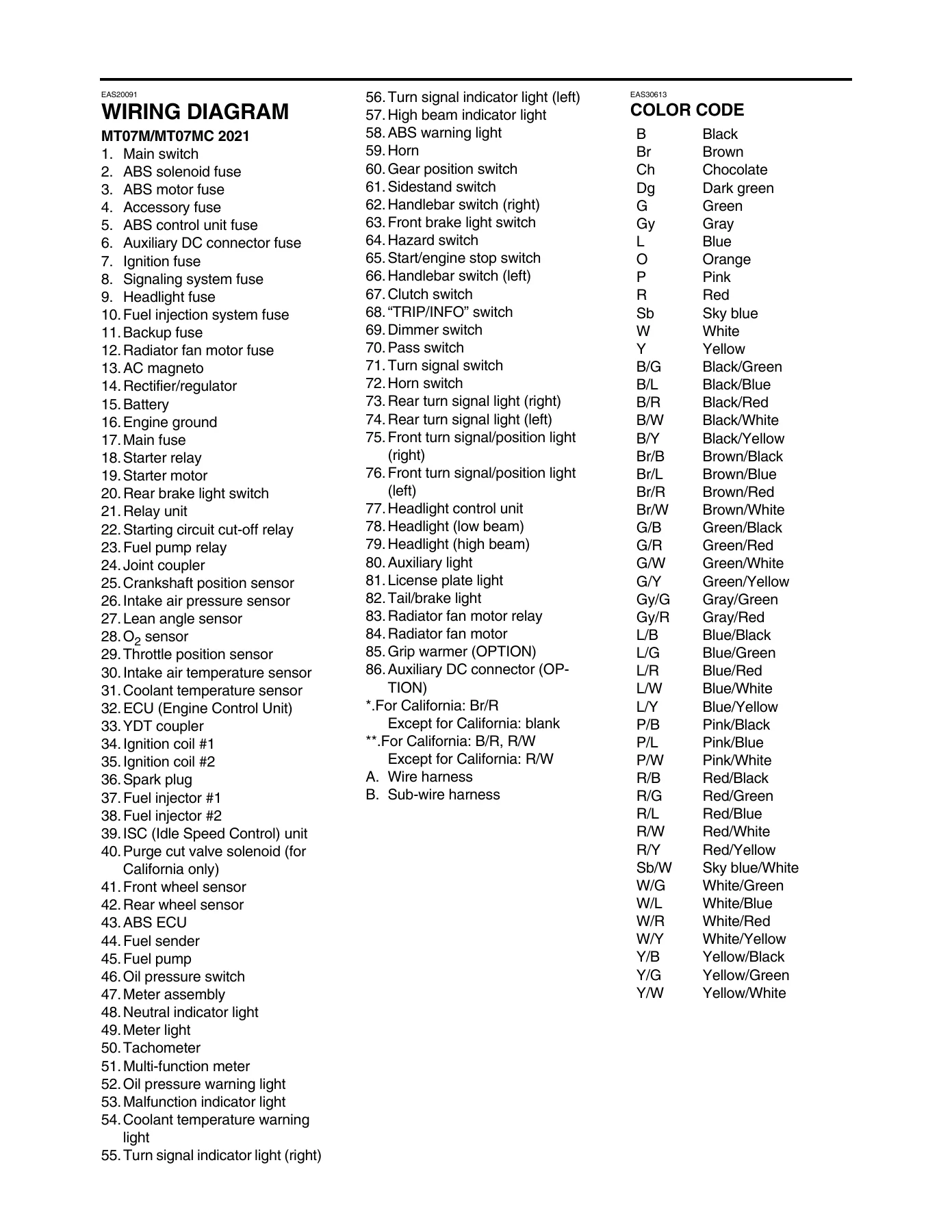

• Wiring Diagram – Full machine wiring diagram and colour code reference

What makes this MT-07 service manual genuinely useful is that every chapter is written as a working procedure, not a summary. The chassis chapter is not just a parts breakdown — it walks through the disassembly, inspection and reassembly of every assembly on the bike, complete with measurement points and wear limits. The engine chapter covers the full teardown sequence from removing the engine out of the frame, through camshaft and valve service, to splitting the crankcase and rebuilding the transmission. The electrical chapter includes the ABS hydraulic unit operation tests and the self-diagnostic troubleshooting trees that let you work from a DTC code straight to the faulty component.

Together, the 2021 Yamaha MT-07 MT07M MT07MC service manual gives a technician the complete picture: specifications to work to, procedures to follow, torque values to tighten to, and diagnostic flows to trace a fault to its root. It replaces guesswork with documented procedure.

What This Service Manual Enables You To Do

• Perform scheduled maintenance — valve clearance adjustment, throttle body synchronization, oil and filter changes, coolant changes, brake fluid bleeding and drive chain service
• Service the front and rear brake systems, including pad replacement, caliper disassembly, master cylinder service and ABS hydraulic unit testing
• Diagnose ABS faults using the DTC table and hydraulic unit operation tests, then delete the codes once repairs are complete
• Rebuild the front fork legs — oil level setting, seal replacement, bushing checks and the full assembly order
• Remove and install wheels, brake discs, wheel sensor rotors and set the correct wheel sensor-to-rotor air gap
• Remove, disassemble and reinstall the engine, and carry out internal work on the camshafts, cylinder head, valves, clutch, generator, starter clutch, oil pump, crankshaft and transmission
• Service the cooling system — radiator, thermostat, water pump and oil cooler — with the correct capacities and valve opening temperatures
• Carry out electrical diagnostics using the wiring diagram, circuit schematics and diagnostic code tables for the ignition, charging, lighting, signaling and fuel pump systems
• Reference the exact tightening torque for every fastener in the engine and chassis sections

Getting the correct procedure and the correct specification matters more on a modern motorcycle than almost anywhere else. A valve clearance that is out of tolerance, a wheel sensor air gap that is too wide, a torque value that is over-tightened, or a coolant system that has been bled incorrectly can turn a simple repair into a repeat job. This 2021 Yamaha MT-07 workshop manual removes that risk: you follow the documented sequence, work to the documented specification, and confirm against the documented wear limits.

IMAGES PREVIEW

Delivery is instant. Once payment is confirmed, the PDF is available to download straight away — no shipping, no waiting, no printed copy to chase. The file works on any device: a laptop in the workshop, a tablet next to the bike, or a phone for quick reference. Every page can be printed if you prefer a paper copy for the bench, and you can re-download it as often as you need.
