AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 - PDF DOWNLOAD

AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 – PDF DOWNLOAD

Name: AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 - PDF DOWNLOAD
SKU: 499572
Availability: InStock

$27.95

AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 – PDF DOWNLOAD

Category: AGCO Tags: AGCO NA ST35X ST40X TRACTORS, AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727, AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 - PDF DOWNLOAD Vendor: TheRepairShop

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 – PDF DOWNLOAD

FILE DETAILS:

AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 – PDF DOWNLOAD

Language : English
Pages :294
Downloadable : Yes
File Type : PDF
Size:159 MB

DESCRIPTION:

AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 – PDF DOWNLOAD

INTRODUCTION

The purpose of this manual is to assist dealers and distributors in the efficient repair and maintenance of Massey Ferguson, AGCO, and Challenger farm machinery. Carrying out the procedures as detailed, together with the use of special tools where appropriate, will enable the operations to be completed within the time stated in the repair time schedule.

INDEXING

For convenience, the manual is divided into parts sections with each page number bearing the part and section number. Page numbers are located at top outside of each page. Beneath the page number is written title of manual division.

SAFETY PRECAUTIONS

• Make sure that all personnel are in a safe position before starting the engine, or operating ANY of the controls. • Always stop the engine before leaving the operator’s platform.

• Wait for all moving parts to stop COMPLETELY before starting any work on the tractor.

Before starting service procedures, attached equipment should be resting on the ground and all hydraulic control levers operated back and forth several times with the engine stopped.

• If it becomes necessary to go under raised attachment (i.e.: to perform adjustments, etc.), safety stands must be used to support the attachment.

• Make sure the battery ground cable is disconnected before working on or near the electrical system or electrical system components.

• Keep han?s, feet and clothing a safe distance away from moving belts, pulleys and other moving parts. Make sure all safety shields are installed.

• Be extra careful when performing any checks, inspections, adjustments or tests that require operating the engine, the hydraulic controls, OR with the machine in motion.

• Make sure dependable jacks of adequate lifting capacity AND suitable stands are used to securely block up the machine when removing any of the wheels or axles.

• Before any attempt is made to disconnect or remove any hydraulic component, make sure the hydraulic pressure within the system is relieved and the engine is stopped.

• Carry out the repair procedures in a “common sense” manner. Safety procedures cannot be overemph~ sized when working on, or around machinery, especially when working on engine driven and/or hydraulically actuated equipment.

• Safety also depends upon the skill of the serviceman in the use of tools and other shop equipment while performing the recommended service procedures.

• Exercise extreme caution when testing hydraulic or fuel system components as fluid ejected under high pressure can easily penetrate skin causing serious infection.

• When it is necessary to remove hoods, shields, ROPS, etc. to conduct repair operation, all items must be reinstalled to unit and secured in original fashion.

• Modification of ROPS is not permissible. Do not weld, drill or modify ROPS in any manner. Damaged or modified ROPS must be replaced.

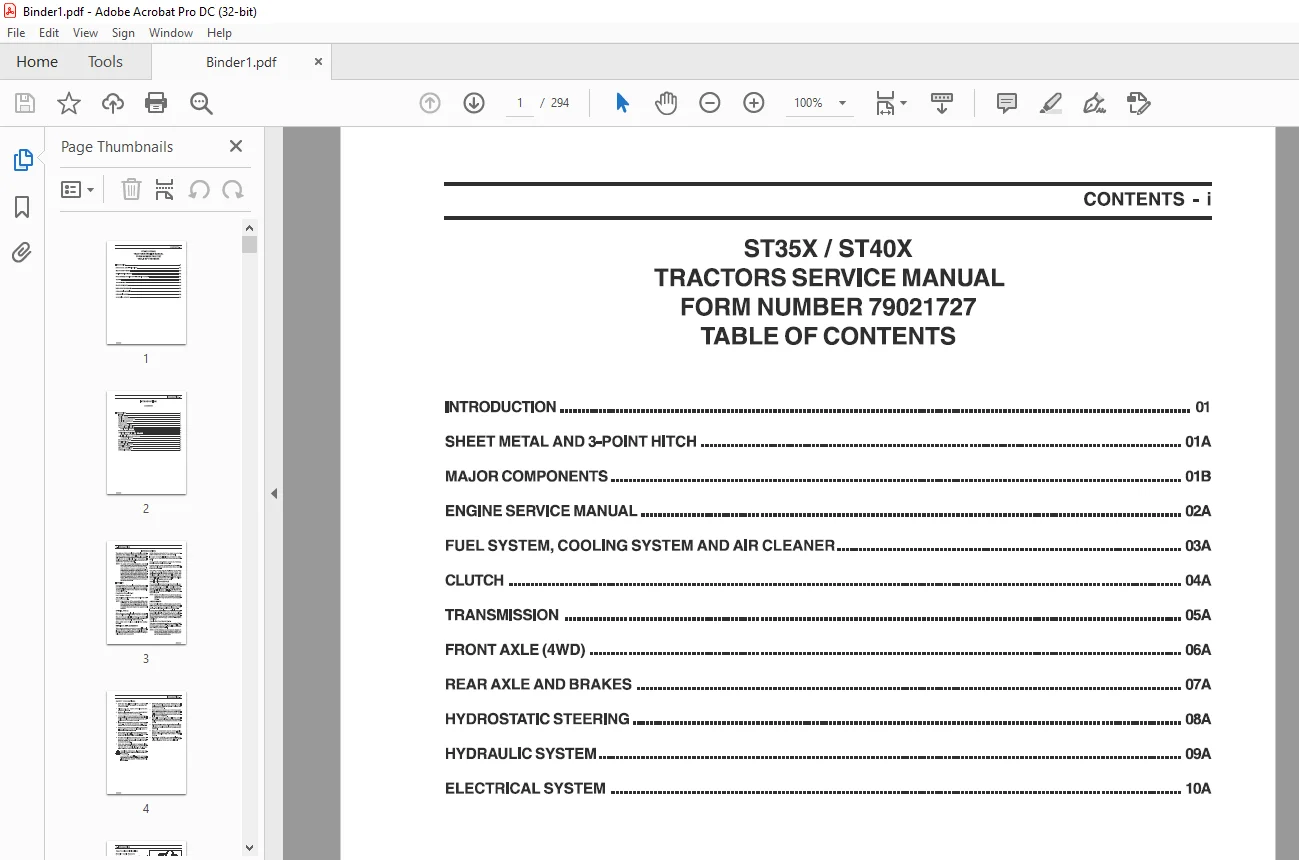

TABLE OF CONTENTS:

AGCO NA ST35X ST40X TRACTORS SERVICE MANUAL 79021727 – PDF DOWNLOAD

INTRODUCTION 01
SHEET METAL AND 3-POINT HITCH 01A
MAJOR COMPONENTS 018
ENGINE SERVICE MANUAL 02A
FUEL SYSTEM, COOLING SYSTEM AND AIR CLEANER 03A
CLUTCH 04A
TRANSMISSION 05A
FRONT AXLE (4WD) 06A
REAR AXLE AND BRAKES fJTA
HYDROSTATIC STEERING 08A
HYDRAULIC SYSTEM 09A
ELECTRICAL SYSTEM 10A
INTRODUCTION 2
INDEXING 2
SPECIAL TOOLS 2
REPAIRS & REPLACEMENTS 2
REPAIR TIME SCHEDULE 2
AMENDMENTS 2
SAFETY PRECAUTIONS 3
TRACTOR IDENTIFICATION 4
Model / Serial Numbers 4
STANDARDTORQUECHART 6
LUBRICATION & PERIODIC MAINTENANCE 7
Specifications & Capacities 7
PERIODIC MAINTENANCE SCHEDULE 8
Lubrication/Fill Points 9
MAJOR COMPONENT 1 0
SPECIFICATIONS 11
GEAR TRAIN DIAGRAMS 14
TRA VELING SPEEDS 1 6
SEALANT & ADHESIVES 1 7
CONVERSION TABLES

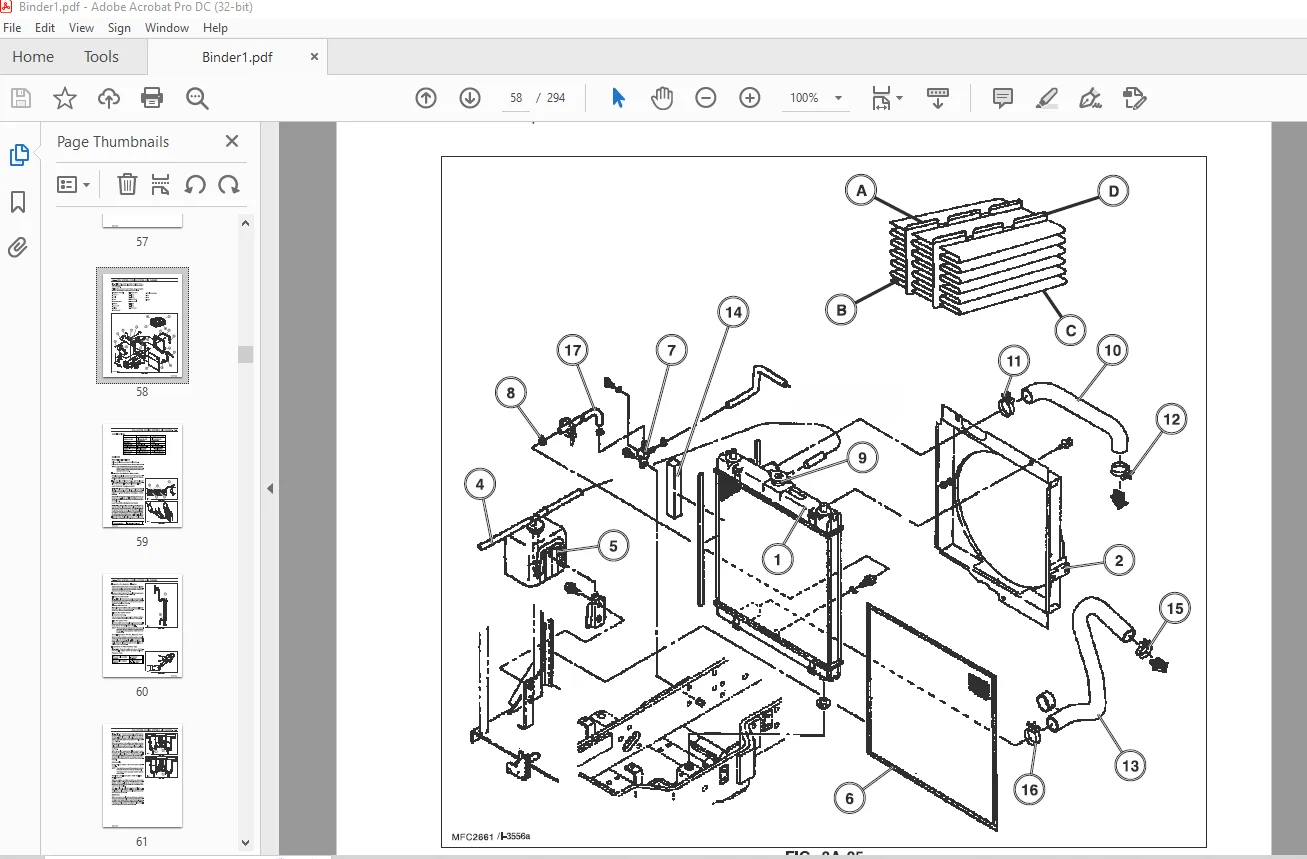

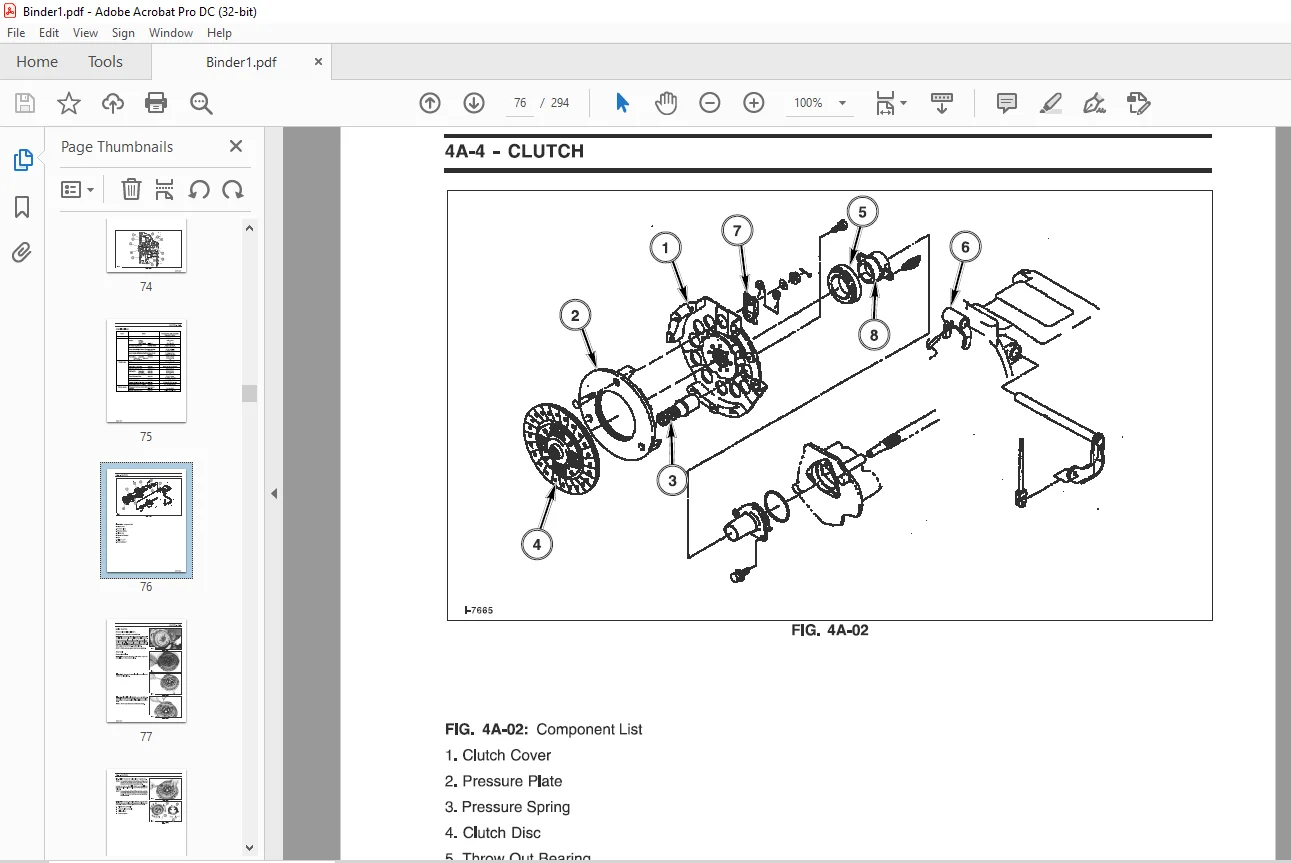

IMAGES PREVIEW OF THE MANUAL:

Contact us: [email protected]

https://vimeo.com/837876701?share=copy

PLEASE NOTE:

This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
