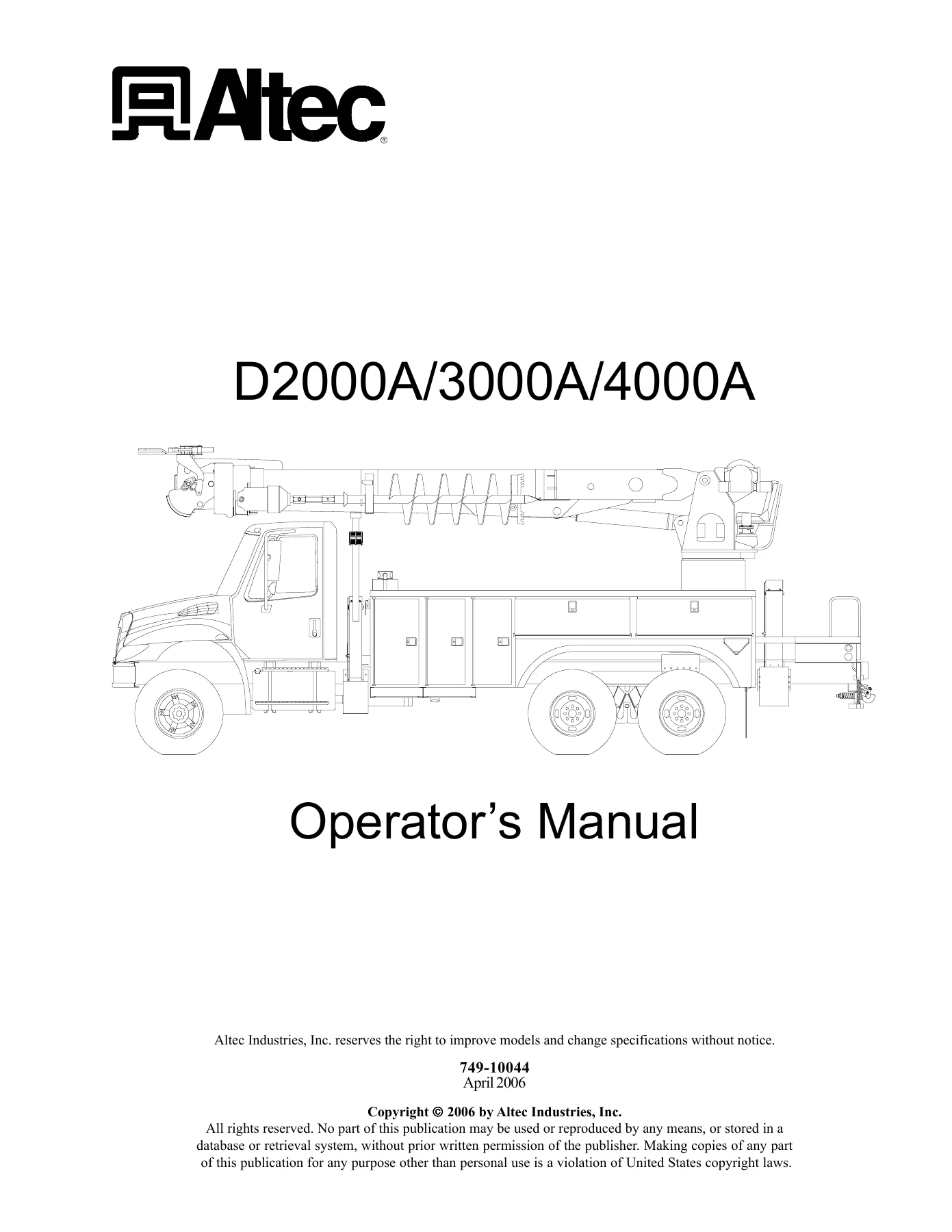

Altec D2000A / D3000A / D4000A Digger Derrick Operator’s Manual

This PDF is the full operator’s manual published by Altec Industries, Inc. for the D2000A, D3000A and D4000A digger derricks. It is the document that ships with the machine and it is written for the people who actually run the unit and set it up on the job site. Rather than a short quick-start leaflet, it works through the complete operating logic of a digger derrick: how to prepare the truck and PTO, how to set the outriggers correctly on level and sloping ground, how the protection systems behave under load, how to run the digger, winch, pole guide and booms, and what to check before every shift.

The manual is intended for utility industry work, including hole digging, pole setting and material positioning, and it is explicit about the electrical environment these machines operate in. A large portion of the safety content deals with the fact that insulated digger derricks are not primary protection against contact with energized conductors, and the manual explains the correct role of rubber gloves, sleeves, hot sticks, conductor cover-ups and clearances.

File Details

• Manual type: Operator’s Manual
• Brand / Manufacturer: Altec Industries, Inc.
• Models covered: D2000A, D3000A, D4000A
• Document number: 749-10044
• Publication date: April 2006
• Language: English
• Page count: 106
• File format: PDF

Chapters Covered

• Section 1 – Introduction: About This Manual, ANSI A92.2 and A10.31 references, danger/warning/caution conventions
• Section 2 – Unit Specifications: purpose of the unit, general specifications, component identification

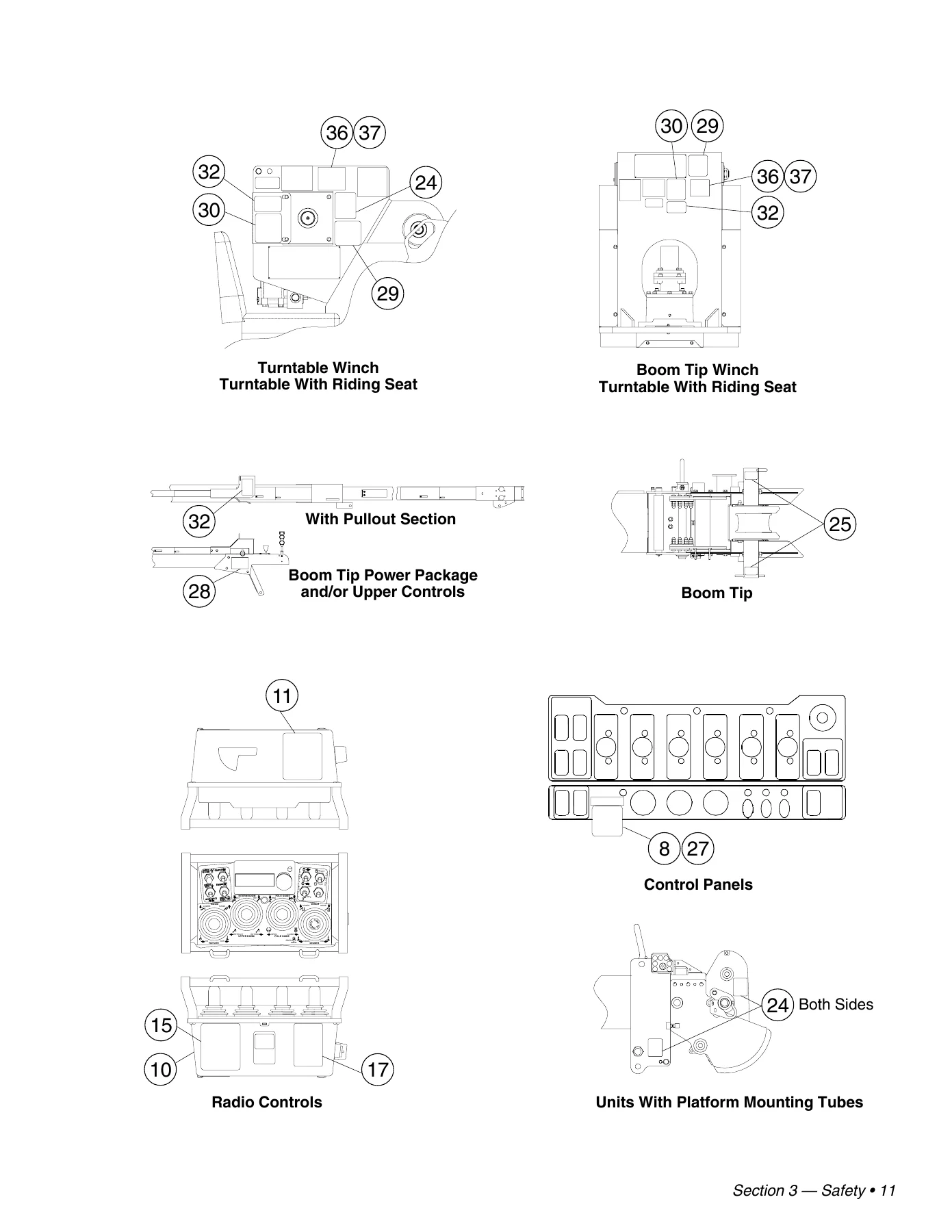

• Section 3 – Safety: safety instructions, capacity, accident prevention signs and their locations
• Section 4 – Before You Operate: capacity and stability, boom raise capacity test, operation near energized conductors, daily preoperational inspection, inspection diagram, preparing for operation, cold weather start-up
• Section 5 – Protection Systems: hydraulic overload protection (HOP), boom stow protection, auger stow protection, electronic side load protection
• Section 6 – Operation: ground level controls, outrigger and tools/derrick selector switch, outriggers, interlock system, motion alarm, lower controls, foot throttle, digger shake, auger release, digger shift, low speed/standard, pole guide forward/back and open/close, emergency stop, engine start/stop, cold oil/change filter light, hand controls, rotation float, joysticks, gauges, upper controls, radio controls, booms, lower boom, intermediate and upper booms, boom storage, rotation, winch, winch line, digger, setting anchors, rotation float system, stowing, pole guide, boom flares, pole puller, lower tools, upper tools, personnel platform, lanyard anchor, transferable upper controls, ROACS remote start/stop, fiberglass jibs, material handling jibs, personnel jib, manual operation of the lower control valve
• Appendix – Glossary
• Troubleshooting Chart

As a whole, the document gives an operator or maintenance technician a single reference that ties the machine’s mechanical behaviour to its hydraulic and electrical control logic. It explains what each protection system is actually doing, why the boom lower function cuts out when the boom is stowed, why the digger dig function stops at the top of the auger stow bracket, and what the load indicator gauge and side load pressure gauge are really telling you. It also lays out the setup sequence in the order it must be performed, so the operator understands the reason the outrigger interlock exists rather than just memorising the order of the levers.

What This Manual Lets You Do

With this Altec digger derrick operator’s manual on hand, a trained operator can properly set up the unit on a level or sloping surface, select the correct outrigger extension for the side the boom will be rotated toward, and confirm the interlock system is working before the booms leave the rest. The capacity and stability discussion, together with the boom raise capacity test procedure, gives a practical method of checking whether a load is within the hydraulic capacity of the unit before committing to the lift.

The safety sections matter because of where these machines work. The manual spells out that the boom tip must always be treated as conductive, that the fiberglass upper boom provides secondary insulation only when it is clean, dry, free of tracking, extended past the minimum extension placard and has not had its non-conductive components replaced with conductive ones. It explains what happens to the hydraulic oil at the boom tip if the tip bridges two energized conductors or an energized conductor and a ground. Getting these procedures right is not optional on a digger derrick working near live lines.

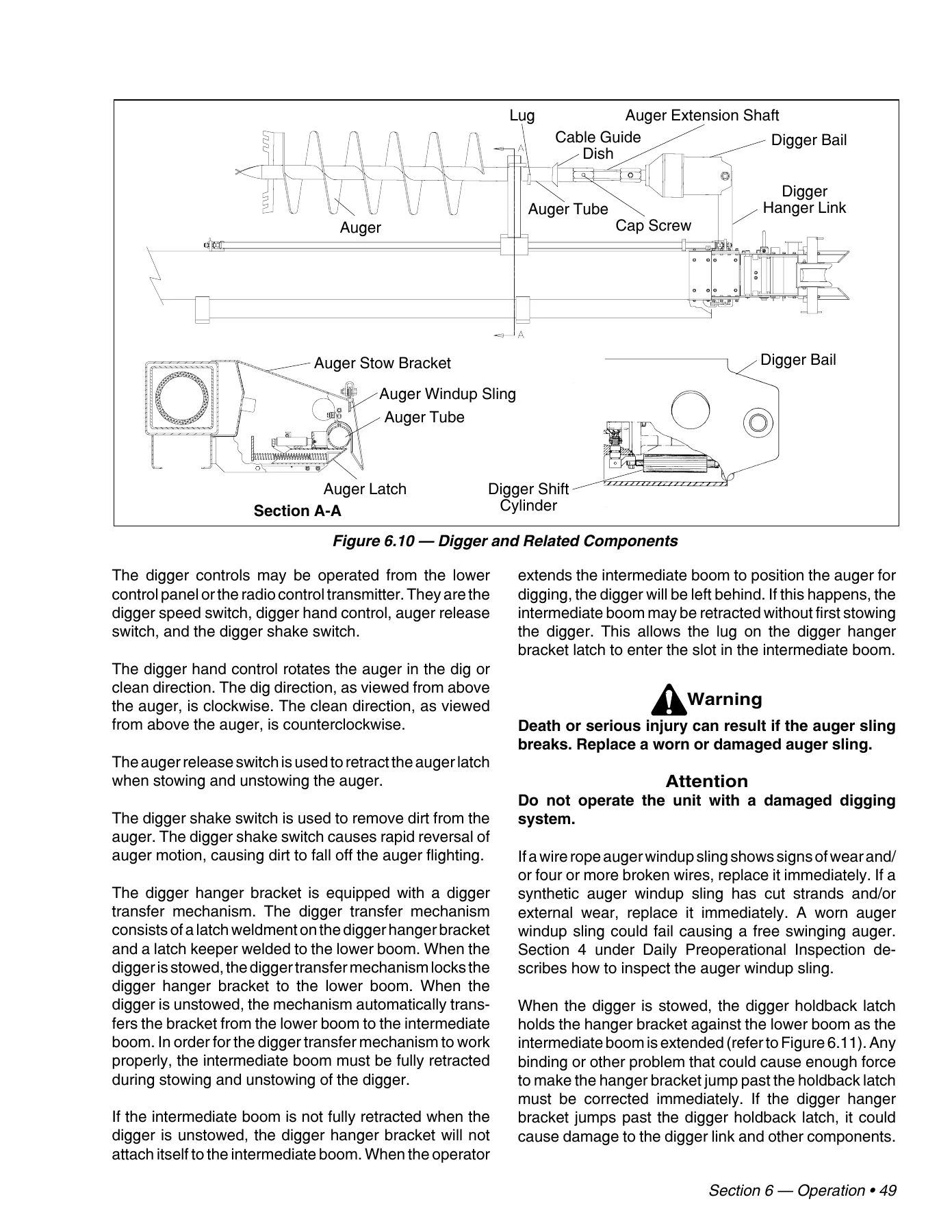

For the digging side of the job, the manual walks through unstowing and stowing the auger, the correct use of low digger speed, the auger release switch and the digger shake switch, how to avoid corkscrewing the auger into the ground, and how to keep the intermediate boom aligned with the hole so the auger and extension shaft are not bent. The winch section covers the multiple-part line arrangement, the minimum five wraps on the drum, the use of a swivel hook, and the reasons the winch must not be used to pull a pole that is still firmly set in the ground.
