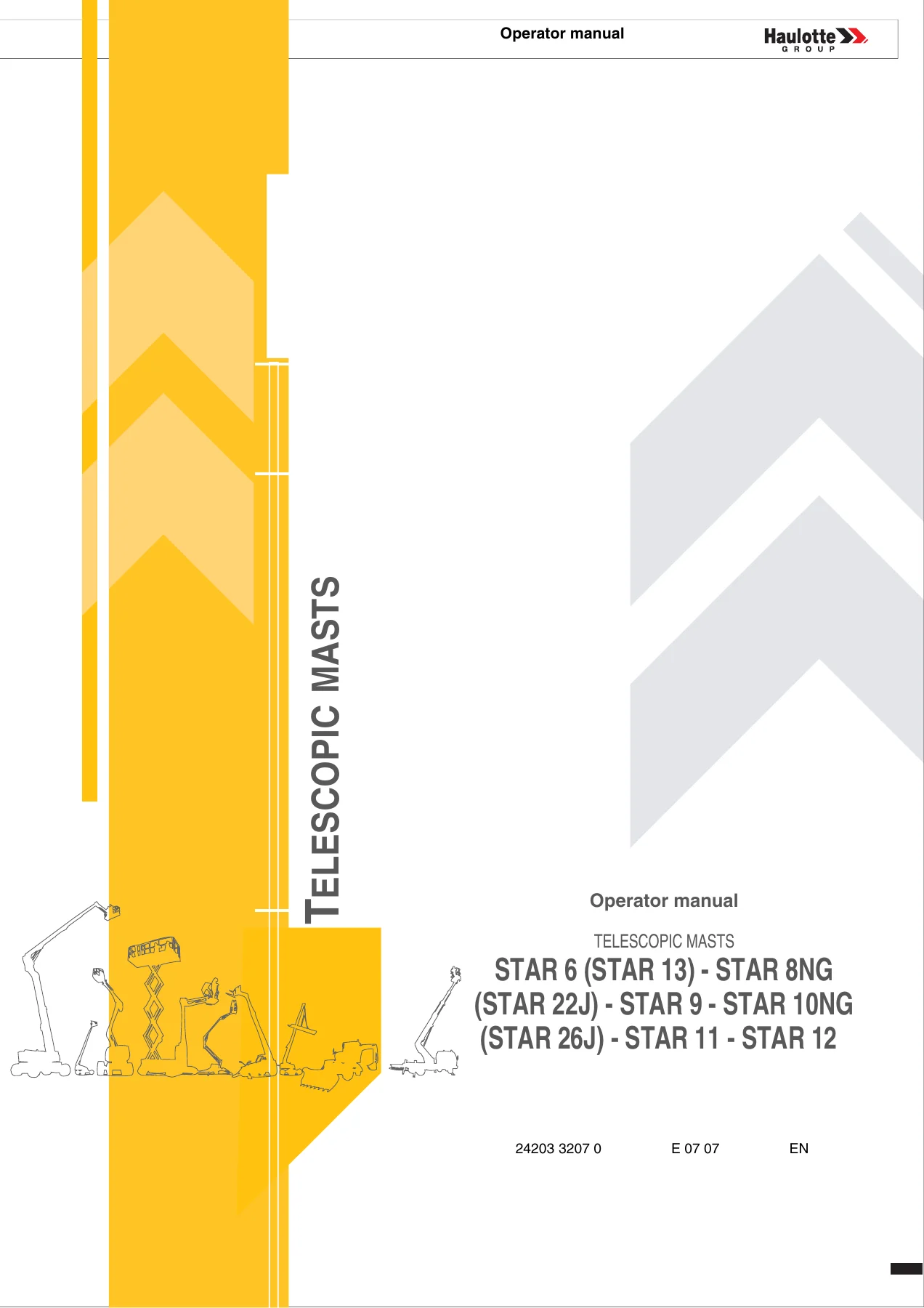

Haulotte STAR 6 STAR 8NG STAR 9 STAR 10NG STAR 11 STAR 12 Telescopic Mast Operator Manual

Description

Haulotte STAR Telescopic Mast Operator Manual

This Haulotte STAR 6 STAR 8NG STAR 9 STAR 10NG STAR 11 STAR 12 Telescopic Mast Operator Manual provides operating, safety and technical information for the telescopic-mast machines identified throughout the document as STAR 6 (STAR 13), STAR 8 / STAR 8NG (STAR 22J), STAR 9, STAR 10 / STAR 10NG (STAR 26J), STAR 11 and STAR 12. It is written for machine operators and covers much more than basic driving instructions: the manual explains the machine layout, controls, safety systems, daily inspection process, emergency lowering, brake release, transport handling, fault indication and the operating limits published for the individual STAR models.

The manual distinguishes between machine configurations where procedures or controls differ. Illustrations identify major components and console controls, while dedicated technical-characteristic pages provide model-specific dimensions, platform capacities, working heights, drive speeds, hydraulic tank capacities, battery specifications and other operating data. Working-area diagrams are also supplied separately for the STAR 6, STAR 8, STAR 9, STAR 10, STAR 11 and STAR 12.

File Details

• Manual type: Operator manual
• Equipment: Telescopic masts
• Brand: Haulotte
• Models: STAR 6 (STAR 13), STAR 8NG / STAR 8 (STAR 22J), STAR 9, STAR 10NG / STAR 10 (STAR 26J), STAR 11, STAR 12
• Language: English
• Pages: 104
• File format: PDF
• Document number: 24203 3207 0 E 07 07 EN

Chapters Covered

• Operator manual
• After Sales Service
• Conformity
• Safety precautions
• Intervenor’s responsibility
• Machine layout
• Operating principle
• Driving
• Special procedure
• Technical characteristics
• Intervention log

Safety precautions

The safety section establishes the conditions under which these Haulotte telescopic masts are intended to be operated. It explains the safety symbols and label colour codes, pre-operation restrictions and prohibited practices, then addresses specific hazards including falling, electrocution, overturning, crushing, collision, burns and explosion. Guidance includes operating-temperature limits, minimum clearances from electrical lines, safe approach to slopes and obstacles, stopping distances, wind-related precautions and the Beaufort wind-force scale. The manual repeatedly directs the operator to stay within the machine’s published performance limits rather than treating the platform as a crane, elevator or improvised lifting device.

Intervenor’s responsibility

This chapter defines responsibilities for the owner or hirer, employer, trainer and operator. It explains that operators must understand both the manual and the labels fitted to the machine, must know the emergency controls, and must stop using the equipment when a malfunction or safety problem exists. An inspection and maintenance table identifies responsibilities for pre-delivery inspection, pre-operation inspection, regular preventive maintenance and periodic visits, including the document to consult for each type of intervention.

Machine layout

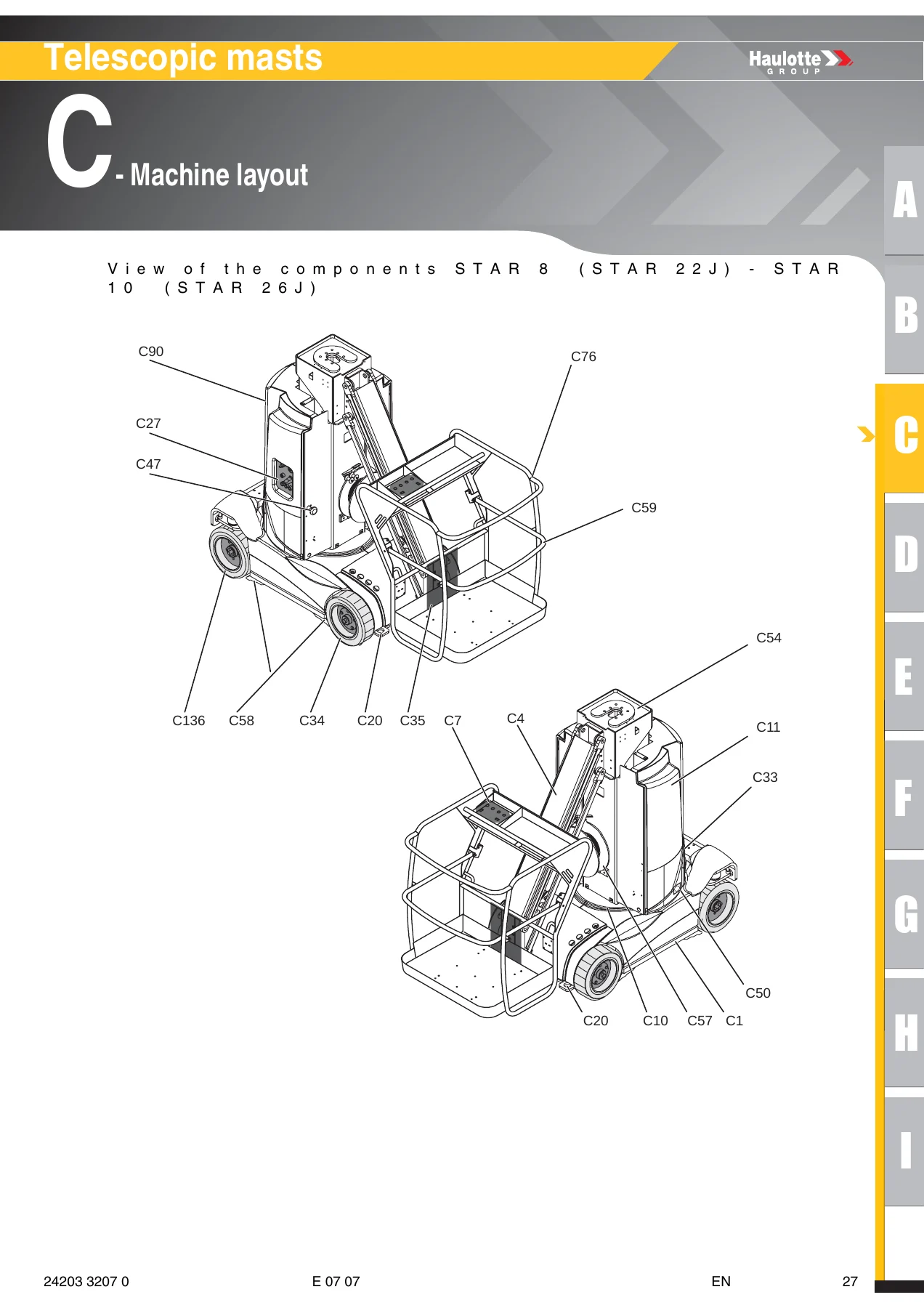

The machine-layout section is one of the most useful visual references in the Haulotte STAR telescopic mast operator manual. Identification plates are shown first, followed by illustrated component views for the different machine families. Depending on model, labelled components include the platform, upper and lower consoles, telescopic mast, drive and steering wheels, turntable, jib, battery bay, battery charger socket, hydraulic unit, emergency lowering equipment, anti-tipping devices, counterweight and tie-down or lifting points.

The same chapter documents safety devices such as the sliding mid-rail and anchorage points, then provides an extensive label-identification section for CE, AS and ANSI/CSA configurations. It shows the location and meaning of red, orange, yellow, green and technical-information labels, including warnings for electrocution, crushing, brake release, emergency lowering, battery handling, anchorage points and permissible loads.

Lower and upper control consoles

Detailed console diagrams identify individual switches, selectors, LEDs and joysticks for the STAR range. The manual separates the controls for STAR 6, STAR 8 / STAR 10, STAR 9 and STAR 11 / STAR 12 configurations where required. Functions described include emergency stop, battery cut-off, battery charge indication, engine-hour display, console activation, mast elevation and lowering, mast rotation, jib movement, platform movement, drive direction, steering, movement validation and horn operation. These pages are particularly useful when familiarising an operator with an unfamiliar machine or confirming which control performs a particular movement.

Operating principle

This chapter explains how hydraulic movement is produced by an electric pump and how battery power supplies the controls and electric motor. It then describes the safety logic that can immobilize or restrict the machine when operating conditions exceed permitted limits. Subjects include the dead-man control system, reduced driving speed outside the stowed position, the electronic speed controller, battery-charge and hour-meter display, platform overload protection, tilt monitoring, automatic braking, wheel-motor brake release, anti-pothole devices and the on-board battery charger. Model-specific tilt responses are described for the different STAR configurations.

Driving

The driving chapter begins with the checks required before each new work period or change of operator. Visual inspections cover the identification plate and labels, structure, fasteners, leaks, cylinders, wheels and tyres, sensors, electrical wiring, hydraulic oil, hydraulic unit, consoles, guardrails, mast, jib and platform. Environmental checks include wind speed, ground loading, permissible platform load and lateral effort.

Functional tests then cover the upper and lower emergency stops, tilt-control system, visual and audible alarms, weighing system and console controls. The manual gives model-specific testing sequences and operating instructions for ground controls and platform controls. It describes start-up and shutdown as well as forward and reverse travel, steering, mast elevation and lowering, mast rotation, jib movement and platform elevation where fitted. Control illustrations accompany many of these procedures, making the instructions easier to match to the physical machine.

Special procedure

Emergency and recovery procedures receive their own chapter. Emergency lowering is explained for situations where the operator in the platform cannot control the machine even though the primary power source remains available. Separate lowering-for-repairs instructions address failure of the main power source and show the relevant emergency valves or electro-distributor controls for the different models.

The manual also explains how to release the brakes when a disabled machine must be moved, together with loading and unloading procedures. Guidance covers ramp loading, handling with a power lift truck, lifting with slings where applicable, securing the machine in transport position and unloading. The internal-fault section explains that STAR 8, STAR 9, STAR 10, STAR 11 and STAR 12 machines can display a fault code on the hour recorder and may enter a downgraded mode in which certain movements are limited or disabled.

Technical characteristics

The technical-characteristics chapter brings together model-specific operating data for the complete range. The tables include stowed length and width, machine height, ground clearance, maximum work and platform heights, platform dimensions, turning radii, wheel spacing, permissible tilt, authorized wind speed, machine weight, maximum platform load, electric motor power, sound and vibration information, hydraulic tank capacity, battery data, gradeability, tyre type, selected torque values, ground pressure and drive speeds. Values are presented separately where the STAR models differ rather than assuming one specification applies to the entire range.

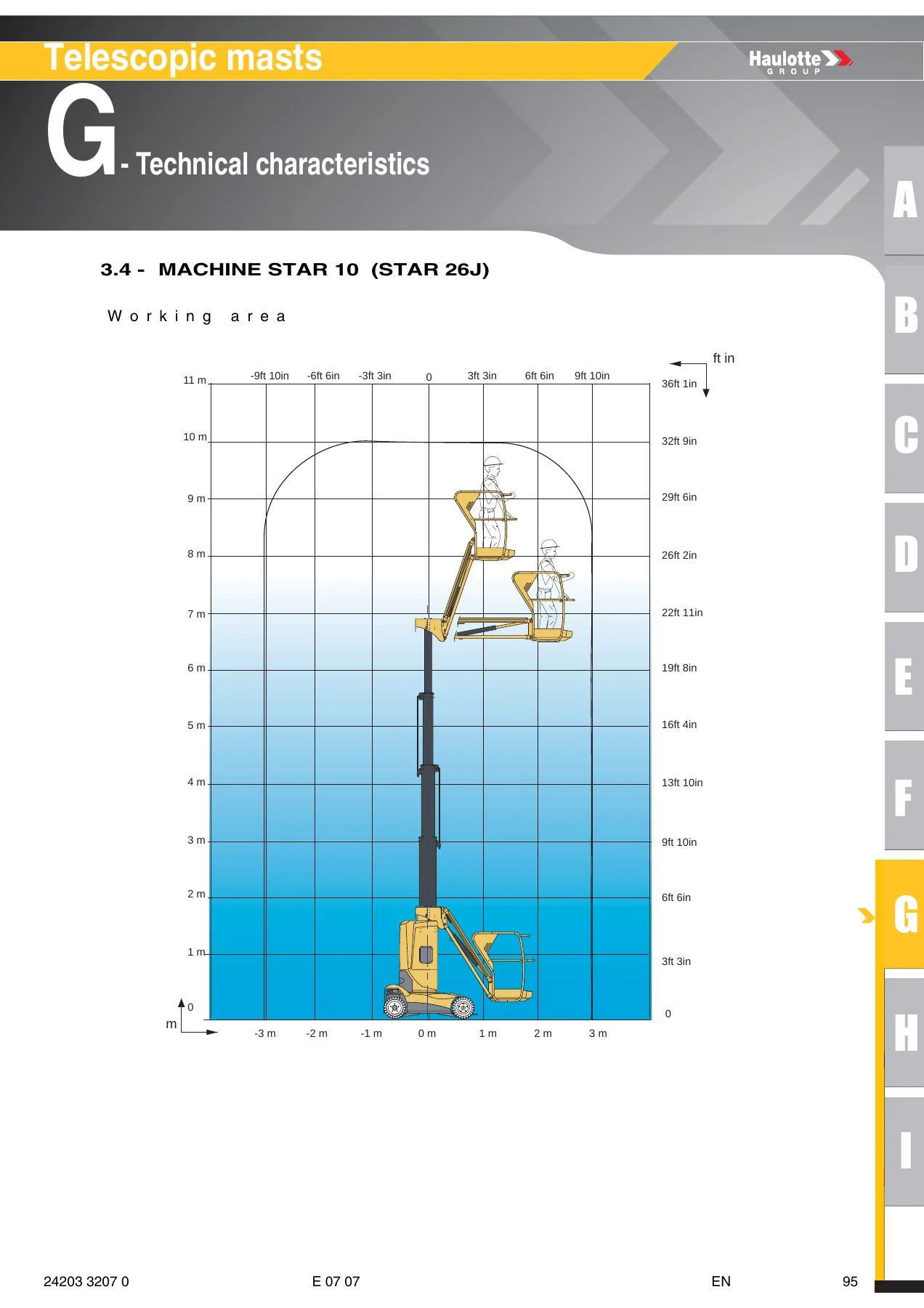

Dimension drawings follow the specification tables, giving lettered measurements for STAR 6, STAR 9 and the STAR 8 / STAR 10 / STAR 11 / STAR 12 group. Individual working-area diagrams then show the operating envelopes for STAR 6, STAR 8, STAR 9, STAR 10, STAR 11 and STAR 12. The final technical pages also cover overload, operational and stability testing applicable to the standards referenced by the manual.

A Practical Reference for Safe STAR Mast Operation

Whether you need to identify the correct control, carry out the daily pre-use checks, understand why a safety system has restricted movement, lower a platform in an emergency, prepare a machine for transport or confirm the operating limits for a specific model, this Haulotte STAR 6 STAR 8NG STAR 9 STAR 10NG STAR 11 STAR 12 Operator Manual puts the relevant procedures, illustrations and specifications in one reference. Using the published instructions and model-specific limits is essential when operating telescopic mast equipment where platform load, tilt, wind, ground conditions and control configuration directly affect safe use.

IMAGES PREVIEW

Purchase includes the complete manual as an instant PDF download. There is no physical book and no shipping delay. Open the manual on a computer, tablet or phone whenever you need it, and print the pages or sections you want for workshop, site or machine-side reference.
