Ammann AFT 600-3 Spare Parts Catalogue — Cummins Tier3 Stage III

This is the complete spare parts catalogue for the AFT 600-3 tracked asphalt paver equipped with the Cummins Tier3 Stage III engine. The 699-page illustrated document covers every assembly on the machine — from the auger and conveyor systems through to the operator platform, hydraulic circuits, electrical harnesses, and all available option kits. Each entry lists the Ammann part number, description, and quantity, supported by exploded-view illustrations that show exactly how components fit together.

The manual is written for the AFT600-3 s/n AP3051634 and STV5100E s/n 3104260 series and is valid for machines within the serial ranges noted throughout. Whether you are ordering a single wear part or rebuilding a complete assembly, this catalogue gives you the factory part numbers you need to get the right component the first time.

File Details

• Manual type: Illustrated spare parts catalogue
• Brand: Ammann
• Model: AFT 600-3
• Engine: Cummins Tier3 Stage III
• Language: English
• Page count: 699 pages
• File format: PDF
• Serial coverage: AP3051634 / STV5100E s/n 3104260
• Publication reference: AP3051634

Chapters Covered

The catalogue is organised by machine system and component group. Every section opens with an exploded-view drawing followed by a detailed parts table:

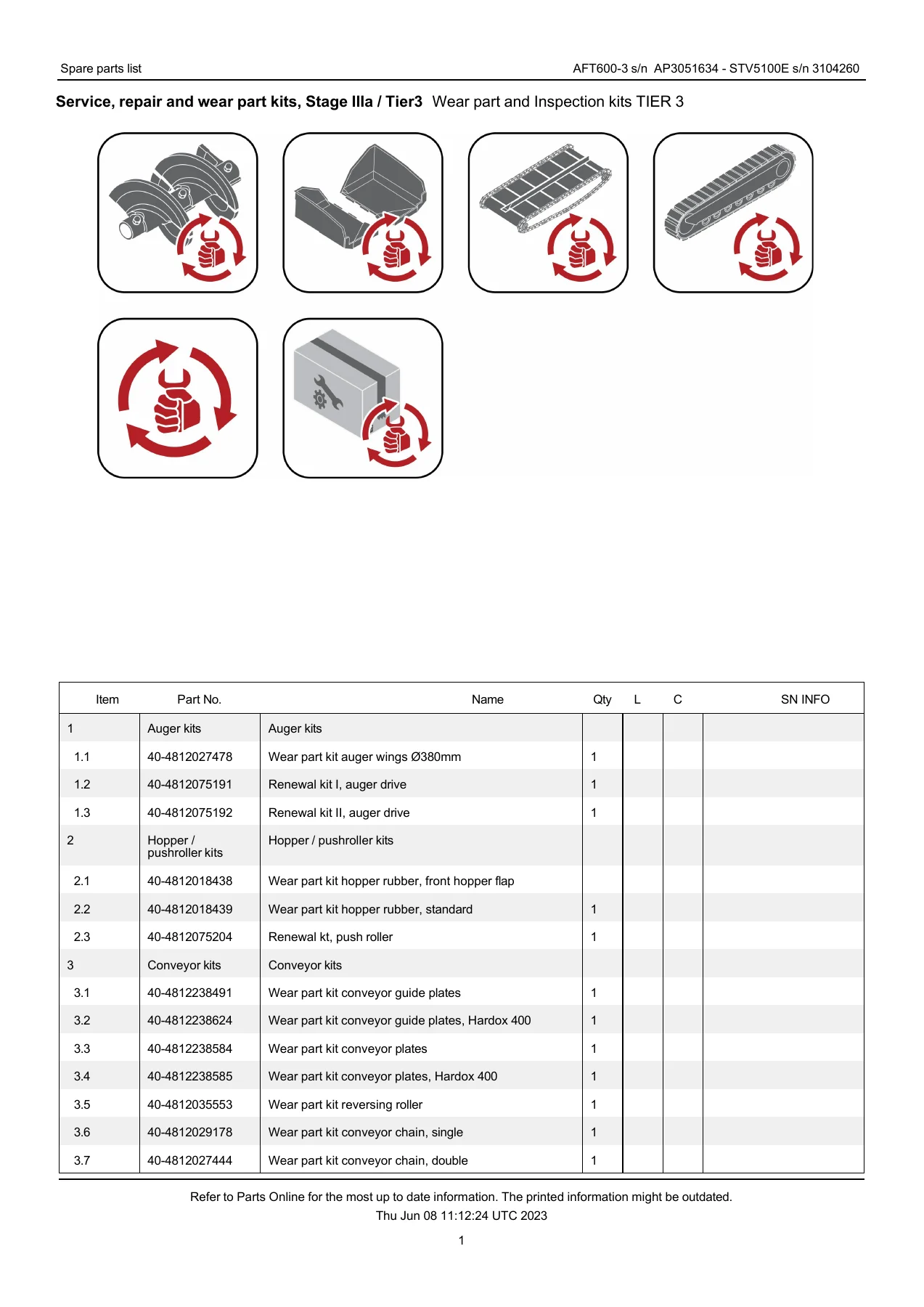

• Service, repair and wear part kits (Stage IIIa / Tier 3)
• Auger kits — wear part kits, renewal kits, auger drive
• Hopper / pushroller kits — hopper rubber, push roller renewal
• Conveyor kits — guide plates, Hardox 400 plates, reversing roller, conveyor chains, chain guide, conveyor drive, sprocket, conveyor guide and plates
• Drive kits — rubber plates, track roller, idler, drive sprocket, slide parts
• Service kits — 500 h TIER 3, 1000 h TIER 3, filter kit 1000h
• General kits — fuse and relay kit, plug kits
• Operator platform — movable platform, weather roof, roof frame, umbrella roof, locking, fold away steps, sheet tub, door, guides, guide profiles, guide tubes, security rail, retainer
• Hydraulics for operator platform — control block, linear actuators, electric roof
• Operator board, clamping lever, telescopic pipe set, console, stop bolt, covers
• Harness W14 platform, ascent sections (Vario screed, middle, l.h., r.h.)
• Engine, Stage IIIa / Tier 3 — drive TIER 3, engine, combined cooler / air filter, expansion tank, fuel tank, attaching parts, muffler, fuel system, engine support, end pipe / rotary feedthrough, joint rod, oil drain
• Harness W12, service parts, split gear, engine clutch, gear oil drain, split gear box, pump distributor gear
• Pumps, drive, track group, track group short r.h. / l.h., pressure gauge kit, track roller big / small, track drive, drive gear box, replacement kits, track chain, track group support
• Conveyor — conveyor single, conveyor drive, conveyor motor reversible, hydraulic conveyor reversible, directional spool valve, conveyor turn, tensioner, conveyor limit switch SPS
• Auger — auger Ø380mm basic width, auger box, outer support, auger support, wear part kits, mounting parts, auger gear, material tunnel, worm extensions, extension parts
• Hydraulic system — drive system, brakevalve, auger, conveyor, flow control valve, connecting plates, tamper/vibration, work hydraulic, control blocks, filters, montage kits
• Hydraulic fan, tank collector, hydraulic tank, return suction filter, ganged valve support
• Leveling cylinders, hose packets, screed movement, tamper vibration, profile adjustment, endplate, hose packet for screed THE
• Electric system — AM electric, junction boxes, mainboard, cables (W2.1, W3–W10, W20, W75, W80–W82, W15, W16, W19, W17, W14, W21, W23, W51, W52, W62, W65, W66, W67, W69, W70, W71, W73, W93, W94, W95, W96, W98, W99, W110), harnesses, wiring, steering unit, control system, remote control, vandalism protection
• Options — generator set 25/35 KVA, el. heating, control box, vandalism protection, universal joint protection, spotlight for auger, back-up alarm, temperature sensor, GPS installation, hydraulic auger lift, without fume absorbing system, cover, maintenance lid, sprayer 25L with hose reel, spray arm, electric emulsion spray, cable W36
• Driver seats standard and cpl., track cleaner cpl., locking lever, CAN-sensor kit 2+1, slope sensor, indicator thickness bottom, pointer, spot light, oil drain hydraulic tank, bottle holder
• Available options — fume control system, blower, hydraulic fume control, pressure reduction valves, box remote control PLC, headsets, indicator thickness top, hydraulic auger lift SETASSIST, driver’s seats, electric seat heater, oil dipstick side door, material chute, Bio Hydraulic oil, hydraulic partial flow filter, track cleaner el. cpl., electric cylinder, cable W93, material tunnel installation kit, protection cover, engine room lighting, shining balloon, light assist, rotating beacon, central lubrication, safe zone line and arrow, fire extinguisher, diesel pump, refuelling equipment, emulsion tank, tube seat, hose package, spray arm, Gloria spraying device, emergency stop, spiral cable, socket 230V, 12V installation, cool box, first-aid kit, auxiliary weight, profile adjustment hydraulic, camera system, steering control 10m, steering sensor, TruckAssist Advanced, MatManager pro / advanced / GNSS, MatScanner, generator set 25 KVA, vandalism protection, universal joint protection, cover, gravel field kit short, conveyor chain, gusset plate, bulk material flap, tropical kit, doors, support rods, insulating boards, diesel cooler, engine clutch, hood support, intermediate section, air guides, hoods, covering parts
• Tools and accessories, tar spattle, temperature sensor Moba, side shield hydraulic, control blocks, additional storage boxes, pigeon hole, MatTracker sensor, harness W25.2, retainers, hydraulic side shield Stage V, open interface, cable W110, CAN-sensor kit 1+1, slope transmitter, handy retainer
• Big Ski 13m and 9m cpl., electric parts, electro installation, side arm supports, add-on kit, trailing ski 9m and 6m, mounting parts, wire tensioner cpl., ultrasonic sensor, sensor, Digitoraty Kit
• Spare key, decals, symbols, stickers, roof-high sticker
• Special tools — ultrasonic thickness gauge, tension tester, frequency tension tester, infrared thermometer, test adapter, welding protection, dismantling tools (big and small pins), service tool BODAS, magnet tester, digital pressure gauge kit, frequency and amplitude meter

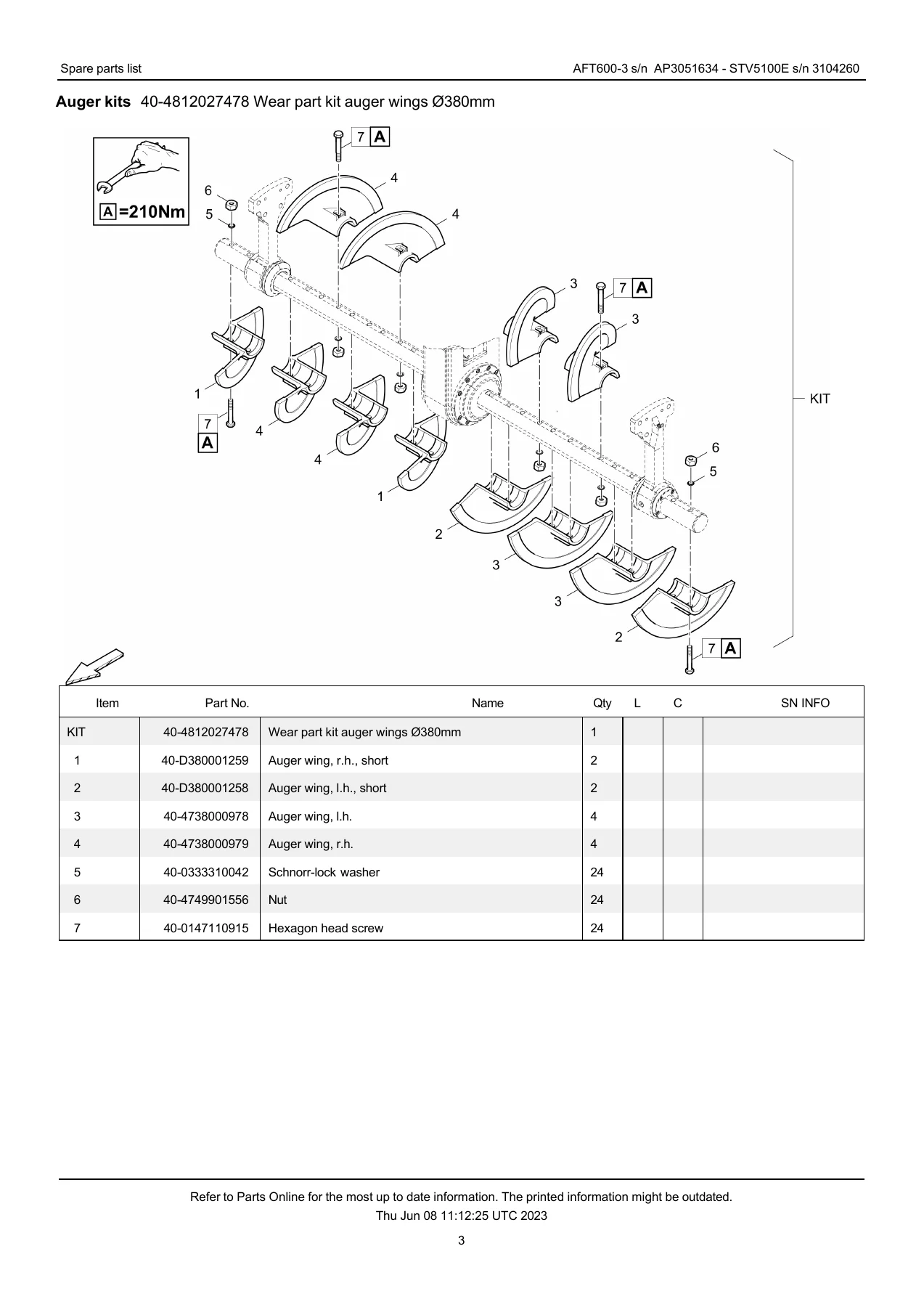

This catalogue is built for the shop floor. Each illustration shows the exact assembly order of every component, and the parts tables list Ammann part numbers alongside the item reference, name, and quantity. The exploded views cover everything from single wear items like auger wings and conveyor bars up to complete assemblies such as the drive gear box, split gear, conveyor drive, and track group. Serial-number validity notes are included where a part changes across production — for example, renewal kit I for auger drive is valid from 0G001393, and hydraulic control block variations are marked for specific s/n thresholds.

The document covers both left-hand and right-hand versions of most assemblies, and the option sections let you identify parts for machines fitted with extra equipment such as the fume control system, central lubrication, sprayer systems, and the various screed and Big Ski configurations. If you maintain or repair an AFT 600-3, having the correct part number for every component on the machine is the difference between a one-time fix and a wrong-order return.

What This Catalogue Enables You to Do

With this Ammann AFT 600-3 spare parts catalogue you can identify and order the correct component for any system on the paver — from a worn auger wing or conveyor chain through to a complete track drive, hydraulic pump, or control block. The exploded diagrams let you see how each assembly goes together, which means you can plan a repair, strip a component, and reassemble it with confidence that every clip, washer, and seal is in the right place.

Correct part numbers matter on a machine like this. The AFT 600-3 runs Cummins Tier3 Stage III power through a split gear, hydraulic drive system, and multiple conveyor and auger circuits. Ordering the wrong seal kit or sprocket costs time and money; the serial-number notes in this catalogue help you match the part to your specific machine build, including the valid-from breakpoints that Ammann uses across the production run.
