Ammann Pneumatic Tyred Roller ASC 70 ASC 90 ASC 110 ASC 150 ASC 200 ASC 250 Cummins Tier II Workshop Manual – PDF DOWNLOAD

Description

Ammann Pneumatic Tyred Roller ASC 70 ASC 90 ASC 110 ASC 150 ASC 200 ASC 250 Cummins Tier II Workshop Manual – PDF DOWNLOAD

FILE DETAILS:

Ammann Pneumatic Tyred Roller ASC 70 ASC 90 ASC 110 ASC 150 ASC 200 ASC 250 Cummins Tier II Workshop Manual – PDF DOWNLOAD

Language : English
Pages :314
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Ammann Pneumatic Tyred Roller ASC 70 ASC 90 ASC 110 ASC 150 ASC 200 ASC 250 Cummins Tier II Workshop Manual – PDF DOWNLOAD

INTRODUCTION

• Vibration roller ASC 70/250 series is suitable for compaction of all kinds of ground and for large- and mid-scale groundwork in highway construction (construction of motorways, railways, airports), in hydro-engineering (construction of dams), in building construction (industrial areas, ports), and the like.
• The roller should be used under conditions defined in the Czech Standard (CSN) IEC 721-2-1 (038900): WT, WDr, MWDr, i. e. in mild, dry warm and dry hot weather in the range of temperatures from -15 °C (5 °F) to 45 °C (113 °F). This STA machine is manufactured to the latest developments and standards, which secure its safe function.
• If the machine is used incorrectly, by untrained operators or for other purpose than stipulated above, there is a danger of an accident or damage to the equipment. The main purpose of this manual is to give information necessary for carrying out assembly and disassembly of the machine as well as service repairs of main assemblies of the equipment.
• It contains technical and installation data, instructions how to adjust the machine and how to use special tools, fixtures and aids. The manufacturer continuously improves the products on the basis of experience and latest developments in the field. For this reason, the manufacturer may make some changes in drawings, descriptions and designs in this manual.
• Some expressions are used in the manual for better orientation, i. e. right, left, forward, backward – in the sense of the machine moving forward.

SAFETY PRECAUTIONS
GENERALITIES

• Read the Operation and Maintenance Instruction Manual carefully before starting, operating, maintaining, fuelling or servicing the machine. Carefully read the explanation to each and all safety signs in the special section of this Manual before starting, operating, maintaining, fuelling or servicing the machine.
• Machine-mounted safety plates are colour coded yellow with black borders when they refer to points where special ATTENTION must be paid and failure to observe them may cause a serious DANGER to the integrity of machine operators. They are white with red borders and black lettering when they refer to a FORBIDDEN practice.
• It is fundamental that all machine operators know very well the meaning of each safety plate as this considerably decreases operating hazards and accidents. Do not allow unauthorised personnel to operate or service this machine.
• Do not wear rings, wrist watches, jewellery, loose or hanging garments, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can get caught in moving parts. Wear certified safety clothes such as: hard hat, no-slip footwear, heavy gloves, ear protection, safety glasses , reflector vests, respirators every time the job requires it.
• Ask your employer about safety regulations in force and protective equipment. Always keep the operator’s compartment, step plates, grabrails and handles clean and clear of foreign objects, oil, grease, mud or snow to minimise the danger of slipping or stumbling.
• Remove mud or grease from your shoes before operating the machine. Do not jump on or off the machine. Always keep both hands and one foot, or both feet and one hand in contact with steps and/or grab rails. Do not use controls or hoses as hand holds. Hoses and controls are movable parts and do not provide solid support.
• Besides, controls may be inadvertently moved and cause unexpected movement of the machine or its attachments. Never operate the machine or its attachments from any position other than sitting in the driver’s seat. Keep head, body, limbs, hands and feet inside the operator’s compartment at all times to reduce exposure to external hazards. Be careful of possible slippery conditions of the steps and hand rails as well as of the ground around the machine.
• Wear protective boots or shoes with the soles made of highly no-slip rubber. Do not leave the machine until it has come to a complete stop. Always check height, width and weight limitations which may be encountered in the working site and ensure the machine does not exceed them. Assess exact paths of gas ducts, water mains, telephone lines, sewers, overhead and underground electric lines and all other possible obstacles.
• Such paths should be opportunely defined by competent Authorities. If necessary, require that the service is interrupted or said installations are moved prior to starting the work. You must know the working capacity of the machine. Define the rear upperstructure swing area and provide for opportune barriers to prevent access into it.

STARTING

• Never start or operate a failed machine. Walk all around the machine before mounting. Before operating the machine, make sure that any possible dangerous condition has been properly removed. Before starting machine, check that steering and attachment controls are in the neutral position and the safety lever is in the LOCK position.
• Immediately report any malfunction of parts or systems to the maintenance managers for proper action. Prior to starting the engine, check, adjust and lock the driver’s seat for maximum riding comfort and control accessibility. Prior to operating the machine and/or its attachments, check that bystanders are outside the machine operating range.
• Sound the horn. Obey all hand signals, safety indications and signs. Due to the presence of flammable fluids, never check fuel level, refuel, charge the batteries or use the starting fluid in the presence of smoking materials, open flames or sparks. Ensure that nobody is within operating area before starting the machine or moving in any direction.
• Adjust all rear-view mirrors for maximum visibility of the area behind the machine. Ensure that engine speed is appropriate to the job to be carried out. If any hydraulic control or system exhibits erratic performance or responds abnormally, have the machine checked for air in the system. Air in these circuits may cause incorrect movements with consequent accident hazard. Refer to the Operation and Maintenance Instruction Manual about corrective action to be taken.

OPERATING

Do not run the engine of this machine in closed buildings without proper ventilation capable to remove harmful exhaust gases which concentrate in the air. Keep the operator’s compartment free of foreign objects, especially if not firmly secured. Never use the machine to transport objects, unless proper securing points are provided.

Do not carry riders on the machine.

Study and familiarise with escape routes alternative to normal exit routes. For your personal safety, do not climb on or off the machine while it is in motion. Make sure that bystanders are clear of the machine operating range before starting the engine and operating the attachment. Sound the horn.

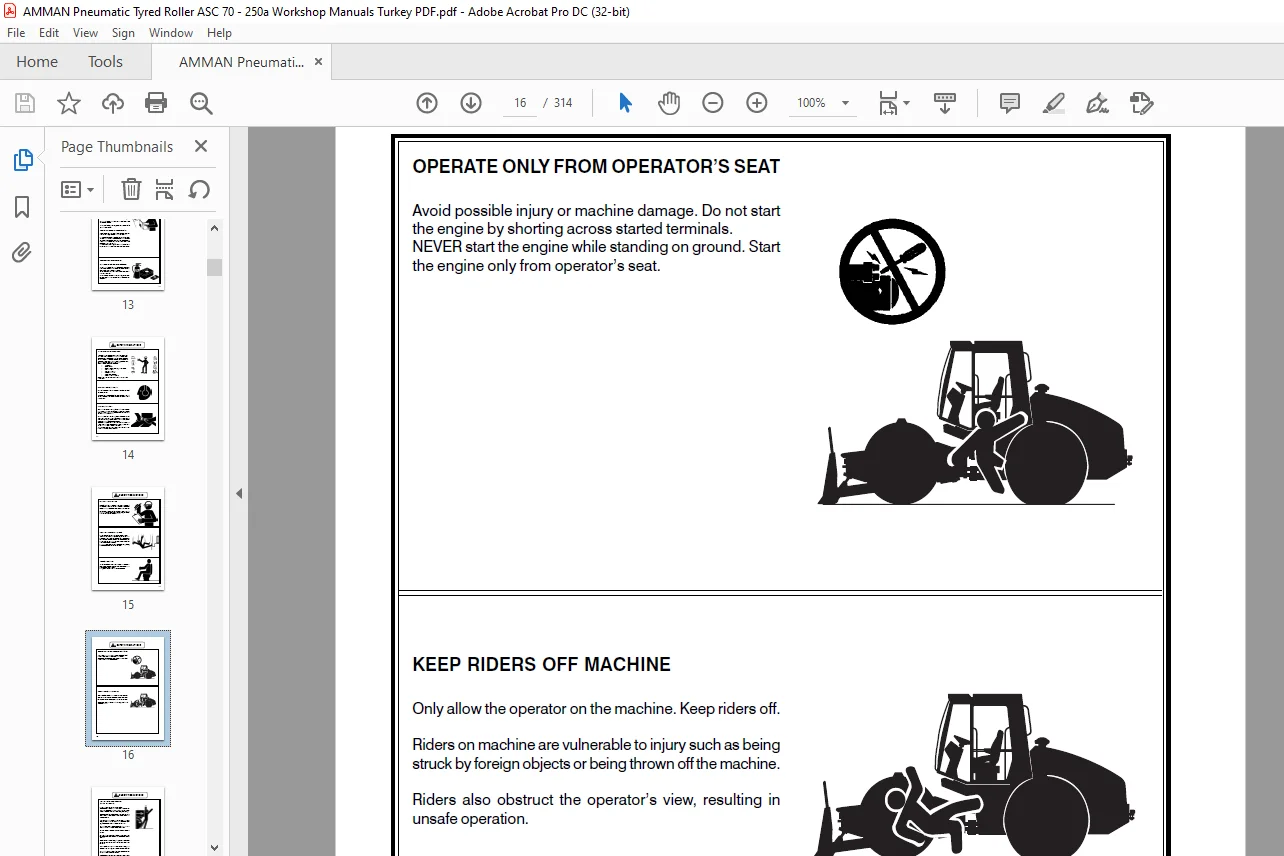

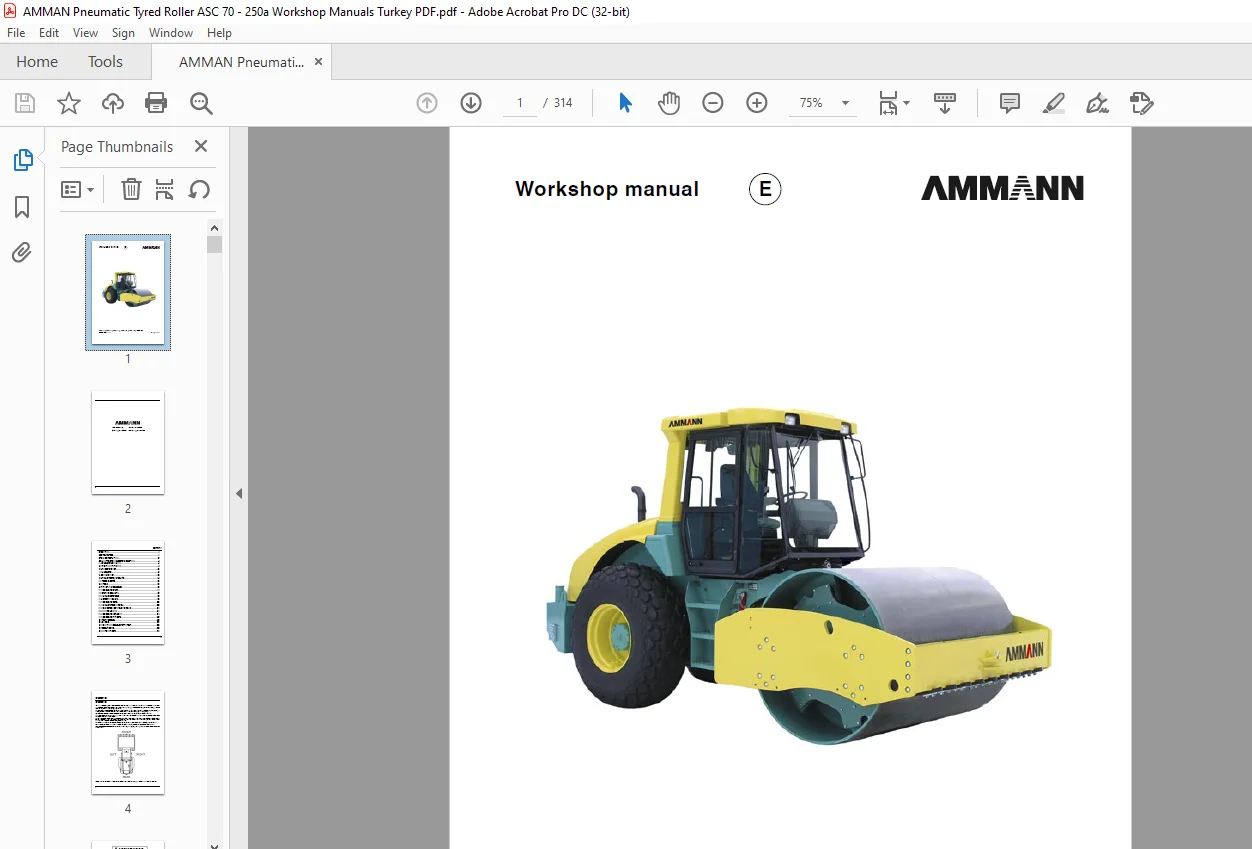

IMAGES PREVIEW OF THE MANUAL:

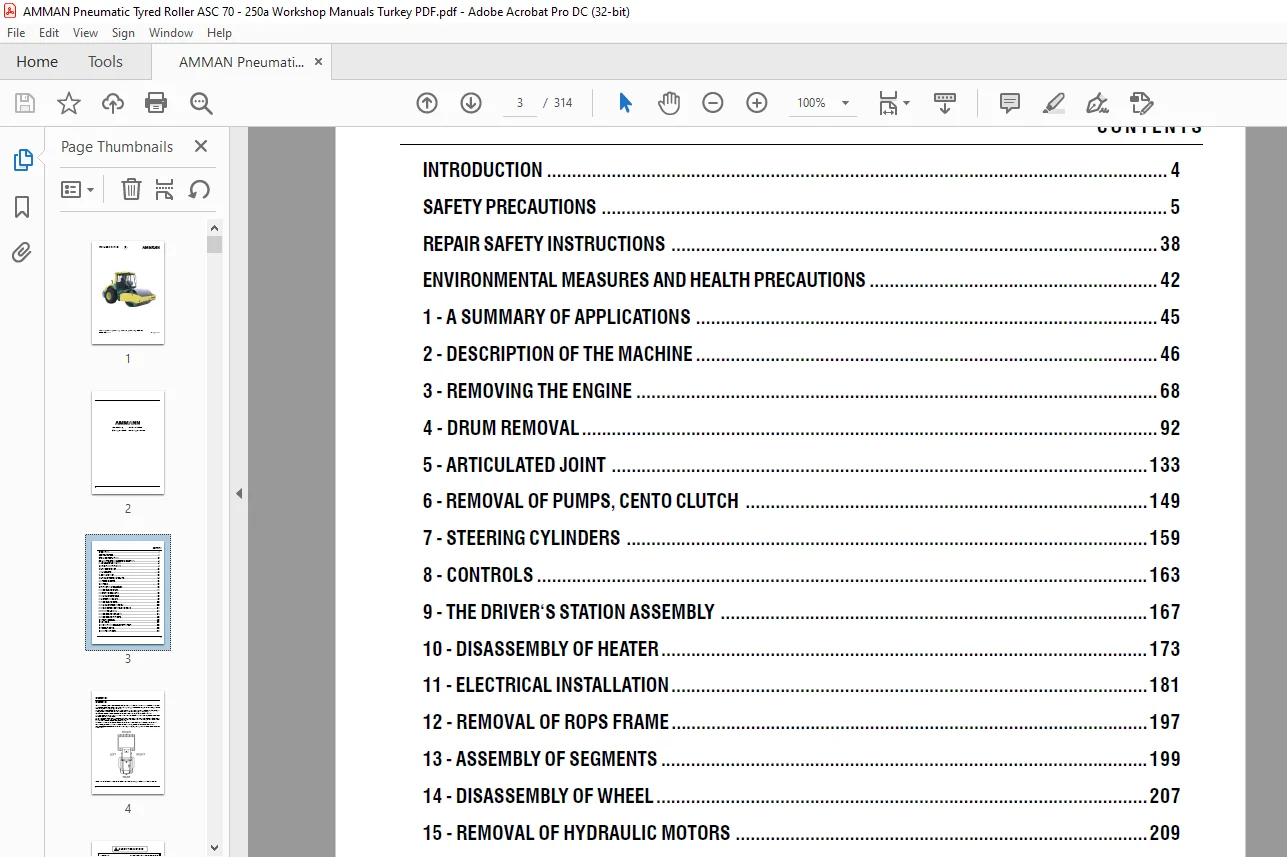

TABLE OF CONTENTS:

Ammann Pneumatic Tyred Roller ASC 70 ASC 90 ASC 110 ASC 150 ASC 200 ASC 250 Cummins Tier II Workshop Manual – PDF DOWNLOAD

INTRODUCTION 4
SAFETY PRECAUTIONS 5
REPAIR SAFETY INSTRUCTIONS 38
ENVIRONMENTAL MEASURES AND HEALTH PRECAUTIONS 42
1 – A SUMMARY OF APPLICATIONS 45
2 – DESCRIPTION OF THE MACHINE 46
3 – REMOVING THE ENGINE 68
4 – DRUM REMOVAL 92
5 – ARTICULATED JOINT 133
6 – REMOVAL OF PUMPS, CENTO CLUTCH 149
7 – STEERING CYLINDERS 159
8 – CONTROLS 163
9 – THE DRIVER‘S STATION ASSEMBLY 167
10 – DISASSEMBLY OF HEATER 173
11 – ELECTRICAL INSTALLATION 181
12 – REMOVAL OF ROPS FRAME 197
13 – ASSEMBLY OF SEGMENTS 199
14 – DISASSEMBLY OF WHEEL 207
15 – REMOVAL OF HYDRAULIC MOTORS 209
16 – REPLACING PRESSURE FILTER OF HYDRAULICS 215
17 – FILLING HYDRAULIC OIL 218
18 – DISASSEMBLY OF LEVEL GAUGE 219
19 – DISASSEMBLY OF THE FLOATER 221
20 – ELECTRIC SCHEMATA 223
21 – HYDRAULIC 256
22 – DIAGNOSTICS OF HYDRAULIC SYSTEM DEFECTS 268
23 – TROUBLESHOOTING 281
24 – TIGHTENING TORQUES 310

Customer Support: [email protected]

https://vimeo.com/847326204?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
