Ammann STV 3500 G sn 3103260 – AFT 400-2 sn LG003320 Parts Manual PDF

Service, repair and wear part kits – TV
Wear part and Inspection kits – TV 1

40-4812017381 Wear part kit wear plate 2

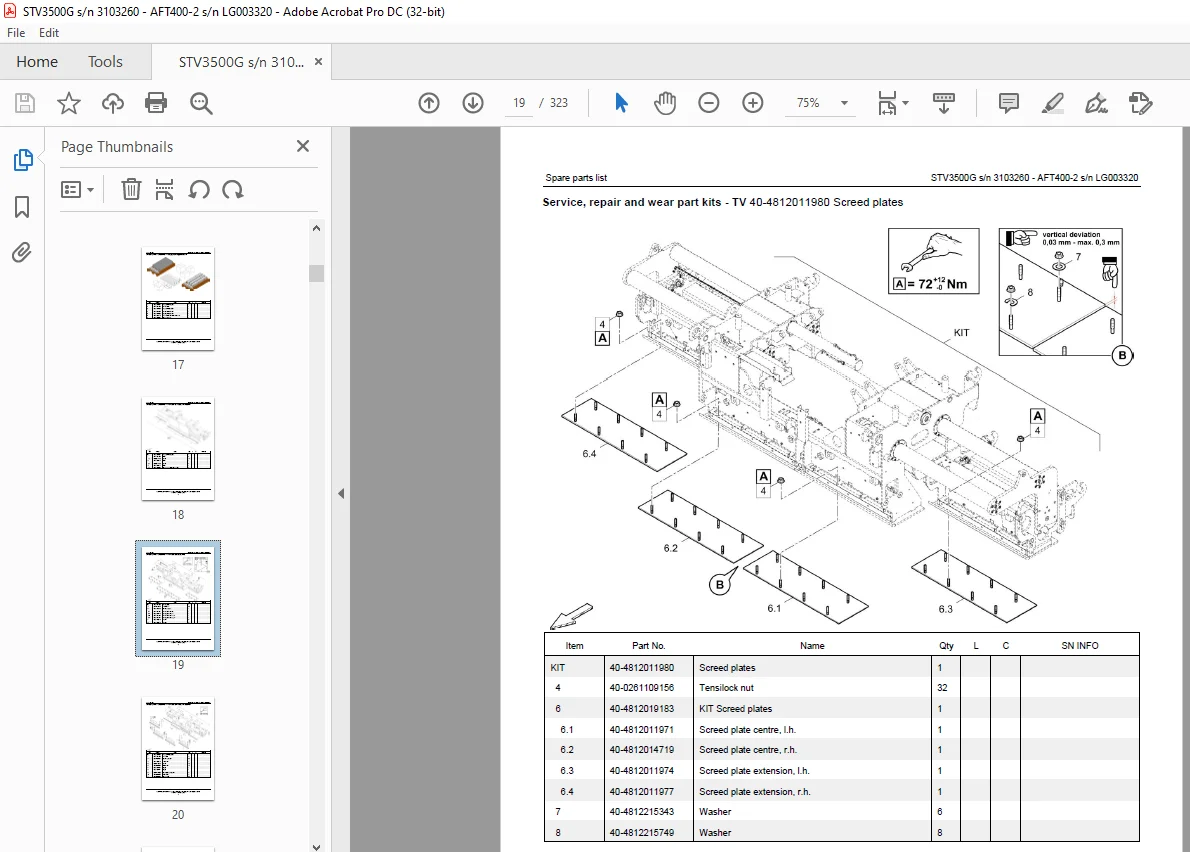

40-4812011980 Screed plates 3

40-4812017384 Wear part kit tamper bar 4

40-4812017402 Bearing kit tamper wing 5

40-4812017386 Bearing kit tamper drive 6

40-4812017448 Wear part kit screed plates, tamper bar 7

40-4812018807 Kit, gas hose set 8
Mechanical Basic screed
40-4812024451 Basic screed 9
Extension unit, l.h.
40-4812013616 Extension unit, l.h. 15
Extension unit, r.h.
40-4812013617 Extension unit, r.h. 16
Hose guide, centre
40-4812015267 Hose guide, centre 17
Hose guide, l.h.
40-4812015308 Hose guide, l.h. 18
Hose guide, r.h.
40-4812015314 Hose guide, r.h. 19
Hose guide
40-4812024018 Hose guide 20
Hose clamp
40-4812015344 Hose clamp 21
Scale, l.h.
40-4812019348 Scale, l.h. 22
Scale, r.h.
40-4812019350 Scale, r.h. 23
Hydraulic, cylinder
40-4812018173 Hydraulic, cylinder 24

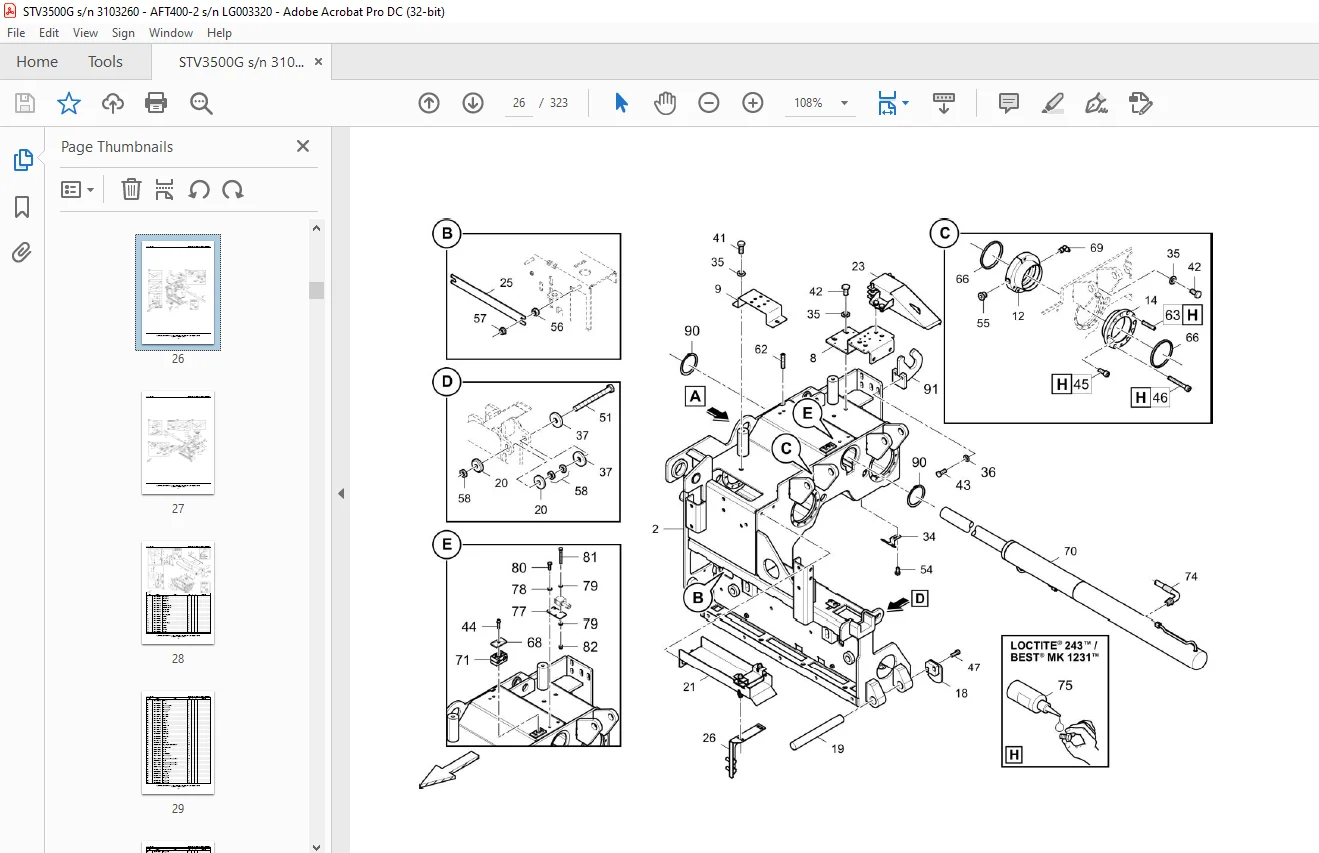

40-4812014225 Gas heating, cpl.
40-4812014225 Gas heating, cpl. 26 40-4812015137 Gas installation 29
40-4812017123 Footboard – From S/N 3102015 ff.
40-4812017123 Footboard – From S/N 3102015 ff. 32
40-4812017105 Footplate
40-4812017105 Footplate 35

40-4812017137 Footplate middle 36

40-4812018361 Footplate side 37
40-4812018354 Roof profile
40-4812018354 Profile adjustment 38
Hood
40-4812024955 Hood 40
Hood, r.h.
40-4812024796 Hood, r. h. 41
Hood, l.h.
40-4812062283 Hood, l.h. 42
40-4812018368 Top con rod, back
40-4812018368 Top con rod, back 43

40-4812018350 Top con rod, back 44

40-4812018355 Track adjuster 45
40-4812018377 Top con rod, front
40-4812018377 Top con rod, front 46

40-4812018347 Top con rod, front 47

40-4812018356 Track adjuster 48

40-4812018357 Track adjuster 49
40-4812013677 Basic operation width
40-4812013677 Basic operation width 50

40-4812012768 Material duct, l.h. 51

40-4812012770 Material duct, r.h. 52
Operation width V / TV, valid from s/n 3102554, 3102573, ff Operation width 4,1m, 295 TV
40-4812013700A Operation width 4,1m, 295 TV 53
Material duct, l.h.
40-4812215298 Material duct, l.h. 54
Material duct, r.h.
40-4812215309 Material duct, r.h. 55
Extension mount AT300, TV l.h.
40-4812201856 Extension mount AT300, TV l.h. 56
Hood
40-4812016982 Hood 59
Gas heating, AT300
40-4812012909 Gas heating, AT300 60 40-4812015155 Gas feeder arr. 62
Guard plate, below
40-4812201802 Guard plate, below 63
Tamper drive, r.h.
40-4812012813A Tamper drive, l.h. 64 40-4812012840B Tamper drive, l.h. 65
Footplate
40-4812018503 Footplate 67
Vibration
40-4812014377B Vibration 68
Extension mount AT300, TV r.h.
40-4812201795 Extension mount AT300, TV r.h. 70
Hood
40-4812016982 Hood See page 59
Gas heating, AT300
40-4812012909 Gas heating, AT300 See page 60

40-4812015155 Gas feeder arr. See page 62
Guard plate, below
40-4812201802 Guard plate, below See page 63
Tamper drive, r.h.
40-4812012841A Tamper drive, r.h. 76

40-4812012842B Tamper drive, r.h. 77
Footplate
40-4812018503 Footplate See page 67
Vibration
40-4812014377B Vibration See page 68
40-4812017744 Connection cable, con W18
40-4812017744 Electric W18 81
Protection and trim plates, V / TV valid from s/n 3102554, 3102573, ff Protection and trim plates, TV
40-4812200921 Protection and trim plates, TV 82
Kit, hood
40-4812023730 Kit, hood 84
Hood extension, l.h.
40-4812016884 Hood extension, l.h. 85
Hood extension, r.h.
40-4812016857 Hood extension, r.h. 86
Kit, guide plate
40-4812200925 Kit, guide plate 87
Guide plate, tamper MT l.h.
40-4812200931 Guide plate, tamper MT l.h. 88
Guide plate, tamper MT r.h.
40-4812200932 Guide plate, tamper MT r.h. 89
Guide plate, tamper VT l.h.
40-4812200933 Guide plate, tamper VT l.h. 90
Guide plate, tamper VT r.h.
40-4812200934 Guide plate, tamper VT r.h. 91
Screed plates, V3500TV
40-4812011980 Screed plates See page 3
Tamper, valid from s/n 3102413, 2423, 2437, 2487, ff
40-4812201958 Tamper drive 93
Hydrl. tamper
40-4812201819 Hydraulic, tamper 94
Kit, tamper subassembly
40-4812202008 Kit, tamper subassembly 97
Tamper drive MT, l.h.
40-4812013585A Tamper drive middle, l.h. 98
Tamper drive MT, r.h.
40-4812013586A Tamper drive middle, r.h. 100
Tamper drive VT, l.h.
40-4812202010 Tamper drive VT, l.h. 102
Tamper drive VT, r.h.
40-4812202009 Tamper drive VT, r.h. 104
Tamper drive MT, l.h.
40-4812013581 Tamper drive middle, l.h. 106
Tamper drive MT, r.h.
40-4812013582 Tamper drive middle, r.h. 107
Tamper drive VT, l.h.
40-4812013583 Tamper drive extension, l.h. 108
Tamper drive VT, r.h.
40-4812013584 Tamper drive extension, r.h. 109
Vibration
40-4812014295 Vibration
40-4812014295 Vibration 110

40-4812015247 Central lubrication 112
40-4812016088 Kit, vibration
40-4812016088 Kit, vibration 114

40-4812071102 Conversion kit 5cm³ 115

40-4812014325 Vibration middle, l.h. 116

40-4812014344 Vibration middle, r.h. 118

40-4812014301 Vibration extension, l.h. 120

40-4812017286 Vibration extension, r.h. 122

40-4812229601 Hydraulic diagram, vibration 124

40-4812018147 Hydraulic, vibration 127
40-4812019142 Kit, vibration
40-4812019142 Kit, vibration 130

40-4812014325A Vibration middle, l.h. 131

40-4812014344A Vibration middle, r.h. 133

40-4812014301A Vibration extension, l.h. 135

40-4812017286A Vibration extension, r.h. 137
40-4812019142A Kit, vibration
40-4812019142A Kit, vibration 139

40-4812014325A Vibration middle, l.h. See page 131

40-4812014344A Vibration middle, r.h. See page 133

40-4812014301B Vibration VT, l.h. 140

40-4812017286B Vibration VT, r.h. 142
Electric system, Con
40-4812012931 Electric Overview page 145
40-4812012990 Electric
40-4812012990 Electric 146
40-4812012991 Terminal box
40-4812012991 Terminal box 149
40-4812017430 Electric side shield
40-4812017430 Electric side shield 152

40-4812019379 Terminal box, l.h. 153

40-4812019380 Terminal box, r.h. 154

40-4812015424 Harness W5.4 155
40-4812015270 Harness W5.3 156
40-4812015269 Harness W5.2 157
40-4812015268 Harness W5.1 158
40-4812012996 Harness W5 159
40-4812015433 Harness W4.4 160
40-4812015179 Harness W4.3 161
40-4812015178 Harness W4.2 162
40-4812015177 Harness W4.1 163
40-4812012972 Harness W4 164
40-4812012992 Wiring
40-4812012992 Wiring 165
40-4812202797 Harness W20 167
40-4812202798 Harness W21 168
40-4812202802 Harness W22 169
40-4812202803 Harness W23 170
40-4812012969 Harness W1 171
40-4812012970 Harness W2 173
40-4812012971 Harness W3 175

40-4812012972 Harness W4 See page 164
40-4812015177 Harness W4.1 See page 163
40-4812015178 Harness W4.2 See page 162
40-4812015179 Harness W4.3 See page 161
40-4812015433 Harness W4.4 See page 160

40-4812015435 Harness W4.5 177
40-4812015447 Harness W4.6 178
40-4812015439 Harness W4.7 179
40-4812012996 Harness W5 See page 159
40-4812015268 Harness W5.1 See page 158
40-4812015269 Harness W5.2 See page 157
40-4812015270 Harness W5.3 See page 156
40-4812015424 Harness W5.4 See page 155

40-4812015426 Harness W5.5 180
40-4812015431 Harness W5.6 181
40-4812015429 Harness W5.7 182
40-4812012995 Mounting parts
40-4812012995 Mounting parts 184
Options
40-4812019807 End plate
40-4812019807 End plate 185

40-4812228334 Retainer 186
40-4812019808 End plate, cpl.
40-4812019808 End plate, cpl. 187

40-4812019817 End plate, l.h. 188

40-4812019821 End plate, r.h. 192
End plate, unheated
40-4812237773 End plate, unheated 196
End plate, l.h.
40-4812237772 End plate, l.h. 197
End plate, r.h.
40-4812237771 End plate, r.h. 201
40-4812012343 Levelling equipment
40-4812012343 Levelling equipment 205
Levelling equipment
40-4812024834 Levelling equipment 206
40-4812017942 Levelling bar
40-4812017942 Levelling bar 207
40-4812202565 Lubrication system
40-4812202565 Lubrication system 208
Lubrication system
40-4812202039 Lubrication system 210 40-4812033876 Grease hose 212
40-4720006020 Level
40-4720006020 Level 213
40-4812015870 Retainer hight adjustment
40-4812015870 Retainer hight adjustment 214
40-4720005918 Retainer hight adjustment Moba
40-4720005918 Extension arm 215

40-4720007201 Swinging arm 216

40-4720005790 Extension arm 217

40-4720007200 Height regulator holder, compl. 218
Available options
40-4812019942 End plate, gas heated
40-4812019942 End plate, gas heated 219

40-4812228334 Retainer See page 186
40-4812019985 Gas heating
40-4812019985 Gas heating 220

40-D614166302 Injector burner 222
40-4812019943 End plate, cpl.
40-4812019943 End plate, cpl. 223

40-4812019944 End plate, l.h. 224

40-4812019945 End plate, r.h. 228
End plate, heated
40-4812237785 End plate, heated 232
End plate, l.h.
40-4812237786 End plate, l.h. 233
End plate, r.h.
40-4812237787 End plate, r.h. 237
40-4812017904 El. gas heating side shield
40-4812017904 El. gas heating side shield 241

40-4812015435 Harness W4.5 See page 177
40-4812015447 Harness W4.6 See page 178
40-4812015439 Harness W4.7 See page 179
40-4812015426 Harness W5.5 See page 180
40-4812015431 Harness W5.6 See page 181
40-4812015429 Harness W5.7 See page 182
40-4812061377 End plate, gas heating, l.h. & r.h.
40-4812061377 End plate, gas heating, l.h. & r.h. 245
End plate, cpl.
40-4812061376 End plate, cpl. 246
End plate, l.h.
40-4812061373 End plate, l.h. 247
Spindle, l.h.
40-4812217905 Spindle, l.h. 250
Safety lock
40-4720003740 Safety lock 252
End plate, r.h.
40-4812061374 End plate, r.h. 253
Spindle, r.h.
40-4812061039 Spindle, r.h. 256
Safety lock
40-4720003740 Safety lock See page 252
Gas heating
40-4812061381 Gas heating 259
Injector burner
40-D614166302 Injector burner See page 222
Retainer
40-4812228334 Retainer See page 186
El. gas heating side shield
40-4812017904 El. gas heating side shield See page 241
Harness W4.5
40-4812015435 Harness W4.5 See page 177
Harness W4.6
40-4812015447 Harness W4.6 See page 178
Harness W4.7
40-4812015439 Harness W4.7 See page 179
Harness W5.5
40-4812015426 Harness W5.5 See page 180
Harness W5.6
40-4812015431 Harness W5.6 See page 181
Harness W5.7
40-4812015429 Harness W5.7 See page 182
40-4812061363 End plate, unheated, l.h. & r.h.
40-4812061363 End plate, unheated, l.h. & r.h. 269
End plate, cpl.
40-4812061340 End plate, cpl. 270
End plate, l.h.
40-4812061338 End plate, l.h. 271
Spindle, l.h.
40-4812217905 Spindle, l.h. See page 250
Safety lock
40-4720003740 Safety lock See page 252
End plate, r.h.
40-4812061339 End plate, r.h. 276
Spindle, r.h.
40-4812061039 Spindle, r.h. See page 256
Safety lock
40-4720003740 Safety lock See page 252
Retainer
40-4812228334 Retainer See page 186
40-4812017911 El. lighting side shield
40-4812017911 Electric lighting side shield 282

40-4812015435 Harness W4.5 See page 177
40-4812015426 Harness W5.5 See page 180
40-4812023321 Conversion kit ex. operation
40-4812023321 Conversion kit ex. operation 284

40-4812023605 Conversion kit ex. operation, l.h. 285

40-4812023609 Conversion kit ex. operation, r.h. 286
40-4812202592 Lubrication system
40-4812202592 Lubrication system 287
Lubrication system
40-4812201941 Lubrication system 288
40-4812202598 Central lubrication
40-4812202598 Central lubrication 289
Central lubrication
40-4812201938 Central lubrication 290
40-4812202578 Central lubrication
40-4812202578 Central lubrication 291
Central lubrication
40-4812202035 Central lubrication 293
Cut off shoe
40-4812238994 Cut off shoe 296
Cut off shoe, l.h.
40-4812239018 Cut off shoe, l.h. 297
Cut off shoe, r.h.
40-4812239020 Cut off shoe, r.h. 298
40-4812075277 Retainer height adjustment Gradeline
40-4812075277 Retainer height adjustment Gradeline 299
Retainer height adjustment Gradeline
40-D275131700 Retainer height adjustment Gradeline 300
Adjusting crank
40-4720006889 Adjusting spindle 301
Positioner
40-4720007201 Swinging arm See page 216
Accessories Decals (G)
40-4812018576 Decals 304
