Aprilia SL 750 Shiver Service Station Manual 854146 – Full 360-Page Workshop PDF

Description

Aprilia SL 750 Shiver Service Station Manual – Document 854146

This is the full Aprilia SL 750 Shiver service station manual, publication number 854146, running to 360 pages of workshop-level procedures, specifications and diagrams for the 750 cc 90-degree V-twin. Whether you are servicing your own Shiver, running a small workshop, or maintaining a customer bike, this Aprilia SL 750 Shiver Service Station Manual 854146 gives you the same chapter structure, torque figures and assembly clearances a trained Aprilia technician works from.

File Details

• Manual type: Service Station Manual (workshop / repair manual)
• Brand: Aprilia
• Model: SL 750 Shiver
• Document number: 854146
• Engine covered: M551M, 90-degree longitudinal V-twin, 4-stroke, 4 valves per cylinder, 2 overhead camshafts
• Language: English
• Page count: 360 pages
• File format: PDF
• Publication date shown: Copyright 2007

Chapters Covered

The manual follows Aprilia’s own service station chapter layout, from pre-delivery checks through to complete engine disassembly. The main sections are:

• Characteristics – dimensions, mass, engine data, transmission ratios, capacities, drive chain, electrical system, frame and suspensions, brakes, wheels and tyres, fuel supply, tightening torques
• Safety rules – carbon monoxide, fuel, hot parts, coolant, used engine oil, brake and clutch fluid, battery electrolyte
• Maintenance rules – general precautions, disassembly and reassembly practice, electrical connectors, tightening torque, running-in, vehicle identification
• Maintenance – scheduled maintenance table, recommended products, spark plug, engine oil and filter, air filter, valve clearance check

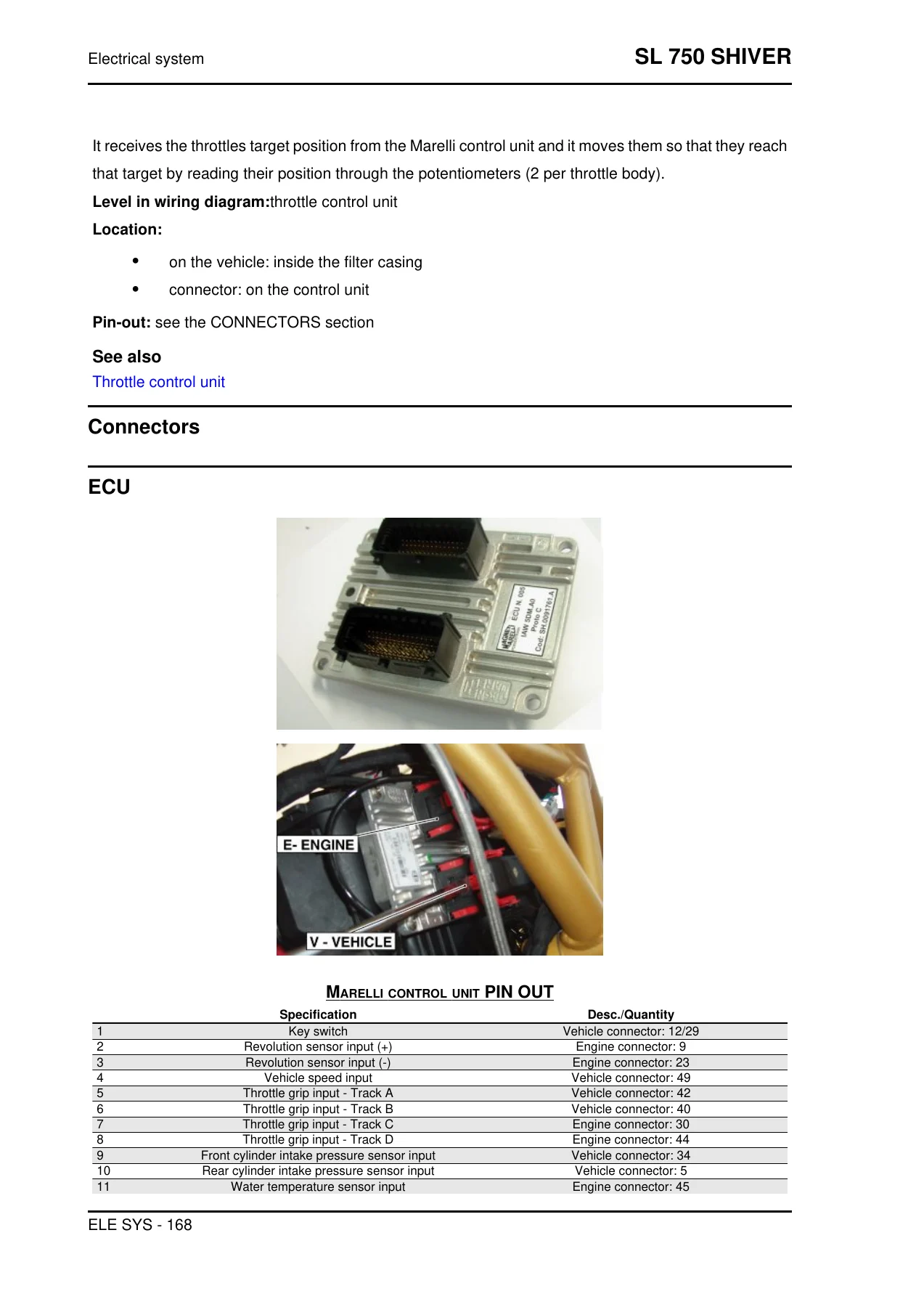

• Electrical system – components arrangement, wiring layout, relay layout, connector checks, continuity/ground/voltage testing, dashboard diagnosis, battery recharge circuit, voltage regulator, speed sensor, engine rpm sensor, throttle grip position sensor, intake air pressure sensor, engine and air temperature sensors, lambda probe, injectors, coils, throttle body, oil pressure sensor, neutral sensor, clutch lever sensor, side stand sensor, fall sensor, electric fan circuit, Run/Stop switch, throttle control unit, ECU pin-out and connectors
• Engine – engine removal and installation, gearbox shafts, gear selector, starter motor, generator side, flywheel, clutch, head and timing, cylinder and piston assembly, crankcase and crankshaft, oil pump
• Power supply – fuel pump, throttle body, Ride by Wire operating logic
• Suspensions – front wheel, handlebar, front fork, steering, rear wheel, shock absorbers
• Chassis – swingarm, drive chain inspection and adjustment, stand, exhaust system
• Braking system – front and rear callipers, brake pads, bleeding, front brake pump
• Clutch system – clutch pump and associated torque figures
• Cooling system – circuit diagram, electric fan, coolant replacement, water pump removal and installation, radiator, expansion tank, thermostatic valve
• Bodywork – instrument panel, front mudguard, front and rear bodywork, saddle mounting, footrests, seat, headlamp, taillight, side panels, license plate holder, air filter box, fuel tank, tail guard

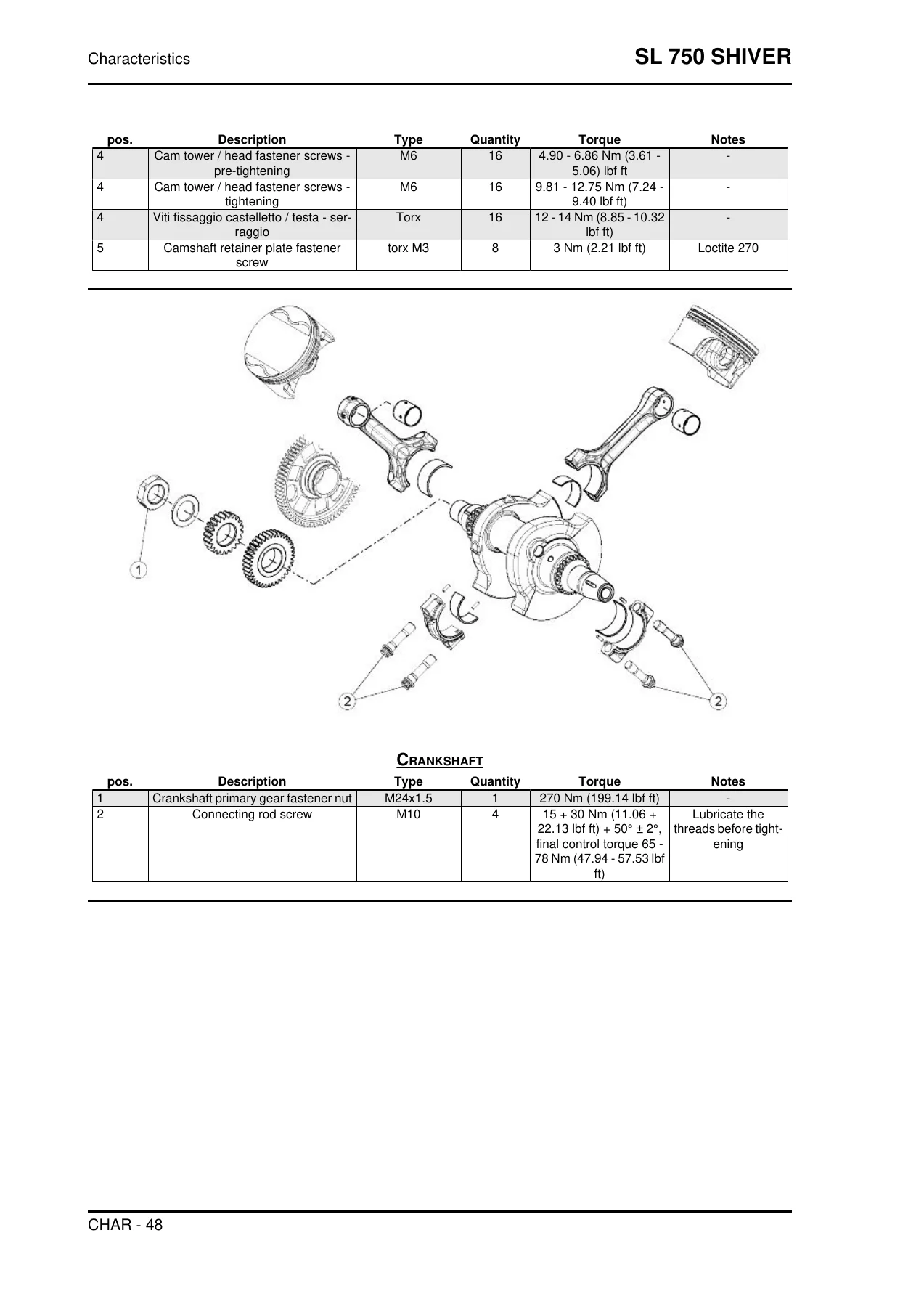

What makes this Aprilia SL 750 Shiver Service Station Manual 854146 genuinely useful is that it does not stop at naming parts. Each chapter carries the dismantling sequence, the measurement checks, the wear limits and the tightening torques needed to put the motorcycle back together correctly. Assembly clearance charts, bearing selection tables and cylinder-to-piston coupling classes are included, so a rebuild is not guesswork. The electrical chapter documents every sensor, relay and connector in the loom, with pin-outs and diagnostic flow charts, which is where most intermittent Shiver faults are actually solved.

Technical Scope at a Glance

The 750 Shiver runs the M551M 749.9 cc V-twin with a 92 x 56.4 mm bore and stroke and an 11.0:1 compression ratio. Fuel capacity is 15 litres with a 3 litre reserve; engine oil capacity is 3.0 litres without a filter change and 3.2 litres with one; coolant capacity is 1.8 litres; fork oil quantity is 535 cm3 per stem. The frame is a die-cast aluminium plate and high-strength steel tubular chassis with a 24.9-degree steering rake and 109.6 mm trail. Front suspension is a 43 mm upside-down fork with 120 mm travel; the rear is an oscillating swingarm with an adjustable hydraulic single shock absorber and 122 mm wheel travel. Front brakes are twin 320 mm floating discs with radially-mounted four-plunger callipers; the rear is a 240 mm disc with a single 35 mm piston calliper. Kerb weight with a full tank is 210 kg. All of these figures, and the torque values that go with them, are printed in the manual itself.

Who This Manual Suits

This Aprilia SL 750 Shiver Service Station Manual is written for someone who intends to do the work rather than read about it. Valve clearance adjustment, camshaft timing with the correct pins and jigs, clutch pack inspection, gearbox shaft disassembly, crankcase splitting, crank pin and main bearing class selection, throttle body and Ride by Wire diagnostics, brake bleeding, fork oil replacement and steering bearing adjustment are all covered with the measurements you need to confirm the job is right. The scheduled maintenance table sets out what to check at 1,000, 10,000, 20,000, 30,000 and 40,000 km, so you can plan servicing against mileage rather than guesswork. Because the manual spans both the mechanical and the electrical sides of the machine, it is equally useful for a workshop handling general servicing and for an owner chasing an intermittent sensor or relay fault.

Why the Correct Procedures and Specs Matter

The Shiver’s engine uses classified crankcase halves, classified crankshaft main journals and matched semi-bushings – fitting the wrong combination, or torquing the connecting rod screws without the correct pre-load and angle stage, will damage the engine. The same applies to the Ride by Wire system: throttle self-learning and handle self-learning procedures must be carried out after replacing the control unit or throttle body, and the two throttle grip sensor connectors must never be swapped. Having the Aprilia SL 750 Shiver Service Station Manual 854146 on hand means these procedures are followed in the order Aprilia specifies, with the correct torque and the correct sequence, rather than being improvised. That is the difference between a repair that lasts and one that comes back.

Your Download

IMAGES PREVIEW

This Aprilia SL 750 Shiver Service Station Manual 854146 is delivered as an instant PDF download – no shipping, no waiting, no physical book to damage in the workshop. Once payment is complete you can open it on a laptop, tablet or phone, print the pages you need for the job in front of you, or keep the whole 360-page document on a workshop computer for reference. Buyers looking for the Aprilia SL750 Shiver workshop manual, the SL 750 Shiver repair manual, or the full 854146 service documentation will find all of it in this single file.
