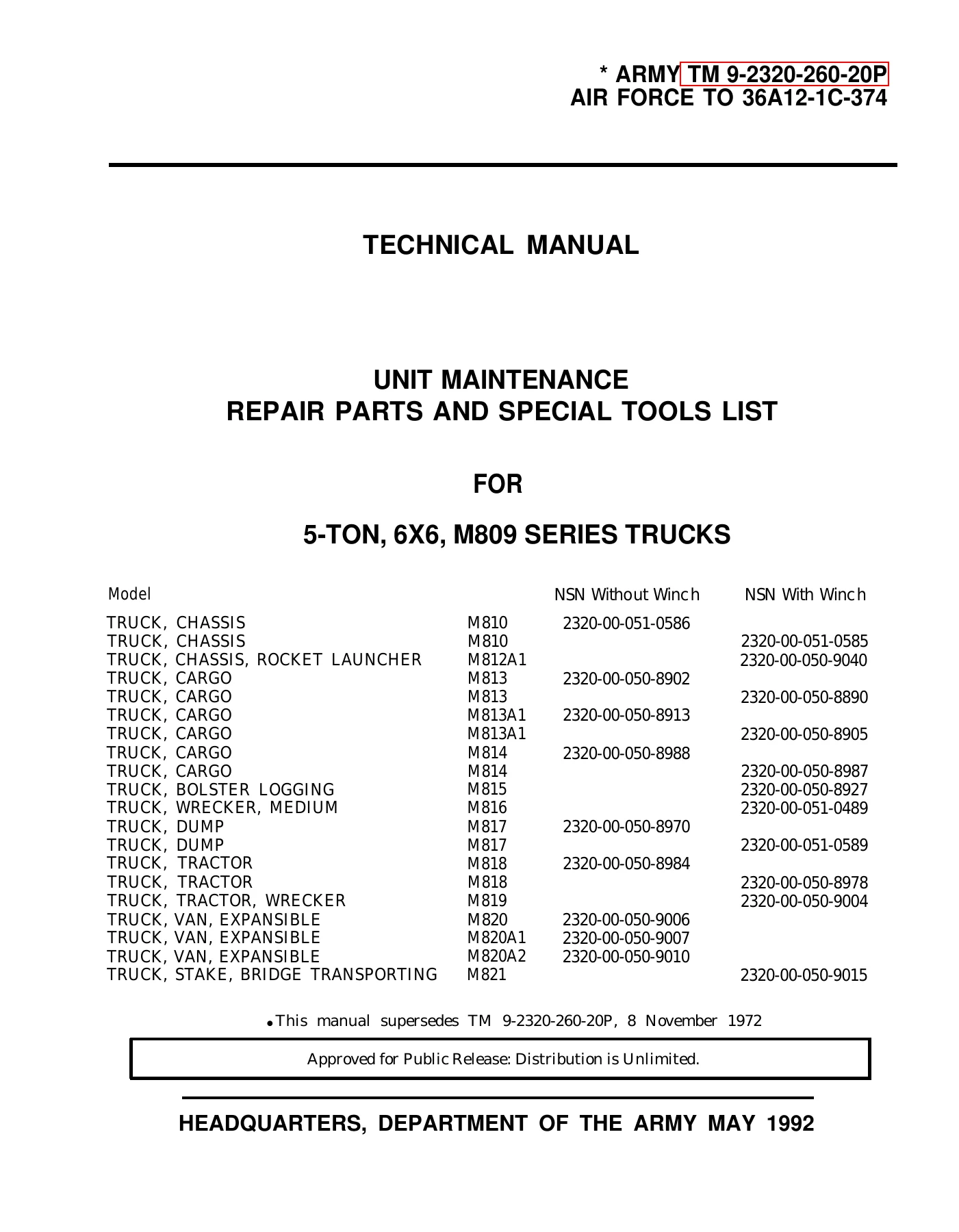

Army TM 9-2320-260-20P M809 5-Ton 6×6 Truck Unit Maintenance Repair Parts & Special Tools List
The Army TM 9-2320-260-20P M809 5-Ton 6×6 Truck Unit Maintenance Repair Parts & Special Tools List is the complete official guide for maintenance personnel. This is the essential reference for ordering and replacing parts and using the correct special tools for the M809 series of 5-ton tactical trucks.
File Details
- Manual Type: Unit Maintenance Repair Parts and Special Tools List (RPSTL)
- Document Numbers: TM 9-2320-260-20P (Army) / TO 36A12-1C-374 (Air Force)
- Brand: U.S. Army / U.S. Air Force
- Models Covered: M809 Series 5-Ton, 6×6 Trucks (M810, M812A1, M813, M813A1, M814, M815, M816, M817, M818, M819, M820, M820A1, M820A2, M821)
- Language: English
- Page Count: Approximately 1,352
- File Format: PDF
- Publication Date: 8 May 1992 (Supersedes November 1972 edition)
- Current as of: July 1991
Chapters Covered
This manual provides a comprehensive listing of all repair parts and special tools required for unit maintenance. The content is organized into functional groups covering every major system on the vehicle. Below are the key groups included in this RPSTL:
- Group 01: Engine
- 0101: Engine and Mounting

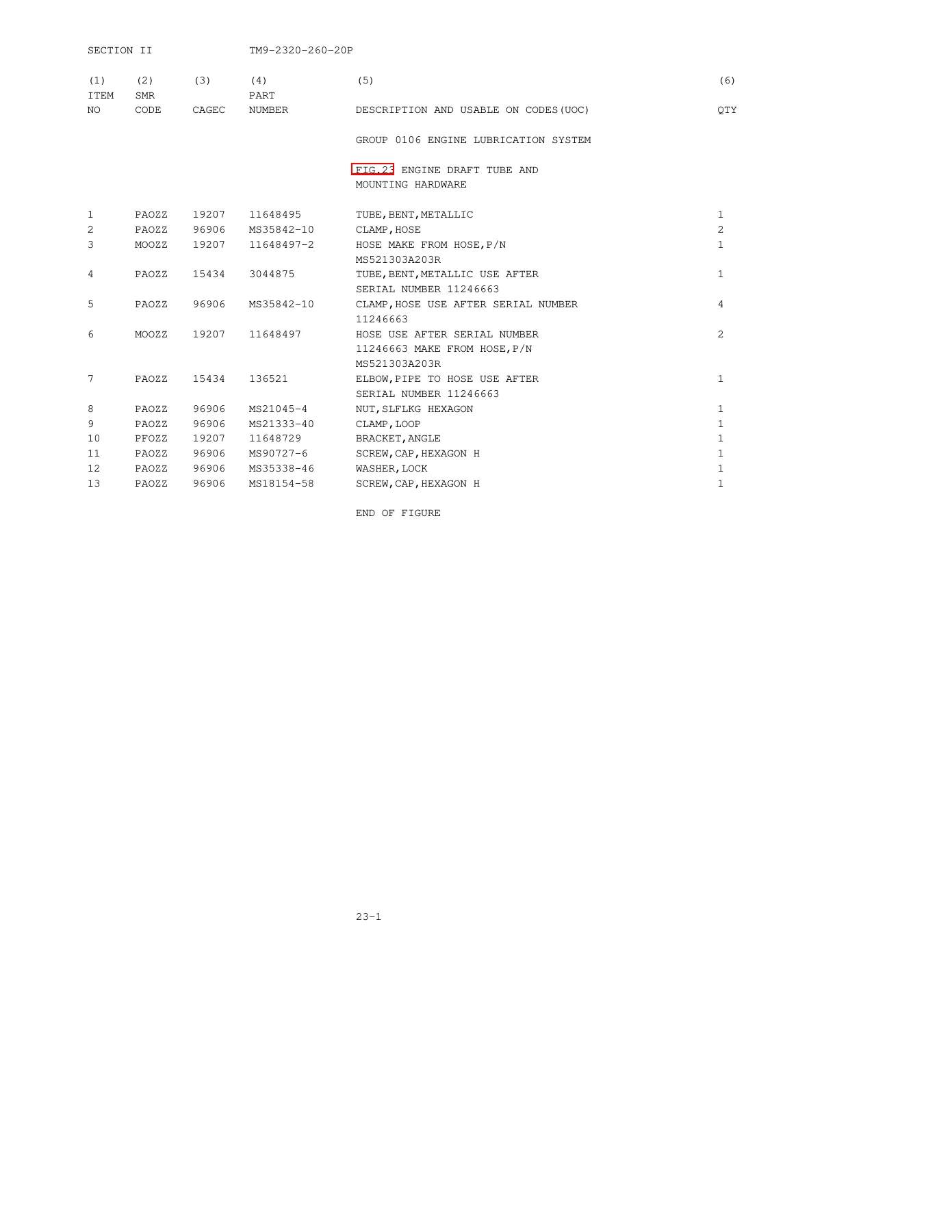

- 0106: Engine Lubrication System
- 0108: Engine Cooling System
- Group 02: Fuel System

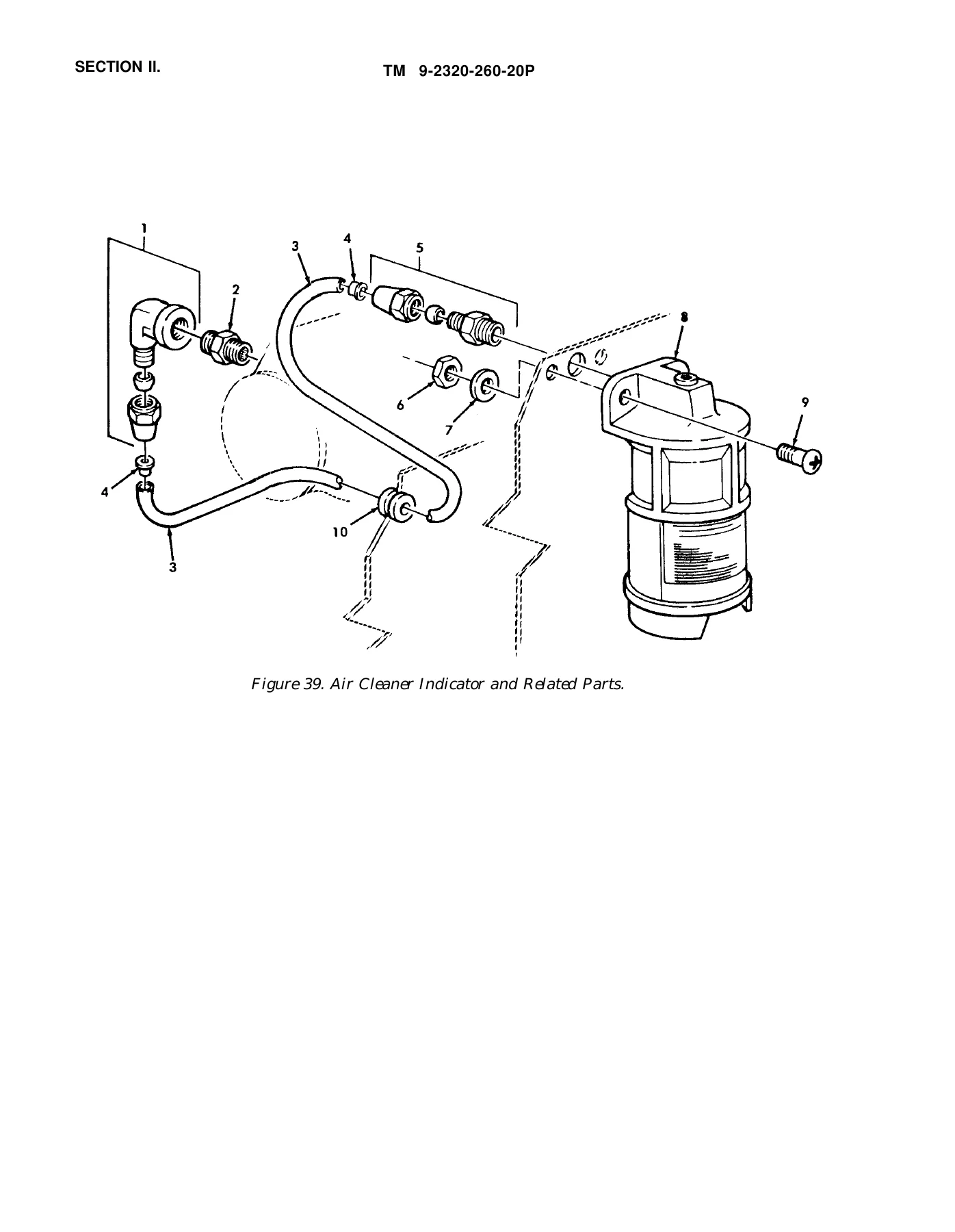

- 0301: Air Cleaner and Piping
- 0302: Fuel Pumps
- 0306: Tanks, Lines, Fittings, Headers
- 0309: Fuel Filters
- 0311: Engine Starting Aids
- 0312: Accelerator Control and Linkage
- Group 04: Exhaust System
- 0401: Vertical and Horizontal Exhaust Systems
- Group 05: Cooling System
- 0501: Radiator, Surge Tank, and Hoses
- 0502: Fan Shroud, Baffles, and Shields
- 0504: Water Pump, Seal, and Belt
- 0505: Fan, Bracket, and Hub Assembly
- Group 06: Electrical System
- 0601: Alternator Assembly and Belt
- 0603: Starter Motor
- 0607: Instrument Panel and Switches
- 0609: Lighting Components
- 0612: Batteries, Cables, and Box
- 0613: Chassis Wiring Harness
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “Army TM 9-2320-260-20P M809 5-Ton 6×6 Truck Unit Maintenance Repair Parts & Special Tools List – PDF” are as follows:
