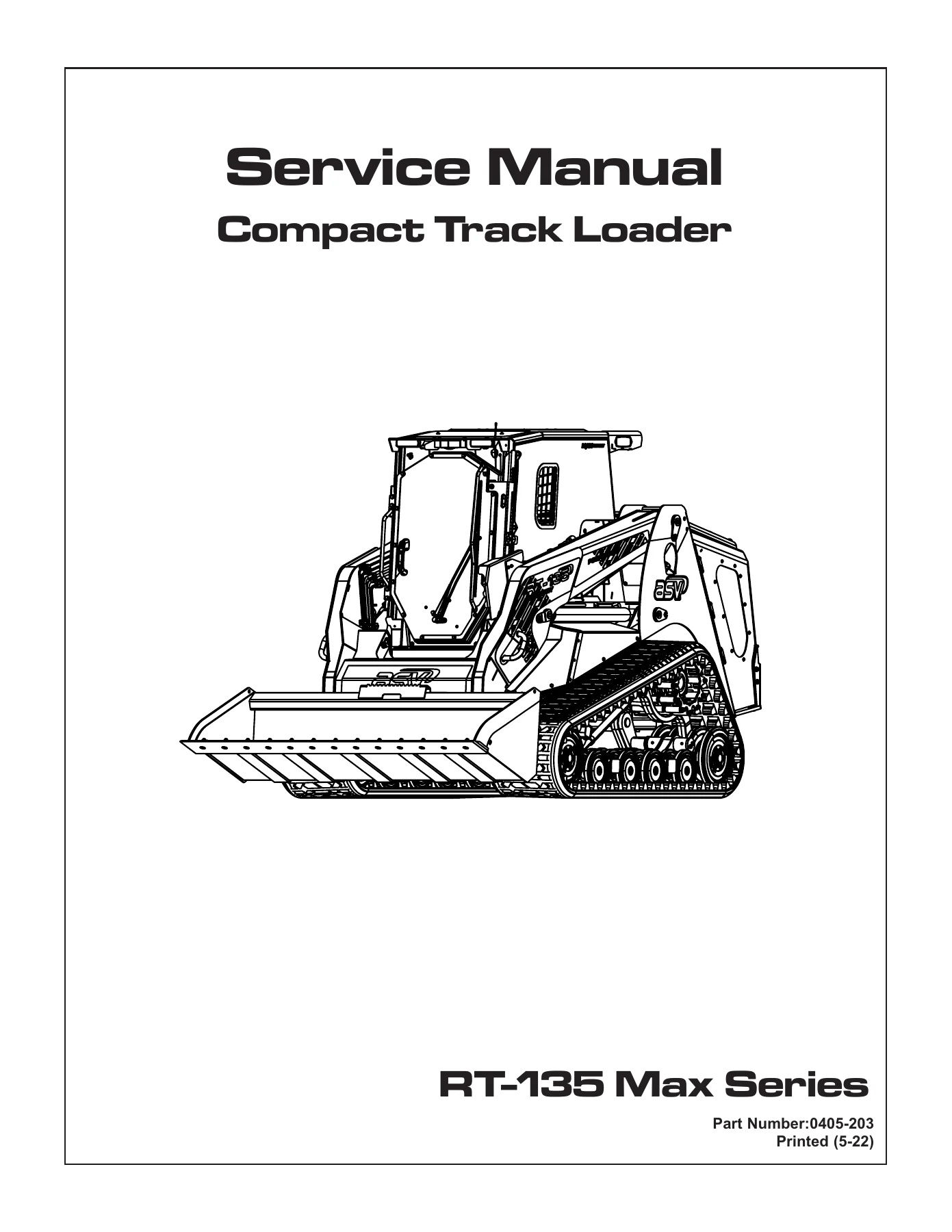

ASV RT-135 Max Series Compact Track Loader Service Manual 0405-203 PDF

Description

ASV RT-135 Max Series Service Manual – Part Number 0405-203

This is the full ASV RT-135 Max Series Compact Track Loader Service Manual, published under Part Number 0405-203. It is the same workshop reference used for professional service and repair of the RT-135, and it walks through every major system on the machine with step-by-step disassembly, assembly, testing, and troubleshooting procedures. If you own or maintain an RT-135, this is the document that tells you how the machine is actually put together and how to fix it correctly.

File Details

• Manual type: Service Manual (Workshop / Repair)
• Brand: ASV
• Model: RT-135 Max Series Compact Track Loader
• Part number: 0405-203
• Printed: 5-22
• Language: English
• Page count: 156 pages
• File format: PDF

Chapters Covered

The ASV RT-135 Max Series Service Manual 0405-203 is organized into 22 chapters covering the complete machine:

• Product Safety – safety labels, protective equipment, pressurized items, repair precautions
• Technical Specifications & Service Tools – engine, transmission, drive pumps, charge pump, drive motors, controls, auxiliary pump, lift arm control valve, oil cooler, torque specs, cycle times
• Circuit Diagrams – hydraulic charge, auxiliary, control, and drive circuits, lift arm control valve, hydraulic solenoid blocks, electrical attachment outlet
• Maintenance – lift arm brace, cab tilt, jacking, grease fittings, undercarriages, track tension, track removal/installation, drive sprocket rollers, air cleaner, water separator, fuel filter, accessory belts, engine oil/filter, hydraulic fluid/filter, coolant, radiator/oil cooler cleaning, fuse panel, DEF, maintenance schedule
• Machine Controls and Instrumentation – lift arm control, drive control, throttle, instrumentation, switches
• Operator Enclosure – lap bar gas spring, dash pods, switch panels, seat, headliner, rear/side panels
• Chassis and Fuel Tank – fuel sending unit, fuel tank, footwell, hood assembly, upper rear frame, forestry guarding
• Cooling Assembly – fan, fan hub, fan motor, fan/support assembly, radiator/oil cooler, fan control block, coolant reservoir
• Hydraulic Reservoir – reservoir removal and installation, suction screen
• Lift Arm/Drive Controls – joystick, lift arm control valve
• Hydraulic Pumps/Motors – charge pump, auxiliary pump, tandem drive pump, drive motor
• Engine – battery, exhaust system, air cleaner, DEF tank, engine removal/installation
• Undercarriage – 15″ idler wheel, 10″ bogie wheel & hub, idler hub service, front and rear axles
• Lift Arm Components – lift cylinder, bucket/tilt cylinder, Q/C block PRV
• Quick Attach – locking pin, pivot pin
• Hydraulic Component Service – hydraulic cylinder, lift arm control valve, drive pump reliefs and solenoids/spools, auxiliary pump
• Hydraulic Pressure & Flow – contamination inspection, charge pressure, auxiliary pressure, lift arm pressure, drive pressure checks and adjustments
• Troubleshooting – visual inspection, general troubleshooting scenarios, engine/machine troubleshooting, control system troubleshooting
• Service Tool – driver download, service tool download, connection, usage
• Lubricant & Fuel Specification – fluids and fuel specs
• Service Aids & Supplements – general torque specifications, fitting torque, flange torque and sequences, hose clamp torque
• Display / Operator Interface – Deluxe Display initial programming and software update

What This ASV RT-135 Service Manual Gives You

Every procedure in this manual is written against the specific RT-135 Max Series machine, not a generic track loader. Torque values, pressure settings, and cycle times are all given for this model: transmission mounting bolts at 85 ft-lb with blue Loctite, drive sprocket lug bolts at 202 ft-lb dry, 10-inch idler wheel retaining bolt at 180 ft-lb with red Loctite, and 15-inch idler retaining nut at 350 ft-lb dry. Hydraulic pressures are stated explicitly throughout the pressure test chapter, including the 5801 psi (400 bar) drive relief, 3300 psi low-flow auxiliary relief, 4060 psi high-flow auxiliary relief, and 392 +/- 30 psi charge pressure.

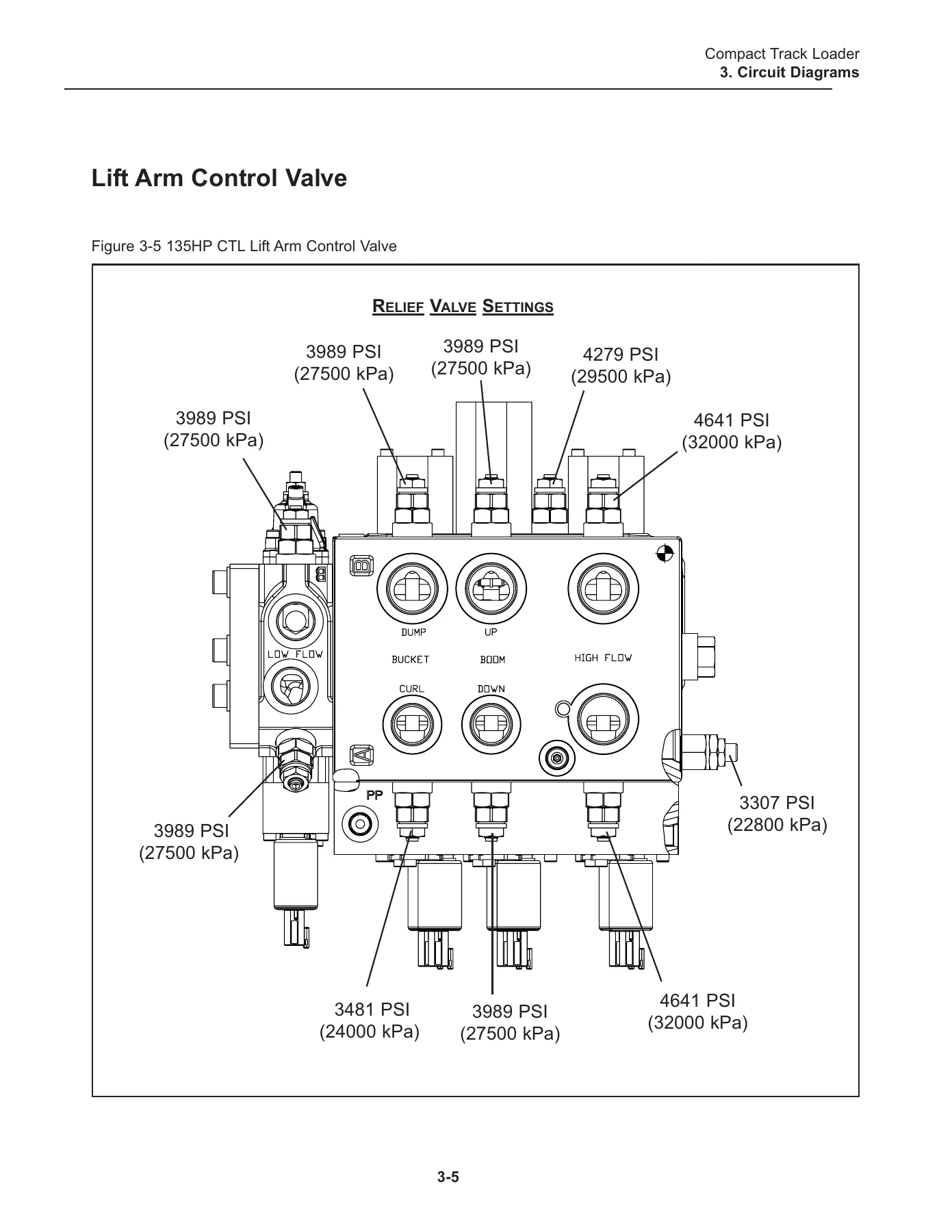

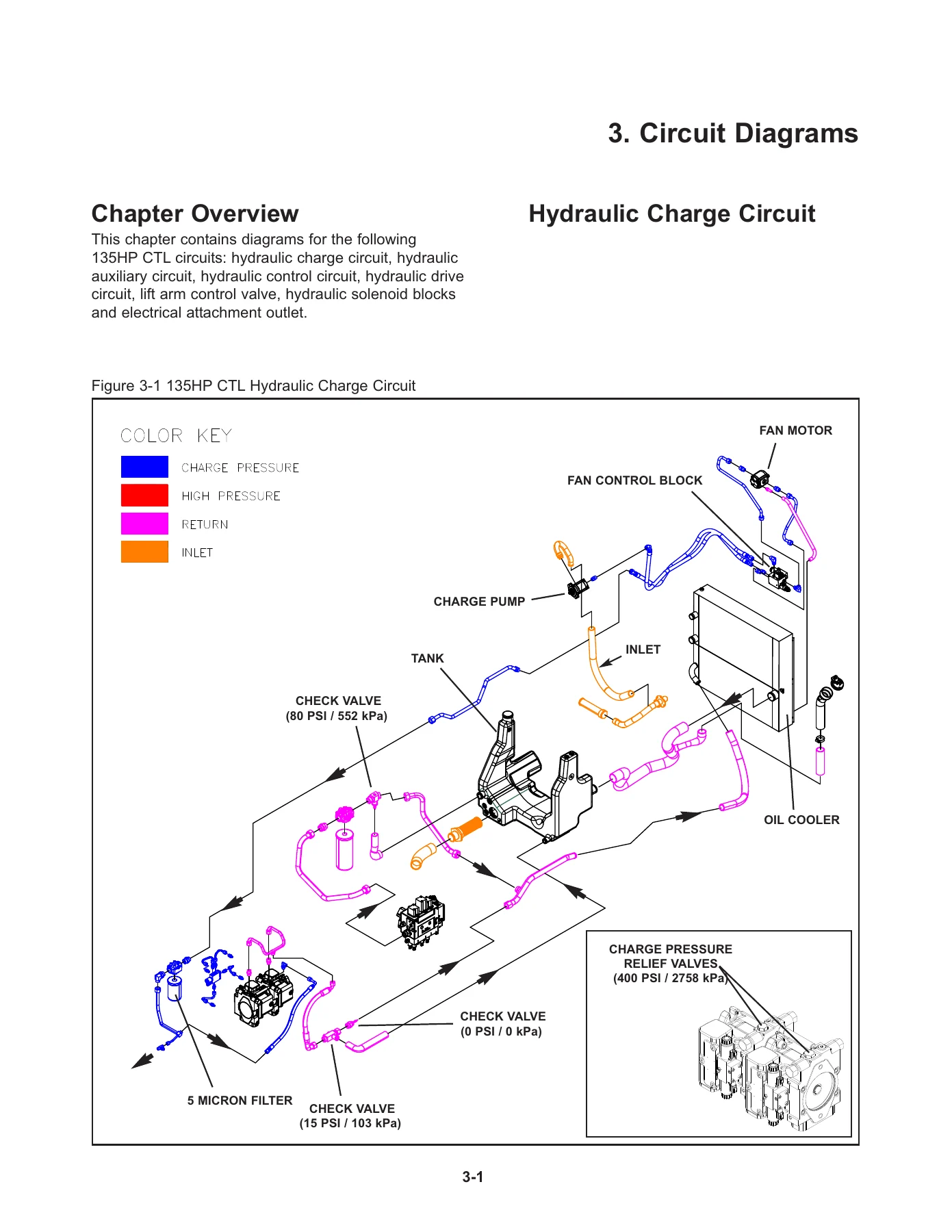

The circuit diagram chapter alone is worth the price of the manual – charge circuit, auxiliary circuit, control circuit, and drive circuit are laid out with color keys (charge pressure, high pressure, return, inlet) so you can trace oil flow from the charge pump through the fan control block, oil cooler, check valves, and filter back to the tank. The lift arm control valve diagram shows every relief valve setting on the block face, so you know which relief to adjust when a function is weak.

For engine work, the RT-135 runs the Cummins QSF3.8 – 3.8 liter, 132 hp, 360 lb-ft of torque. The manual covers the complete engine removal sequence, including the driveshaft coupler, exhaust/SCR removal, DEF tank, air cleaner, accessory belt, A/C compressor set-aside, fuel line quick disconnects, starter and alternator cable removal, engine ECU harness, and the four engine mount bolts. Every step is illustrated with in-chassis photos so you can see exactly where the fastener is before you start.

The undercarriage chapter is especially detailed for anyone doing track work. Track tension is checked with a 90 lb down-force at midpoint between drive sprocket and front idler – deflection should read between 3/4″ and 1″. Adjustment is done at the turnbuckle. Sprocket rollers are inspected every 50 hours and replaced at 35% of original thickness (.088″). The bogie wheel service procedure walks through metal face seal disassembly, hub cleaning, bearing inspection, face seal reassembly with isopropyl alcohol wipe-down and 10W-30 oil film, and final torque of the wheel retaining bolts to 180 ft-lb (244 Nm).

Which Jobs This Manual Supports

The RT-135 Max Series Service Manual 0405-203 covers jobs across the whole machine, including:

• Routine maintenance – oil and filter changes, hydraulic fluid and filter service, air cleaner service, water separator draining, coolant change, radiator/oil cooler cleaning, grease points
• Undercarriage repair – track removal and installation, track tension adjustment, idler wheel replacement, bogie wheel and hub rebuild, front and rear axle removal
• Hydraulic service – charge pressure adjustment, auxiliary pressure and flow checks, lift arm pressure troubleshooting, drive pressure testing, cylinder reseal, lift arm control valve disassembly, drive pump relief and solenoid service, auxiliary pump disassembly
• Engine service – battery, exhaust, air cleaner, DEF tank, full engine removal and installation
• Electrical – fuse panel identification, control system fault codes, service tool connection, display programming and software update
• Diagnostics – troubleshooting flow charts for every control system fault code (propel, boom, bucket, high flow, low flow, quick attach, fan control)

Every one of these procedures tells you the tool you need, the bolts to remove, the values to hit on reassembly, and the steps to verify the fix. That is what separates a proper service manual from a parts diagram or an owner’s booklet.

Why the Correct Procedures and Specs Matter on the RT-135

The RT-135 is a high-flow, high-pressure compact track loader – drive pressure runs at 5801 psi (400 bar) and high-flow auxiliary at 4060 psi. Guessing at torque values or relief settings on a machine like this is expensive. A relief valve set too low and the machine stalls under load. Set too high and you blow seals or crack a pump housing. The manual gives you the exact figure and the exact adjustment method, whether that is adding or removing shims on the charge relief, turning an allen screw on the high-flow relief, or swapping a suspect relief to confirm the fault.

The troubleshooting chapter works by symptom – machine will not crank, cranks but will not start, starts but no hydraulics, tracks move but lift arms don’t, high hydraulic oil temperature, engine overheat. Each symptom has a list of possible causes and a link to the control system troubleshooting guide if the cause is electrical. The control system tables go fault code by fault code: display message, what it disables on the machine, what causes it, and the fix. That level of detail is what turns a two-day diagnosis into an hour-long repair.

IMAGES PREVIEW

Instant PDF Delivery

This ASV RT-135 Max Series Service Manual (Part Number 0405-203) is delivered as an instant PDF download. No waiting for shipping, no photocopied pages, no missing chapters. Open it on a laptop in the shop, on a tablet next to the machine, or print the pages you need and take them under the machine with you. Search across the whole 156-page document to jump straight to the procedure you need – whether that’s a track tension adjustment, an auxiliary pressure check, or an engine removal.

If you work on the RT-135 Max Series, this is the reference document that keeps the job moving and keeps it right the first time.
