Atlas Copco Boomer S1D Spare Parts Catalogue 8999151300 – PDF Download

Description

Atlas Copco Boomer S1D Spare Parts Catalogue 8999151300

This is the complete Atlas Copco Boomer S1D Spare Parts Catalogue with document number 8999151300. Published by Atlas Copco Rock Drills AB, Sweden, this 1084-page parts catalogue is the definitive reference for identifying, ordering and replacing genuine components on the Boomer S1D drill rig. Every assembly, sub-assembly and individual part is presented with its Atlas Copco part number, reference number, description and quantity, so you can pinpoint exactly what you need without guesswork. Whether you are rebuilding a rock drill, servicing the feed beam, repairing a hydraulic motor or tracking down a single O-ring, this Boomer S1D parts catalogue gives you the complete parts breakdown for the entire machine.

File Details

• Manual Type: Spare Parts Catalogue
• Brand: Atlas Copco
• Model: Boomer S1D
• Document Number: 8999151300
• Language: English / Spanish (bilingual)
• Page Count: 1084
• File Format: PDF
• Copyright: 2014, Atlas Copco Rock Drills AB, Sweden

Chapters Covered

The Boomer S1D Spare Parts Catalogue is organised into the following major sections, each with its own detailed parts listings and exploded illustrations:

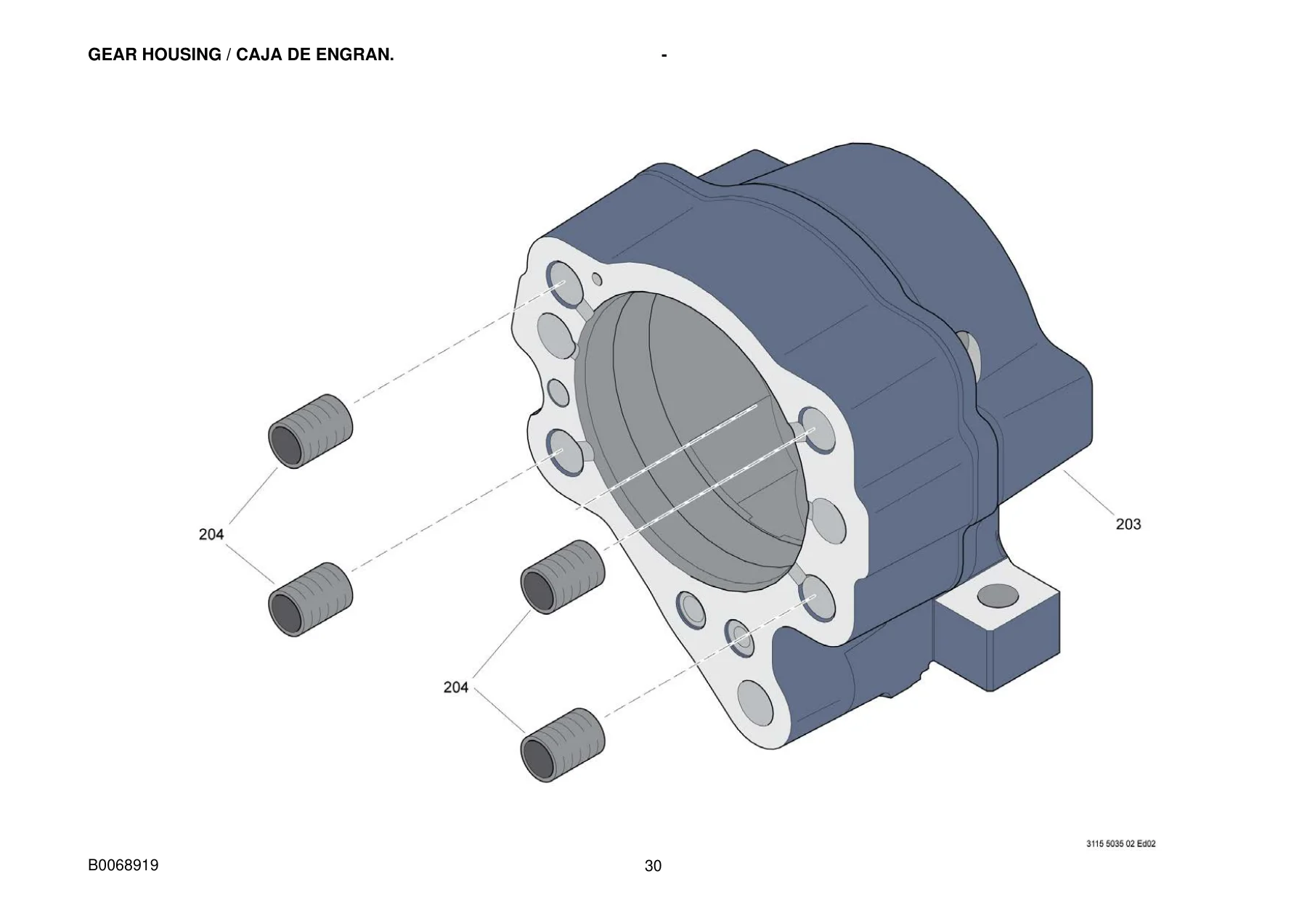

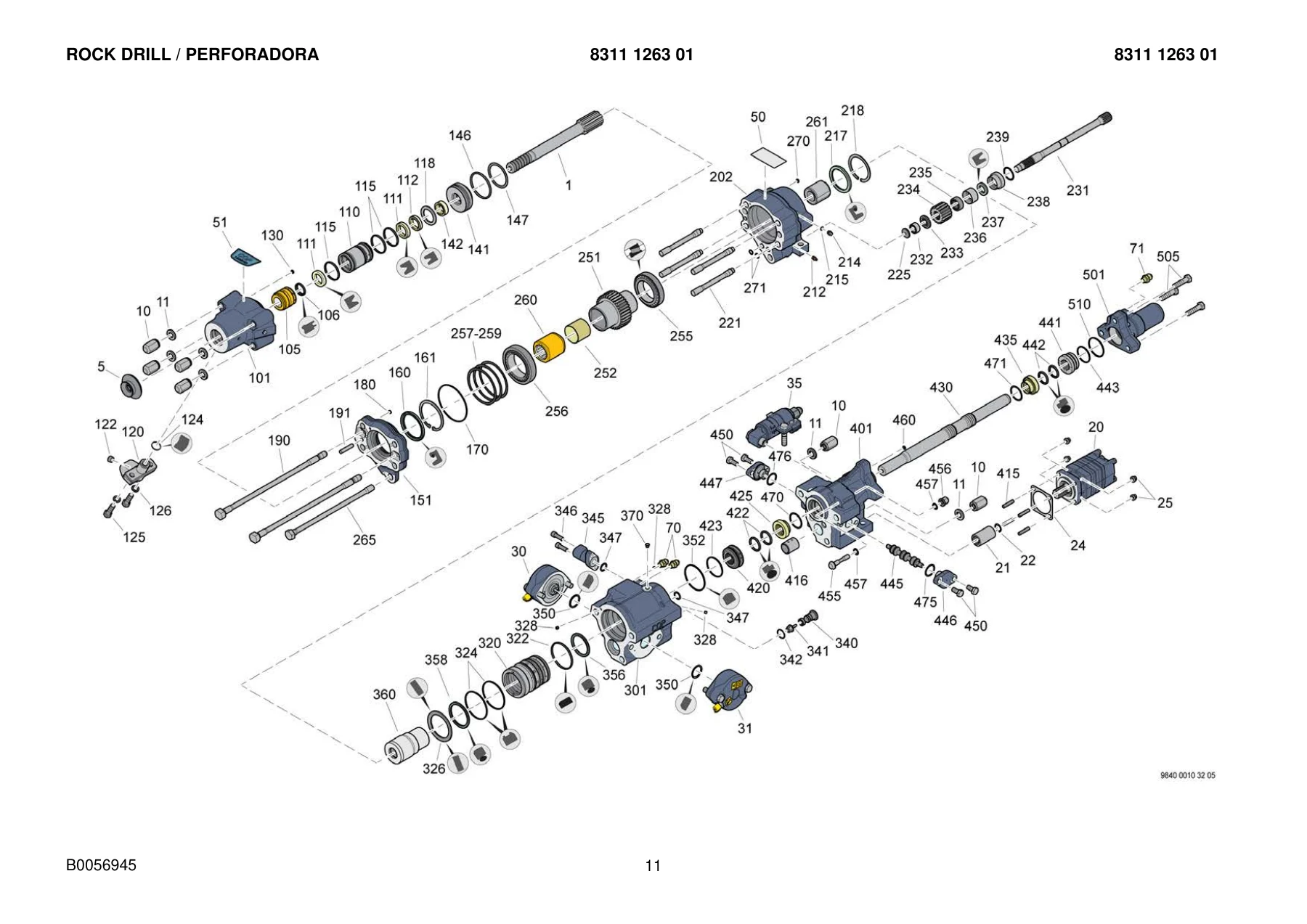

• 1. Rock Drill / Perforadora — Front Part Comp, Stop Ring Compl, Cover Group, Cover Compl, Gear Housing Group, Gear Housing, Rot. Chuck Compl, Interm. Part Group, Interm. Compl, Intermed. Part, Cylinder Group, Cylinder, Seal House Comp, Back Head Group, Hydraulic Motor (MSQ 80 SH, MSQ 100 SH, MSQ 160 SH, MSQ 250 SH), Accumulator (Right / Left), Return Accum, Optional Set, Connect. Plate, O-Ring Set, Seal Kit, Overhaul Kit, Conversion Kit
• 2. Feed Module / Módulo Desliz. — Rock Drill, Feed (BMH 2*49R), Limit Switch Set, Limit Switch, Basic Part Set, Detail Set, Pulley Wheel, Holder Set, Rock Drill Kit (COP 1238/1838), Hose Drum Compl. With Bushings, Feed Beam (L=6260), Cylinder Set (BMH 2000), Hose Set, Hydr. Cylinder, Hose Nipple Set, Bushing Set (R38, T38)
• 3. Boom Module / Módulo de Brazo — Boom Left (BUT 29), Boom Part (Rear / Mid Section), Boom Attachment, Boom Link, Cylinder Link, Shaft Compl, Expanding Shaft, Boom Body, Telescope Set, Hydr. Cylinder, Brg. Hsg. Assy, Boom Head Left, Turning Device, Cylind. Bracket, Cylinder Set, Check Valve, Overcent. Valve, Cover Compl, Assembly Set, Cyl. Prot. Kit, Protect. Cover, Protection Roof, Hose Holder, Hose Holder Set, Bulkhead Conn, Hydraulic Set, Hose Set, Double Ch. Valve, Hose Frame Set, Cover Set, Lubr. System, Lubrication Set
• 4. Front Module / Módulo Delant. — Front Frame, Counterweight, Stage, Mudguard Compl, Box, Electr. Syst. 24V, Cable Set, Hydr. System, Direction Valve, Assembly Set, Inlet Section, Valve Section, Outlet Section, Valve, Press. Red. Valve, Valve Unit, Valve Block, Sequence Valve, Double Ch. Valve, Hose Set, Hydraulic Set, Cleaning Unit, Boot Washer, Set of Wheels (NOKIAN 9.00-20), Wheel Compl, Rim Compl, Tire Set, Drive Unit, Drive Shaft, Crown Wheel Kit, Diff. Kit, Vane Kit, Planet Gear Kit, Brake, Cardan Shaft, Support Leg Kit, Support Leg, Hydr. Cylinder, Check Valve, Steer. Cyl. Set, Cylinder, Sign Set
• 5. Canopy Module / Mod Techo Prot. — Canopy Module, Platform Compl, Fire Extinguis, Hydr. Cylinder, Cab Attachment, Hoods Complet, Electr. Syst. 24V, Joint Fitting, Distribution Set, Cable Set, Panel, Hour Meter, Emerg. Pushbutt, Mushroom Pushb, Push Button, Ignition Lock, Panel Plate, Plinth Module, Wiring, Connector, Plate, Junction Box, Stair Lighting, Emerg. Set, Hydr. System, Guide Unit, Drill Panel, Hydraulic Set, Directional Valves, Direction Valve, Inlet Section, Valve Section, Lever Holder, Valve Block, Pr. Contr. Valve, Control Lever, Lever Joint, Electric Set, Switch, Lamp Pushbutton, Plinth Module, Support, Flow Divider, Double Ch. Valve, Hose Set, Reamer Set, Electric Set, Fire Suppr. Syst, Fire Exting. Set, Aut. Set, Chair Compl, Chair, Swing Arm Compl, Sign Set
• 6. Power Module / Módulo Potenc. — Mechanics, Electr. Syst. 24V, Cable Set, Hydr. System, Valve Block, Oil Cooler, Hydr. Oil Tank, Filter Compl, Thermostat, Hose Set, Pump Set, Coupling Set, Shaft Coupling, Cover Set, Hydraulic Pump (A10VO 100 CC), Pump, Pump Unit, Pilot Valve, Gear Pump, Hydraulic Set, Hose Set, El. Oil Filler, Hydraulic Pump (with El. Motor), Hose Set, Fire Suppr. Syst, Fire Exting. Set, Sign Set
• 7. Middle Module / Módulo Interm. — Mechanics, Interm. Frame, Swing Arm Compl, Drive Unit, Drive Axle, Crown Wheel Kit, Diff. Kit, Vane Kit, Planet Gear Kit, Drop Box, Trunnion, Cardan Shaft, Fuel System, Lubr. System, Lubr. Valve, Battery Box, Protection, Cable Ladder, Hoods Complet, Mudguard Compl, Electr. Syst. 24V, Cable Set, Fuse Kit, Hydr. System, Hydraulic Pump (Transpump 56CC), Filter, Hydraulic Motor (Transmotor 80CC), Hydraulic Pump (D-Pos. Pump 28CC), Hose Set, Air / Water System, Compressor, Hydraulic Motor, Solenoid Valve, Assembly Set, Hose Set, Coupling Set, Set of Wheels, Diesel Eng. Unit (DEUTZ BF4L914), Diesel Engine, Fan Grid, Coupling Compl, Drainage, Air Filter Set, Air Filter, Throttle Contr, Cable Holder, Exhaust System, Silencer, Support Leg Kit, Hydr. Cylinder, Check Valve, Lubr. Pump Kit, Lubricat. Pump, El Control Kit, Cable Set, Fire Suppr. Syst, Fire Exting. Set, Hose Set, Aut. Set, Fire Exting. Set, Connection Set, Sign Set
• 8. Rear Module / Módulo Trasero — Mechanics, Rear Frame, Cable Steering, Fire Extinguis, Protection, Cable Reel Kit, Cable Reel, Commutator, Hydraulic Motor, Hoods Complet, Electr. Syst. 24V, Cable Set, Joint Fitting, Flashing Beacon, Apparatus Panel, Terminal Relay, Cable Set, Electr. System (DCS75*1 IEC 400-690Y/D), Electr. Cabinet (DCS95*1 IEC 400-690Y/D), Fan Set, Main Switch, Plinth Module, Electr. Cabinet, Flange Connect, Cable Complete, Cable Lug Set, Cable Set, Cable Complete, Flange Set, Plug Connector, Reel Control, Control Box, Emerg. Set, Push-Button-Box, Mushroom Pushb, Push Button, Hydr. System, Direction Valve, Flow Cont. Valve, Hose Set, Air / Water System, Strainer, Water Pump Unit, Hydraulic Motor, Water Pump, Coupling Compl, Solenoid Valve, Cable Set, Hose Set, Air Receiv. Set, Hose Nipple Set, Hose Set, Fire Suppr. Syst, Fire Exting. Set, Hose Set, Sign Set
• 9. Hose Connection / Acopl.-Manguera — Complete nipple and coupling reference covering UNF, UN, NPTF, G, M and metric thread connections used throughout the Boomer S1D
• 10. Hoses / Mangueras — Complete hose assembly reference list with part numbers, descriptions, dimensions and routing codes
• 11. Cross Reference List — Part number to reference number cross-reference for quick lookup across all modules

This Boomer S1D Spare Parts Catalogue is far more than a simple parts list. Each module is broken down into its constituent assemblies, and every assembly is further exploded into individual components with Atlas Copco part numbers. The rock drill section alone covers the complete COP 1838HD+ and COP 1238/1838 series with seal kits, overhaul kits, conversion kits, hydraulic motors, accumulators and every internal component from the front part to the back head. The boom module covers the full left boom assembly including the BUT 29 configuration, telescopic extension, turning device and all expanding shafts. The feed module covers the BMH 2*49R feed beam, hose drum, cylinder set and limit switch arrangements. The power module covers the A10VO 100 CC hydraulic pump, gear pump, oil cooler, oil tank and filtration system. The middle module covers the Deutz BF4L914 diesel engine, transmission pump and motor, compressor, air/water system and fire suppression. The rear module covers the DCS75/DCS95 electrical system, cable reel, water pump and air receiver. The comprehensive hose connection and hoses sections list every nipple, coupling and hose assembly used across the machine, making this the single most useful document for anyone maintaining or repairing a Boomer S1D.

What This Parts Catalogue Enables You To Do

• Order the correct part first time — every component carries its Atlas Copco part number so you can order with confidence and avoid costly returns or wrong-fit parts.
• Rebuild rock drills — complete exploded views and parts breakdowns for COP 1838HD+ and COP 1238/1838 rock drills, including seal kits, overhaul kits and conversion kits.
• Service hydraulic systems — detailed parts listings for all hydraulic motors, pumps, valves, accumulators, cylinders and hose assemblies.
• Repair the diesel engine unit — parts for the Deutz BF4L914 engine including filters, belts, starter, generator and mounting components.
• Maintain the electrical system — component-level parts for the 24V electrical system, DCS75/DCS95 electrical cabinet, cable sets, relays, fuses and control panels.
• Track down obscure components — the cross-reference list and hose connection sections make it possible to identify parts by dimension, thread type or reference number even when the part number is unknown.
• Plan major overhauls — the overhaul kit and seal kit listings for the rock drill give you a clear picture of what is included in each kit at 600 and 1200 impact hour intervals.

Why This Parts Catalogue Matters

Ordering the wrong part for a drill rig is expensive. A single incorrect seal kit or hydraulic motor can mean days of downtime, wasted freight costs and unnecessary labour. This Atlas Copco Boomer S1D Spare Parts Catalogue eliminates that risk by giving you the exact part numbers, quantities and assembly relationships for every component on the machine. It is the same parts information used by Atlas Copco service personnel and parts departments, organised so you can navigate directly from the module to the assembly to the individual part. The exploded illustrations show how components fit together, and the part number tables tell you exactly what to order. For workshops, service companies and owners who maintain their own Boomer S1D, this catalogue is the difference between guessing and knowing.

IMAGES PREVIEW

Instant PDF Delivery

This Atlas Copco Boomer S1D Spare Parts Catalogue 8999151300 is delivered as an instant PDF download immediately after payment. No shipping, no waiting for a physical book, no import delays. The PDF works on any device — desktop, laptop, tablet or smartphone — and can be printed for use in the workshop. Whether you are at the machine, in the office or on site, the complete parts catalogue is always available. Search the document, print the pages you need, or keep the full 1084-page reference on your device. This is the fastest and most practical way to have the complete Boomer S1D parts information at your fingertips.
