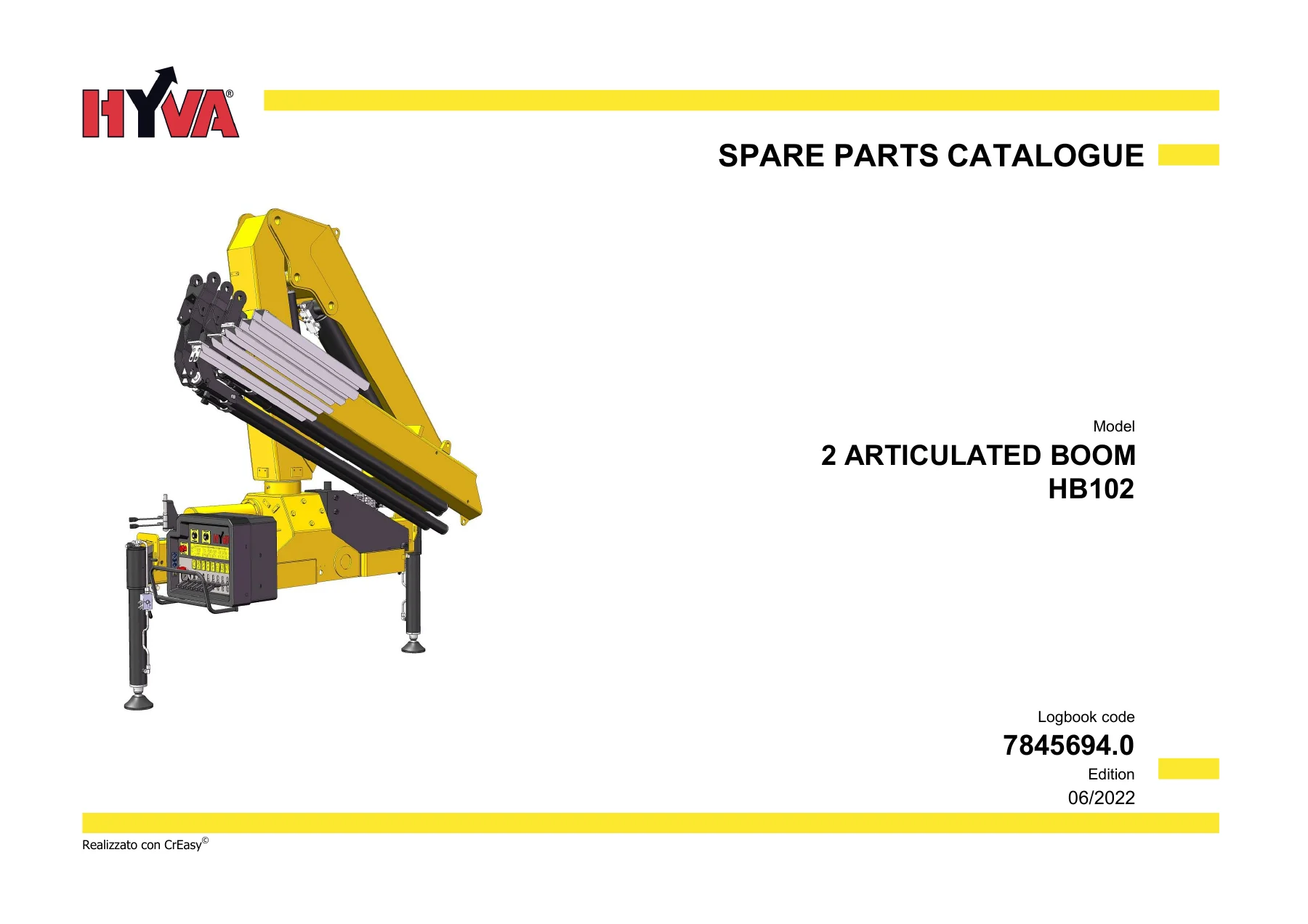

Hyva HB102 Articulated Boom Spare Parts Catalogue – Logbook 7845694.0 Edition 06/2022

Description

Hyva HB102 Articulated Boom Spare Parts Catalogue

This is the Hyva spare parts catalogue for the HB102 articulated boom, released under logbook code 7845694.0, edition 06/2022. It is a parts-identification document built around exploded assembly drawings and itemised tables, so every component in the boom — from the base casting and slewing ring through to the fifth and sixth extension cylinders — can be traced to a position number, variant code and description. Anyone maintaining, rebuilding or simply ordering a replacement part for an HB102 needs this document open on the bench.

The catalogue is organised into table codes, each covering one assembly or system. The example page shown for the oleo-hydraulic distributor (table code 5402956-3.0) is typical of the layout: a drawing with numbered callouts on one side, and a table on the other listing position, variant code, quantity and description. That structure repeats across all 116 pages, which makes the HB102 spare parts catalogue fast to navigate once you know which assembly you are working on.

File Details

• Manual type: Spare parts catalogue
• Brand: Hyva
• Model: HB102 articulated boom
• Logbook code: 7845694.0
• Edition: 06/2022
• Language: English (with Italian annotations on some drawings)
• Page count: 116
• File format: PDF

Chapters and Assemblies Covered

The catalogue is divided into the following parts sections, each with its own table code and sheet numbering:

• Plate kit (Generic Gru)
• Assembly kit (No.8 tie rods)
• Base
• Greasing kit
• Slewing assembly (Double Flange)
• Slewing (Retaining ring)
• Slewing hydraulic jack (hydraulic system)
• Position (Hoses support)
• Controls for stabilizers (Manual)
• Controls for stabilizers (hydraulic lengthening)
• Stabilizer rods (Manual expansion element)
• Stabilizer hydraulic jack (hydraulic system)
• Stabilizer connecting rods extra-extensible (Manual expansion)
• Stabilizer connecting rods extra-extensible (Hydraulic control)
• Rod extension hydraulic cylinder
• Hydraulic system (Rod extension hydraulic cylinder extra)
• Hydraulic oil tank
• Heat exchange unit
• Kit (Headlight)
• Moment limiting device (RDC / MAN)
• Emergency stop button
• Hydraulic system gauge
• Controls (hydraulic extensible cross-bar)
• Double controls (not CE)
• Control valve assemblies (fittings)
• Control valve (5 section)
• Column
• Hydraulic system (Lifting hydraulic cylinder)
• Lifting hydraulic cylinder
• 1st Boom
• Hydraulic system (Articulation hydraulic jack)
• Articulation hydraulic jack
• 2nd Boom
• 1st Extension
• Hook kit (1S)
• Hydraulic system (1st Extension hydraulic)
• 1st Extension hydraulic
• 2nd extension
• Hydraulic system (2nd extension hydraulic jack)
• 2nd extension hydraulic jack
• 3rd extension
• 4th extension
• 4th extension hydraulic jack (hydraulic system)
• 3rd and 4th extension hydraulic cylinder
• 5th extension
• Hydraulic system (5th extension hydraulic jack)
• 5th and 6th extension hydraulic cylinder
• 1st Activation for 1S
• 1st Additional actuation
• 1st Additional actuation (3S)
• 2nd Activation for 1S
• 2nd Additional actuation
• Hook kit
• Position (Hoses support)
• Kit (High pressure filter)
• High pressure filter
• Controls (RDC / NOCE)
• Wireless control kit (Hz.EU)
• Wireless control kit (CAN BUS)
• Recommended spare parts list

What that gives a technician is a single reference that ties every physical component on the HB102 to a Hyva part number. Instead of trying to describe a fitting over the phone or match a hose by eye, you open the relevant assembly page, find the position number on the exploded view, and read the variant code straight off the table. For a machine with six extension stages, a slewing assembly, four stabilizer legs and several distinct control configurations, that level of traceability is what keeps a repair moving.

What This HB102 Parts Catalogue Covers in Detail

Base, Column and Slewing

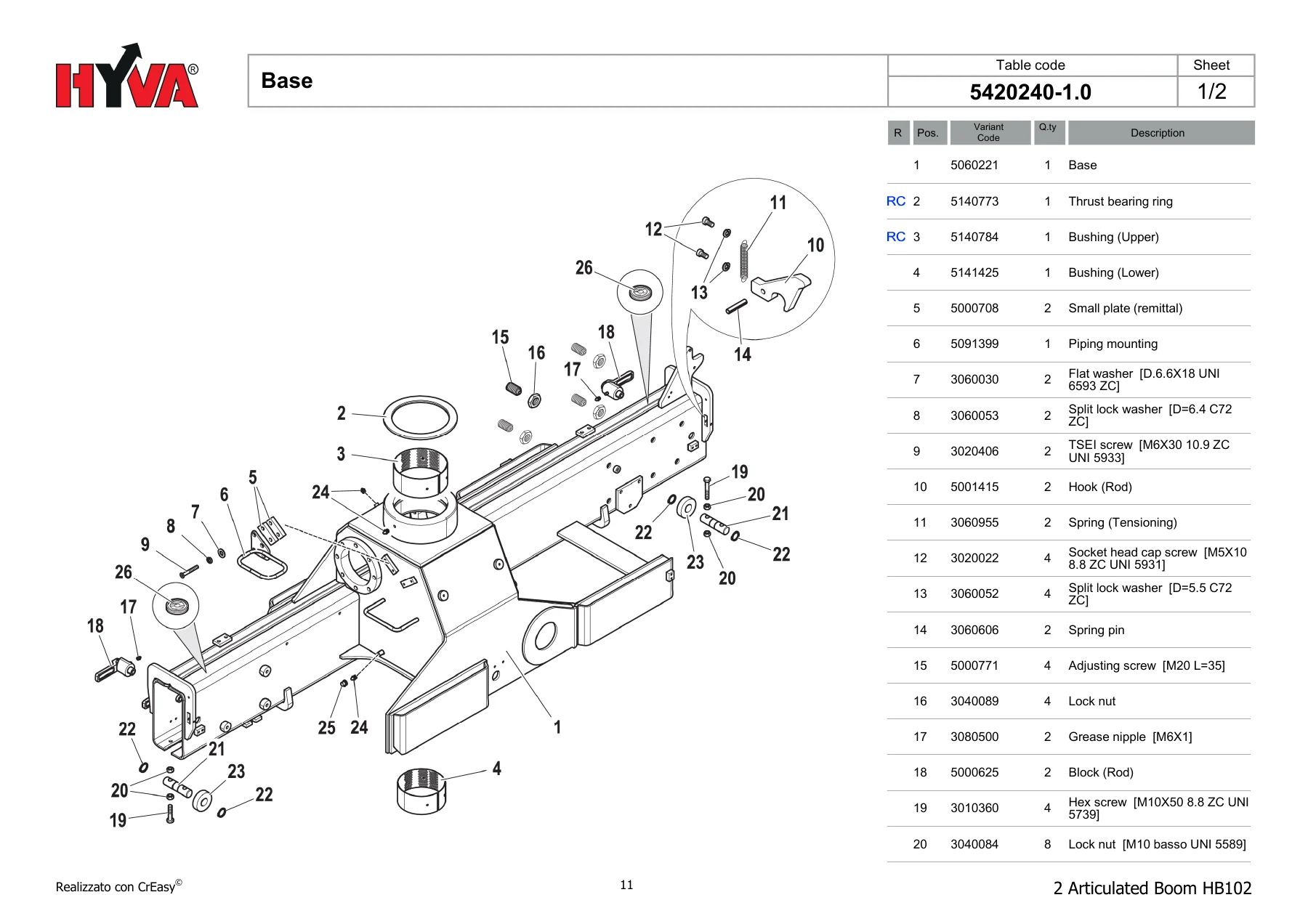

The base section (table code 5420240-1.01) breaks down the base casting, thrust bearing ring, upper and lower bushings, the rod hook and tensioning spring, adjusting screw, lock nuts and grease nipple. The column section (5460218-1.0) covers the column reinforcement, pins, self-locking ringnuts, bushings, spacer, sheath, flexible-hose support bracket and the collar and clamp hardware. The slewing assembly appears in both double-flange and retaining-ring versions, with the slewing hydraulic jack listed under its own hydraulic system table.

Stabilizers

Stabilizer coverage is split between manual expansion and hydraulic versions. You get stabilizer rods, hydraulic jacks in standard and long versions, extra-extensible connecting rods under manual expansion and hydraulic control, plus the associated articulated joint tangs, swash plates, locking rings, support bases, grease nipples, bonderized tubes and fittings. Both the 6400208 and 6400256 jack assemblies are broken down to cylinder, rod, close nipple, seal kit and piston level.

Booms and Extensions

The lifting hydraulic cylinder, articulation hydraulic jack, 1st boom, 2nd boom, and the 1st through 5th extension sections each have their own table. Extension hydraulic jacks are catalogued in fixed and marine variants, with separate tables for the 1st extension, 2nd extension, 4th extension, 5th extension, and the combined 3rd and 4th and 5th and 6th extension cylinders. Slide shoes (bronze), backlash buttons, adjusting screws, pins, seegers and joint bushings are all itemised.

Hydraulics, Controls and Electrical

Hydraulic content includes the oleo-hydraulic distributor, control valve elements, inlet and exhaust manifolds, antishock valves, non-return valves, sliders, max pressure valve, holding valves, hose burst valves, high pressure filter with clogging indicator and filtering cartridge, heat exchange unit with electric fan, hydraulic oil tank, and a large number of flexible hoses, straight pipe fittings, 90° connections, tee fittings, reducing fittings and sealing washers. Control coverage spans manual control levers, flexball cable controls, RDC and NOCE control configurations, hydraulic extensible cross-bar controls, and the Scanreco wireless control kit (both Hz.EU and CAN BUS variants) with transmitter, batteries, charger and aerial.

Why This Spare Parts Catalogue Matters

Fitting the wrong fitting or a mismatched seal kit on a hydraulic boom is expensive and, on a machine that lifts loads, potentially dangerous. The HB102 spare parts catalogue removes the guesswork: part numbers are printed against every item, quantities are stated, and variant codes distinguish versions that look similar but are not interchangeable. The recommended spare parts list at the back of the document gives a shortlist of the parts Hyva expects to be replaced most often — pressure gauges, filtering cartridges, thermometers, oil filters, batteries, sliding blocks, thrust bearing rings, bushings, slide shoes, hose burst valves and a series of seal kits for the control valve elements and cylinders.

IMAGES PREVIEW

Instant PDF Delivery

The Hyva HB102 articulated boom spare parts catalogue is delivered as a PDF immediately after payment — no shipping, no waiting for a printed binder. It opens on a workshop laptop, tablet or phone, and any assembly page can be printed and taken to the machine. Whether you are ordering a single grease nipple or rebuilding a stabilizer leg, the HB102 parts catalogue gives you the exact reference you need in seconds.
