Hamm HD 13-14 H2.01 Parts Catalogue – 2013 Edition

This is the illustrated spare parts catalogue for the Hamm HD 13-14 H2.01 tandem roller, published by Hamm AG in 2013. Every illustrated page carries a complete parts list beneath the drawing: position number, ident number, piece quantity, designation and the serial validity range the part applies to. That structure is what makes this Hamm HD 13-14 H2.01 parts catalogue genuinely usable at the counter or in the workshop – you look at the exploded view, read the position number off the drawing, then find the matching ident number in the table directly below it.

The catalogue splits coverage by machine variant wherever the components differ. Sections 01.01.11 and 01.01.21 handle the main frame and assemblies for version VV and version VT separately, and the same split-and-repeat approach runs through the suspension, scraper, sprinkling and vibration sections. HD 13 and HD 14 also have their own part numbers in several groups, so the correct variant row must be read before an ident number is ordered.

File Details

• Manual type: Illustrated parts catalogue with exploded assembly drawings
• Brand / publisher: Hamm AG, WIRTGEN GROUP
• Machine series: HD 13-14 H2.01 tandem roller
• Variants covered: HD 13 VV, HD 14 VV, HD 13 VT, HD 14 VT
• Publication year: 2013
• Language: English (selected pages also carry German, French and Spanish callouts)
• Page count: 178
• File format: PDF
• Structure: Group-numbered sections, each with an exploded drawing and a POS / IDENT-NO / PIECES / DESIGNATION / VALID table

Chapters Covered

The group numbering below is the one used throughout this Hamm HD 13-14 H2.01 parts catalogue, so it matches the section references printed on the pages.

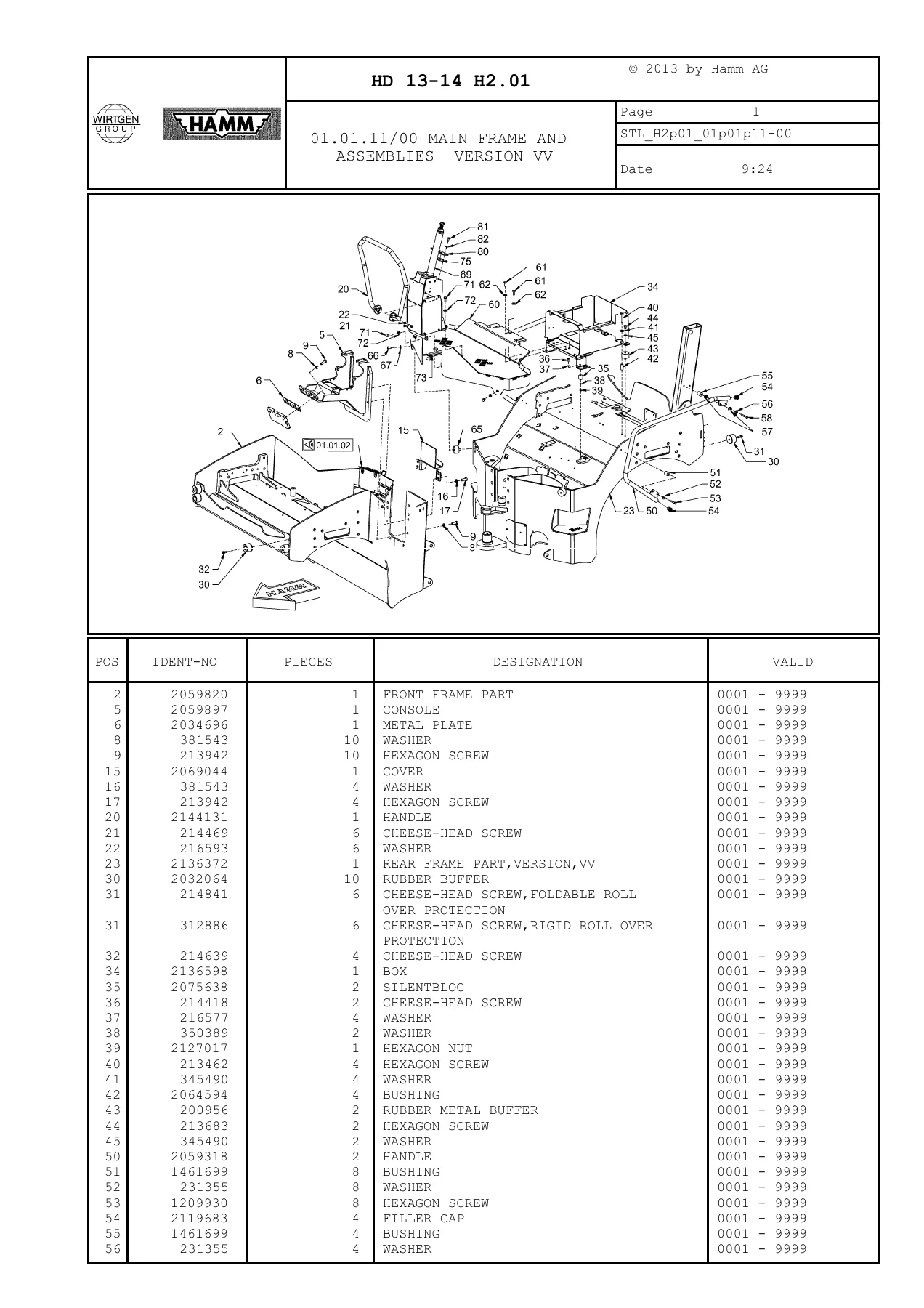

• 01.01 – Main frame and assemblies, version VV and version VT
• 01.01.02 – Main frame and assemblies, chock and support for block
• 01.05 – Canopies and covers, including engine hood, fan grille, hinges, gas spring and lock assemblies
• 01.15 – Sticker arrangement and decal kits (DIN/ISO, ANSI, complete)
• 01.20 – Sound insulation panels, supports and push-buttons
• 02.06 – Operator’s seat with adjustment, with and without seat heating
• 02.10 – Roll over protection and foldable roll over protection

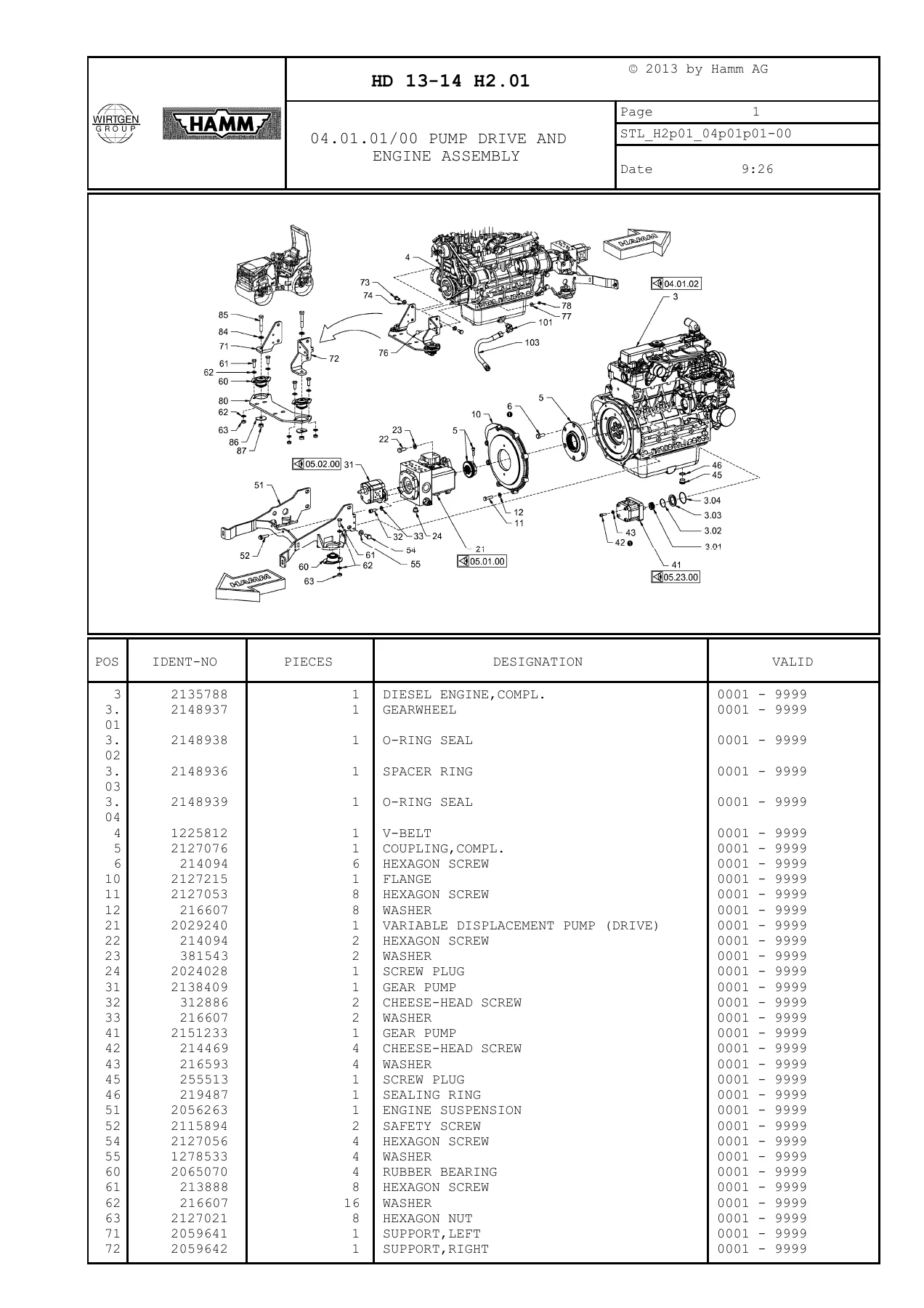

• 04.01 – Pump drive and engine assembly, including diesel engine, coupling, V-belt and engine suspension
• 04.05 – Fuel system: fuel tank, fuel filters, fuel pump, tubing and hose clamps
• 04.06 – Fuel filter assemblies, filter heads and cartridges
• 04.10 – Engine control, hand lever and actuating cable
• 04.15 – Air filter system, intake hose and pressure switch
• 04.20 – Exhaust system: silencer, exhaust gas hose and tail pipe
• 04.25 – Cooling (engine/hydraulic oil): water cooler, oil cooler, compensator tank, hoses and thermosensor
• 05.01 – Driving gear (variable displacement pump drive), seals and connection plate
• 05.02 – Pump (vibration drive)
• 05.06 – Constant motor (vibration drive)
• 05.07 – Valve block (parking brake) and control block
• 05.12 – Gear hub motors, left and right, plus full shaft (tires) version
• 05.16 – Valve block (all-wheel lock)
• 05.17 – Valve block (edge pressing and cutting device)
• 05.19 – Valve block (changing over of vibration), VV and VT versions
• 05.21 – Filters (hydraulic oil)
• 05.23 – Pump (hydraulic steering system)
• 05.24 – Collecting block (hydraulic oil)
• 05.30 – Valve block (emergency stop)
• 05.95 – Oil tank, suction filter, filler, oil level indicator and fittings
• 06.01 – Instrument panel
• 06.05 – Electrical system: ignition switch, wire harnesses, relays, circuit boards, fuse holders, battery and battery isolating switch
• 06.07 – Electrical system with lighting: working lights, tail lights, reversing lights and reflectors
• 08.40 – Tire equipment: rims, smooth tires, tire valves and wheels with or without water filling
• 08.50 – Advance drive: valve block, flexible tubing, fittings and hose routing
• 08.51 – Drive shifting: seat pedestal, drive lever, shift claw, adjustment bars and actuating cable
• 08.53 – Parking brake, VV and VT versions
• 08.56 – All-wheel lock
• 09.01 – Centre pivot assembly, pendulum joint, bearing caps and safety strut
• 09.05 – Steering: steering unit, steering column, steering wheel, steering cylinder and lines
• 12.10 – Sprinkling, version VV and version VT: water tank, strainer, nozzles, sprinkler pipe and water pump
• 12.11 – Additive sprinkling, version VT: additive tank, water pump and tubing
• 12.15 – Water pump, housing, valve set, carbon brushes and maintenance kit
• 25.10 – Chip spreader: hydraulic motor, chain wheels, grid, spreading shaft, agitator fingers, steel floor, belt cover and lights
• 25.11 – Add-on device: mounting frame and console
• 25.12 – Hydraulic system (chip spreader), version VV and version VT
• 25.13 – Electrical system (chip spreader)
• 26.01 – Suspension for smooth roller drum, HD 13 VV, HD 14 VV, HD 13 VT and HD 14 VT
• 26.01.50 – Suspension (tires) with gear hub motors and complete wheels
• 26.03 – Scrapers for smooth roller drum HD 13 and HD 14, above and below, plus scraper (tires)

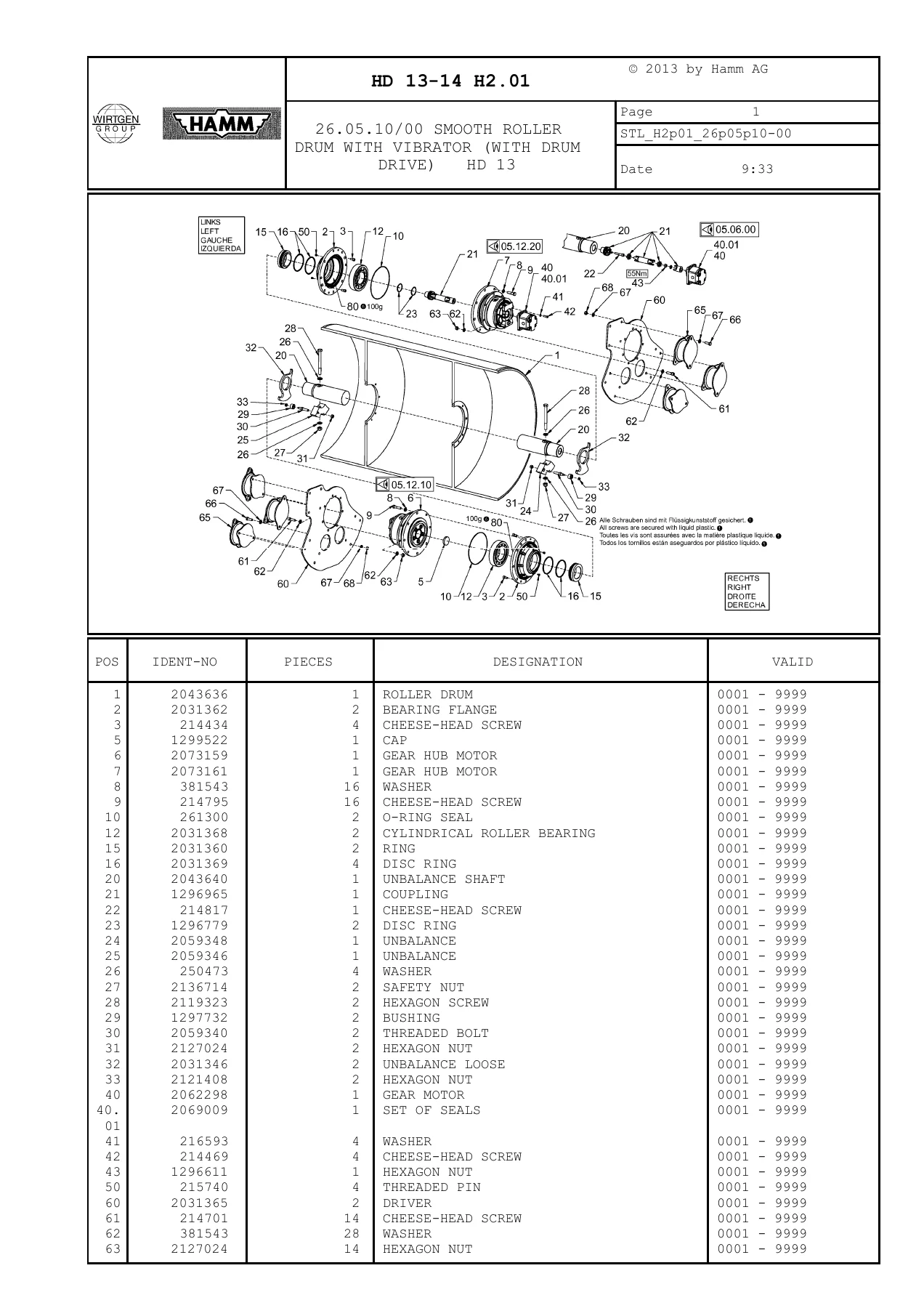

• 26.05 – Smooth roller drum with vibrator and drum drive, HD 13 and HD 14
• 26.10 – Vibration drive, HD 13 and HD 14, VV and VT layouts
• 27.01 – Edge pressing and cutting device: console, lever, cylinder, flange and mounting device
• 27.02 – Add-on pieces (edge pressing and cutting device): rollers and cutting disc
• 27.03 – Hydraulic system (edge pressing and cutting device)
• 27.04 – Sprinkling (edge pressing and cutting device)
• 40.10 – Sun roof, frame, canopy and mounting device
• 40.32 – Frost protection for sprinkling
• 40.33 and 40.34 – Additional lighting, ROPS
• 40.50 – Rotary beacon (ROPS) and warning light (sun roof)
• 40.52 – Back-up alarm
• 40.67 – Battery isolating switch control
• 40.80 and 40.91 – TÜV Italy and TÜV France equipment
• 41.01 – Maintenance kits and repair kits, including 50-hour, 500-hour and 2000-hour service kits

Taken as a whole, this Hamm HD 13-14 H2.01 parts catalogue gives a technician or parts counter a complete, variant-aware breakdown of the machine. It is not a repair guide – it does not describe how to remove, install or adjust components – but it tells you precisely which components exist in each assembly, how many of each are used, and which serial range each part number serves. For anyone rebuilding a roller, chasing a leaking hydraulic line, replacing a worn scraper, sourcing a seat or ordering a decal kit, that is the information that decides whether the right box arrives.

How to Use the Ident Numbers

Every table follows the same five columns. POS is the balloon number on the drawing, IDENT-NO is the orderable part number, PIECES is the quantity used in that assembly, DESIGNATION is the part name and VALID is the machine serial range the number applies to. Where a component changed during production the same POS appears with two ident numbers and two validity bands, for example a seat listed for 0001 – 0169 and a later seat for 0170 – 9999, or a valve block for 0001 – 0255 alongside its replacement for 0256 – 9999. Reading the VALID column before the IDENT-NO column is the habit that prevents wrong-part orders on this machine.

Section Cross-References

The drawings do not stand alone. Several pages carry boxed cross-references pointing to a different group – the pump drive page points to the fuel system group, the hydraulic filter pages point to the vibration drive group, the steering page points to the steering cylinder assembly, and the vibration drive pages point to the valve block and pressure filter groups. Following those arrows before ordering saves a second trip, because the component in the drawing may actually be listed on the referenced page rather than the one in front of you.

What This Parts Catalogue Lets You Do

• Identify and order replacement parts for Hamm HD 13 VV, HD 14 VV, HD 13 VT and HD 14 VT rollers by ident number rather than by description
• Confirm quantities needed before starting a rebuild, including bolt, washer and nut counts on suspension, scraper and drum assemblies
• Check which serial range a part number serves before committing to an order
• Trace hydraulic hose and fitting routing through the advance drive, vibration drive, parking brake and chip spreader circuits
• Match electrical components – relays, blade fuses, wire harnesses, sensors and switches – to their positions in the circuit board and machine layouts
• Identify scraper and edge pressing and cutting device consumables, including rollers, cutting discs and sprinkler nozzles
• Source decal kits, ROPS lighting, rotary beacons and TÜV market equipment
• Plan scheduled service parts using the 50-hour, 500-hour and 2000-hour maintenance kit listings

Why It Matters

On a twin-drum roller the same bracket, bushing or hose fitting can appear on the front drum, the rear drum or both, and the difference between the VV and VT variants is not always obvious from the part itself. Working from a generic description invites the wrong component. Working from this Hamm HD 13-14 H2.01 parts catalogue means the position number on the drawing, the ident number in the table and the serial validity band are all settled before the order is placed – which matters most on hydraulic fittings, drum drive components and electrical connectors, where a near-miss part looks correct and does not fit.

Delivery

IMAGES PREVIEW

The Hamm HD 13-14 H2.01 tandem roller parts catalogue is supplied as an instant PDF download. There is no shipping, no waiting for a disc and no binding to lose. The file opens on any laptop, tablet or phone, and any page can be printed and taken to the machine – useful when you are working under the roller rather than at a desk. Keep it on the workshop computer and it is available every time a part number needs checking.
