Atlas Copco DM45 HP Parts List – Serial 7981 | Complete Drill Parts Catalog PDF

Description

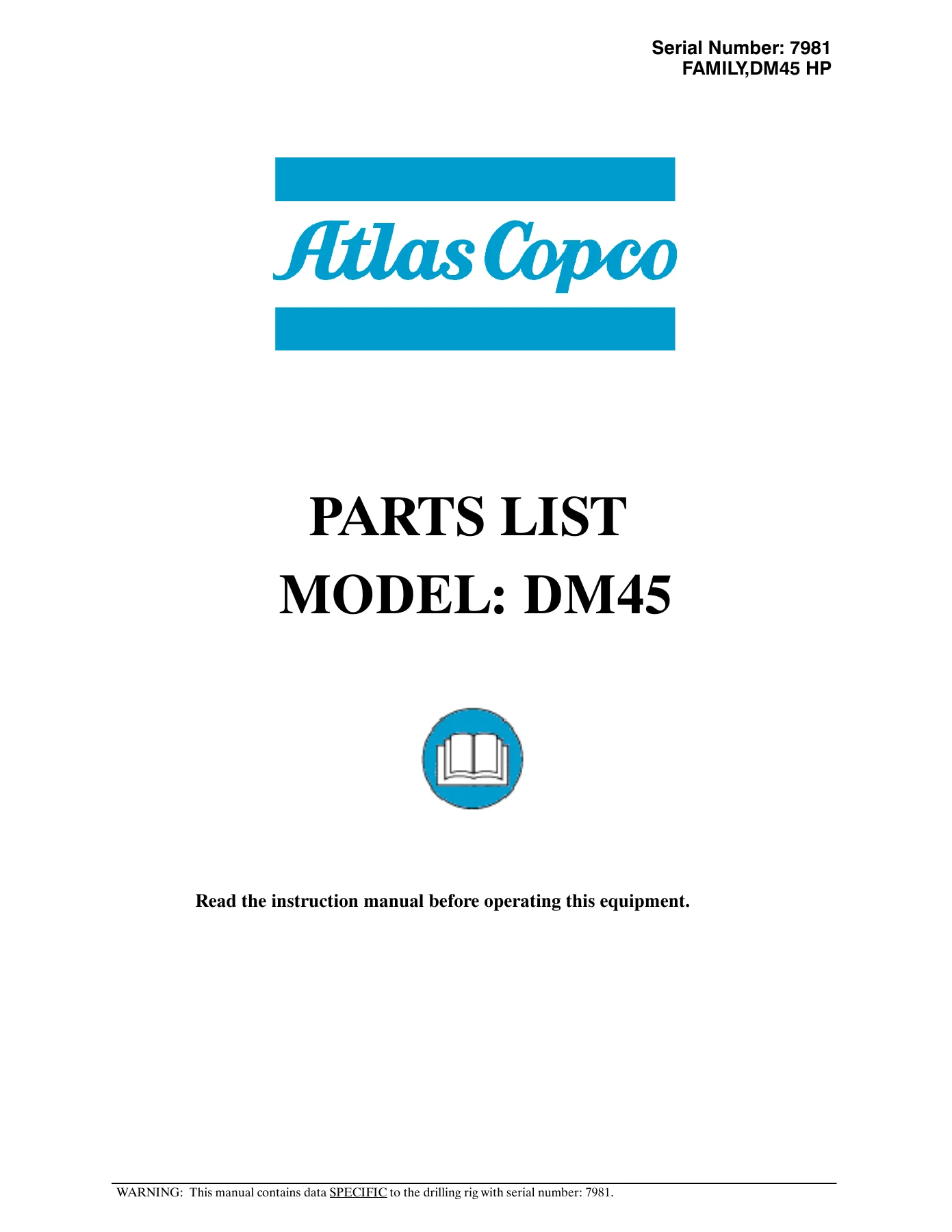

This Atlas Copco DM45 HP Parts List is the complete illustrated parts catalog for the DM45 HP drill rig carrying serial number 7981. Published by Atlas Copco Drilling Solutions, Inc. of Garland, Texas, this 772-page reference is organized so that every assembly, sub-assembly, and individual component can be traced by figure number, reference number, part number, quantity, unit, and description.

File Details

• Manual Type: Illustrated Parts List / Parts Book
• Brand: Atlas Copco (Drilling Solutions)
• Model: DM45 HP
• Serial Number: 7981
• Language: English
• File Format: PDF
• Page Count: 772
• Publisher: Atlas Copco Drilling Solutions, Inc., 21200 North First Street, Garland, Texas 75040

Chapters Covered

The catalog breaks the DM45 HP rig into major sections, each with its own exploded-view figures and matching parts tables:

• Frame/Chassis — main frame weldment, decking installation, tower support, ladder mount, rear platform decking

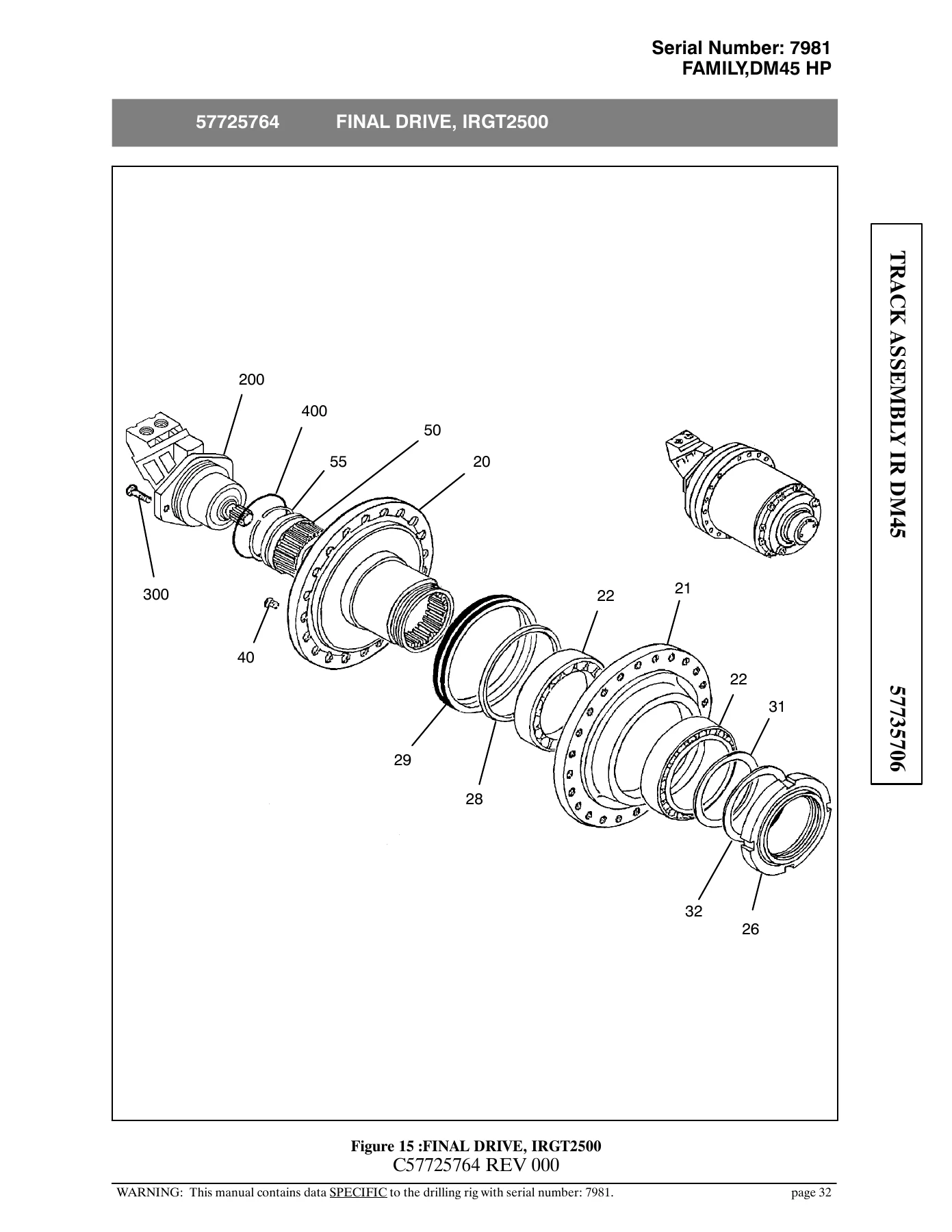

• Undercarriage/Tracks — track assembly, side frames (LH/RH), idler assemblies, final drive IRGT2500, chain track assemblies, track shoes

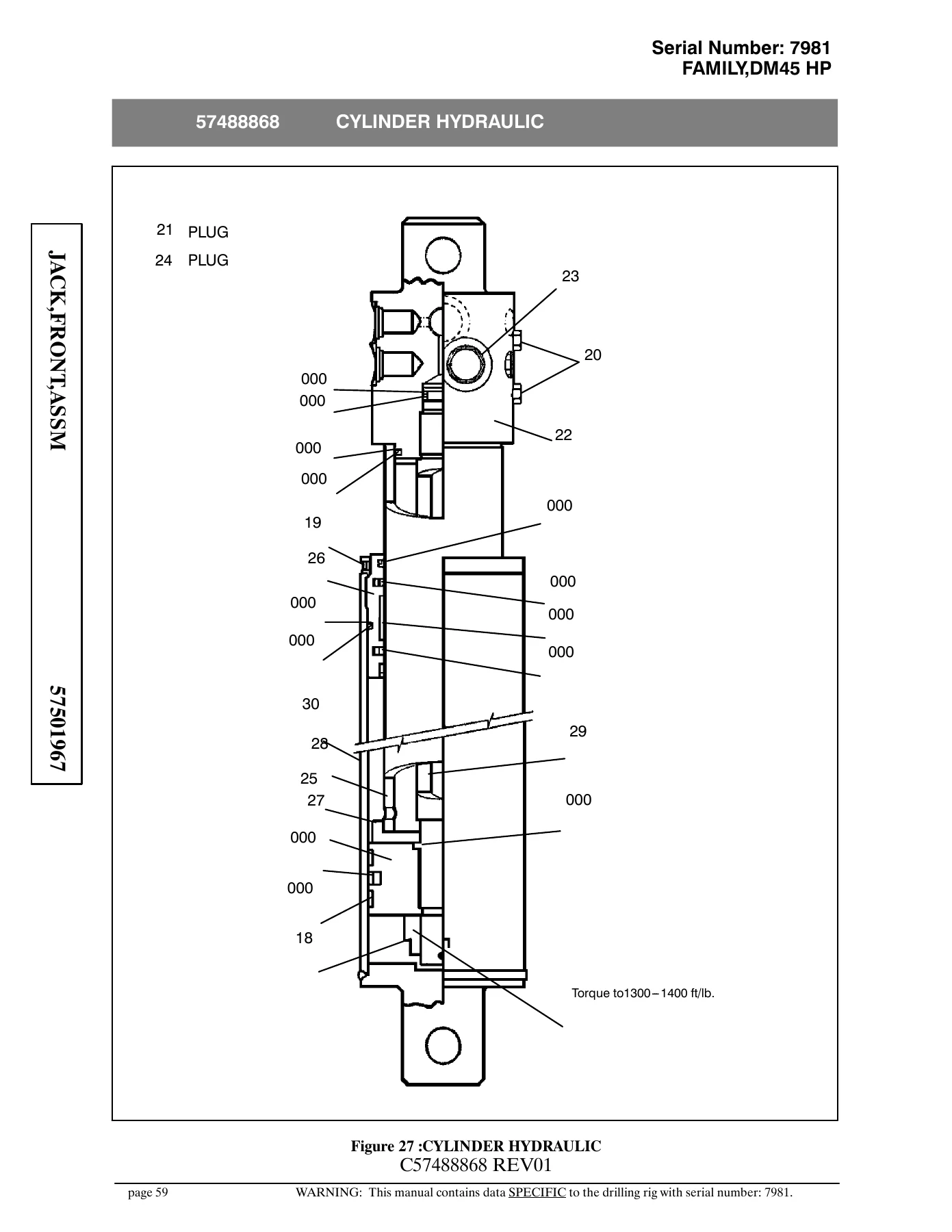

• Jacks — front and rear jack assemblies, hydraulic cylinders, counterbalance valves
• Cab/Console — cab installation Tier 2, bare cab, curbside door, tower-side door, air conditioner assemblies, heater assemblies, gauges and controls, controllers
• Derrick/Tower — tower commons assembly, 30 ft unique tower assemblies, pivot block assemblies, tower hydraulic cylinder, Arctic tower pinning, rotary head (high speed and commons), breakout sliding Arctic, rod changer, rod support, wrench cylinder
• Powerpack/Engine — CAT C16 600HP engine assembly, engine wiring, radiator piping, battery installation, powerpack base mounting, exhaust installation
• Air Cleaners — air cleaner assembly for C16/HR2.5, air filter 08
• Fuel System — 380-gallon fuel tank and piping, diesel fuel heater, fuel cooler, ether injection
• Compressor/Air System — compressor assembly 1070 HR2.5, air end HR 2.5, compressor control piping, blowdown valve, compressor-to-receiver piping, COC Arctic piping, pressure reducer manifold, receiver tower piping, vertical tank assemblies, upper and lower manifolds
• Hydraulic System — main hydraulic-electric drive, main pump, servo components, servo shafts and links, C-force motor, coil and magnet, holddown gerotor and barrel, port block/housing, end cap housing, barrel/shaft/cradle assembly, rocker cam/pistons, cam stroker, valve block, double hydraulic pump, 3-hole pump drive, main hydraulic piping Tier 2, diverter valve assemblies, DR/PR control valves, hydraulic tank piping, hydraulic reservoir, hydraulic filter, holdback installation, fan/HOC piping, variable speed fan control, propel piping, Arctic cooler assemblies, tower commons piping, Arctic 30 ft tower piping, jack piping, jib boom, overpressure controls, CAC piping, rod changer piping, rod index piping, tower raise cylinder and piping, 6-spool and 9-spool valve installations
• Electrical System — basic electric wiring, night lights 9-light package, standard electric rig wiring, CAT wiring diagram
• Options — water injection 300G/8GPM, water pump 8 GPM, hydraulic motor, dust collector 3600 electric, dust collector IR3600, dust curtain Arctic, Centro lube manual pump 30 ft, thread greaser, air regulator, jack-up indicator, DHD injection lube 60 gal, lubricator assembly, DHD lubricator pump, DHD lube tank 60 gal, no-bump rod changer piping, remote propel assembly (Russia), hydraulic fill pump, hand pump assembly, tow hook installation, lifting hooks, rod seal assembly, dust seal 5 inch pipe, breaker box installation, fire extinguisher installation, forced air heater, Arctic Fox DHD water piping, hydraulic tank heater, diesel heater installation, diesel fired heater, battery heater 240V, engine oil pan heater
• Tools/Accessories — rod tools 5 inch pipe 3.5 BECO, chain wrench, tong assembly with flat inserts, chain assembly, blow gun with 25 ft hose, common rig decals, disassembly kit for Russia, Russian decals and manuals, safety manual DM45/50/L, Russian miscellaneous decals, Russian option decals, Russian console decals, export package, rear platform modification, filter kit, paint and supplies

Across every one of those sections, the parts tables follow the same consistent format: reference number, part number, quantity, unit of measure, and description. Where a sub-assembly is used, the table directs you to the figure that illustrates it, so you can move from the top-level assembly drawing down to the individual component level without guesswork. That figure-and-table pairing is what makes an illustrated parts list like this usable in a shop environment — you identify the part visually, then confirm the exact number and quantity before you order.

What This DM45 HP Parts Catalog Covers

Because this is a serial-number-specific parts book for DM45 HP serial 7981, the part numbers, quantities, and assembly configurations it lists are tied to that exact machine. Atlas Copco builds each parts book to a specific drill, and the header on every parts page carries both the drill serial number and the model description. This catalog matches the configuration of the rig carrying serial 7981 rather than a generic DM45 specification, which is precisely what you need when ordering replacement parts for a machine that may have been built with options or revisions not reflected in a different serial’s book.

The document covers the engine package (CAT C16 600HP), the compressor system (1070 HR2.5), the full hydraulic circuit from main pump through valve blocks and cylinders, the undercarriage and final drives, the tower and rotary head, and the cab and console. It also documents the Arctic variants of several assemblies, including the tower pinning, breakout, dust curtain, and piping groups, plus Russia-market decal and manual packages. Whether your rig is a standard DM45 HP or an Arctic-configured unit, the relevant exploded views and tables are present.

How to Use This Atlas Copco DM45 Parts List

Start with the chapter list to find the assembly you are working on. Open its figure page to identify the reference number for the part you need, then cross-reference that number in the accompanying parts table to get the exact part number and quantity. Each figure is keyed to its table, so the two always work as a pair. The alphabetical index at the back lists parts by part number, making it quick to confirm which assembly a given component belongs to — useful when you have a loose part number and need to know where it goes on the machine.

Why DM45 HP Owners and Technicians Use This Catalog

Ordering the wrong part for a drill rig is expensive in both money and downtime. This catalog removes the guesswork by showing the exact configuration for serial 7981 and providing the part numbers that Atlas Copco assigned to that build. Whether you are replacing a final drive component, tracing a hydraulic hose, matching a seal kit, or rebuilding a rotary head, the figures and tables give you the part number and quantity to order. The distributor serving your area can supply genuine replacement parts — and the more precisely you identify the part, the faster that service goes.

The range of systems covered is broad: the IRGT2500 final drive, the HR 2.5 air end, the CAT C16 engine installation, the 6-spool and 9-spool hydraulic valve assemblies, the rod changer and rod support groups, the dust collector, and the water injection option, to name a few. For anyone maintaining or repairing a DM45 HP, having the correct serial-specific parts book on hand is the difference between a quick parts order and a guessing game.

Get Instant Access to the DM45 HP Parts List for Serial 7981

IMAGES PREVIEW

This Atlas Copco DM45 HP parts list is delivered as an instant PDF download — no shipping, no waiting. Open it on any device, print the pages you need for the shop, and keep the file on hand for parts lookups whenever a component needs replacing. Use it to identify the correct part number and quantity before you call your distributor, so you get the right component the first time. Download it now and put the complete serial-7981 parts catalog to work in your maintenance program.
