Epiroc Simba M4C Spare Parts Catalog 8991461200 Digital Parts Book

Description

Epiroc Simba M4C Spare Parts Catalog 8991461200 Digital Parts Book

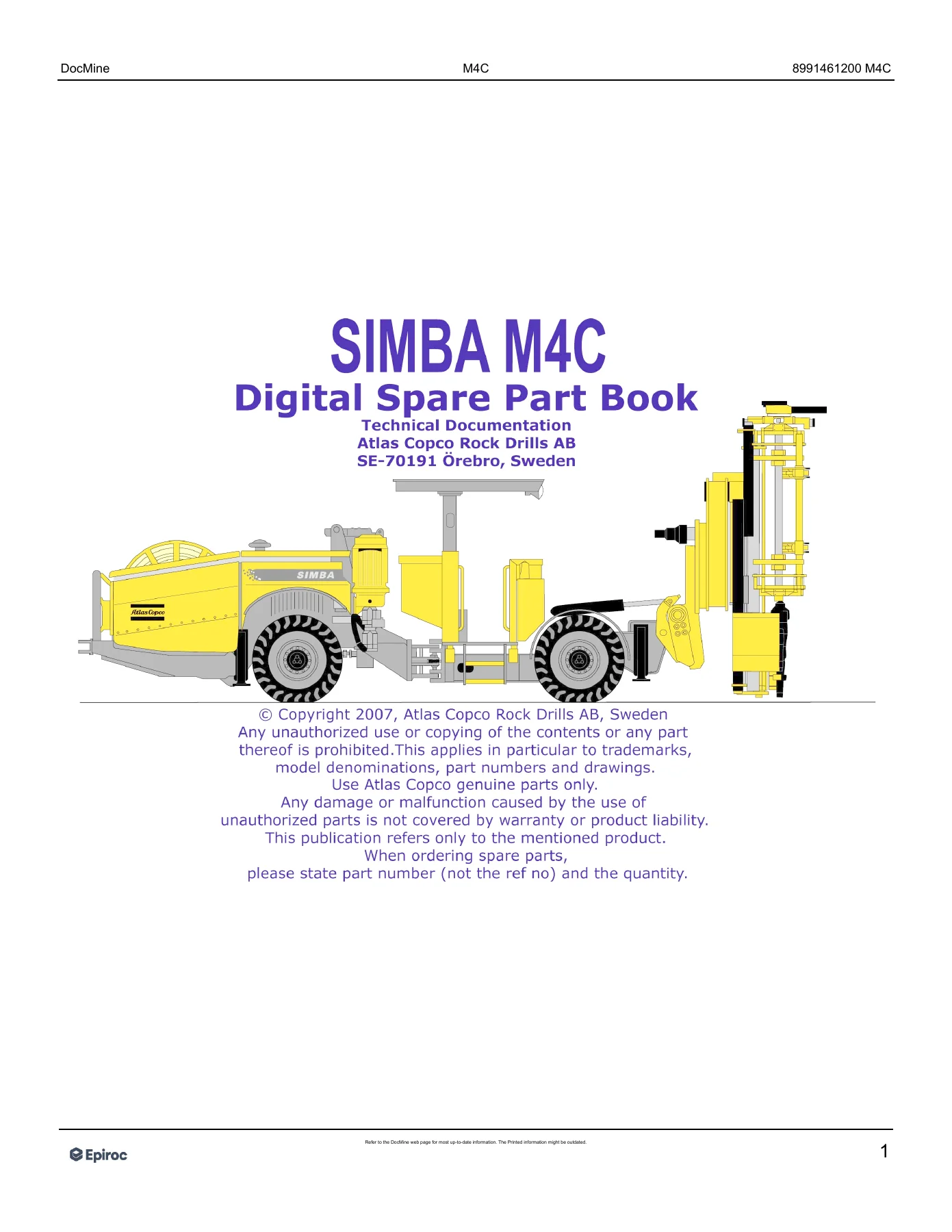

This listing is the Epiroc Simba M4C Spare Parts Catalog 8991461200 Digital Parts Book issued as technical documentation for the SIMBA M4C underground production drill. The title leaf presents it as the Simba M4C Digital Spare Part Book from Atlas Copco Rock Drills AB, Örebro, Sweden, carrying document identity 8991461200 M4C and a 2007 copyright notice. DocMine / Epiroc branding appears on the wrapper and running headers. The book is a parts identification catalog: exploded and assembly drawings keyed to item numbers, with tables listing part number, name, quantity, and remarks. It is not a workshop procedure manual and does not replace service instructions.

File Details

• Manual type: Digital spare part book / spare parts catalog
• Brand / model: Epiroc / Atlas Copco Simba M4C (SIMBA M4C)
• Document number: 8991461200 M4C
• Publisher shown on title leaf: Atlas Copco Rock Drills AB, SE-70191 Örebro, Sweden
• Copyright year shown: 2007
• Language: English and Spanish (bilingual headings, part names, and table columns)
• Page count: 1058
• File format: PDF

What This Parts Book Is For

The Epiroc Simba M4C Spare Parts Catalog 8991461200 Digital Parts Book is built so a parts person or technician can find the correct Atlas Copco / Epiroc part number for a visible assembly on the drill. Typical pages pair a numbered illustration with a table whose columns are Elemento, N° de pieza, Nombre, Cant., Remarks, and L. Remarks carry size, pressure, hose size, kit notes, and flags such as NOT SOLD SEPARATELY. The title page instructs the reader to order by part number (not the reference number) and quantity, and to use Atlas Copco genuine parts only.

Coverage follows the machine from the carrier and hydraulic power unit through boom positioning, feed and stinger, rod handling, control and electrical cabinets, air and water, lubrication, cabin, and the cable reel. One motor-unit table identifies the diesel as DEUTZ BF4M1013C under part 5112317926, with a matching hydraulic transmission line and motor-unit hose set.

Chapters Covered

• HYDR. SYSTEM — brake/steering system overview; hydraulic pump; suction connection; hydraulic cylinder; complete hose sets (brakes and steering, boom frame basic, rear frame, 2-boom BVX 96)
• AIR OIL COOLER — cooler, alignment valve, cable set
• ATTACHM. COMPLET — attachment, hydraulic motor, hose set
• BASIC SYSTEM — return block; power unit
• HYDR. OIL TANK — tank, return filter, pump kit
• HYDRAULIC PUMP — pump unit, control valve, suction connection, coupling set
• VALVE BLOCK — limit/pressure valves, hose set
• HYDRAULIC SET — direction valve, suction/admission section, spool valve, outlet section, pressure-relief valves, hose set
• BASIC SET / BACKHAMMER KIT
• SENSOR SET — failsafe kit, level meter, cable sets
• EL. OIL FILLER — electric oil filler, hydraulic pump, hose set
• EL. EQUIPMENT — push-button box
• CARRIER
• LASER — laser, handle, cart complete
• FRAME COMPL. — frame, hose sets
• SUPPORT LEG — support leg, hydraulic cylinder, repair set, check valve
• MOTOR FRAME / ATTACHMENT — steel cable
• MOTOR UNIT — diesel engine, hydraulic transmission, throttle control, intake set, hose set
• FUEL SYSTEM — connection sets, hose set
• CATALYSER SET — silencer, built-in, mudguard
• REAR FRAME CPL — lock device
• TRANSMISSION — cardan shafts
• DRIVE SHAFT — crown wheel kit, differential kit, brake disc kit, planet gear kit
• SET OF WHEELS — wheel complete, rim complete, tyre set, sign set, label set, drill-bit box
• FIRE SUPPR. SYST — fire extinguisher set, connection set, hose set
• POS. EQUIPMENT / TRAVERSE — cylinder, inclinometer, alignment valve, connection sets, hose frame, hose holder, positioning, turning device
• GEAR — gear, brake, hydraulic motor, hose set
• PENDULUM SET — pendulum, expanding shaft, sensors
• FEED — feed beam, drill steel support, cuttings cap, cradle complete, feed components, linear sensor, magnet
• STINGER SET — stinger, hydraulic cylinder, hydraulic set, cable and hose sets
• ROD HANDLING — magazine, shaft complete, plunger, rod-handling arm, expanding shafts, cylinders, angle sensor, RHS components
• CONTROL SYSTEM — system kit, operator unit, joystick, mushroom button, program package, cable sets, fuse box, push-button box, assembly set
• AIR/WATER SYSTEM — compressor set, hydraulic motor, lubrication pump, oil reservoir, water mist, water pump, rotation unit, strainer, flow meter, solenoid valve, flush water system, water inlet, hose nipple set
• ELECTR. SYSTEM — electrical cabinet, fan set, main switch, power supply set, apparatus cabinet, electronic unit, emergency set, electric motor, junction boxes, wiring, connectors, headlights, apparatus panel, battery module, battery switch, drivers panel, hour meter, ignition key, terminal module, inner light, brake light
• LUBR. SYSTEM — lubrication valves, lubrication pump, bulkhead connection, electric control kit
• CABIN — platform complete, protection roof, hydraulic cylinder, drivers compartment complete, chair complete, lamp attachment
• CABLE REEL — adapter set, torque unit kit, commutator, brush/insulation kit, drum, limit-switch kit, hydraulic motor, guide set, reel control, control box, cable lug set, hoses

Taken together, those divisions give a technician a map of every major assembly on the Simba M4C that this book documents: power and hydraulics, carrier and frames, feed and rod handling, operator controls, utilities, and the trailing cable reel. Each division is illustrated and then broken into sellable items and kits rather than written as step-by-step repair text.

IMAGES PREVIEW

Hydraulic Power, Steering, and Cooling

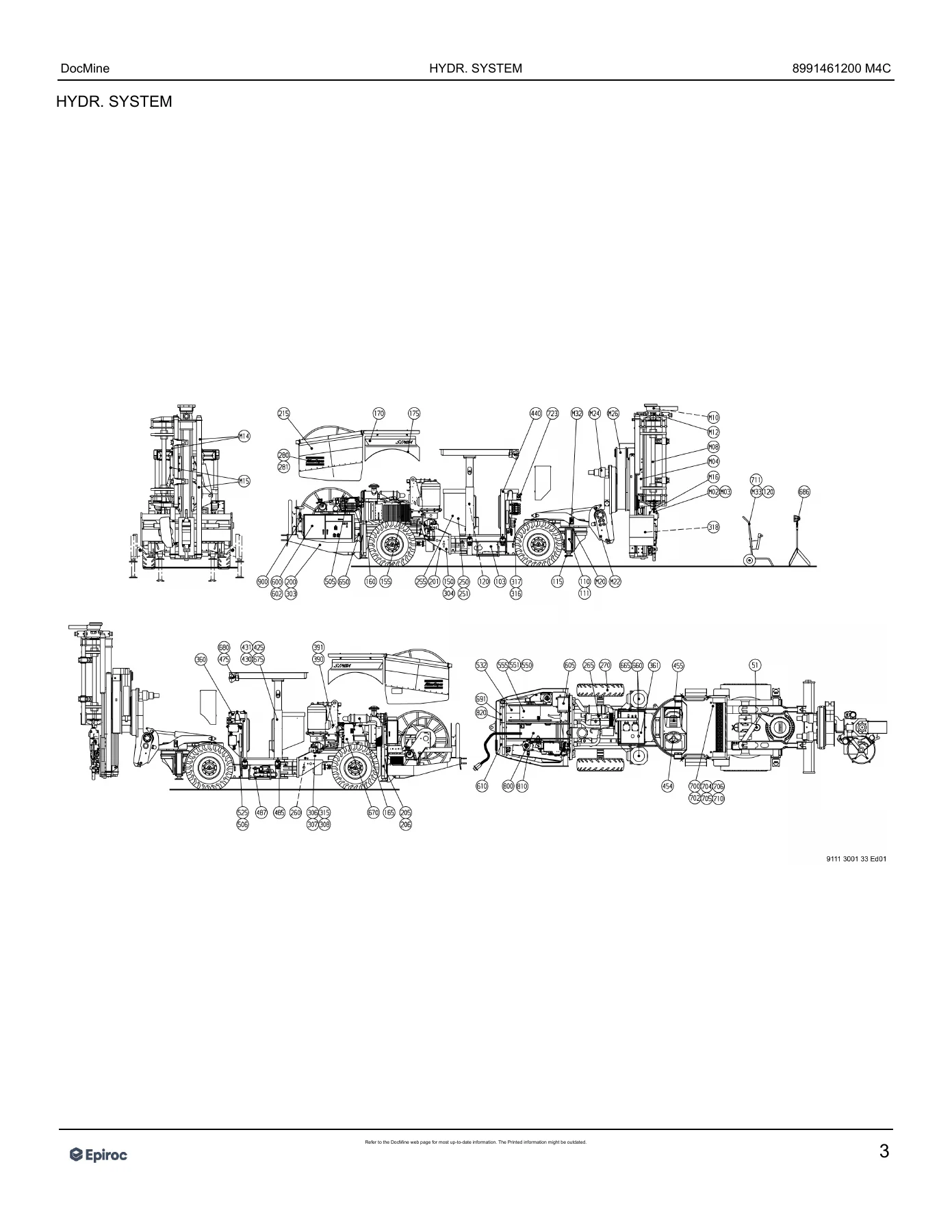

Opening illustrations locate hydraulic components on the complete machine. The first system table groups the brake/steering hydraulic system, a hydraulic cylinder listed as 3128306056 with remark HC20T125/63-500 NIKROM350, complete hose sets for brakes/steering and boom/rear frame, air-oil cooler 5112319396, variable-pump basic system, drill-system hydraulic set, basic positioning set, extractor set, failsafe and level-meter sensor sets, electric oil filler 5112001408, and a guide cable/hose-reel hydraulic set 9106129847.

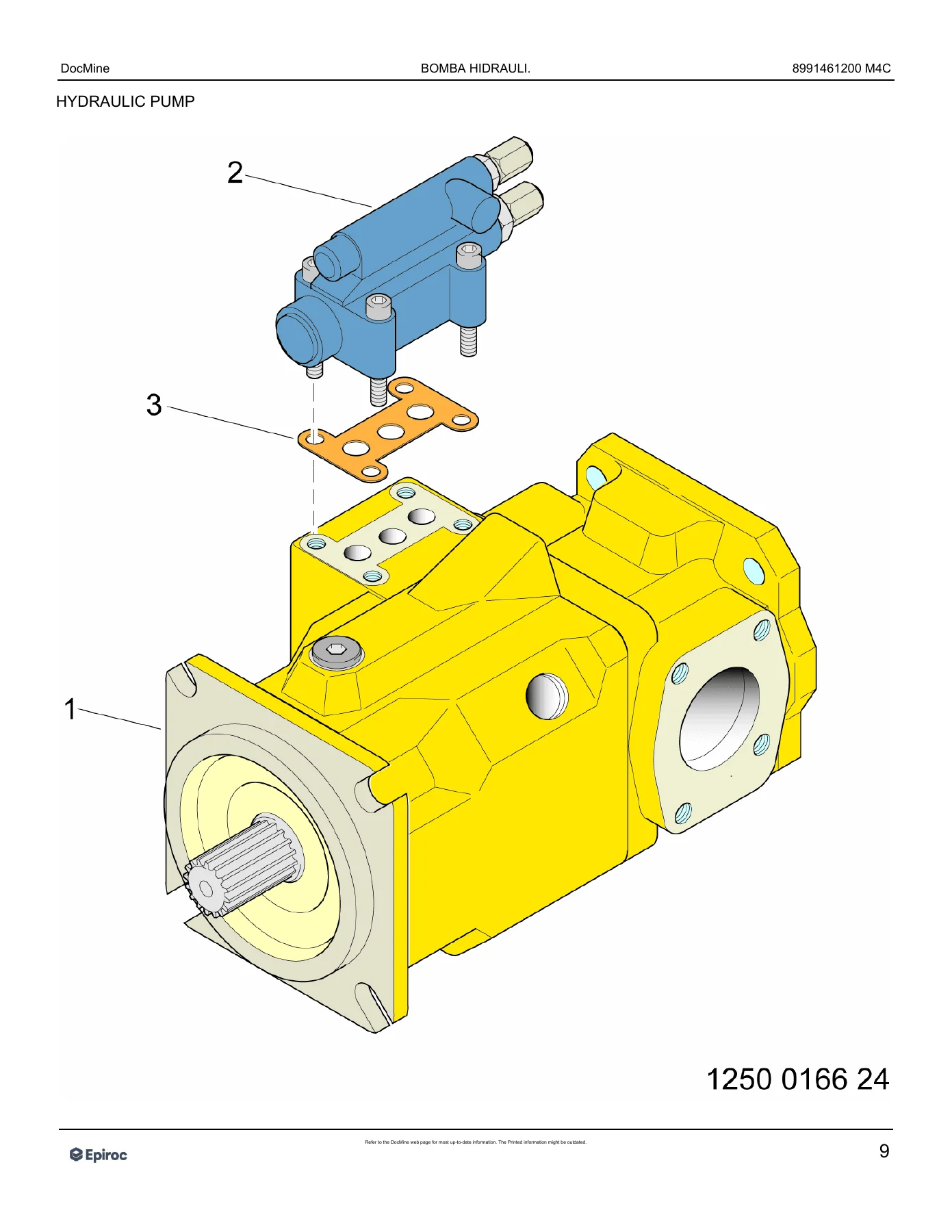

A schematic page then keys individual valves, pumps, and test points. Line items include hydraulic pump 5112287797, brake valve 5112287805, guide unit, steer spinner 3177002600, hydraulic block, pressure switches, accumulator block with two 65 bar accumulators, alignment valve, suction hose and suction connection, check valve, collector block, restrictors, and multiple test couplings 3177301600. Follow-on pump pages explode the pump body: actuator 5112287809, gasket, roller bearings, seals, O-rings, and retaining rings. Suction plumbing is shown as a bent hose assembly with 2-inch hose, four 60–75 clamps, and an emission/connection nozzle.

Carrier, Frames, Support Legs, and Travel

After the hydraulic power group the catalog moves onto the carrier, laser and cart, complete frame with hose sets, support legs with cylinders and a repair set, motor frame, and attachments including steel cable. Rear-frame complete and lock device appear later, then transmission with three cardan-shaft breakdowns and the drive-shaft group: crown wheel kit, differential kit, brake disc kit, and planet gear kit. Wheel complete, rim complete, and tyre set sit with sign and label sets. These pages are for identifying housings, shafts, kits, and fasteners when a travel or support component is worn or damaged—not for setting backlash or brake-service procedures.

Motor Unit, Fuel, and Exhaust Path

The motor-unit illustration and table are the place this book names the engine. Item 1 is diesel engine 5112317926, remark DEUTZ BF4M1013C. Beside it sit hydraulic transmission 5112321672, throttle (not sold separately), intake set, and a motor-unit hose set also marked not sold separately. Fuel-system pages list connection sets and hoses. Catalyser set, silencer, built-in parts, and mudguard continue the same power-pack neighborhood. An electrical-equipment table later repeats the Deutz identity as DEUTZ BF4M 1013C on motor electrical equipment 5112001223.

Positioning, Traverse, Feed, Stinger, and Rod Handling

Positioning equipment, traverse, hydraulic cylinders, inclinometer, alignment valves, connection sets, hose-frame set, hose holders, turning device, gear with brake and hydraulic motor, and pendulum set cover boom motion and angle sensing. Feed pages include the feed beam, drill-steel support, cuttings cap and seal choice, cradle and supports, feed components, linear sensor and magnet. Stinger set pages add the stinger body, cylinder, direction and pressure-reducing valves, cable sets, and hose sets. Rod handling then takes a large block: magazine, shaft complete, plunger, rod-handling arm, expanding shafts, several hydraulic cylinders, angle sensor, shaft and support sets, spacer set, and RHS components, with a dense hydraulic set that calls out double check valve, alignment valve, limit/pressure valve, flow-control valve, and multiple direction and pressure-reducing valves already referenced earlier in the book.

Control, Electrical, Air, Water, and Lubrication

Control-system pages list the system kit, operator unit, joystick, mushroom-head button, program package, and long runs of cable sets, plus fuse box, push-button box, and cable-passage hardware. Air/water coverage includes compressor set and compressor, hydraulic motor, alignment and limit valves, lubrication pump, oil reservoir, water-mist component, water pump, rotation unit, strainer, flow meter, valve block, solenoid valve, flush-water system, water inlet, water-pump unit with coupling, and hose-nipple sets.

Electrical-system pages run from the main electrical cabinet, fan set, main switch, bottom plate, flange-fit and power-supply sets, apparatus cabinet, electronic unit, and emergency set through motors, junction boxes, wiring and connectors, headlights and projectors, apparatus panel, battery module and battery switch, drivers panel (hour meter, ignition key, push-buttons, terminal and plinth modules), inner light, brake light, and conversion kit. Lubrication-system pages isolate lubrication valves, the lubrication pump, bulkhead connection, and an electric control kit.

Cabin, Lights, Fire Gear, and Cable Reel

Cabin and protection-roof pages include platform complete, roof cylinder, direction and double-check valves, hose sets, drivers compartment complete, chair complete, frame, lamp attachment, and cabin fastening. Fire-suppression system, fire-extinguisher set (one listed extinguisher is 6 kg, part 8092011843), connection set, and hoses are separate. The closing stretch is the cable reel: reel body, cabin adapter set, torque-unit kit (gear complete, flange set, shaft set, chain set), commutator with ring and bush kits, brush/insulation kit, drum, limit-switch kit, hydraulic motor, guide set, reel control, control box, cable-lug set, and hoses.

How Tables and Drawings Work Together

Assemblies that are sold only as kits show a dash in the part-number column and a remark such as BRAKE/STEERING SYSTEM or MOTOR UNIT NOT SOLD SEPARATELY. Fasteners are called out with thread, length, and finish (for example MC6S M 5 X 50 – 8.8 FZB or UNC 1/2 X 32 – 12.9). Hose lines may be sold by the metre. Protective caps, gaskets, and test couplings repeat across hydraulic pages so the same accessory can be ordered from more than one assembly. Printed page numbers in the footer do not always match the PDF file page index; use the running section title (HYDR. SYSTEM, MOTOR UNIT, CABLE REEL, and so on) plus the part number when you search.

Because this is the Epiroc Simba M4C Spare Parts Catalog 8991461200 Digital Parts Book, expect bilingual naming. English section titles sit beside Spanish part names (bomba hidraulica, juego de mangueras, cilindro hidra., valvula alineac.). That does not change the part numbers, which remain the ordering key.

Get the Catalog and Identify the Correct Part

With the Epiroc Simba M4C Spare Parts Catalog 8991461200 Digital Parts Book on hand you can match a worn pump, hose set, feed cradle, magazine arm, cabinet module, water pump, or cable-reel commutator to the item balloon on the drawing and then to the N° de pieza in the table. That is the practical job this file supports: correct identification and ordering for the Simba M4C assemblies the book actually illustrates.

Using the part number printed next to the illustration matters because kits, restrictors, seals, and look-alike valves are easy to mix up when you order from memory. The catalog itself warns that unauthorized parts are outside the product liability described on the title leaf and that the publication refers only to the mentioned product.

Delivery is an instant PDF download after payment. There is no printed-book shipment. Open the file on a workshop PC, tablet, or phone and print the assembly page you need when a parts order is being written.
