Atlas Copco FlexiROC T40 Tier 3 Spare Parts Catalogue 8992 0074 47 PDF

Description

File Details

• Manual type: Illustrated spare parts catalogue
• Brand: Atlas Copco
• Machine: FlexiROC T40, Tier 3
• Publication number: 8992 0074 47
• Order number: No. 9853 6775 20
• Issued by: Atlas Copco Rock Drills AB, Örebro, Sweden
• Copyright: 2011
• Language: English and Swedish, running side by side on every page
• File format: PDF
• Page count: 1,366 pages

Chapters Covered

The Atlas Copco FlexiROC T40 Tier 3 Spare Parts Catalogue 8992 0074 47 is split into eighteen numbered chapters, each with its own contents list before the exploded views begin.

• 1. Parts & Service — service kits from First 50 HRS through ROC D 6000 HRS, repair sets, oil and lubricants, COP kits, tools and accessories, CLS kit, tool box
• 2. Carrier — carrier unit, body, frame beams, doors and lock devices, roof panels, undercarriage, wagon frame with and without support leg, track frame variants, band pulley, limberoller, front wheel, tensioning unit, drive unit GFT 24 T3, hydraulic motor, track chain, winch and winch drum brake, gear, press roller, disconnection, drive device, hydraulic brake, rope guard, wire, fuel tank and fuel assembly, air filter sets, suspension, valve block, direction valve, double check valve, track roller, driving mirror, option kits
• 3. Drive Unit — power pack, generator kit, fuel system, exhaust set, diesel engine, compressor unit, control valve, pump unit, axial piston pump, gear pumps, coupling, CKD set, compressor drive, valve set, gear set
• 4. Boom System — boom installation, boom head, boom attachment, expanding shafts, feed holder, hydraulic cylinders, banana link, holders, hose suspension, folding boom
• 5. Feed — basic feed, hose drum, holder sets, pulley wheel, drill carriage, cradle, drill steel support upper and lower, RHS kit and arms, end pieces, turning cylinder, intermediate support, hose attachment, cylinder set, feed support, assembly sets
• 6. Cabin — cab module and cab kit, air hose, dampers, sound suppression, air channel, air conditioning units, roof and floor assemblies, covers, powerboard, angle sensor, push-button kit, handles, side plate, water system, lock pin, fire hose, carpet, wiper assemblies, tool box, doors and door modules, FOPS protection, lamp assemblies, hose sets, direction valve, valve block, control panels, circuit board, cable set, interior trim, windows, chair, ladder, glare shield, light sets
• 7. Air Cond. Det. — air conditioner, air conditioning details, roof and floor units, compressor, condenser set, heating set, hose kit
• 8. Dust Collector — dust collector DCT 110, fan with motor, hydraulic motor, holder, hatch, solenoid valve, preseparator, hose connection
• 9. Sign Set — full decal and warning sign sets, including the English-text and French-text cab variants
• 10. Hydr. Reservoir — hydraulic tank assembly, level glass, cover, ball valve, fittings
• 11. Hydr. System — valve blocks, main drilling valve block with inlet, control and valve sections, track oscillation, direction valves, double check valves, drive units, hydraulic motors, gear motor, pressure relief cartridges, restriction sets, winch circuit, pump system
• 12. Air System — compressor unit, compressor drive, valve set, inlet valve, gears, pressure vessels, control valve, radiator, air filter, lubrication pump, oil tank, water system, grease pump, reducing valve, oil reservoir
• 13. Hose Set Compl. — complete hose assemblies listed by connection code and diameter
• 14. Hose Connection — nipples, elbows, adapters, cutting rings, cap nuts, plugs, caps, test connections and adapter sleeves
• 15. Electr. System — electrical cabinet, suspension, junction boxes, remote control, joystick, angle indicator, cable sets, assembly sets, radio/CD, power supply set, lamp assembly, GPS compass, warning signals, control boxes, filler pump
• 16. Cable Set — full cable set schedule
• 17. Option — oil collection system, engine heater, filler pump, guide sets, greasing device, water mist system, winch, sleeve holder and retainer, tool set, charging device, angle indicator, grinding equipment, automatic grease system, Procom, tow hook, drain pilot pressure kit, GPS compass, camera
• 18. Cross Reference List — every part number in the catalogue listed alphabetically with its reference number and page

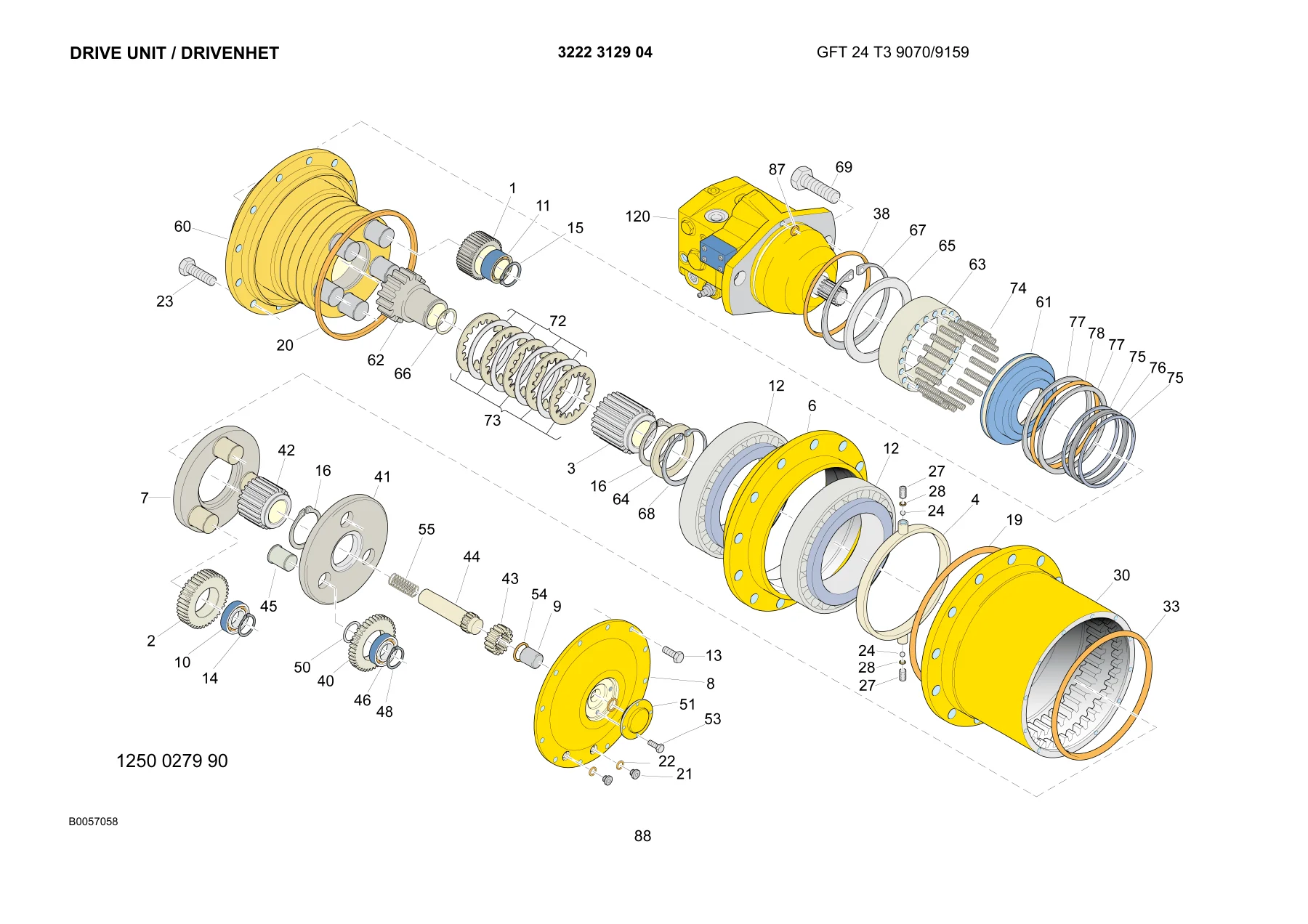

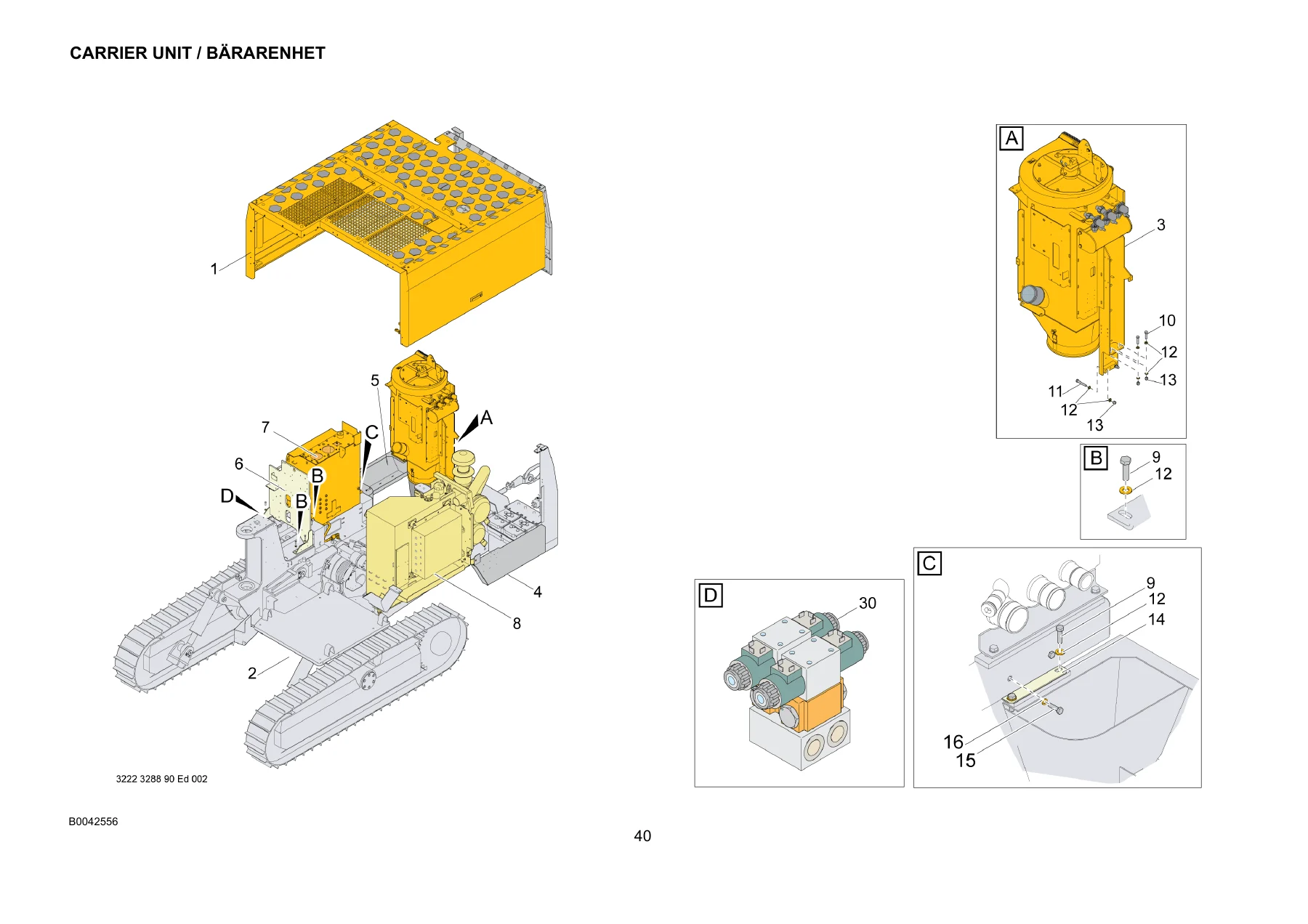

What separates this catalogue from a generic parts list is the amount of machine-specific detail behind each entry. Every assembly in the FlexiROC T40 is drawn as an exploded axonometric view with numbered callouts, and each callout resolves to a row giving the reference number, the eleven-digit Atlas Copco part number, the quantity required, the description in both English and Swedish, and a cross-reference to the page where that sub-assembly is broken down further. That page column matters: a boom cylinder is not simply a line item, it points you to the seal kit, piston rod, cover and circlip pages so you can rebuild rather than replace. The same applies to the GFT 24 T3 drive unit, the A10VEC 45 HZ hydraulic motor, the COP 2160 and COP 2560 rock drill kits, and the DCT 110 dust collector.

How the Catalogue Is Organised

The hierarchy runs from chapter, to assembly, to sub-assembly, to individual component. Chapters 1 to 17 each open with a contents table, then move into the illustrated pages. Where a component is sold only as part of a kit, the entry says so plainly — you will see notations such as NOT SOLD SEPARATELY beside individual O-rings, back-up rings and guide rings, with the kit or seal set listed as the orderable item. That single detail is the difference between ordering a part that arrives and ordering a part that cannot be supplied on its own.

Seal kits and repair kits are given their own entries throughout, including the periodic service kits in Chapter 1 broken down by interval: First 50 HRS, ROC D 250, 500, 1000, 1500, 2000, 3000 and 6000 HRS. For rock drill owners, the COP kit section covers seal kits and overhaul kits at 400 and 800 impact hours for the COP 2160, COP 2160EX, COP 2560 and COP 2560EX, in both extractor and non-extractor configurations.

Where the Cross Reference List Earns Its Keep

Chapter 18 is the practical shortcut. If you already have a part number in hand — from a dealer quote, an old invoice, or a number stamped on a component — the cross reference list takes you straight to the page and reference number rather than making you walk eighteen chapters. Combined with the contents tables at the head of each chapter, it makes the FlexiROC T40 Tier 3 Spare Parts Catalogue 8992 0074 47 usable as a working counter reference and not just a document to file away.

Why This Parts Catalogue Matters on a Working Rig

Ordering the wrong part on a drill rig is expensive in two directions: the cost of the part, and the cost of the downtime while the correct one arrives. A parts catalogue that shows you the assembly in exploded form, gives you the exact quantity per machine, and tells you whether a component is individually orderable or only available inside a kit removes most of that guesswork. The FlexiROC T40 spare parts catalogue 8992 0074 47 does all three, and it does it for the whole machine — carrier, tracks, boom, feed, cabin, dust collector, hydraulics, air system, electrical system and every hose run between them.

Because the publication is bilingual, the Swedish description sits directly beside the English one. That is genuinely useful when a part is known locally by its Swedish name, or when a supplier’s system is keyed to the Swedish term.

Everything is delivered as an instant PDF download. There is no shipping, no waiting on a printed binder, and no regional availability problem — the file opens on a laptop, tablet or phone in the workshop, and any page can be printed if you prefer a paper copy on the bench. Whether you are rebuilding a track frame, chasing a hydraulic leak through the valve blocks, replacing a hose assembly, or simply confirming a part number before you call the dealer, the Atlas Copco FlexiROC T40 Tier 3 Spare Parts Catalogue 8992 0074 47 puts the complete illustrated parts breakdown in front of you the moment payment clears.
