Merlo P32.6TOP Spare Parts Catalogue – Multilingual PDF

Description

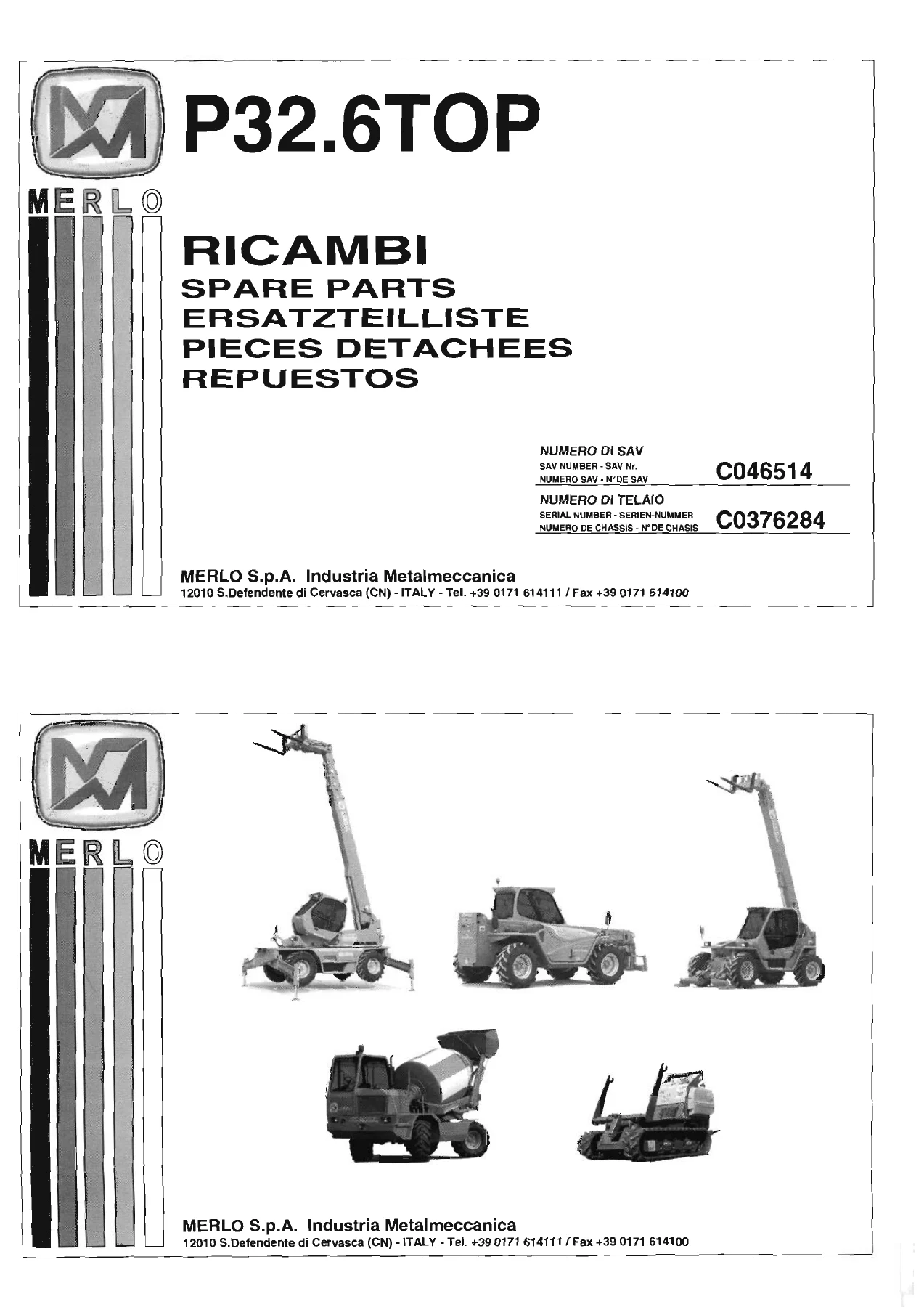

Merlo P32.6TOP Spare Parts Catalogue

This is the complete illustrated spare parts catalogue for the Merlo P32.6TOP, published by Merlo S.p.A. Industria Metalmeccanica. The catalogue is issued under SAV number C046514 and covers machine serial number C0376284. Every component group is presented as an exploded drawing with numbered callouts and a matching part-number list, so you can identify exactly which seal, hose, pin, cylinder or panel belongs to your machine before you order.

The Merlo P32.6TOP spare parts catalogue is multilingual, with headings and ordering instructions printed in Italian, English, German, French and Spanish simultaneously. It is intended for workshops, fleet managers and owners who need to look up genuine Merlo part numbers for the P32.6TOP and for the TRE EMME attachments listed at the end of the book.

File Details

• Manual type: Spare Parts Catalogue (Ricambi / Ersatzteilliste / Pieces Detachees / Repuestos)
• Brand: Merlo S.p.A. Industria Metalmeccanica
• Model: P32.6TOP
• SAV number: C046514
• Machine serial number: C0376284
• Language: Multilingual – Italian, English, German, French, Spanish
• Format: PDF
• Page count: 102 pages
• Attachments section: TRE EMME carriage-mounted equipment (Zattera ZM2, 4×1 bucket)

Chapters Covered

The Merlo P32.6TOP parts book is divided into numbered component groups. Each group has its own exploded plate, callout numbering and part-number column. The main sections you will find inside include:

• Front cardan shaft and wheels
• Mounting of extension ram on boom
• Mounting of forks ram
• Fork mounting
• Mounting of quick release ram
• Extension ram group
• Compensation ram (with fittings)
• Compensation ram – cylinder internals
• Front steering ram (with fittings)
• Brake caliper
• Cab internal panels
• Internal cab panels (rear)
• Particulars on cab
• Mounting of pedals and dashboard
• Electric components on dashboard
• Control dashboard under steering wheel
• Control panel
• Pre-assembled console behind seat
• Accelerator group

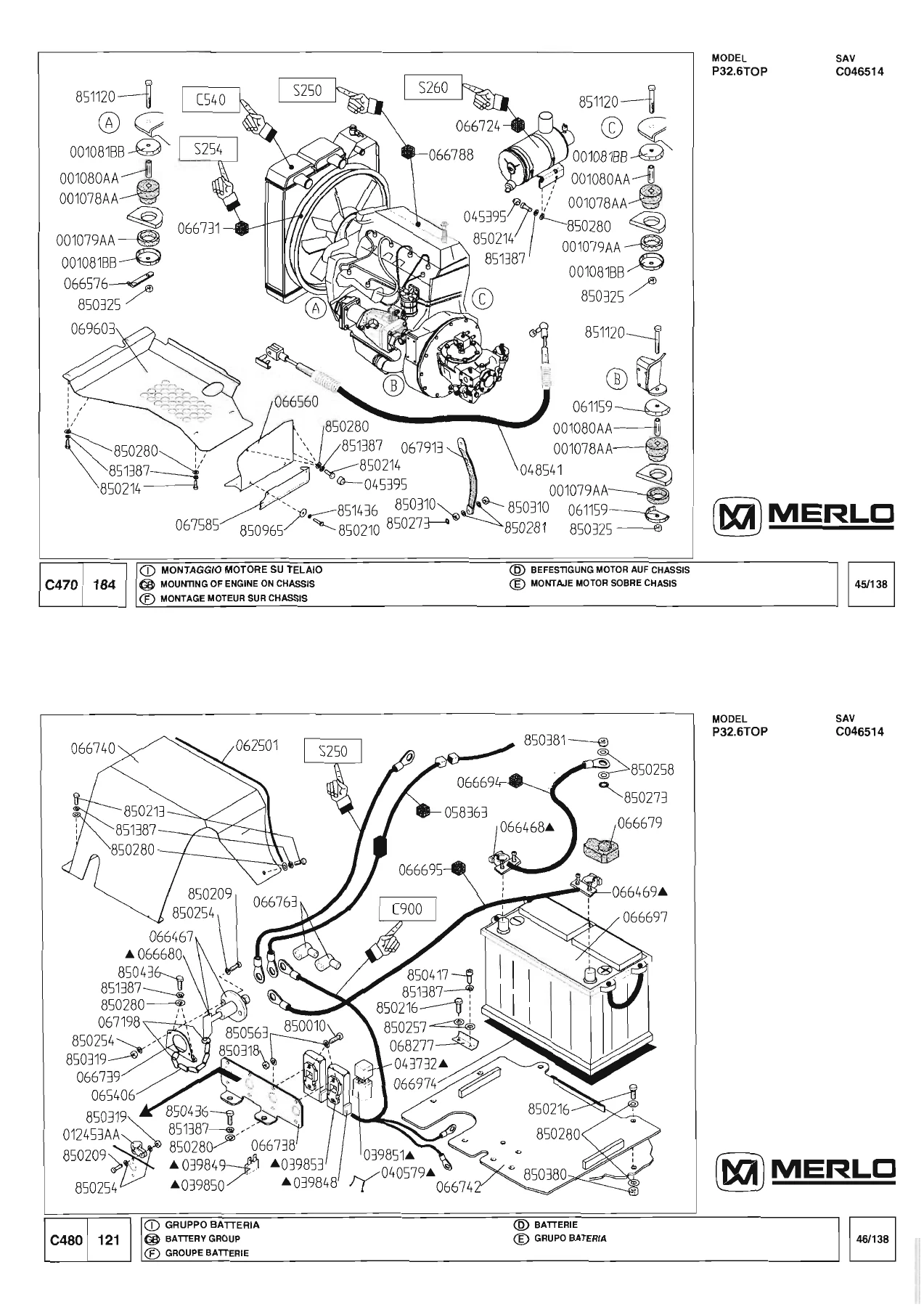

• Mounting of engine on chassis
• Battery group
• Parts on engine
• Mounting of hydrostatic oil tank
• Heater group and mounting
• Hydrostatic pump group
• Rear axle
• Safe load indicator application
• Air conditioner condenser group
• Air conditioner compressor group
• Small pistons control group
• Air filter
• Wheel group
• Towing hook
• Double acting attachment pre-arrangement
• TRE EMME – Crane hook on carriage (mechanical section)
• TRE EMME – Crane hook on carriage (hydraulic section)
• TRE EMME – 4×1 bucket (mechanical section)
• TRE EMME – 4×1 bucket (hydraulic section)

Because the catalogue is built around exploded plates rather than repair procedures, it gives a technician an unambiguous, model-specific route from a failed part to the correct Merlo part number. The group structure follows the machine the same way a workshop would dismantle it – boom first, then steering and axles, then cab, engine bay and hydraulics – so you can work down a job list without jumping between unrelated sections.

How the Plates Work

Every section of the Merlo P32.6TOP spare parts catalogue follows the same layout. A large isometric or exploded drawing shows the assembly broken apart, each item tagged with a numeric callout. The accompanying list maps the callout to the part number, description and quantity required. Optional equipment is separated into Z-series tables (for example Z001 = wheel group) placed at the end of the book. Where a part number on an optional page supersedes the standard page number, the catalogue flags it, so you always order the correct supersession.

Symbols used throughout the plates tell you whether an item is new or revised compared with the previous edition of the table, whether it is supplied only as part of a complete assembly, and which other table develops that component in more detail. This is the same numbering logic Merlo dealers use, which is why the book remains usable even years after the machine left the factory.

Ordering Instructions Included

The front of the catalogue reproduces the Merlo parts ordering procedure in all five languages. It lists exactly what to quote when placing an order:

• Vehicle type
• Vehicle SAV number
• Engine serial number (for engine-group parts)
• Part number
• Part description
• Quantity required

The same pages warn that fitting non-original Merlo parts voids the machine warranty, which is worth remembering before substituting a pattern part for a hydraulic seal or a safety-critical component.

Attachments Section

The tail of the Merlo P32.6TOP catalogue covers TRE EMME carriage-mounted attachments that are commonly fitted to this machine. The crane hook on carriage (Zattera ZM2, maximum payload 4500 kg, attachment weight 75 kg) has its own mechanical and hydraulic plates, and the 4×1 multi-function bucket (maximum payload 1500 kg, attachment weight 680 kg) is covered the same way. If your P32.6TOP is running one of these attachments, the catalogue gives you the attachment-side part numbers as well as the machine-side ones.

What This Catalogue Lets You Do

With this Merlo P32.6TOP spare parts catalogue on hand you can identify the exact part required for a boom extension ram reseal, a front steering ram replacement, a brake caliper overhaul, a cab panel repair, a dashboard switch replacement, a hydrostatic pump service, an axle job, or an air-conditioning condenser or compressor swap. You can check whether the item you need is a standard production part or an optional-equipment variant, and you can see which other items must be replaced at the same time (seals, O-rings, retaining rings, hose fittings) because they are drawn and listed on the same plate.

Correct part identification matters on a machine like the P32.6TOP. A wrong hydraulic seal, a mismatched hose end or a superseded cylinder component can turn a routine service into a leak, a pressure loss or a safety issue. Using the Merlo catalogue instead of guessing removes that risk and keeps the machine within the specification it was built to.

IMAGES PREVIEW

Instant PDF Delivery

The Merlo P32.6TOP Spare Parts Catalogue is delivered as an instant PDF download. There is no shipping, no waiting for a disc and no regional restriction. Open it on a laptop in the workshop, on a tablet next to the machine, or print the plates you need and take them onto the shop floor. Because the catalogue is searchable by part number and by group heading in any of the five included languages, you can move from a symptom to the correct Merlo part number in seconds.
