Atlas Copco PV271 Pit Viper Drilling Rig Parts List – Serial US004511 PDF Download

Description

Locating the exact replacement part for an Atlas Copco PV271 Pit Viper drill rig usually comes down to having the right illustrated parts breakdown in front of you. This Atlas Copco PV271 Pit Viper Drilling Rig Parts List – Serial US004511 PDF was compiled specifically for the machine bearing serial number US004511, so every part number, illustration callout, and quantity shown applies directly to that drill. From the mainframe weldment and track groups to the powerhead, carousel, hydraulic pumps, and cab assemblies, this Atlas Copco PV271 parts list is the reference that lets you identify and order the correct component without guesswork.

File Details

• Manual Type: Illustrated Parts List / Parts Catalog
• Brand: Atlas Copco Drilling Solutions
• Model: PV271 (Pit Viper 271)
• Serial Number: US004511
• Language: English
• Page Count: Approximately 1,036 pages
• File Format: PDF
• Engines Referenced: Caterpillar C32 (1050 HP) and Caterpillar C27

Chapters Covered

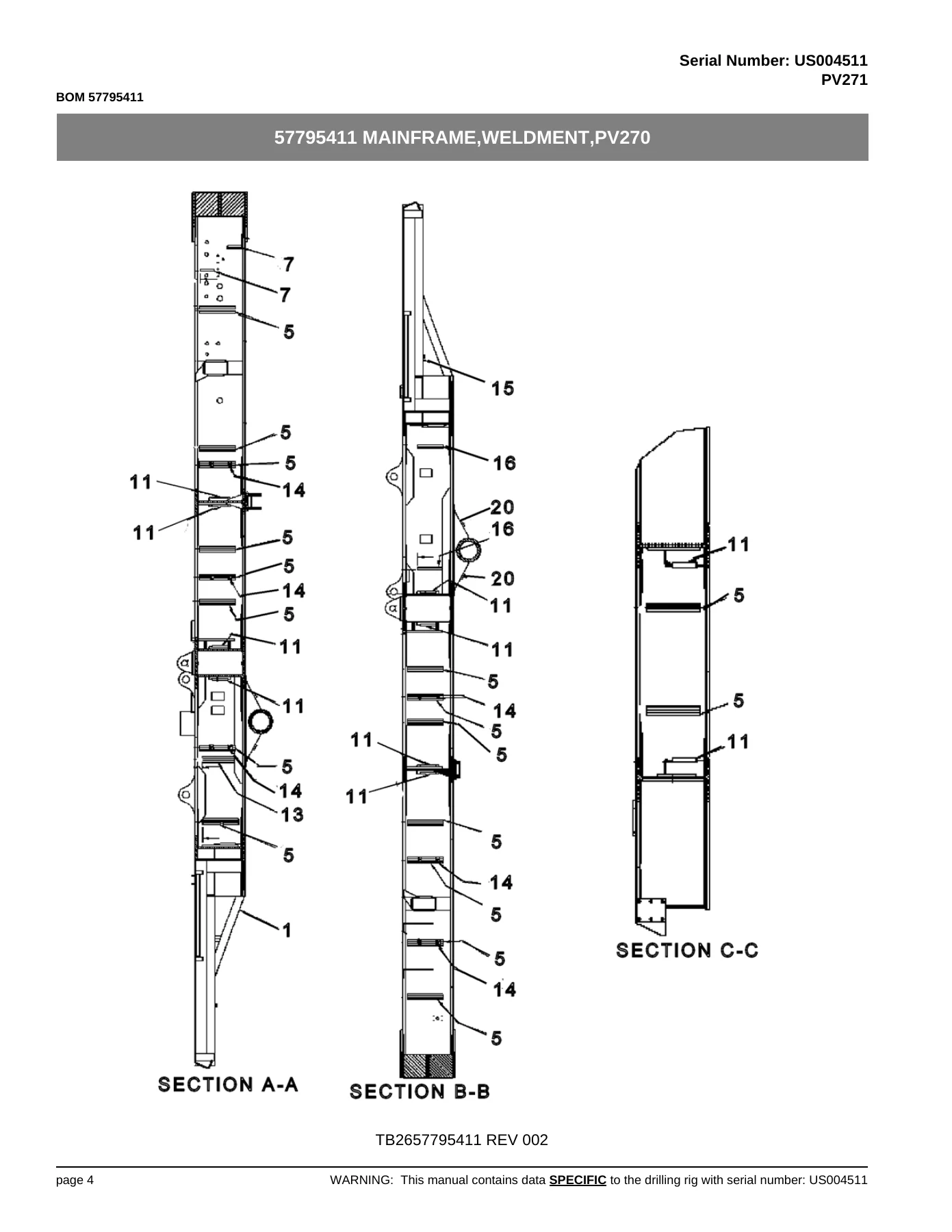

• Frame/Chassis – Mainframe Weldment, Decking Installation T2, Decking/Rail Assemblies (Rear T2, DCS T2, Cab Access, DC Jack, DCS Decking, CS Decking), Ladder Assemblies (Entry/Exit, Decking, Weldment), Wrap-Around Decking Assembly, Deck-Handrail, Tow Hooks
• Undercarriage/Tracks – Tracks CAT345XL (20″ STD), Undercarriage CAT345XL, Drive Group, Track Group, Roller Group, Roller Upper Group, Roller Group Single Flange, Roller Group Double Flange, Guard Group, Idler Group Front, Adjustment Group, Spring Group, Idler Group, Split Flange Kit
• Jacks – Jacks Four, Jack Assembly, Hydraulic Cylinder, Seal Kit 7 X 60 Jack, Counterbalance Valve, 6X60 Jack Assembly PV270, Hydraulic Cylinder 57398562, Seal Kit 57340663
• Cab/Console – Cab Installation DTAC AC, Cab Bare DM45/L, Curbside Door Assembly (2 Latch), Tower Side Door Assembly, Air Conditioner Assembly, Package Kit 805 IR, Switch Assembly IR AP, Coil Assembly HTR, Coil Assembly, Filter with Prefilter and Elbow, Gauges/Controls LP CAT, Pump Controllers, Standard CAT Wiring, CAT LP Nameplates, Inclinometer Assembly PV-271, A/C Installation C27 PV270
• Derrick/Tower – Tower Weldment PV-271, Pivot Block, Channel Assembly, Rod Changer Carousel Assembly, Carousel 8.63X6.0 BECO, Powerhead Mounting Group, Powerhead PV271, Powerhead Machining, Spindle Clamp, Hydraulic Motor, Drive Shaft and Bearing, Retaining Ring Kit, Servo Output, Input Servo Motor Aside, Barrel Holddown Assembly, Mounting Port Block Assembly, Barrel Rocker Cam and Flange Assembly, Barrel/Holddown Shaft Assembly, Rocker Cam/Stroking Assembly, Housing/Face Plate Assembly, Spindle 8.62 DURAQUEST, Shock Sub DURAQUEST, Rod Support Assembly, Tower Support Installation, Tower Support Weldment, Trunnion Block, Strut Tower Support Angle, Leg Assembly Outer, Hydraulic Cylinder, Valve Installation, Stacking Valves (7-Spool, 11-Spool), Angle Locking Piping, Angle Indicator, Tower Rest Installation, Main Winch 8000 LB, Braden Winch 8000 LB, Brake Valve Assembly, Tower Access Ladder, Breakout Base Assembly, Wrench Assembly, Tong Cylinder, Seal Kit Cylinder, Tower Locking, Tower Piping, Regen Valve LP, Tensioner Valve, Split Flange Kit
• Powerpack/Engine – Engine Assembly C32, Engine Bare C32 1050HP, Driveshaft Guard Assembly, Engine Wiring C27 PV270, Radiator Piping Assembly, Cooler Installation PV270, Generic LBH Cooler, Radiator/COC/HOC Cooler Tier 2, CAC Assembly PV271, CAC CAT C27, CAC Support Rod Assembly, CAC Piping PV271, Exhaust Assembly PV270 C32, Battery Box Installation, Powerpack Base Mounting
• Air Cleaners – Air Cleaner Assembly XL2600, Air Filter-08, Air Cleaner Assembly C32, Air Cleaner
• Fuel System – Fuel Tank 625GL CAT Tier 2, Fuel Tank 350 GAL, Fuel Tank 262 GALLON, Fuel Cooler Piping, Ether Installation CAT LBH, Ether Kit CAT C27/C32
• Compressor/Air System – Compressor 2600CFM Assembly, Air Compressor, Butterfly Valve 8, Compressor Control Piping, COC Piping, Oil Filter, Temperature Bypass Valve, Receiver Assembly, Minimum Pressure Valve, Compressor/Receiver Piping 2600 CFM, Disc Check Valve Stainless Steel, Air System Piping Assembly, Main Air Piping
• Hydraulic System – Pump/Drive 59000 Series, Main Hydraulic Pump, Drive Shaft and Bearing, Retaining Ring Kit, Servo Output, Electric Pump Servo, Motor C-Force, Gerotor and Barrel Holddown, Port Block/Housing Assembly, Port Block, End Cap Housing, Barrel/Aux Shaft Assembly, Retainer Plate, Retaining Ring Group, Cam Stroker Assembly, Valve Block Assembly, 3-Hole Gearbox 59000 Series, Feed System Installation, Sheave Assembly, Sheave Carriage Assembly, Feed Cylinder DMM2SP, Guide Block Assembly, Main Hydraulic Piping T2, Diverter Valve Assembly, Diverter Manifold, DR/PR Control Valve, DR/PR Control Manifold, 4-Way D03 Valve, Return Manifold Assembly, Cooling Control Valve, Supercharge Manifold, Split Flange Kit, Hydraulic Tank Installation, Hydraulic Oil Reservoir Assembly, SAE Filter, Tower Raise Cylinders
• Electrical System – Electrical Mainframe T2, Electrical Box Assembly Tier 2, CAT Primer Pump Wiring, Tower Electrical Installation, 1/4 Turn Buckle Electrical Box, Warning Horn Assembly, Ground Level Shutdown, Night Lights DC/12 Halogen
• Options – Water Injection 8GPM 400GL, Water Tank 400 GAL, Pump and Motor, Dust Skirt Installation, Hydraulic Cylinder (Skirt), Seal Kit, Fast Service 2 Fuel/1 Water, Fast-Service Lube Box, Battery Isolator/Jump Start, Thread Greaser, Control Station, Battery Equalizer, Washdown Gun Assembly, Window Wiper Drill PV270, Window Wiper Drill DM45, Preheater Proheat 3412E, Diesel Fired Heater, Engine Prelube C27/C32, Fire Suppression CAT Tier 2, Tower Lube System PV-271, Mainframe Lube Angle Drill, Video Camera System PV270, HIAB Crane Assembly
• Tools/Accessories – International Shipping Kit, Loading Clevis Assembly, Shipping Plate/Plug, Rod Seal Assembly, Rod Seal Weldment, Spanish Decals PV-270, Safety Decal/Manual Kit Spanish, Safety Manual PV270 Series, PV-271 AC Decals

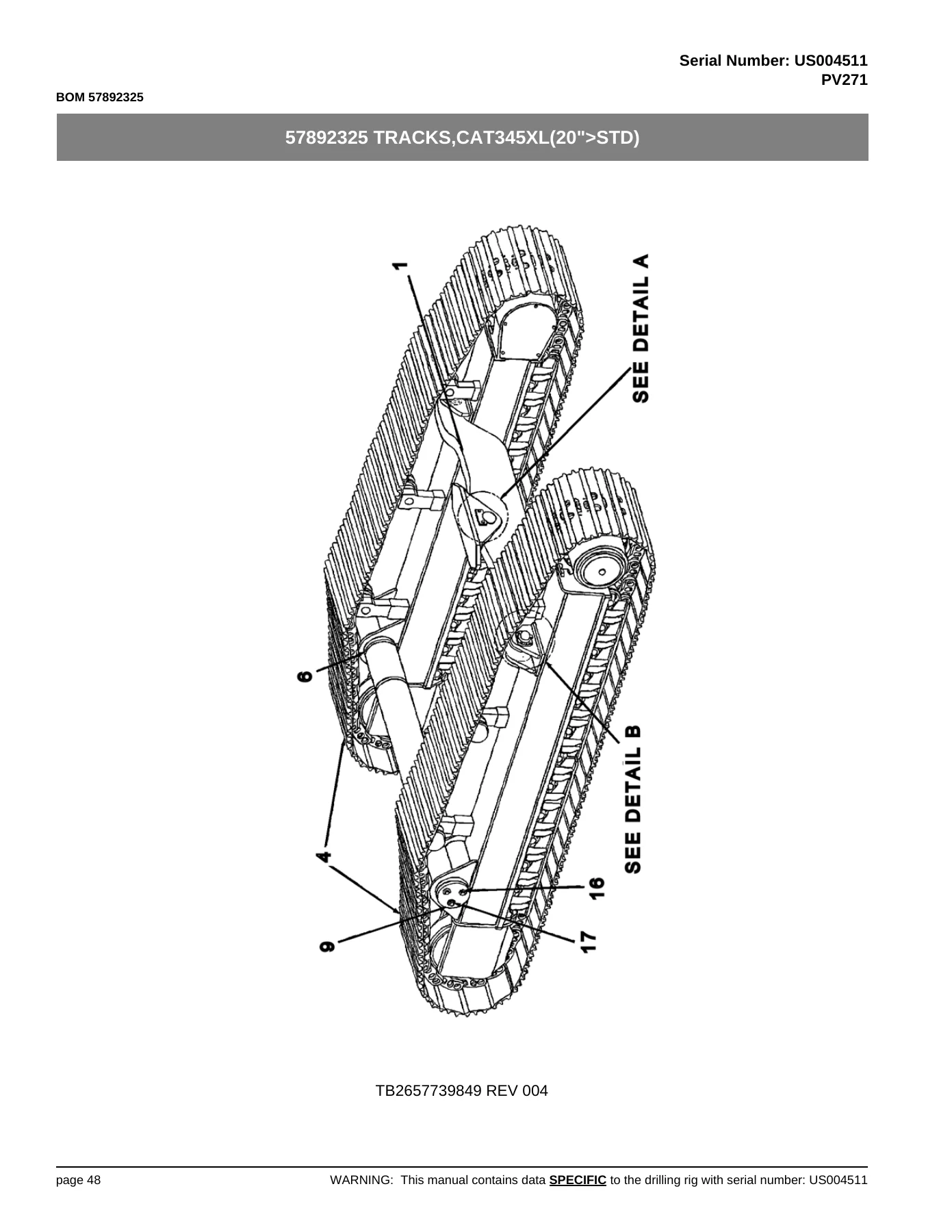

This Atlas Copco PV271 parts catalog is organized exactly the way the machine is built. Each major assembly gets its own section, and within each section you will find exploded-view illustrations on one page and a corresponding parts table on the facing or following page. The parts tables list reference numbers, part numbers, quantities, units of measure, descriptions, and notes – so a technician or parts counter can trace a callout from the diagram directly to the orderable number. The engine and powerpack sections reference the Caterpillar C32 1050 HP and C27 engines, including their guarding, wiring, cooling, and air cleaner installations. The hydraulic system is broken down from the 59000 Series pump/drive through the gearbox, feed cylinders, sheaves, guide blocks, valve blocks, manifolds, and main hydraulic piping. The tower section carries the rod changer, carousel, powerhead, spindle, rotary head internals, winch, breakout wrench, and tower raise cylinders. The undercarriage section covers the complete CAT345XL track frame, drive group, rollers, idlers, and adjustment components. The cab/console section details the DM45/L cab shell, doors, air conditioning, gauges, controllers, wiring, and instrumentation. Additional sections cover the air compressor and receiver system, fuel tanks and fuel cooler piping, electrical mainframe and tower installations, and the full options list including water injection, fire suppression, preheaters, lubrication systems, and the HIAB crane assembly.

What You Can Do With This PV271 Parts List

Because this is a serial-number-specific parts catalog, it is the right reference when you need to order a replacement component for the exact drill rig bearing serial US004511. That makes it useful in several everyday situations. When a hydraulic hose fails on the tower, you can look up the assembly by system and find the correct part number rather than matching by eye. When a track roller or idler needs replacing, the undercarriage section shows the breakdown of single-flange and double-flange roller groups, seals, shafts, and collars. When the powerhead needs a spindle clamp, seal kit, or retaining ring kit, the exploded views show how the spindle and output gear stack together. When the cab air conditioner needs a coil, filter, or switch assembly, the cab section gives you the part numbers. When the engine needs a radiator hose, air cleaner element, or fuel filter, the powerpack and air cleaner sections carry those details. It is also a valuable reference during a rebuild or major overhaul – the parts tables give quantities so you can assemble a complete bill of materials before the machine is opened up.

Why a Serial-Specific Parts Book Matters

Atlas Copco built the PV271 in multiple configurations and revisions across its production life, and a parts book compiled for one serial number will not necessarily match another machine. This parts list was prepared for serial US004511 specifically, and every page header in the document repeats that serial number as a reminder. Using the correct parts book prevents the most common and most expensive parts-ordering mistakes: ordering a component that looks identical but has a different mounting pattern, a different port size, or a different seal material; ordering a superseded part number that no longer fits the machine; or ordering the wrong quantity because an assembly was revised. For a drill rig of this size, a single wrong part can mean days of downtime waiting on a replacement. Having the right illustrated breakdown in front of you is the difference between a one-call order and a multi-day back-and-forth with a parts counter.

Who This Atlas Copco PV271 Parts List Is For

This PDF is written for the people who keep a Pit Viper 271 running: field service technicians, shop mechanics, maintenance planners, parts managers, and owner-operators of the PV271. It is also useful for rebuilders and dealers who need to identify components on a specific machine. Because the document is organized by assembly rather than by procedure, it works equally well as a bench reference during a teardown or as a quick-lookup tool at the parts desk. The illustrations are clean enough to identify a part by shape and position when the description alone is not enough, and the parts tables give the quantity and unit so nothing is left to memory.

Get the Correct PV271 Parts Reference Today

IMAGES PREVIEW

This Atlas Copco PV271 Pit Viper Drilling Rig Parts List – Serial US004511 PDF gives you the complete illustrated breakdown for one specific machine, covering the frame, undercarriage, jacks, cab, tower, powerhead, engine, air system, fuel system, hydraulics, electrical system, options, and shipping accessories. With it, you can diagnose what is missing or worn, confirm the correct part number, check the quantity required, and place an order the first time. The file is delivered as an instant PDF download after payment – no shipping, no waiting, no physical media. Open it on a laptop in the shop, a tablet in the field, or a phone at the parts counter, and print only the pages you need for the job in front of you. Stop guessing on part numbers and start working from the same illustrated parts breakdown the machine was built from.
