Audi A4 B6 1.8T BFB Engine Workshop Manual

This Audi A4 B6 1.8T BFB engine workshop manual is a 217-page technical procedure set covering everything from full engine removal through a complete internal overhaul. It follows the engine down to bolt-level detail: not general theory, but the actual sequence a technician would follow with a lift, a torque wrench and the special tools called out on nearly every page.

File Details

• Manual type: Engine workshop/repair manual
• Brand / model: Audi A4 B6
• Engine covered: 1.8T BFB
• Language: English
• Page count: 217 pages
• File format: PDF

IMAGES PREVIEW

Chapters Covered

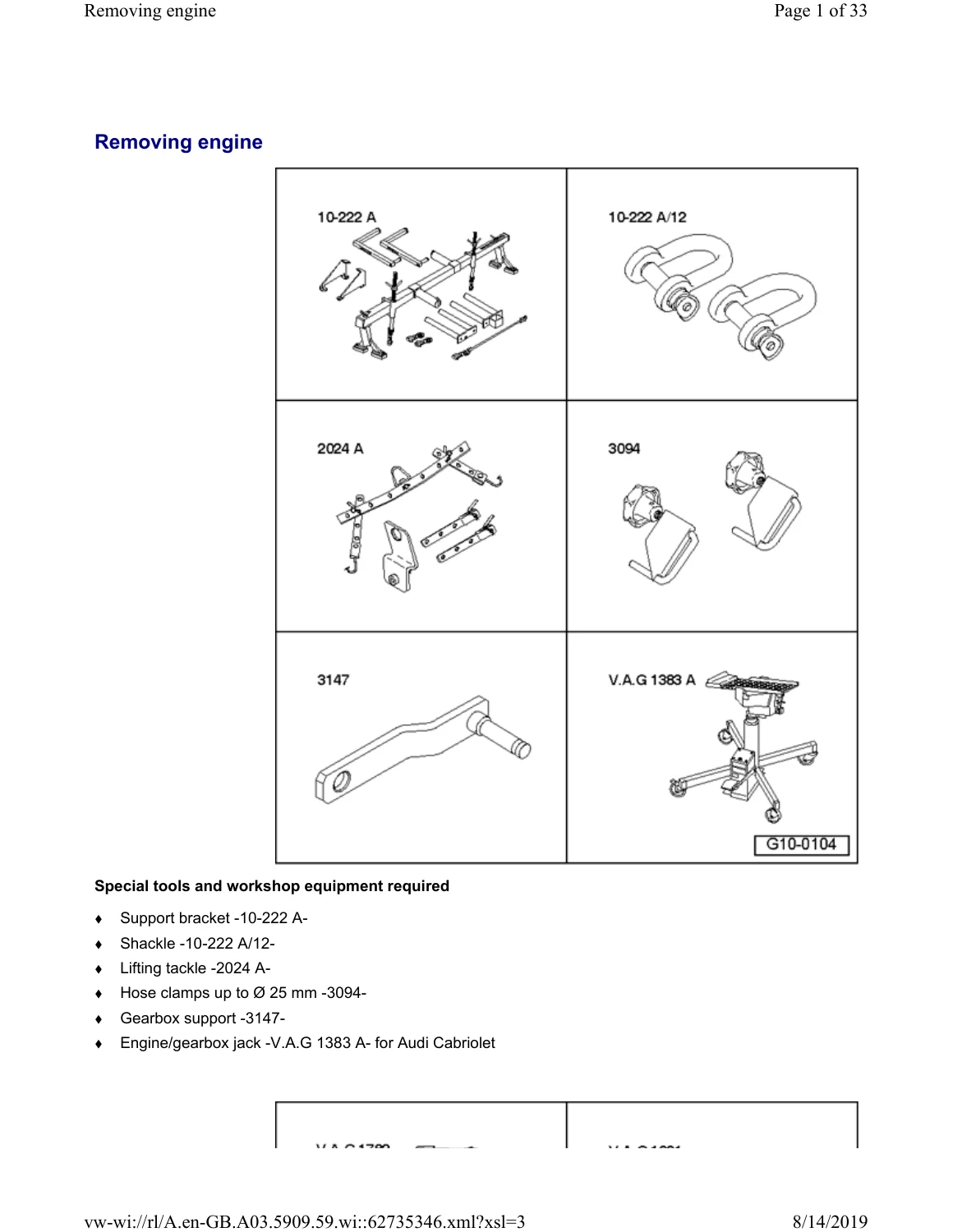

• Removing engine
• Installing engine
• Lock carrier – exploded view
• Moving lock carrier into service position
• Poly V-belt for alternator, power steering pump and air conditioner compressor
• Removing and installing poly V-belt
• Removing and installing vibration damper
• Removing and installing bracket for ancillaries
• Toothed belt drive – exploded view
• Removing, installing and tensioning toothed belt
• Detaching toothed belt from camshaft sprocket
• Removing and installing tensioner for toothed belt
• Renewing crankshaft oil seal (pulley end)
• Removing and installing sealing flange (front)
• Removing and installing dual-mass flywheel – manual gearbox
• Removing and installing flywheel – multitronic gearbox
• Removing and installing drive plate – automatic gearbox 01V
• Removing and installing sealing flange (rear)

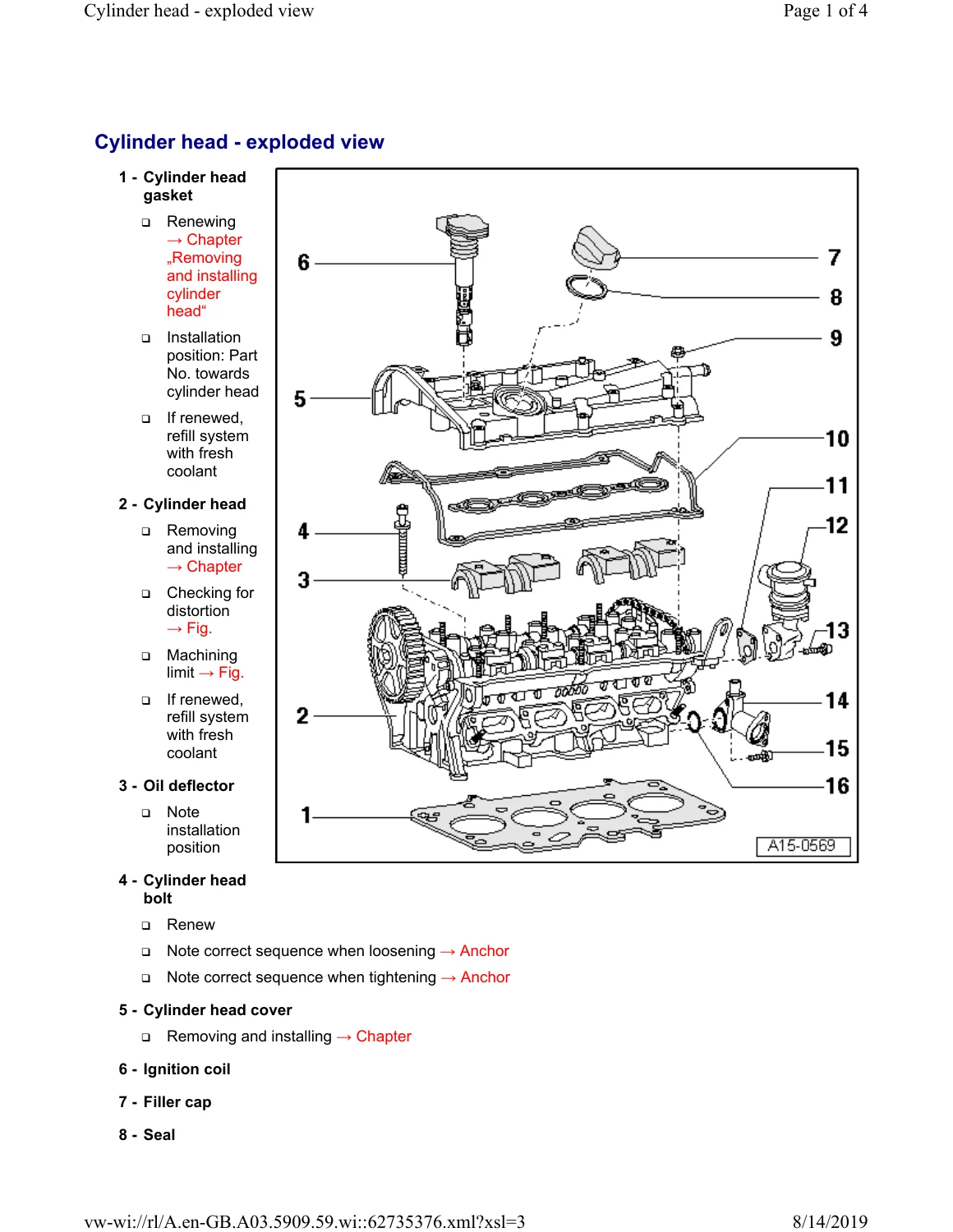

• Cylinder head – exploded view
• Removing and installing cylinder head cover
• Removing and installing cylinder head
• Checking compression
• Intake manifold – exploded view
• Removing and installing intake manifold
• Valve gear – exploded view
• Checking axial clearance of camshafts
• Renewing exhaust camshaft oil seal
• Renewing inlet camshaft oil seal
• Removing and installing camshafts and camshaft adjuster
• Renewing valve stem oil seals
• Checking hydraulic bucket tappets
• Checking valves
• Valve dimensions
• Machining valve seats
• Checking valve guides
• Pistons and conrods – exploded view
• Piston and cylinder dimensions

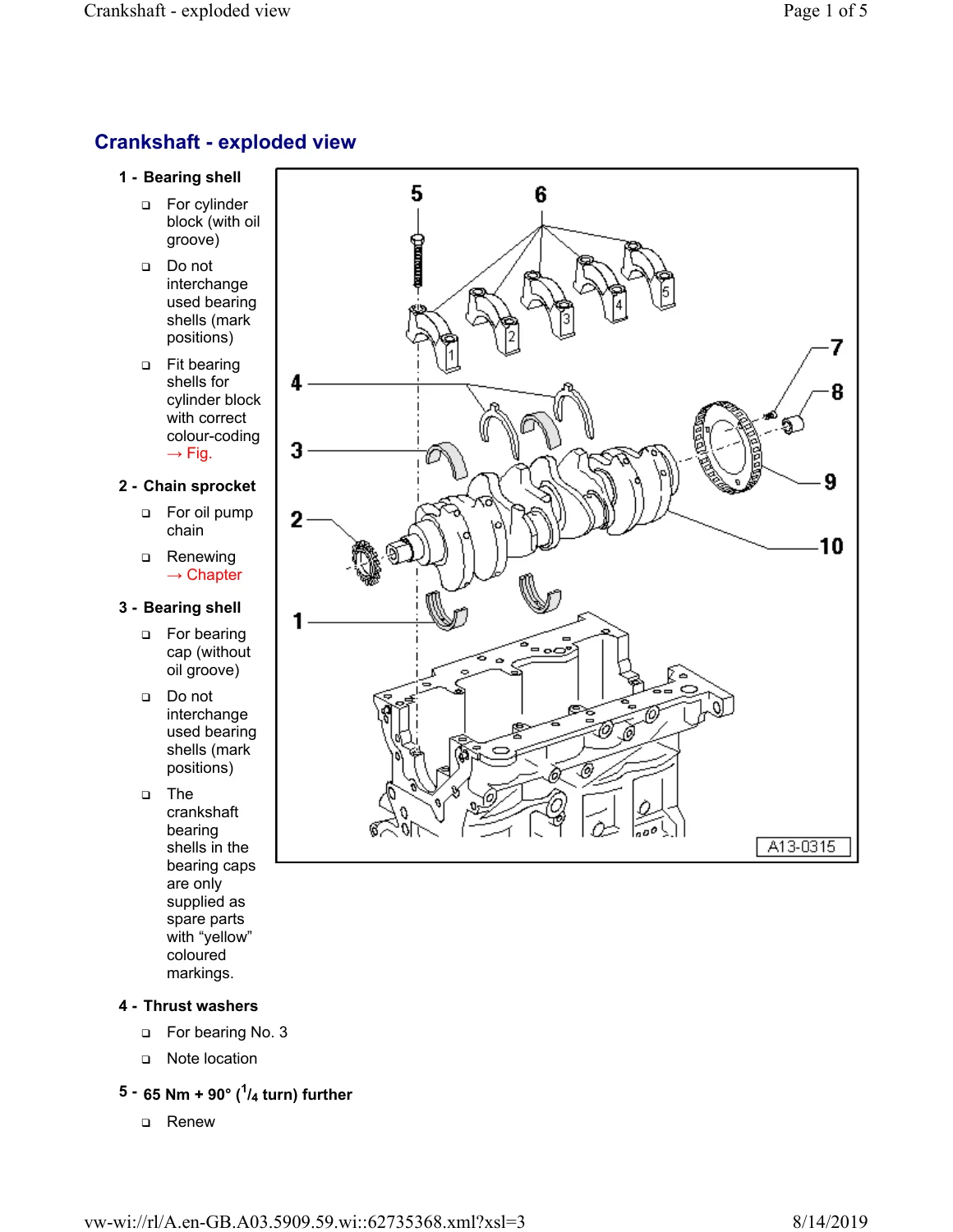

• Crankshaft – exploded view
• Crankshaft dimensions
• Extracting and driving in needle bearing for crankshaft
• Removing and installing chain sprocket
• Sump, oil pump – exploded view
• Removing and installing sump
• Removing and installing oil pump
• Oil filter and oil cooler – exploded view of components
• Removing and installing oil filter bracket

Taken as a whole, the manual gives a technician a complete internal engine reference for the 1.8T BFB: how to pull the engine from the front of the vehicle, strip it down through the cylinder head and valve gear, inspect pistons and crankshaft against factory honing dimensions, and put it all back together to the correct tightening torque at every stage.

Cylinder Head, Valve Train & Bottom End Detail

The cylinder head sections walk through removal and installation with the correct bolt-loosening and tightening sequence, plus a compression-check procedure with the minimum oil temperature and battery voltage conditions the test requires. The valve gear chapters cover camshaft axial clearance (wear limit 0.20 mm for both inlet and exhaust), camshaft and camshaft adjuster removal, and valve stem oil seal renewal, backed by a valve dimensions table giving head diameter, stem diameter, installed length and seat angle for both inlet and exhaust valves.

Lower down, the piston and cylinder dimensions table lists basic and first-undersize honing dimensions for the piston and bore, while the crankshaft dimensions table gives main bearing and conrod bearing journal diameters through three undersizes with their tolerance bands — exactly what’s needed when deciding whether a block can be reused or needs to go to a machine shop.

Why This Audi A4 B6 1.8T BFB Engine Manual Matters

Every major procedure in this Audi A4 B6 1.8T BFB engine workshop manual is backed by a tightening torque table, so bolts are torqued to the correct Nm value rather than guessed at — from the M6–M12 general bolt/nut torque chart to component-specific values like the dual-mass flywheel-to-crankshaft bolts (torque plus rotation angle, varying by bolt length) and the cylinder head cover bolts. Special tool numbers are called out for every job, letting a technician confirm what’s actually needed before starting a procedure such as a toothed belt change or a full engine pull.

Working from correct factory-style procedures and torque specs protects against comebacks: reused head bolts, an under-torqued flywheel, or a mismatched piston-to-bore clearance can all lead to expensive repeat failures on this engine. This Audi A4 B6 1.8T BFB engine workshop manual delivers as an instant PDF download — no shipping, no waiting. Read it on a laptop, tablet or phone in the workshop, or print out the pages you need for the job at hand.
