Audi Q7 2007 3.0 TDI Common Rail Workshop Manual – BUN BUG Engine Repair Guide

Description

Audi Q7 2007 3.0 TDI Common Rail Workshop Manual

This Audi Q7 2007 3.0 TDI Common Rail Workshop Manual is a dedicated engine repair manual built specifically around the 6-cylinder 3.0 litre 4-valve common rail diesel engine, covering engine codes BUN and BUG. Issued as Edition 01.2006, this workshop manual walks a technician through the mechanical side of the powertrain from the pulley end right through to the exhaust system, using the same repair-group structure and torque data a dealership workshop would reference.

File Details

• Manual type: Workshop / repair manual (mechanics)
• Brand and model: Audi Q7, 2007 model year
• Engine: 6-cylinder TDI, 3.0 ltr, 4-valve common rail, codes BUN / BUG
• Edition: 01.2006
• Language: English
• Page count: 228 pages
• File format: PDF

Chapters Covered

• 00 – Technical data
  • Engine number and engine data
  • General repair instructions and fuel system cleanliness rules
• 10 – Removing and installing engine
  • Removing engine
  • Separating engine and gearbox
  • Securing engine to assembly stand
  • Installing engine
• 13 – Crankshaft group
  • Servicing work on pulley end
  • Servicing work on timing chain end
  • Measuring radial clearance
  • Dismantling and assembling pistons and conrods
• 15 – Cylinder head, valve gear
  • Removing and installing cylinder head
  • Cylinder head cover, exploded view of components
  • Checking compression
  • Servicing valve gear
• 17 – Lubrication
• 19 – Cooling
  • Removing and installing coolant circulation pump
  • Removing and installing radiator, radiator fans and fuel cooler
  • Checking cooling system for leaks
• 21 – Turbocharging/supercharging
• 26 – Exhaust system
  • Removing and installing intermediate pipes
  • Exhaust gas recirculation system, exploded view of components
  • Removing and installing EGR valve and EGR cooler

Taken as a whole, this Audi Q7 workshop manual gives a technician everything needed to plan and carry out a full engine-out job on the 3.0 TDI common rail engine: correct removal sequence, torque values at every stage, and the exploded parts views needed to reassemble the crankshaft group, cylinder head and cooling circuit correctly the first time.

Engine Data at a Glance

• Capacity: 2.967 ltr
• Bore / Stroke: 83.0 mm / 91.4 mm
• Compression ratio: 17
• Firing order: 1-4-3-6-2-5
• Features: Turbocharging, exhaust gas recirculation, self-diagnosis, charge air cooling and lambda control all fitted as standard on this engine family

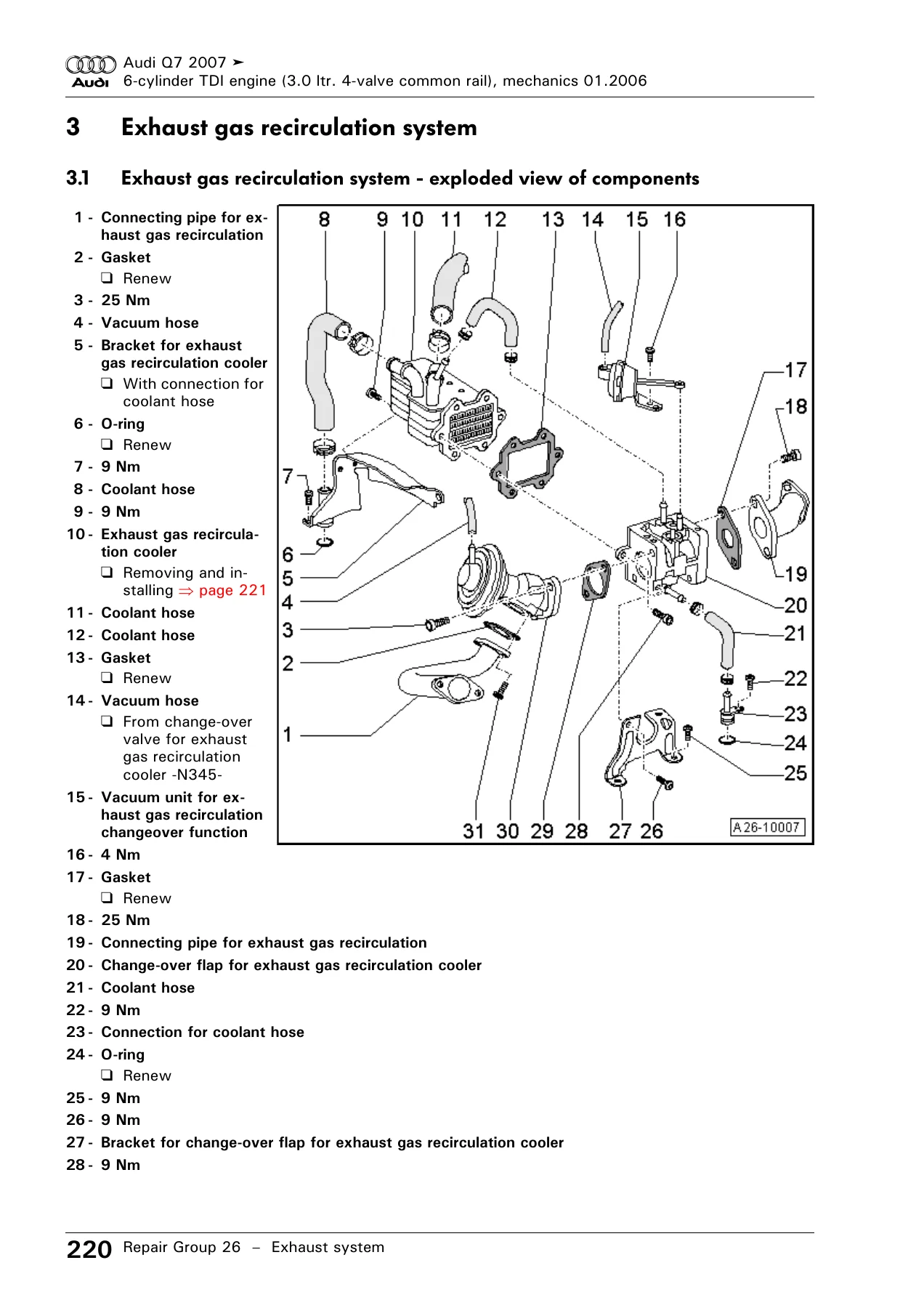

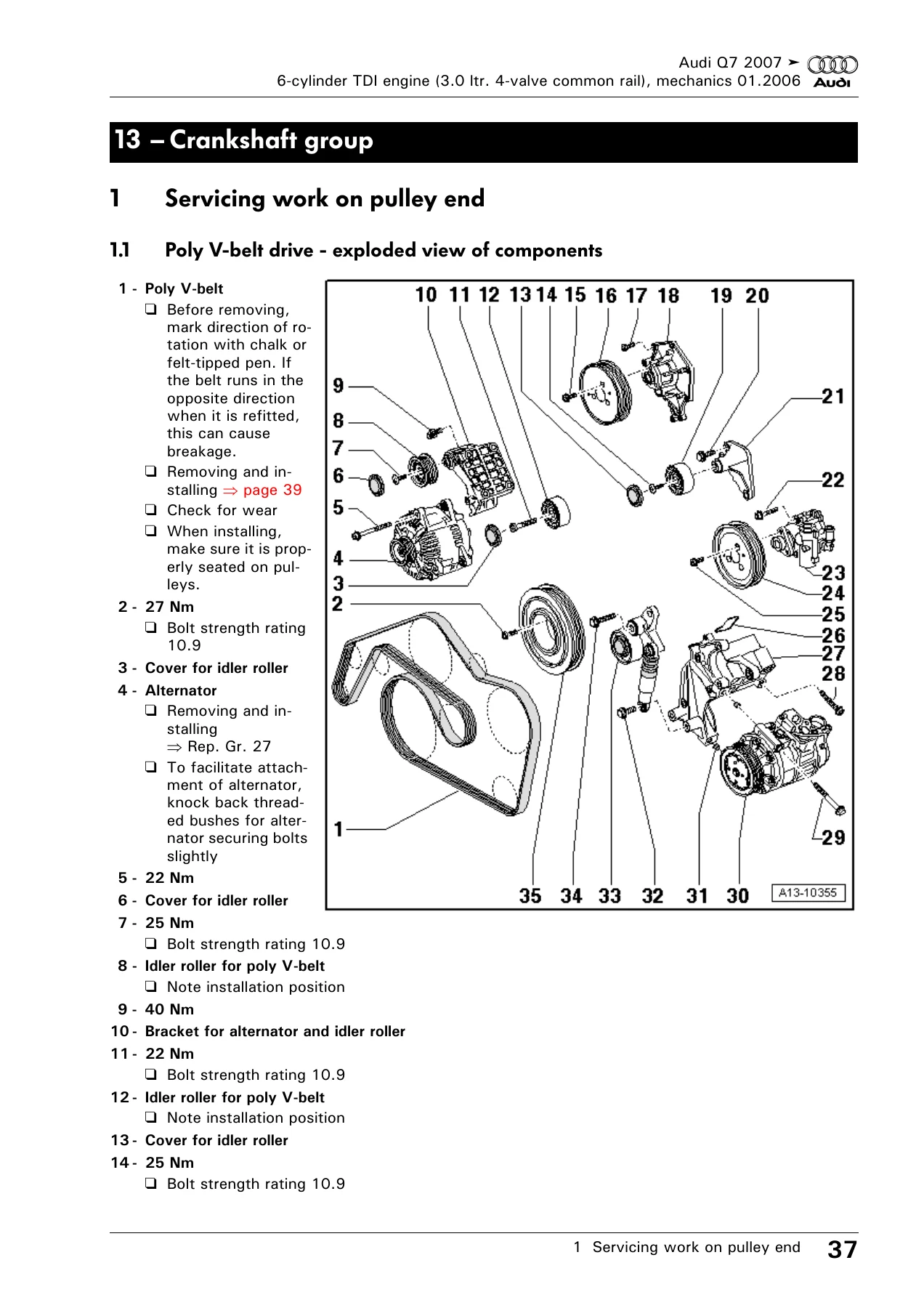

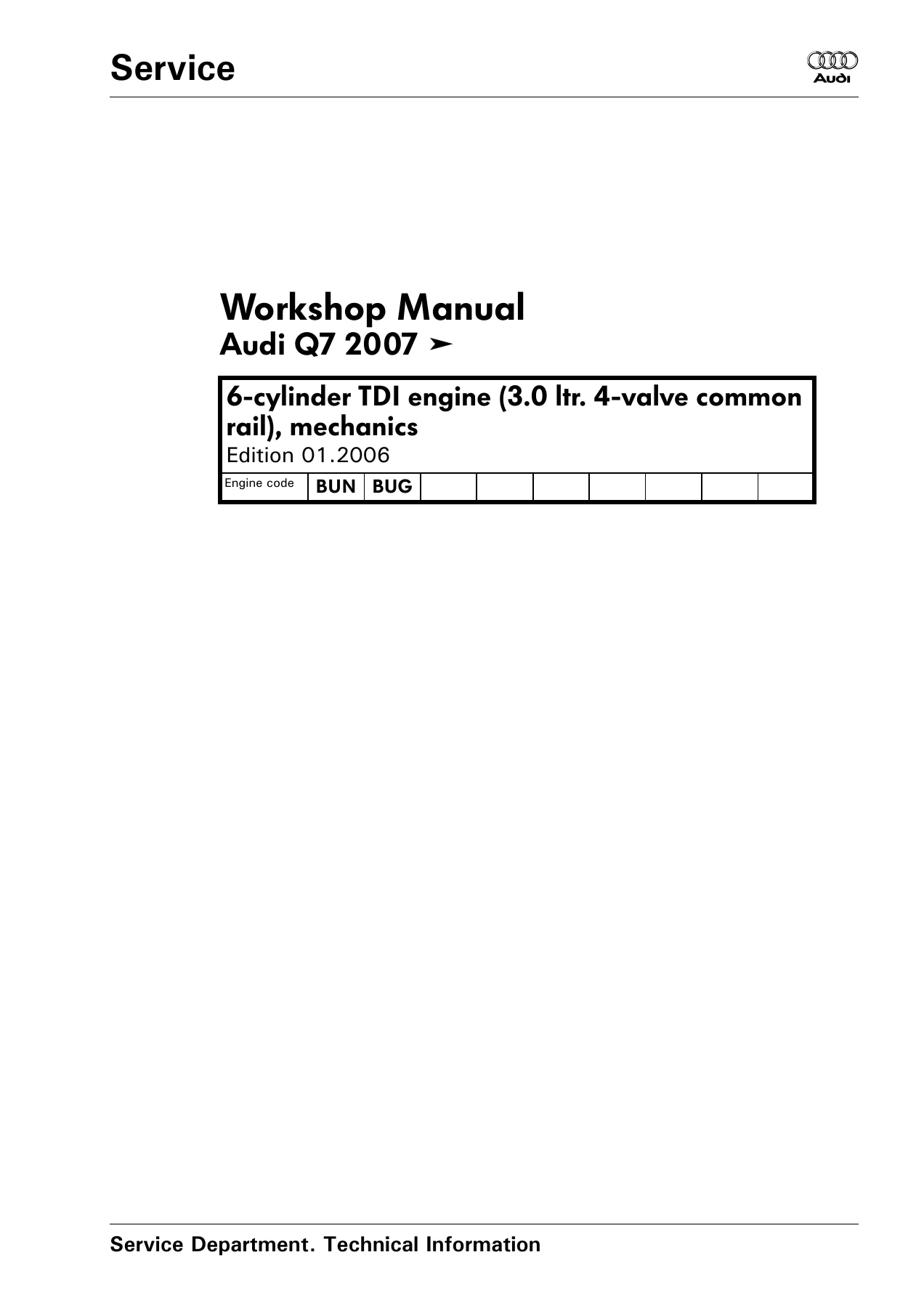

IMAGES PREVIEW

Why Technicians Rely on This Audi Q7 TDI Workshop Manual

With this Audi Q7 2007 3.0 TDI Common Rail Workshop Manual on hand, you can remove and refit the engine and gearbox as an assembly, work through the crankshaft group and pistons/conrods with the correct clearances, service the cylinder head and valve gear, and carry out cooling and exhaust system repairs including the EGR valve and cooler, all to the specified torque settings. Using the correct procedures and torque figures protects the engine from avoidable damage and keeps the repair to the standard the BUN/BUG common rail engine was designed for. The manual downloads instantly as a PDF after purchase, needs no shipping, opens on a phone, tablet, laptop or workshop PC, and can be printed a page at a time for bench use.
