Bell 315SL Backhoe Loader Parts Manual 874189 Rev A Illustrated Parts Catalog Download

Description

Bell 315SL Backhoe Loader Parts Manual

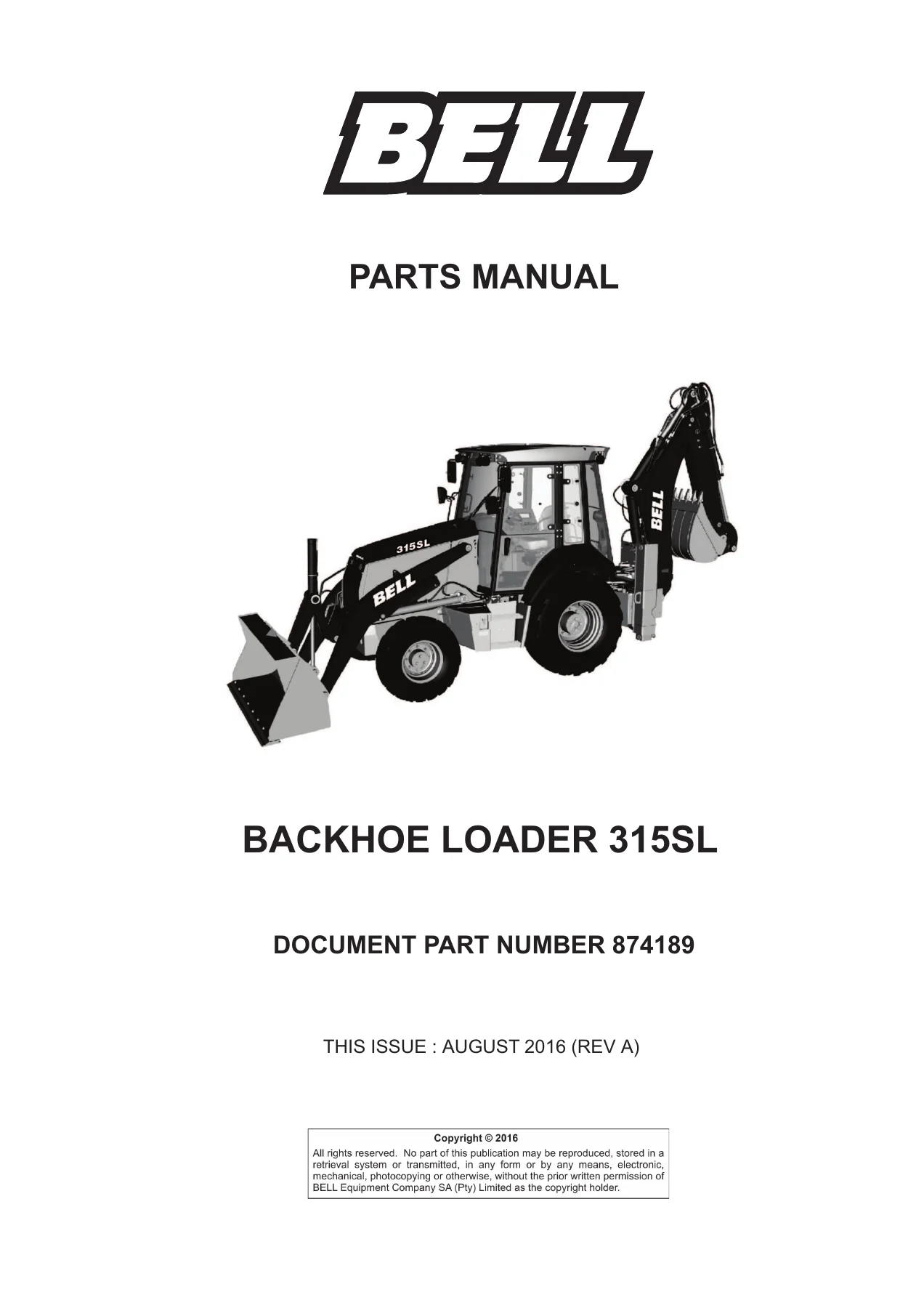

The Bell 315SL Backhoe Loader Parts Manual is the illustrated parts catalogue for the Bell 315SL backhoe loader, published by Bell Equipment as document 874189, Revision A, dated August 2016. It breaks the machine down assembly by assembly into exploded-view illustrations paired with parts lists that carry item numbers, Bell part numbers, quantities, descriptions and serial-number break notes. When you need to rebuild a transmission, replace a hydraulic hose, source a final-drive bearing or identify one bushing in the loader linkage, this Bell 315SL Backhoe Loader Parts Manual gives you the number that matches your machine.

File Details

• Manual type: Illustrated parts manual / parts catalogue
• Brand: Bell Equipment
• Model covered: 315SL Backhoe Loader
• Document part number: 874189
• Revision: Rev A
• Issue date: August 2016
• Language: English
• File format: PDF
• Page count: 622 pages

Chapters Covered

• General Information — page layout, list of abbreviations, ordering of parts, bulletins, machine dimensions, serial number plates, service kits, PIN identification
• Group 0100 — Wheels: front and rear wheel sets for 4X4 and 4X2, industrial, heavy-duty and agricultural tyres, rims, valves, nuts and washers
• Group 0200 — Axles, Diffs & Suspension: drive axle housing and support, final drives, differential and bevel drive, fixed tread axle, powered wheel axle, axle mounting parts, lines, hoses and fittings
• Group 0300 — Transmission: controls, input drive shafts and U-joints, housings, covers and complete transmissions, torque converter, input shaft and clutch packs, transmission mounting parts
• Group 0400 — Engine: 4045TT096 diesel — rocker arm cover, oil filler neck, crankshaft pulley, flywheel housing, flywheel, fuel injection pump, air intake, oil pan, water pump pulley, thermostat, exhaust manifold, starter motor, fuel filter, front plate, fuel transfer pump, dipstick, timing gear cover, balancer shaft, cylinder block, crankshaft and bearings, connecting rods and pistons, rocker arm and push rods, oil pump, cylinder head, water pump inlet, oil cooler, alternator mounting, fuel lines, turbocharger, sensors, belt tensioner, oil filter and lift straps
• Group 0500 — Engine Auxiliary System: cold weather starting aids, engine cooling system, radiator, fan and fan drive, engine speed controls, air cleaner and piping, muffler and exhaust pipe, main engine mount, external fuel supply system and engine electronics
• Group 0900 — Steering System: fixed steering column, steering valve and control, steering lines, hoses and fittings for machines with and without mechanical front wheel drive
• Group 1000 — Service Brakes: service brake valve, brake valve assembly, brake pedals, service brake links, hoses and fittings and brake valve boost hydraulics
• Group 1300 — Miscellaneous Vehicle: decals and labels
• Group 1600 — Vehicle Electrical Systems: batteries, support and cables, alternator, regulator and charging system wiring, vehicle lighting system, wiring harnesses and switches, Fleetmatic antenna and module options, system controls including vehicle control unit, display monitor and auxiliary valve controller
• Group 1700 — Frame, Chassis or Supporting Structure: engine or main frame, chassis weights and counterweight kits
• Group 1800 — Operator’s Station: noise control items, ROPS/FOPS/OPS and body frame, roof and lights, headliners, cab doors and glazing, rear cab windows, windshield and wipers, floormat, instrument and control mounting structure, console, seat and seat belts, heating and air conditioning, heater hoses and controls, air conditioner compressor and drive, condenser, evaporator and lines
• Group 1900 — Sheet Metal and Styling: hood or engine enclosure, miscellaneous shields, grille and grille housing, fenders
• Group 2000 — Safety, Convenience and Miscellaneous: mirrors, fire extinguisher, warning devices including horn and reverse alarm, sun visor, locking bar
• Group 2100 — Vehicle Main Hydraulic System: hydraulic pumps and drives, hydraulic lines and hoses, hydraulic reservoir, filter and cooler
• Group 3100 — Loader: buckets, multi-purpose bucket, loader bucket pins, control linkage, moveable frame, bucket loader linkage, control and load holding valves, lines, hoses and fittings, hydraulic cylinders, automatic control function
• Group 3300 — Backhoe and Excavator: buckets, controls linkage, moveable frame, boom, bucket linkage, dipperstick, stabilizers, control and load holding valves, lines, hoses and fittings, hydraulic cylinders

IMAGES PREVIEW

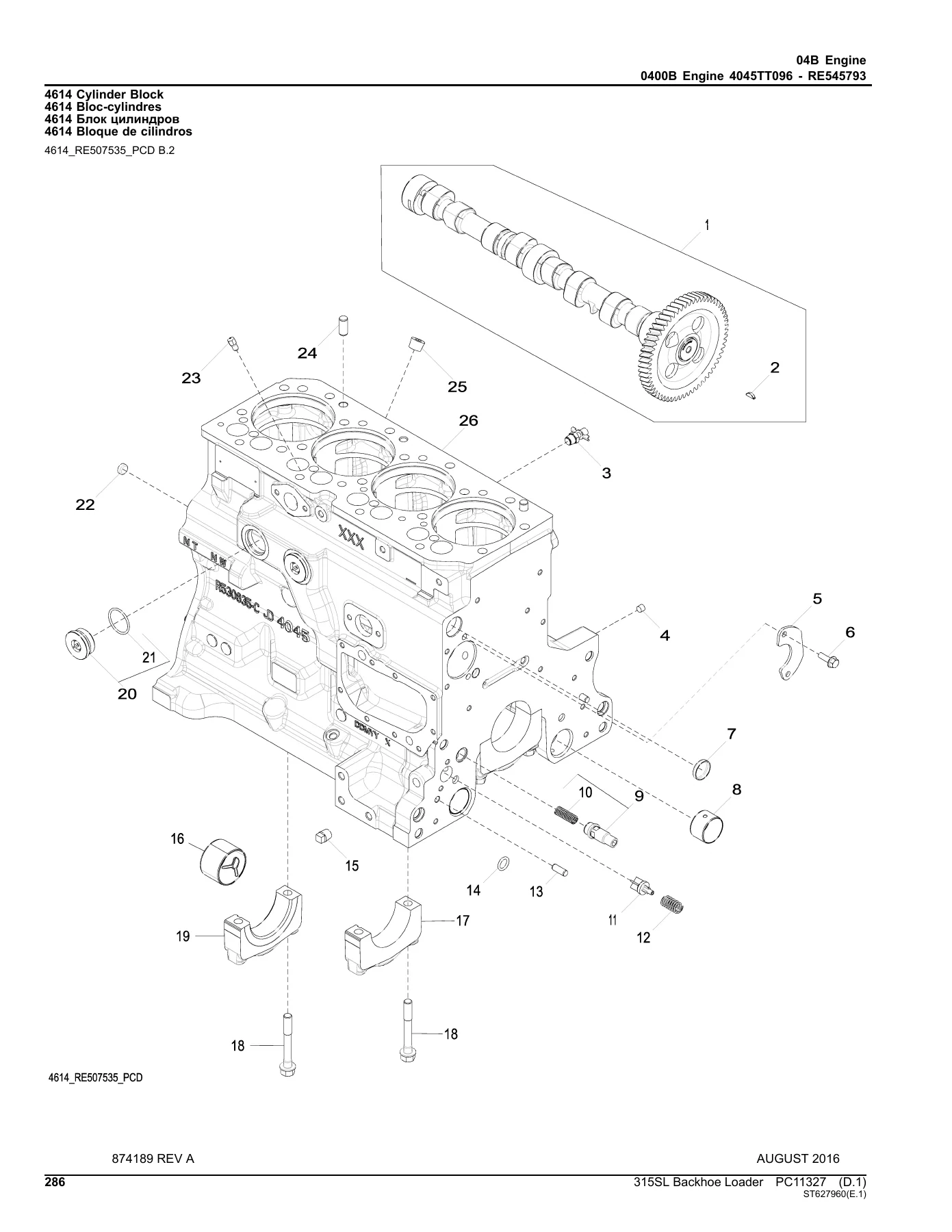

The catalogue spans every major system on the 315SL. Loader and backhoe work is covered right down to individual pins, bushings, wear plates and snap rings; the driveline chapter carries full final-drive and differential breakdowns; and the engine section documents the 4045TT096 diesel in complete sub-assemblies from the cylinder block up to the turbocharger and injection pump. Each illustration is a numbered diagram referenced to the accompanying parts list, so a technician can follow a component all the way down to the smallest replaceable item.

How the Parts Data Is Organised

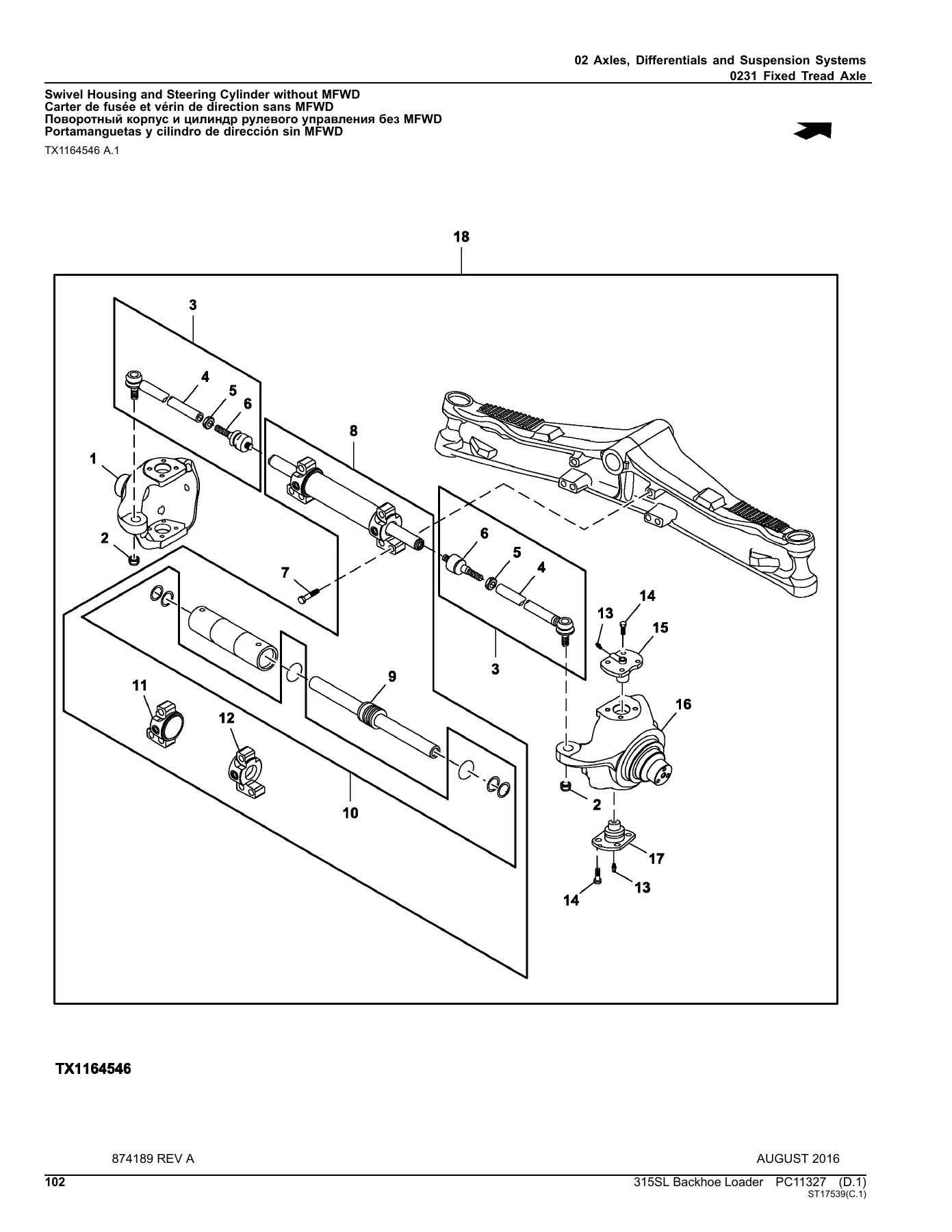

Each section follows the same structure: an illustration on one page and a corresponding list on the next, with item callouts cross-referenced to part number, quantity, description and any relevant notes. Serial breaks are printed against the affected parts so you can see whether a component applies to your machine or was superseded at a specific machine serial number. Revision levels are printed on the page footer, and any part that has been updated carries a higher revision marker so you know the page you are reading reflects the latest published state at the time of issue.

The general information chapter explains the PIN structure used on Bell equipment, using a worked example, so you can decode your own machine’s identification number and match the correct serial breaks. It also includes the ordering procedure — the information Bell needs to fill a parts order — and a list of abbreviations used throughout the catalogue.

Service Kits and Maintenance Intervals

A consolidated table lists the parts required for the 315SL at 100/250-hour, 500-hour, 1000-hour and 2000-hour service intervals, including engine oil filter, fuel filter element, fuel tank breather, transmission filter, main hydraulic filter, hydraulic tank breather, air filter primary and secondary elements, cab air filters, poly-rib belt and rocker arm cover gasket. The service kit numbers are printed alongside, so a scheduled service can be planned without working through the whole catalogue.

Who This Bell 315SL Parts Manual Is For

This is a working parts reference for anyone maintaining or repairing a Bell 315SL backhoe loader: owners, fleet workshops, independent mechanics and parts departments. It suits the person who needs to place an accurate order the first time, and the technician who wants to see how an assembly goes together before stripping it. Because the manual covers the 4045TT096 engine, the full transmission, both axles, the loader and the backhoe, it can serve as the single parts reference for the whole machine rather than a collection of separate system catalogues.

Get Your Bell 315SL Backhoe Loader Parts Manual

With the Bell 315SL Backhoe Loader Parts Manual on hand, you can identify and order the correct component for engine, transmission, hydraulic, electrical, loader or backhoe work without guesswork or return shipments. Correct part numbers keep a repair moving and avoid the cost of ordering the wrong seal, bearing or pin. The manual is delivered as an instant PDF download after checkout — no shipping, no waiting — and can be opened on a laptop, tablet or phone in the workshop and printed for the pages you need at the bench.
