Bell B35D B40D Articulated Dump Truck Parts Manual 872386 Rev A.3 – PDF Download

Description

Bell B35D B40D Articulated Dump Truck Parts Manual 872386 Rev A.3

This Bell B35D B40D Articulated Dump Truck Parts Manual is the complete parts catalogue for the Bell B35D and B40D ADT models built to PIN 7.3 specification. Document number 872386, Revision A.3, originally issued April 2014 and amended February 2015, covers both Tier 3B and iT4 engine variants. Whether you are ordering a single replacement fastener or rebuilding an entire axle assembly, this Bell ADT parts manual gives you the exact part numbers, exploded diagrams, and numerical index needed to identify and order the correct components for your machine.

File Details

• Manual Type: Parts Manual (Parts Catalogue)
• Brand: Bell Equipment
• Models Covered: B35D ADT, B40D ADT
• Document Number: 872386
• Revision: Rev A.3
• First Issue: April 2014
• Amended: February 2015
• Language: English
• File Format: PDF
• Page Count: 828 pages

Models and PIN Coverage

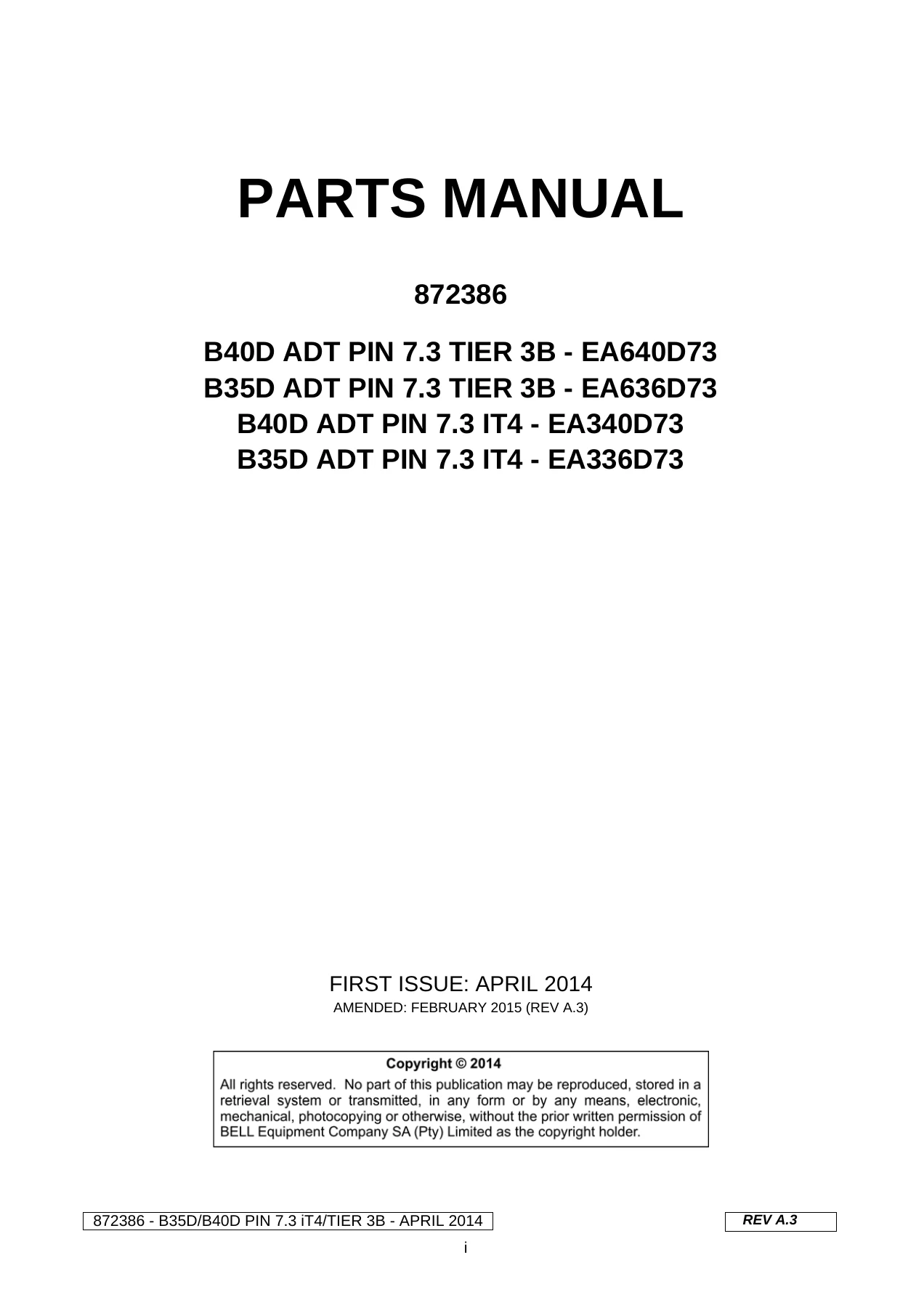

This Bell B35D B40D parts manual covers the following machine configurations as printed on the title page:

• B40D ADT PIN 7.3 TIER 3B — EA640D73
• B35D ADT PIN 7.3 TIER 3B — EA636D73
• B40D ADT PIN 7.3 IT4 — EA340D73
• B35D ADT PIN 7.3 IT4 — EA336D73

Both the Tier 3B and iT4 engine variants are covered in the same volume, so you can use this Bell parts manual across the full range of B35D and B40D machines that fall within these PIN families. The manual is particularly useful when you need to confirm which parts are common across variants and which are specific to a particular engine tier or model.

Chapters Covered

The manual is divided into twelve clearly indexed sections, each with illustrated breakdowns and corresponding parts lists:

• Section 1: General Information — Introduction, machine identification, PIN structure, ordering information, dimensions and specifications
• Section 2: Engine – Tier 3B — Engine and misc components (B35D and B40D iT4/Tier 3B), crankcase, timing case, oil pan and dipstick, cylinder head, decompression valve pipe, crankshaft and flywheel, connecting rods and pistons, camshaft, injection pump, fuel lines, fuel filter, turbocharger, air compressor, intake manifold and flame start, exhaust manifold, exhaust brake manifold, AdBlue metering unit and pump module, starter motor, alternators, electrical equipment, oil pump, oil filter and cooler, oil lines, water pump, fan, belt tensioner, engine support, AdBlue preheating, P.T.O., air conditioner compressor, catalyst, engine cooling system, radiator, fuel system kit, handlift pump and pre-filter, fuel-water filter unit, Filter 2000 (optional), depth fuel filter, exhaust after-treatment system, bin heating kit, exhaust stand, air intake kit, air cleaner and pre-cleaner assembly
• Section 3: Drivetrain — Transmission kit, main housing, fill tube, main shaft, flange, front support and oil pump, P1/P2/P3 planetary assemblies, control valve (parts 1 and 2), oil cooler, torque converter, rotating clutch, converter housing, rear cover, cooler box and fan assembly, transfer case / drop box and mountings, drop box casing, input shaft assembly, idler shaft assembly, rear output shaft assembly, front output diff assembly, drop box filtration system, driveline kit, propshafts, coupling PTO, thru drive kit, park brake mounting and assembly, actuator assembly, axles (front, middle, rear WDB), axle drain and filler plugs, calipers, final drive kits for rear and caliper axles, wet disc brake kits, brake plates, wet disc brake pump, disc brake calipers, differential assemblies, wheel sets options, axle guards, and more
• Section 4: Hydraulics — Hydraulic valve assembly, hydraulic block and valve positions, tip section, mounting/cover kit, accumulator supply pipe, hydraulic cooler, fan motors (Rexroth and Parker), hydraulic pump assembly and breakdown, HP filter (Rexroth and Parker), check valve manifold, emergency steering pumps (Rexroth and Parker), bi-directional emergency steering pump, damper assembly, steering hydraulic assembly, steering cylinder, front suspension (Comfort Ride and standard), suspension struts, damping valve, suspension manifold, filtration kit for WDB, accumulator kits, hydraulic kit for cab, steering control valve (Eaton), brake pedal, cab tilt system, rear chassis hydraulic kit, tip cylinder
• Section 5: Pneumatics — Pneumatic kit (front chassis, rear chassis, cab assembly), SCR assembly, fan purging kit, purge tank valve, reservoir kit, air dryer kit and repair kit, pneumatic valve assembly, air horn (optional)
• Section 6: Electrical — Cab harness (details A, B, C), fuse and relay panel components, windscreen wiper kit, rear wiper option, transmission harness, rear view mirror kit and mirrors, load lights, air horn, beacon, work lights, reverse lights, memory module, radio, reverse monitor, emergency brake, engine harness, artic harness, BLU@VANTAGE electrical assembly, cold start option, light breakdowns, battery box, suspension system, rear harness, OBW (on-board weighing), strain gauge kit, and a comprehensive connector reference spanning nine sheets
• Section 7: Frame and Body — Bonnet kit, cab complete and cab shell, cab door assembly, window guards and handrails, cab mountings, cab windows, rear view mirror brackets, HVAC door, cab insulation, bottom seals, window catches, roof interior liners, floor mat and pillar covers, operator and trainer seat installation, seat assembly, air ducting, aircon drier unit and piping, aircon unit, aircon system for front chassis, VOAC mounting and cover kits, grill kits, belly plate kit, front chassis kit, cab clamps kit, front and rear chassis clamps, fuel tank, full handrails, mudguard kits, hydraulic tank and battery box kit, hydraulic tank filter assembly, front suspension (standard and Comfort Ride), oscillation joint kit, artic joint, rear chassis kit, bin pivot, bin miscellaneous parts, rear suspension (standard and Comfort Ride), walking beam, wet disc brake tank and filter assembly, tailgate kit, bin liner kit, front and rear chassis grease kits, manual greasing kit, tailgate grease kit, decals (four sheets)
• Section 8: Service Kits — 100HR, 500HR, 1000HR, 2000HR and 4000HR service kits for dry and all conditions, with and without auto grease, covering filters, elements, gaskets, belts, and conversion kits
• Section 9: Lubricants, Adhesives and Paints — Recommended lubricants and fluids, ambient temperature ranges, daily check list, recommended adhesives and paints with procedures
• Section 10: Special Tools — Engine OM 501 service tool kits (262126, 262130, 262131, 262132), Allison transmission tools, gear ratio 17000 transfer case tools, axles/diffs/final drives repair and overhaul tools, suspension tools, hydraulics tools, frame and oscillation tools, diagnostic tools (driveline), tyre inflation kit (optional)
• Section 11: Automatic Greasing System — Auto greasing kit (optional), greasing system hoses layout, main lines installation, front/middle/rear twin distribution port blocks, GINA programming kit, twin pump components
• Section 12: Numerical Index — Complete alphabetical and numerical part number index for quick lookup across the entire manual

What This Parts Manual Gives You

This Bell B35D B40D parts catalogue is not a generic reference — it is the exact document Bell Equipment produced for these machines. Every illustrated breakdown is accompanied by a parts list that includes item numbers, Bell part numbers, quantities, descriptions, and model applicability columns so you can see at a glance whether a part fits the B35D, the B40D, or both, and whether it applies to Tier 3B or iT4 variants. The exploded views show how components assemble and disassemble, which is invaluable when you are working on a repair and need to identify a specific seal, bearing, fastener, or bracket that is not obvious from a parts list alone.

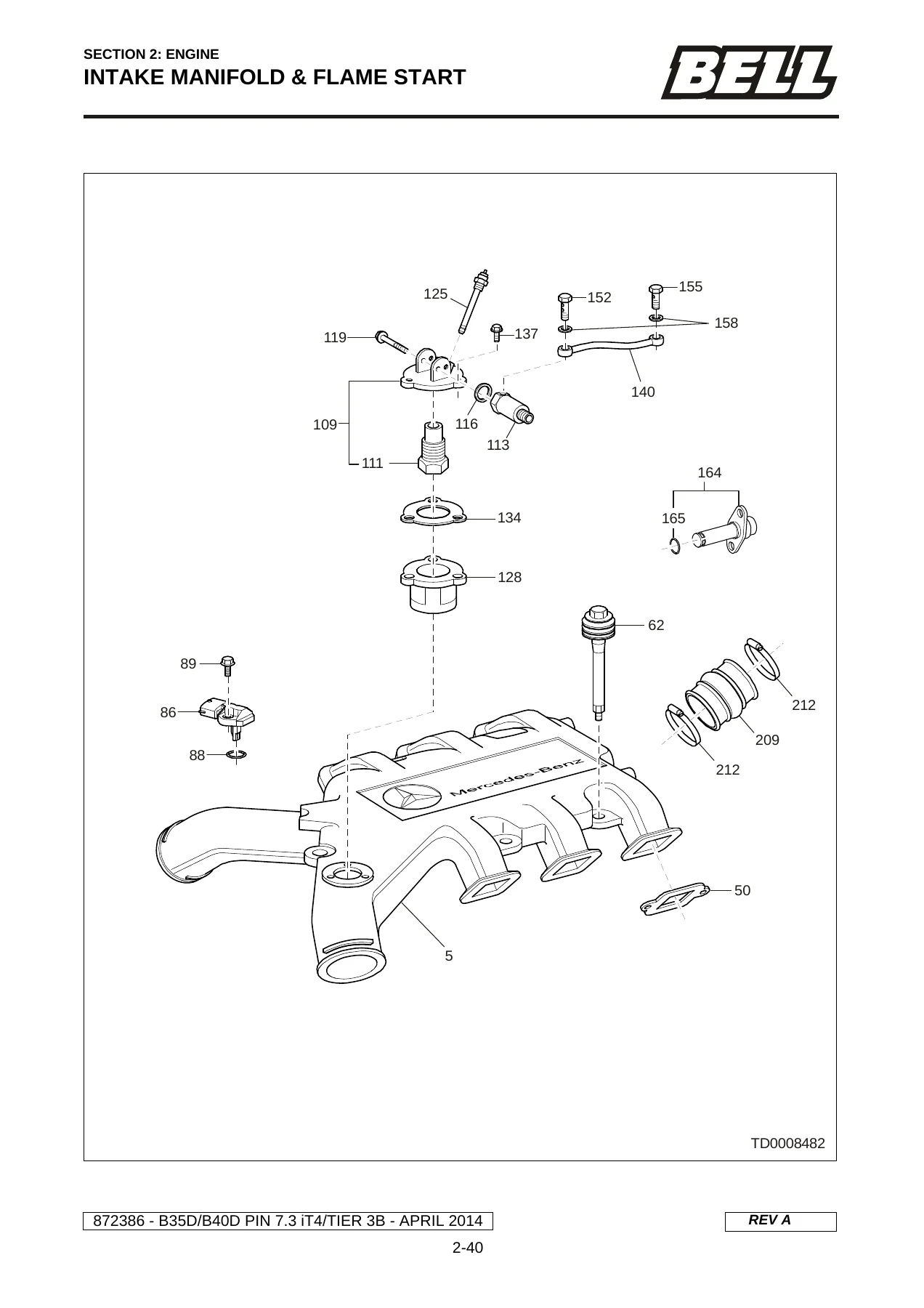

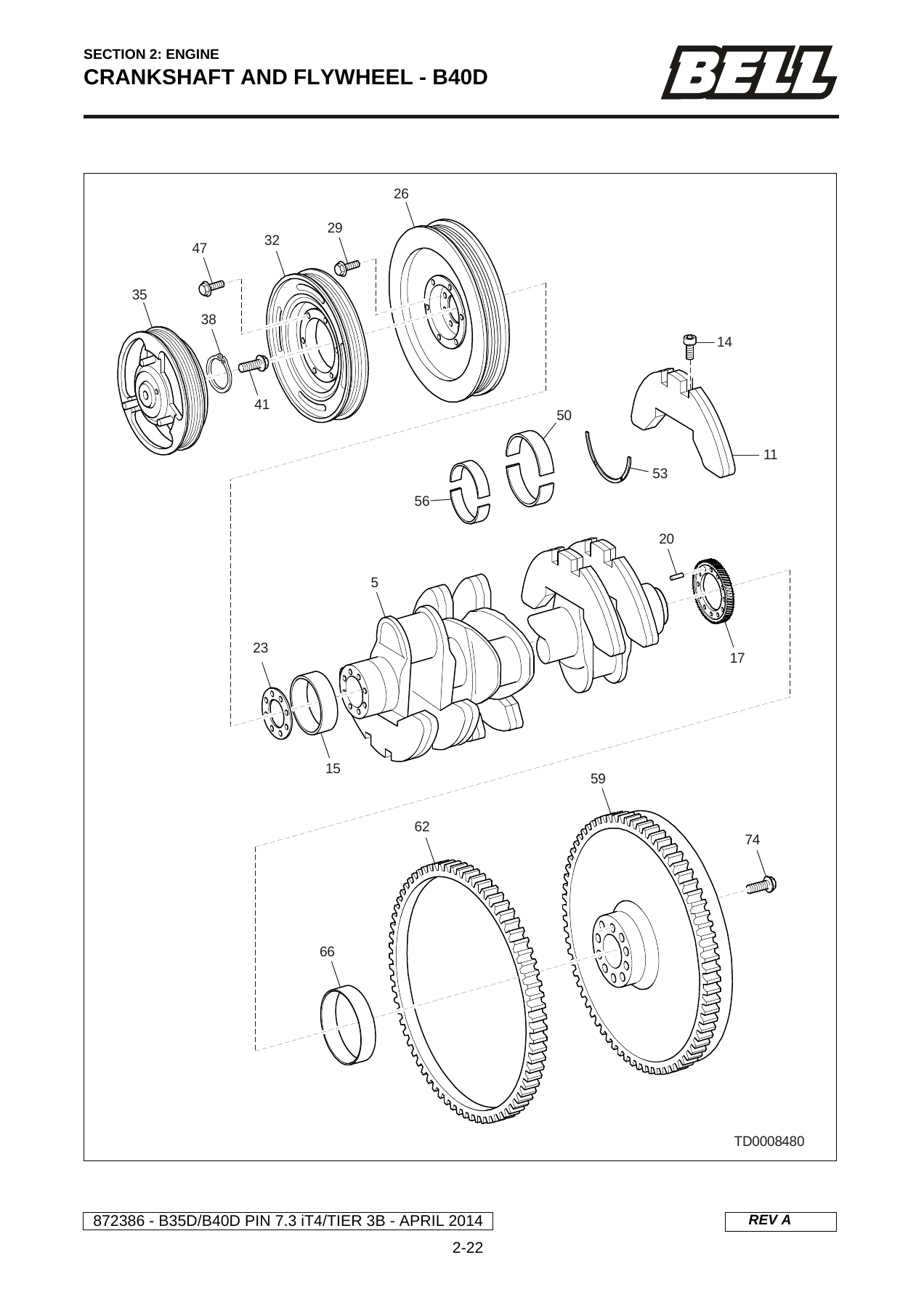

IMAGES PREVIEW

Because this is a parts manual, it does not contain repair procedures, torque specifications, or diagnostic steps — those belong in the workshop/service manual. What it does contain is the complete part number architecture for the machine, organised by assembly and system, with enough visual detail to make identification straightforward. If you maintain a fleet of Bell ADTs, run a workshop, or own a B35D or B40D and want to order parts with confidence, this manual removes the guesswork. You will find the right part number the first time, reduce downtime waiting for incorrect parts, and avoid the cost of ordering components that do not fit your specific PIN configuration.

Who This Manual Is For

This Bell B35D B40D Articulated Dump Truck parts manual is compiled for machine owners, fleet maintenance managers, workshop technicians, parts interpreters, and procurement teams who need accurate Bell part numbers for the B35D and B40D ADT. It is equally useful for independent repair shops that service Bell equipment and need to cross-reference components without relying on a dealer. The numerical index at the back of the manual allows you to search by part number if you already have a number in hand, while the illustrated sections let you browse by assembly if you are starting from a visual identification.

Why Choose This Bell Parts Manual

Having the correct parts manual for your machine means fewer ordering errors, faster repairs, and a clearer understanding of how systems are put together. The Bell B35D B40D ADT is a complex machine with multiple sub-assemblies — engine, transmission, drop box, axles, hydraulics, pneumatics, electrical, and structural components — and this manual breaks all of them down into manageable, illustrated sections. The revision A.3 amendment ensures you are working from the most up-to-date parts information available for these PIN ranges, including the iT4 and Tier 3B engine variants.

Unlike a generic parts catalogue that may only cover one model or one engine tier, this document covers both the B35D and B40D in a single volume, spanning Tier 3B and iT4 configurations. That makes it a practical, long-term reference for mixed fleets and workshops that see multiple Bell ADT variants. The inclusion of service kits, special tools, lubricants, and the automatic greasing system in the same manual means you have a single PDF that answers most parts-related questions about these machines.

Instant PDF Delivery

This Bell B35D B40D parts manual PDF is available for immediate download after purchase. There is no shipping, no waiting for a physical book, and no risk of a damaged or lost parcel. The file can be viewed on any device — desktop, laptop, tablet, or smartphone — and you can print the pages you need for the workshop or keep the entire 828-page document on a USB drive for quick reference. Whether you are at the machine, in the office, or ordering parts remotely, the manual is available wherever you are. Download it once and you have permanent access to the complete Bell parts catalogue for your B35D or B40D ADT.
