Bell B45D & B50D MK 7 ADT Parts Manual 2012 – Illustrated PDF
Original price was: $39.95.$24.95Current price is: $24.95.
Illustrated parts manual for Bell B45D and B50D MK 7 Articulated Dump Trucks. Document 872311, Rev-A January 2012. Covers Tier 2 and Tier 3 engines, drivetrain, hydraulics, electrical, frame and body, plus a full numerical index.
Description

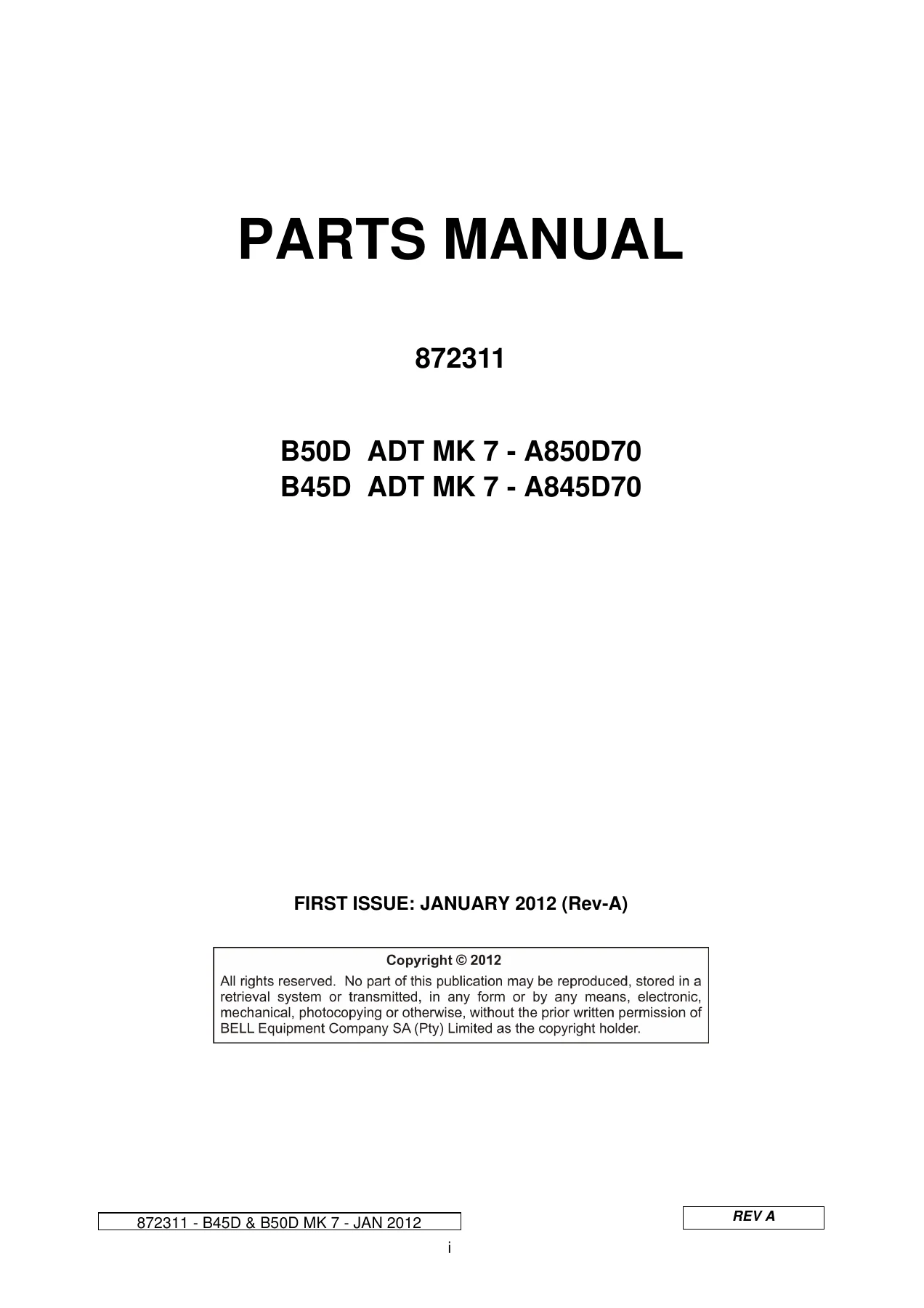

Bell B45D & B50D MK 7 ADT Parts Manual — 872311
This is the illustrated parts manual for the Bell Equipment B45D and B50D MK 7 Articulated Dump Trucks, covering the A845D70 and A850D70 variants. Published under document number 872311, First Issue January 2012 (Rev-A), this manual provides the complete parts breakdown and ordering information for maintaining your Bell ADT.
File Details
- Manual Type: Illustrated Parts Manual
- Brand: Bell Equipment
- Models: B45D & B50D MK 7 (A845D70 / A850D70)
- Document Number: 872311
- Edition: First Issue, Rev-A
- Date: January 2012
- Language: English
- File Format: PDF
Chapters Covered
- Section 1: General Information
- Section 2A: Engine — Tier 2 (Mercedes-Benz OM502LA)
- Section 2B: Engine — Tier 3 (Mercedes-Benz OM502LA)
- Section 3: Drivetrain — Transmission, Transfer Case, Axles, Driveline, Park Brake
- Section 4: Hydraulics — Hydraulic Block, Pumps, Accumulators, Steering, Suspension, Brakes, Tip Cylinders
- Section 5: Pneumatics — Air Dryer, Reservoirs, Front and Rear Chassis
- Section 6: Electrical — Harnesses, Battery Box, Lights, Connectors, Fuse and Relay Panel
- Section 7: Frame & Body — Bonnet, Cab, Seats, Bin, Tailgate, Suspension, Decals
- Section 8: Service Kits
- Section 9: Lubricants, Adhesives and Paints
- Section 10: Special Tools
- Section 11: Auto Greasing System
- Section 12: Numerical Index
This Bell B45D and B50D MK 7 parts manual gives you the complete exploded-view parts breakdown for both truck models. Every section is organised with item numbers, Bell part numbers, quantities, descriptions, and machine allocation details so you can identify and order exactly the right component. The engine section covers both Tier 2 and Tier 3 variants of the OM502LA, and the drivetrain section alone spans transmission, transfer case, axles, drivelines, and park brake systems.
What This Manual Helps You Do
Whether you are ordering a replacement turbocharger, rebuilding a final drive, tracing a hydraulic leak, or sourcing a wiring connector, this manual provides the part numbers and assembly views that make the job straightforward. It is the difference between guessing at a part number and knowing it is correct before you place the order. The numerical index at the back lets you look up any part number and find exactly where it appears in the manual.

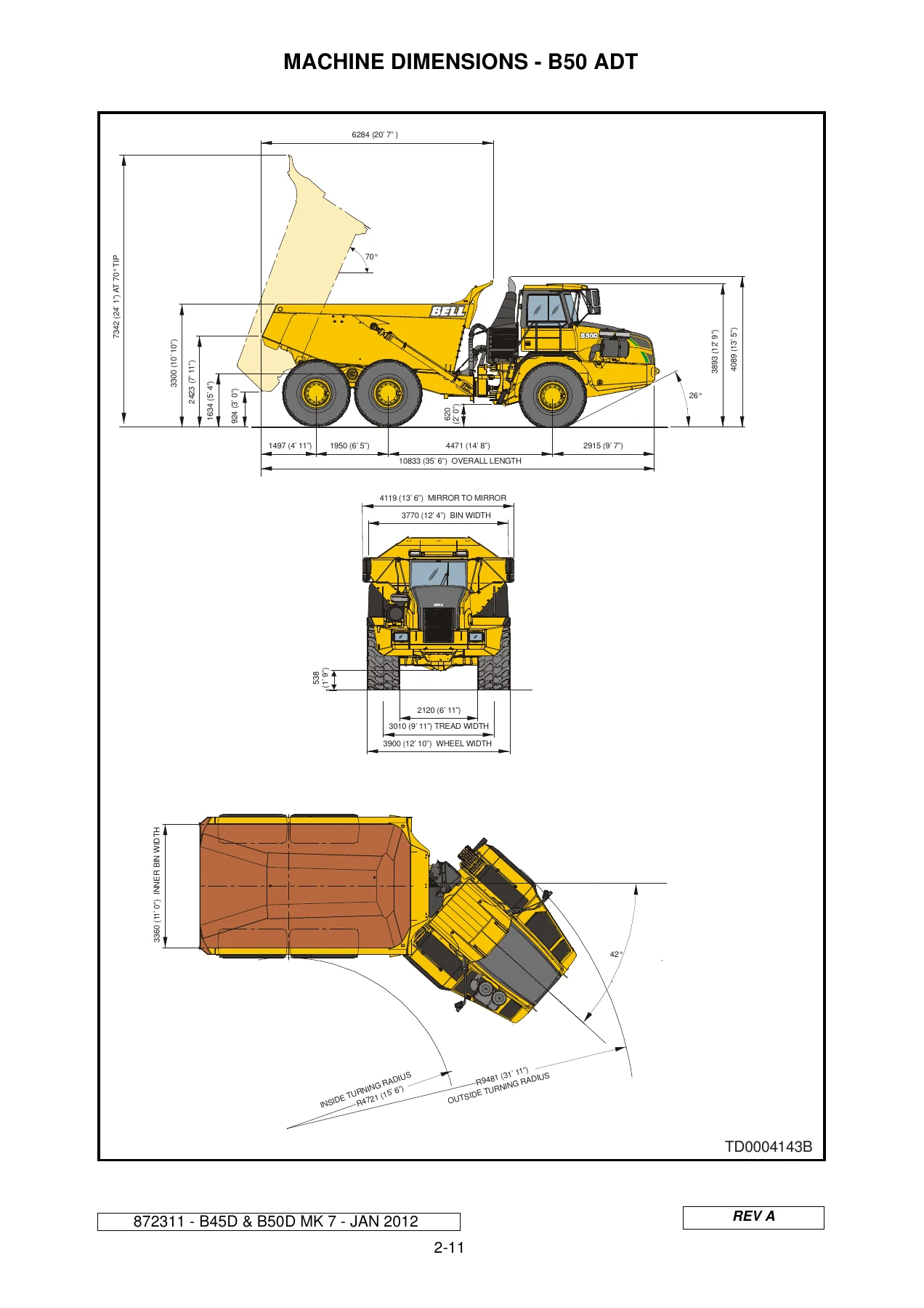

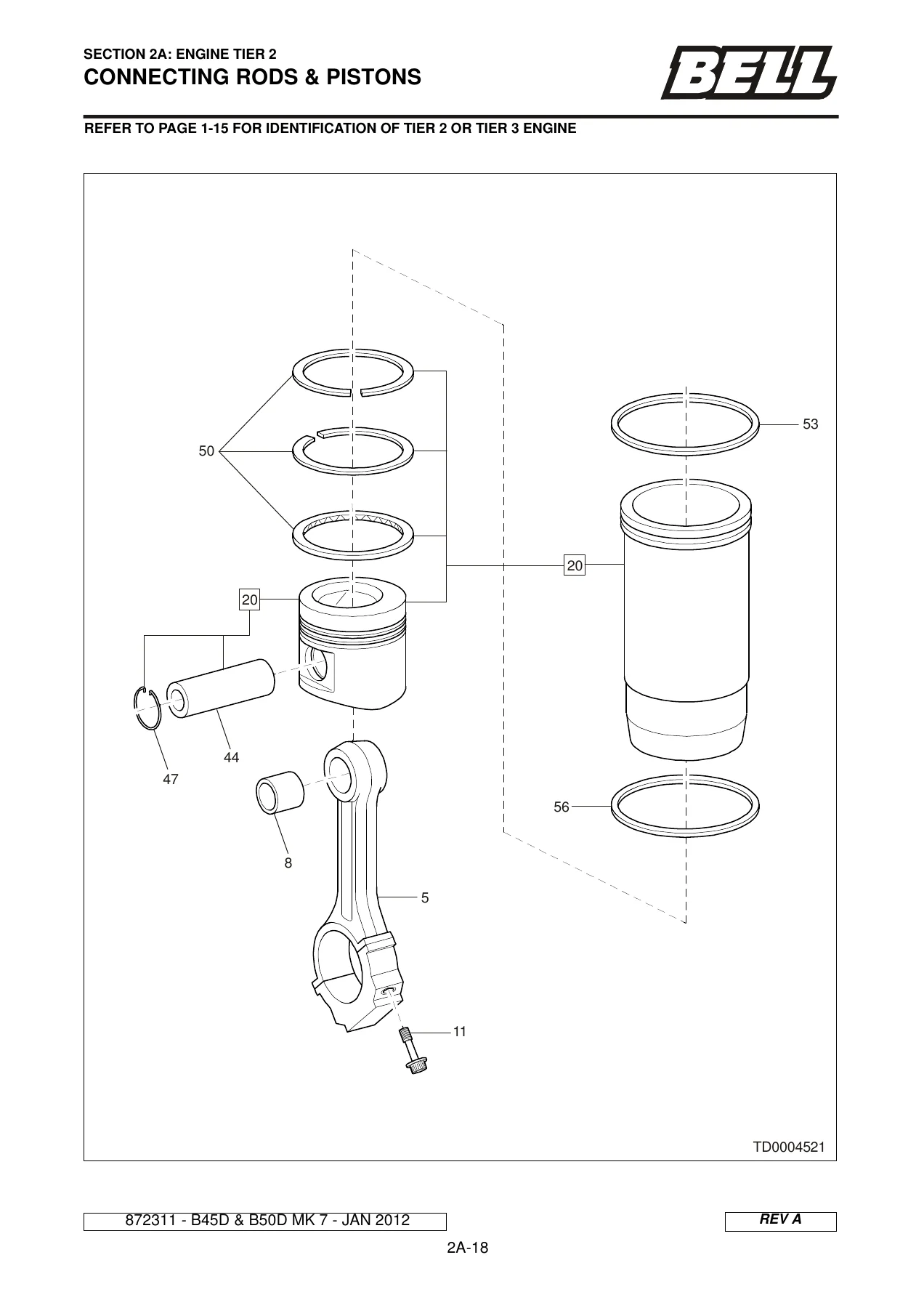

IMAGES PREVIEW
Instant Delivery
You will receive the Bell B45D and B50D MK 7 Parts Manual as a PDF download immediately after purchase. No shipping, no waiting, no physical book to store. Open it on any device, print the pages you need for the workshop, and keep it as a permanent reference for your ADT.
