BMW 8 Series E31 Repair Manual Edition 5/90 PDF

Description

BMW 8 Series E31 Repair Manual Edition 5/90 PDF

The BMW 8 Series E31 Repair Manual Edition 5/90 PDF is a broad workshop reference for the BMW 8 Series – E31, organized around BMW repair groups covering maintenance, mechanical systems, chassis, body equipment, electrical systems, heating and air conditioning, and accessories. The manual begins with maintenance and general data, then moves through detailed repair groups with illustrated remove-and-install procedures, checks, adjustments, replacement operations, and system-specific service information. Its 630 pages make it useful when a job crosses more than one vehicle system and the technician needs the related procedures in one document.

File Details

• Manual type: Repair Manual
• Brand/model: BMW 8 Series – E31
• Edition: 5/90
• Language: English
• Page count: 630 pages
• File format: PDF

Workshop Scope

This manual is arranged as a repair-group system rather than as a short owner reference. The opening maintenance material covers the BMW maintenance system, pre-delivery inspection, inspection intervals, engine oil service, annual inspection work, and oil changes for the automatic transmission and final drive. The repair groups then expand into engine work, ignition and DME-related electrical equipment, fuel delivery and injection, cooling, exhaust, clutch and transmission work, driveline, axle and suspension service, steering and alignment, brakes, body repair, interior equipment, lighting, climate control, radio equipment, and accessory systems.

Many sections are built around a specific service action. Examples visible in the manual include cylinder compression checks; engine removal and installation; cylinder head work; distributor cap and rotor replacement; spark plug replacement; ignition coil checks; fuel pressure checks; fuel filter replacement; fuel injector replacement; radiator and auxiliary fan work; exhaust assembly removal; clutch bleeding; transmission removal; selector and shift mechanism service; propeller shaft work; spring strut and control arm procedures; power steering gear work; rear axle and final-drive service; brake caliper, disc, booster, master-cylinder, and hydraulic reservoir procedures; pedal service; wheel runout checks; sun roof adjustments; battery and switch service; lighting replacement; heater, blower, water valve and control work; and radio or loudspeaker service.

Chapters Covered

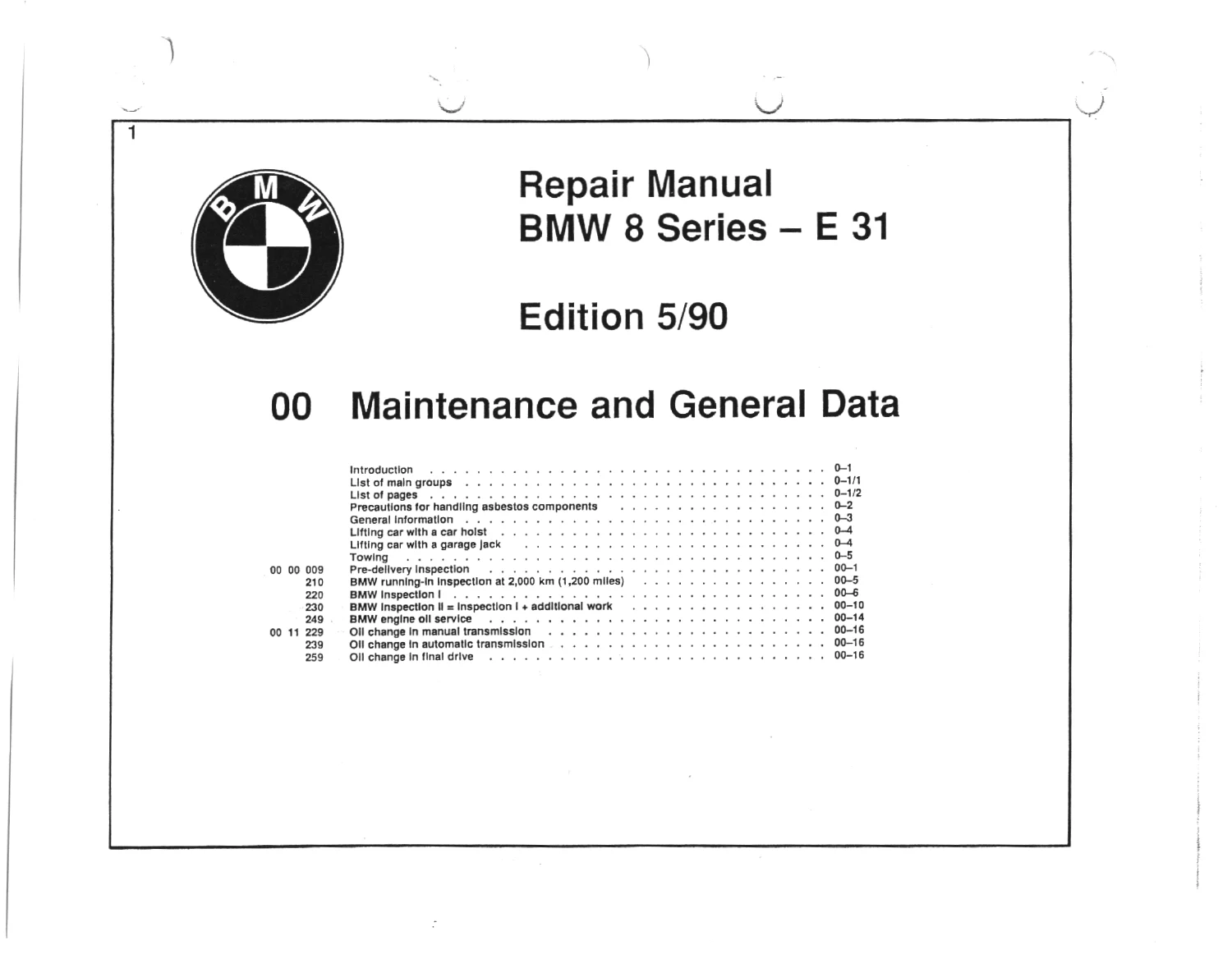

• 00 Maintenance and General Data
  • Maintenance system, pre-delivery inspection, inspection work, engine oil service, and oil changes
• 11 Engine
  • Compression checks, engine removal and installation, cylinder head work
• 12 Engine Electrical Equipment
  • Ignition/DME instructions, distributor, spark plugs, ignition coils, pulse and cylinder identification senders, alternator and drive belt
• 13 Fuel System
  • DME checks, sensors, fuel pressure, filters, pumps, injectors, throttle valve assemblies, idle control, coolant temperature sensor and tank venting valve
• 16 Fuel Tank and Lines
  • Fuel tank survey, fuel drain, swing-arm level sender and fuel pump work
• 17 Radiator
  • Coolant circuit, radiator, coolant expansion tank, auxiliary fan and cooling-system bleeding
• 18 Exhaust System
  • Exhaust assembly, exhaust pipes, mufflers, catalysts and suspension parts
• 21 Clutch
  • Clutch bleeding, clutch disc and drive plate, release bearing/lever and slave cylinder
• 23 Manual Transmission
  • Transmission removal and installation, replacement, and oil change
• 24 Automatic Transmission
  • 4 HP-24 EH shift lever adjustment, hydraulic pressure checks, transmission removal, oil service, valve-body and pressure-regulator work, torque converter and E/H control unit
• 25 Gear Shift Mechanism
  • Shift lever, selector lever and cable replacement procedures
• 26 Propeller Shaft
  • Propeller shaft removal, balance and joint work, center mount and rubber disc service
• 31 Front Axle
  • Front suspension layout, control arms, thrust struts, wheel bearings, spring struts, ride height and shock absorbers
• 32 Steering and Wheel Alignment
  • Alignment correction, front and rear wheel alignment, pressure testing, steering gear and tie-rod work
• 33 Rear Axle
  • Rear axle layout, final drive, output shafts, trailing arms, wheel carrier and rear wheel bearings
• 34 Brakes
  • Brake booster, power-flow regulator, ABS/ASC+T, parking brake, calipers, discs, master cylinder, hoses, pipes and hydraulic reservoir
• 35 Pedals
  • Pedal layout, pedal assemblies, brake pedal, accelerator pedal and accelerator pedal shaft
• 36 Wheels and Tires
  • Wheel balancing, radial and lateral runout, tire fitting and wheel bolt tightening
• 37 Integrated Suspension Systems
  • Electronic absorber control EDC III, spring struts, steering-angle sensor and acceleration/body-acceleration sensors
• 41 Body
  • Body repair methods, frame control dimensions, chassis number and front axle support/engine carrier work
• 51 Body Equipment
  • Bumpers, roof strips, side window opening cover strips, mirrors, consoles, glove box and front door lock/cylinder work
• 52 Seats
  • Front seat damage evaluation, front seat removal and rear seat removal
• 54 Hood, Sun Roof
  • Sun roof layout and adjustment, sun roof lid, wind deflector, drive cables and motor/gearbox
• 61 Electrical System
  • Battery service, switches, ignition switch, steering-column controls and other electrical components
• 62 Instruments
  • Instrument cluster, LCD module, senders, instrument carrier and instrument lamps
• 63 Lights
  • Concealed headlights, front lights, license-plate lights and light bulbs
• 64 Heating and Air Conditioning
  • Heater, blower, additional water pump, water valve, heater controls, front panel and light bulbs
• 65 Radio and Special Equipment
  • Radio, loudspeakers, rear loudspeaker panels, fault diagnosis and pin connections
• 71 Equipment and Accessories for Engine and Chassis
  • Trailer hitch installation and function test
• 72 Equipment and Accessories for Body
  • Front and rear seat-belt layouts, seat-belt replacement and automatic reel seat-belt checks

Taken as a whole, the chapter structure follows the car from scheduled service through major mechanical repairs and into body, electrical and comfort systems. That makes the manual especially useful when diagnosis or repair requires related work in several groups – for example, a front-end job that also needs alignment, brake, suspension and steering information, or an engine-related job that touches fuel, ignition, cooling and exhaust systems.

Procedures, Checks and Illustrated Repair Information

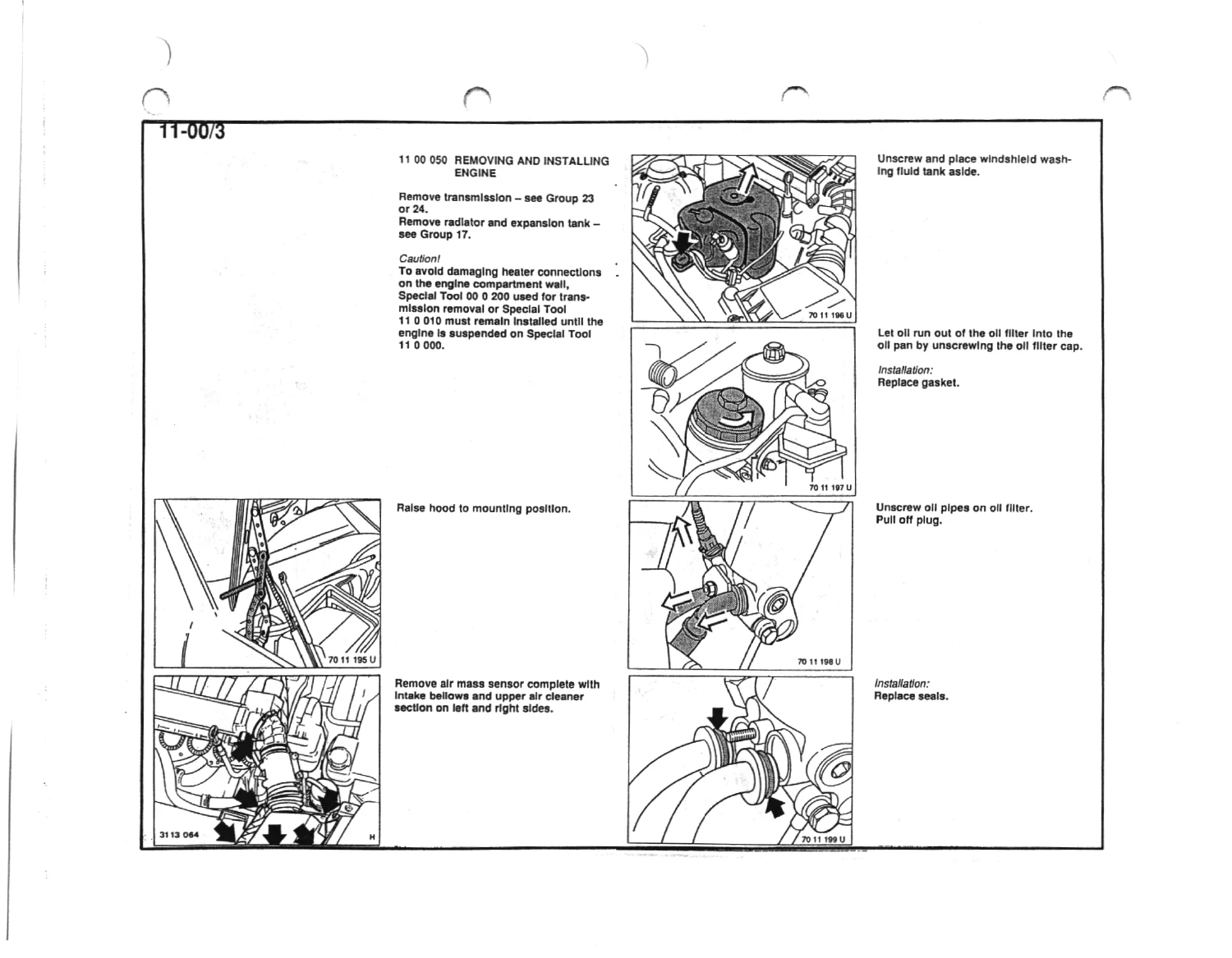

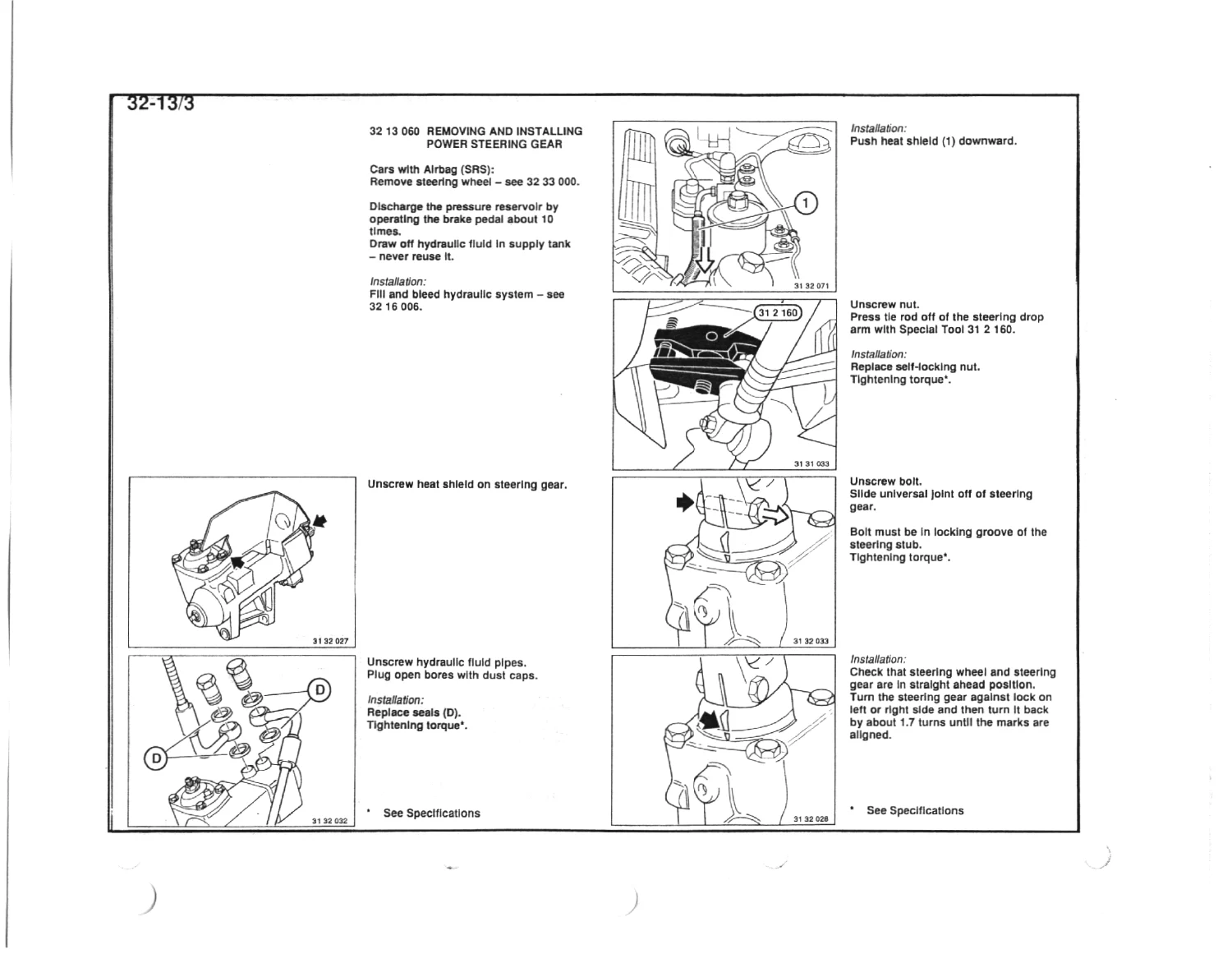

The manual uses step-by-step repair pages with component illustrations and references to the relevant group information. Mechanical sections show removal and installation points, fasteners, component positions and adjustment work. Chassis sections cover geometry, suspension and steering components, while body pages include dimensional information and component access. Electrical and equipment sections extend the coverage beyond powertrain service to switches, instruments, lighting, climate-control components and audio equipment. This breadth is important on the E31 because a repair can involve mechanical, electrical and body-access steps in the same job.

The BMW 8 Series E31 Repair Manual Edition 5/90 PDF also preserves the manual’s group-number organization, making it easier to move from a system overview to a specific operation. Technicians can use the contents to identify the relevant repair group, then follow the illustrated procedure for inspection, removal, replacement, installation or adjustment. The maintenance section provides a useful starting point for routine service, while the deeper groups support more involved workshop work such as transmission, axle, steering, brake, body and electrical repairs.

BMW 8 Series E31 Repair Manual Edition 5/90 PDF – Practical Workshop Use
