Bobcat S650 Illustrated Parts Manual for Serial B4SZ11001 & Above

This is a targeted illustrated parts catalog for the Bobcat S650 skid-steer loader, published for machines starting at serial number B4SZ11001 and continuing upward. Rather than a general service guide, this document exists so a technician or parts counter can identify the correct component, reference number, and Bobcat part number for a specific S650 build. Exploded diagrams sit alongside reference tables so each assembly can be broken down visually before the correct item is ordered.

File Details

• Manual type: Illustrated Parts Manual / Parts Catalog
• Brand: Bobcat
• Model: S650 skid-steer loader
• Serial number coverage: B4SZ11001 & Above
• Language: English
• Format: PDF
• Page count: 103 pages

Chapters Covered

The document is organized as a set of illustrated parts sections. Each section pairs a parts table with the relevant diagram:

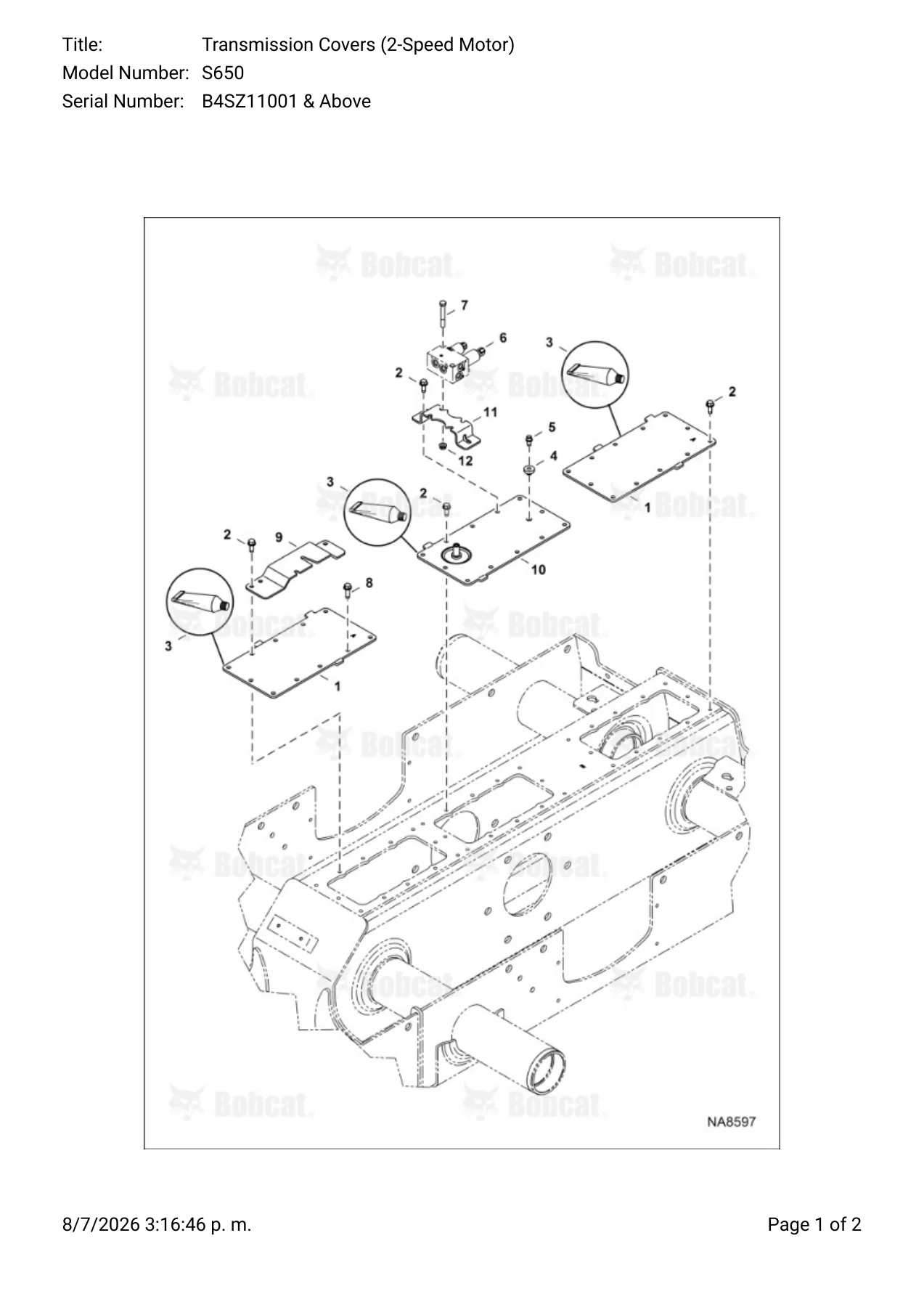

• Transmission Covers (2-Speed Motor)
• Auxiliary Hydraulics
• Axle

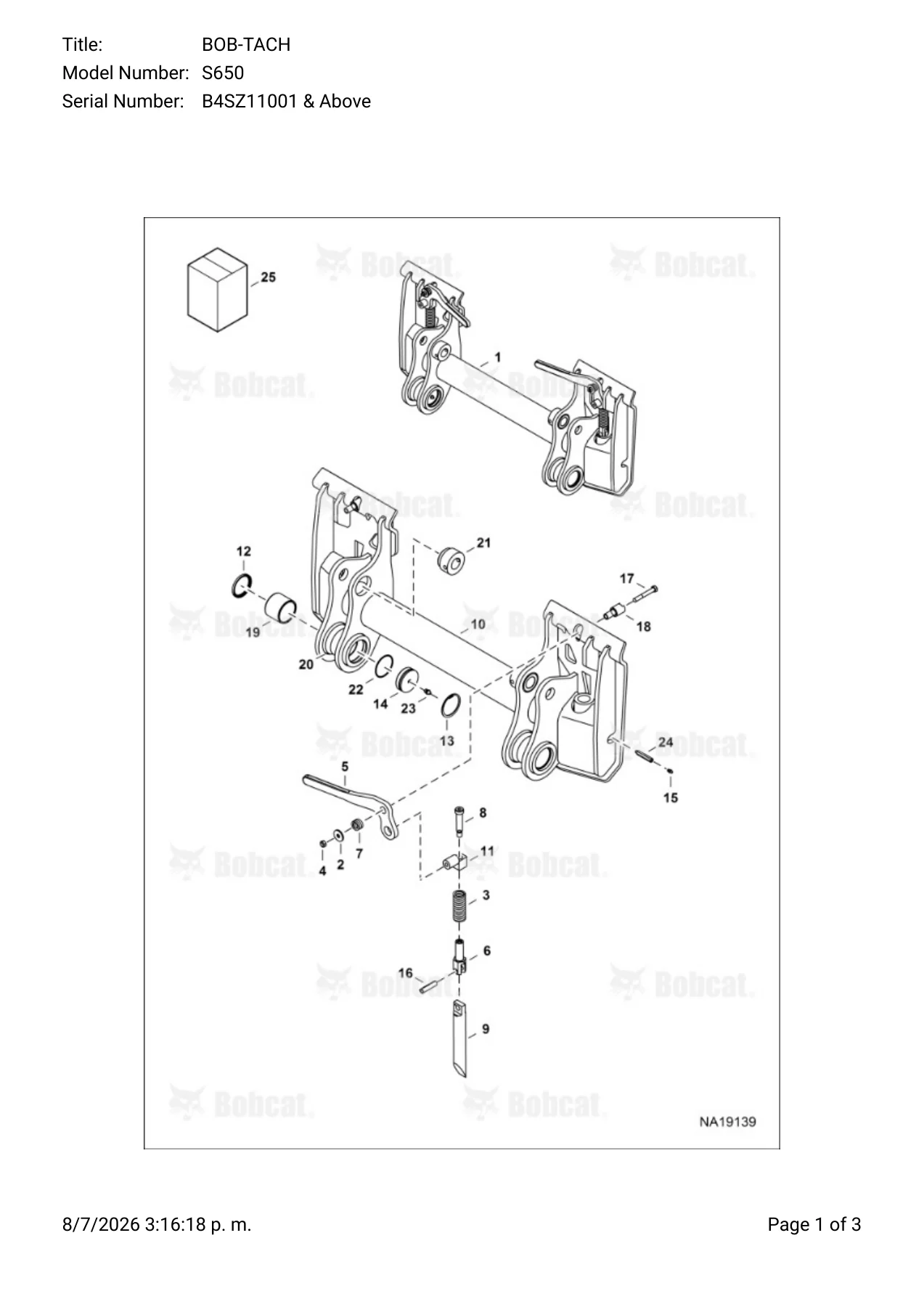

• BOB-TACH
• CAB Electrical Circuitry (Deluxe)
• CAB Seals
• Controls Electrical (Manual Controls)
• Disc Brake (Single Speed Motor)
• Drive Train
• Engine Electrical Circuitry (Rear Lights & Back-up Alarm) (Euro Tail Lights)
• Hydraulic Circuitry (Ride Control Option)
• Hydraulic Circuitry (W/BPV Junction Block)
• Hydraulic Circuitry (W/O BPV Junction Block)
• Lift Arm & BOB-TACH
• Lift Cylinder
• Main Frame
• Maintenance Items (Service Parts)
• Manual Lift Release Valve
• Motor Carrier (Drive Motor Mount Assy)
• Operator CAB (Cab Interior) (Deluxe) (Headliner)
• Operator CAB (Cab Interior) (Deluxe)
• Operator CAB (Cab Interior) (Headliner) (Standard)
• Operator CAB (Cab Interior) (HVAC) (Headliner)
• Operator CAB (Cab Replacement)
• Operator CAB (Gas Spring)
• Panels (Floor Pan) (Manual Controls)
• Panels (Floor Pan) (Selectable Joystick Controls)
• Rear Door (Duel Rear Mounting Hole)
• Rear Door (Single Rear Mounting Hole)
• Seat & Seat Belt (Intagraded Seat Belt)
• Seat & Seat Belt
• Seat Bar (Manual Controls)
• Seat Bar (Selectable Joystick Controls)

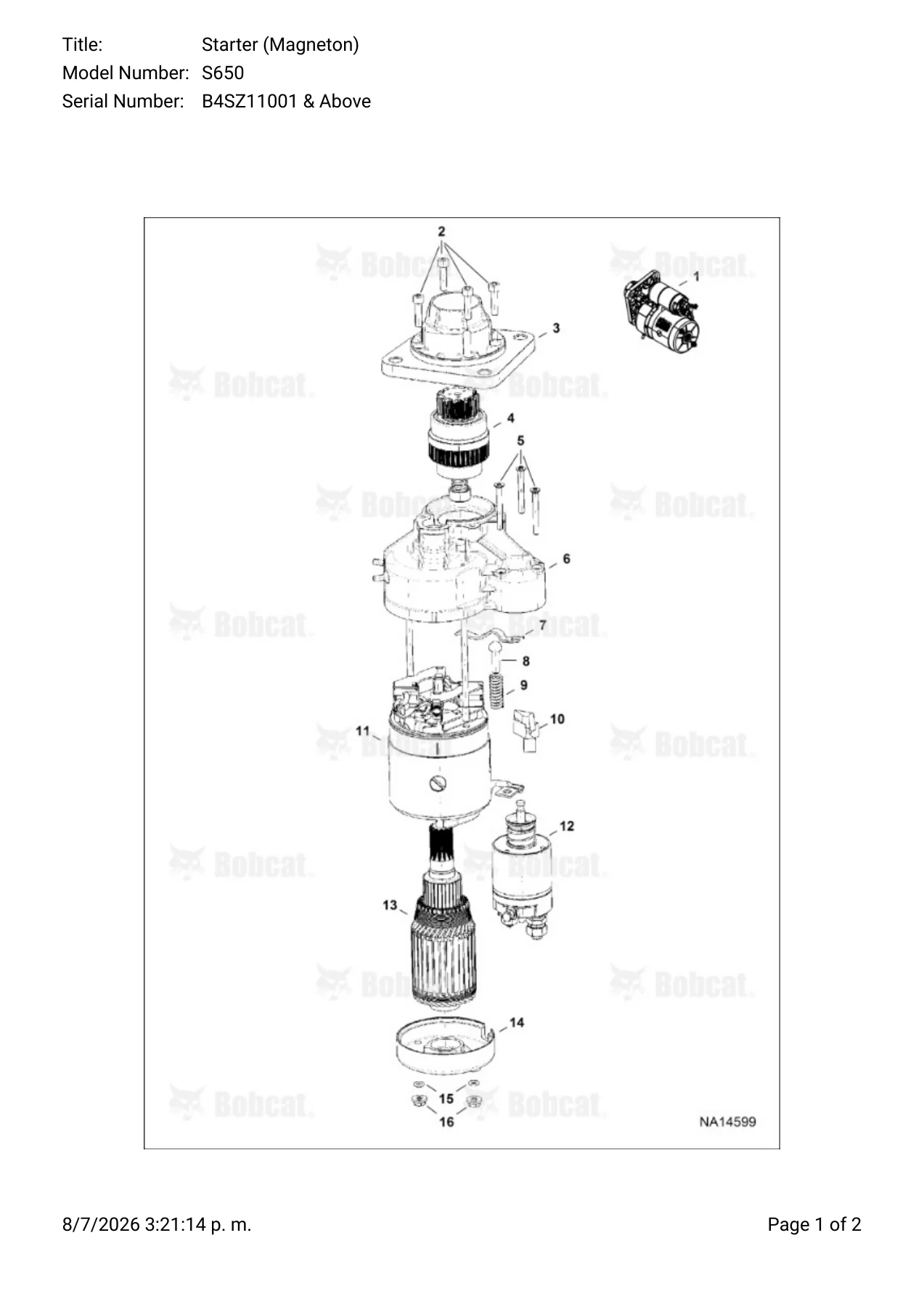

• Starter (Magneton)

Each section is laid out the way a parts lookup is actually performed: the visual diagram identifies the component, and the accompanying table supplies the reference number, Bobcat part number, description, and quantity. Some tables also carry serial-number notes next to parts that changed during production, so a machine inside the B4SZ11001-and-above window can be matched precisely rather than by guesswork. The hydraulic circuitry is split three ways — ride control option, junction block with BPV, and junction block without BPV — so the right hose, tubeline, fitting, or valve can be traced according to how the loader was built. Cab coverage follows the same pattern, with separate listings for Deluxe, Standard Headliner, and HVAC interiors, and separate floor-pan and seat-bar sections for Manual Controls versus Selectable Joystick Controls machines.

What This Bobcat S650 Parts Manual Helps You Do

• Look up the correct Bobcat part number before ordering a replacement, instead of relying on a photo or a sales description.
• Identify every component in a given assembly using exploded views and numbered reference tables.
• Distinguish between variants such as 2-speed vs single-speed motor, manual vs SJC controls, Deluxe vs Standard cab interior, BPV vs non-BPV hydraulic junction blocks, and single vs dual rear mounting holes.
• Confirm fitment across the B4SZ11001-and-above serial window using the serial notes printed alongside affected parts.
• Reference hydraulic hoses, tubelines, fittings, O-rings, and couplers for the S650 auxiliary and lift/tilt circuits.
• Locate cab electrical and engine electrical components, including keypad, displays, lights, back-up alarm, and rear tail-light assemblies.
• Find service items such as filters, batteries, oils, coolants, and hydraulic fluid listings under the Maintenance Items section.

Why an Illustrated Parts Manual Matters for the S650

The S650 uses many parts that look alike but are not interchangeable — a lift cylinder component, a hydraulic fitting, or a cab seal can vary by control type, motor option, or serial break. Working from the wrong number means waiting on the wrong part. This catalog puts the diagram and the reference table in front of you together, so the component can be matched visually first and confirmed by part number second. That is the difference between a single accurate order and a return.

Because the tables in this document carry serial notes, the S650 Illustrated Parts Manual is especially useful for machines built inside the B4SZ11001-and-above range, where mid-production updates and optional configurations need to be accounted for. The manual also serves as a reference for the assemblies around the machine — the axle, motor carrier, chaincase, rear door, seat bar, and BOB-TACH attachment interface — so it is not limited to the engine bay or the hydraulics alone.
