Bobcat T2556 T2566 Parts Catalogue 4850100 – Illustrated PDF

Description

Bobcat T2556 T2566 Parts Catalogue 4850100

This is the illustrated parts catalogue for the Bobcat T2556 and T2566 telescopic handlers, published under document number 4850100. Rather than a repair or service manual, it is a full parts breakdown: every assembly on the machine is drawn as an exploded view and each component is listed with its Bobcat part number, description, quantity and the serial-number range it applies to. That serial-number column is the detail that makes this catalogue genuinely useful, because it lets you confirm that the part you are about to order actually belongs on your machine before you spend anything.

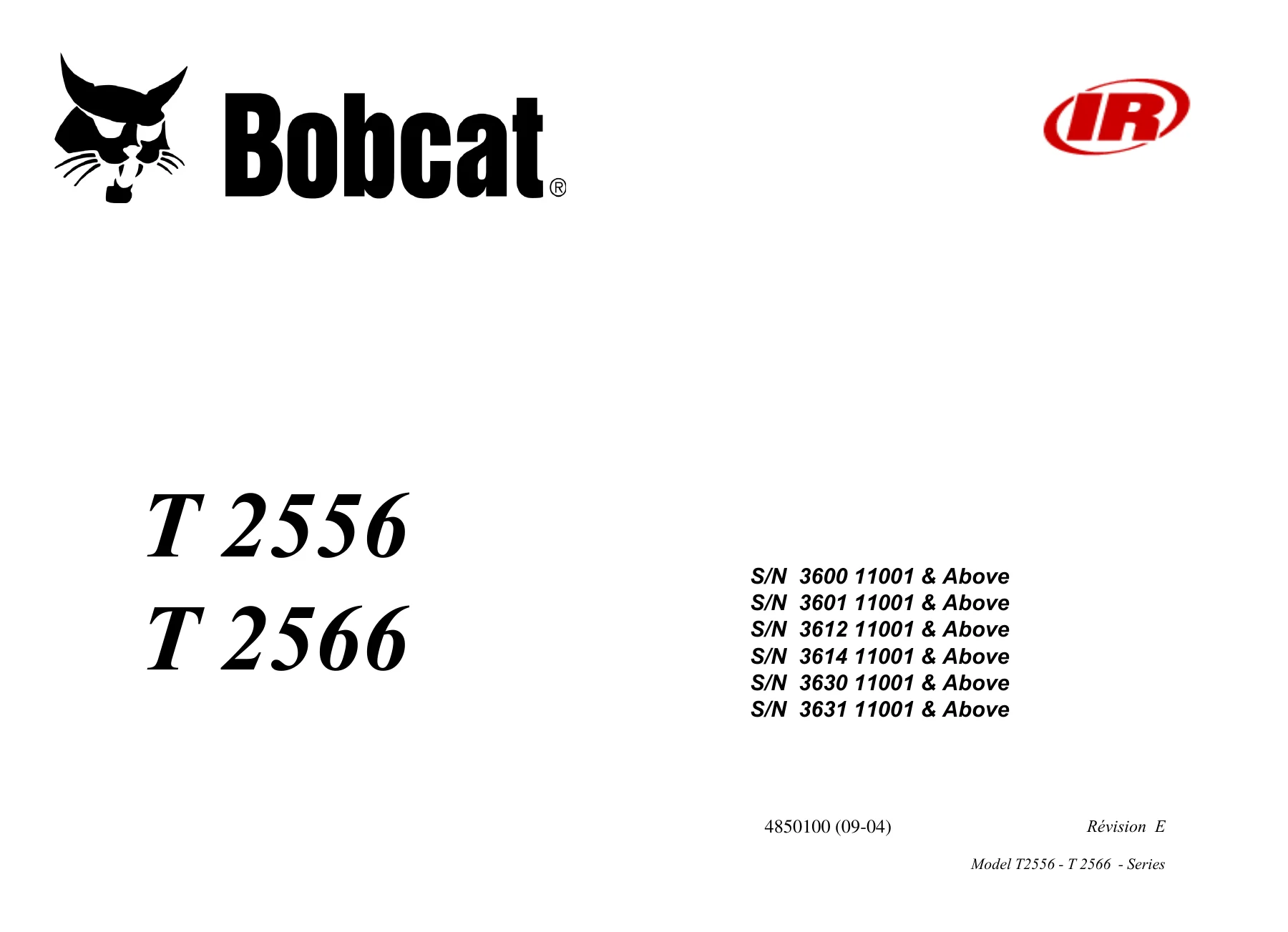

The T2556 and T2566 Parts Catalogue covers six serial-number prefixes: 3600 11001 and above, 3601 11001 and above, 3612 11001 and above, 3614 11001 and above, 3630 11001 and above, and 3631 11001 and above. Within the catalogue those prefixes are used throughout the remark columns to flag which variant a part belongs to, alongside build dates and engine codes where relevant.

File Details

• Manual type: Illustrated Parts Catalogue
• Brand: Bobcat
• Models covered: T2556, T2566
• Document number: 4850100
• Revision: Revision E (September 2004)
• Languages: French and English (bilingual headings and descriptions)
• File format: PDF
• Structure: Exploded illustrations with part number tables

Chapters Covered

The catalogue is organised into eight numbered groups, each split into plan-numbered sub-sections. The main groups are:

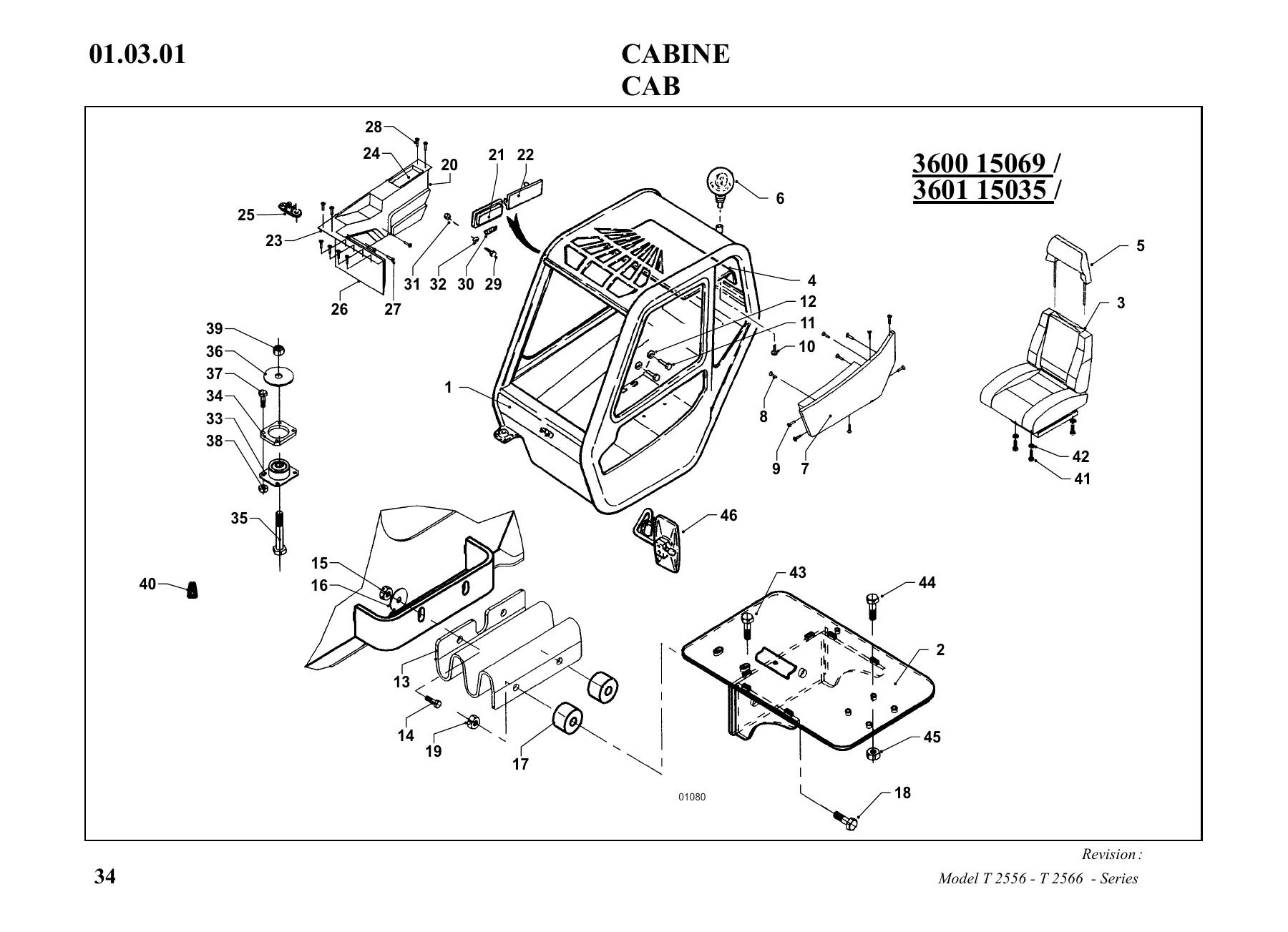

• 01 — Chassis, bodywork and cab, including chassis frames, ballast weights, arm abutments, engine covers and bodywork, cab skeleton, doors, glazing, protection grills, heating control, accelerator, brake circuit, parking brake variants (with and without accumulator), seat, enclosed cab structure, pedals, steering wheel, hydraulic column, control panel, door, manipulator and rear panel

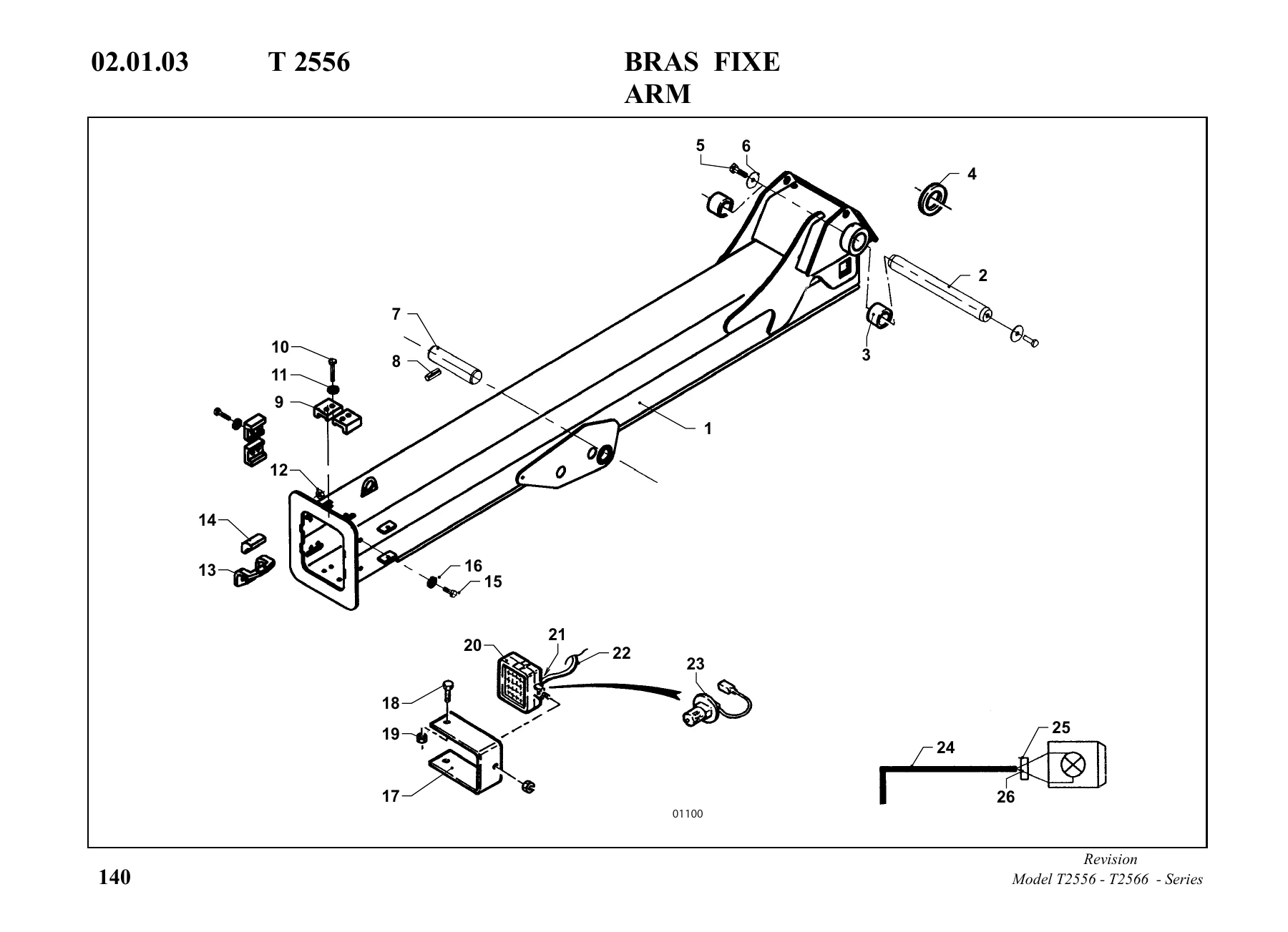

• 02 — Arm, hydraulics and rams, including T2556 and T2566 fixed and telescopic arms, arm hydraulic supply, ram hydraulic supply, lifting rams, compensation ram, telescopic rams, tilting rams, carriage bracket, hydraulic and manual locking, hydraulic lock ram, engine fittings and sound proofing
• 03 — Engine, covering 1004-40T, 1004-42 and 1104C-44T variants: cylinder block, crankshaft and pistons, flywheel and pulley, cylinder head, rocker shaft, timing gear, oil pump, fuel injection equipment, fuel feeding, oil sump, oil filler and breather, oil filter and cooler, water pump and thermostat, turbocharger, induction manifold, induction and exhaust, flywheel housing, alternator and set of seals, plus ventilation and reversing-fan options
• 04 — Transmission, axles, wheels and mudguards, including mechanical transmission, front axle reducer box, front axle housing, pivots and cylinder, differential, brakes and reducer, rear axle housing, pivots, differential and reducer, Dunlop, Michelin, Continental and Titan wheel options, and 17″, 18″ and 20″ mudguards
• 05 — Hydrostatics, steering and hydraulics, including hydrostatic circuit, hydrostatic pump variants, hydrostatic motor, steering circuit variants, hydraulic tank variants, hydraulic distributor, distributor elements (inlet/outlet, lifting, tilting, telescopic, attachment), hydraulic pump details, hydraulic motor, control levers, selector blocks and exhaust-lifter arm circuit
• 06 — Electrics, including control panel electrics, electric circuit, engine electrics, control panel assembly and load control system
• 07 — Options and accessories, including rear hook, hook, rear mirror, rear hydraulic hook, rear option, rear power take-off, trailer brake, transmission by-pass, wheel shim, air conditioning, matriculation plate, trailer fitting, trailer plug option, second hydraulic supply, blue lighting option, shields and Germany shields
• 08 — Attachments, split into narrow and wide quick-attach: bale pikes, rigid fork holders, buckets, grab buckets, hydraulic grab buckets, manure forks, hydraulic forks, boom and arm assemblies, tool adaptor kit and boom stop kit

Altogether the catalogue documents the T2556 and T2566 down to individual bushes, circlips, grease nipples, O-rings, hoses and adaptors. For anyone maintaining, restoring or simply keeping one of these telescopic handlers working, that level of granularity is the difference between ordering the right seal kit first time and losing a week to guesswork.

What This Parts Catalogue Lets You Do

With the exploded views in front of you, a machine can be stripped and reassembled in the correct order with every fastener, bush, seal and adaptor identified by number. The most practical uses are:

• Identifying a part from its position on the drawing and ordering it by Bobcat part number
• Checking whether a part applies to your specific serial-number prefix before ordering
• Rebuilding hydraulic rams with the correct set of seals — the catalogue lists separate seal kits for the lifting ram, compensation ram, telescopic rams, tilting ram and hydraulic lock ram
• Tracing hydraulic hose and tube routing through the hydrostatic, steering, arm supply and distributor circuits
• Confirming which wheel, tyre and mudguard combination was fitted
• Locating fasteners, washers, nuts, grease nipples and collars that are easy to overlook and easy to order incorrectly
• Comparing the 1004-40T, 1004-42 and 1104C-44T engine variants part by part
• Identifying attachment components for both the narrow and wide quick-attach systems

Because the catalogue records the revision history — from the first edition in March 2002 through revisions A to E, with the changed plan numbers listed for each — you can also see which assemblies were updated during production and where the T2556 T2566 Parts Catalogue itself has been amended.

Why Correct Part Numbers Matter on the T2556 and T2566

Telescopic handlers of this generation were built over a long production run and the T2556 and T2566 parts catalogue documents that directly: several rams, pumps, tanks, axles and distributors appear in more than one version across the serial ranges. Ordering by description alone is a reliable way to receive the wrong item. Working from the illustration and the part number in the table removes that risk entirely, and the quantity column tells you how many you need before you start the job rather than halfway through it.

IMAGES PREVIEW

Instant PDF Delivery

The catalogue is supplied as a downloadable PDF, available immediately after checkout. There is no shipping and nothing to wait for — open it on a laptop, tablet or phone in the workshop, or print only the pages for the assembly you are working on and take them to the machine. For anyone running a T2556 or T2566, this is the reference that turns a vague idea of “the seal has gone” into the exact part number to order.
