Bobcat T3071 T3071CD T3093S T3093CD Spare Parts Catalogue 2002 – PDF Parts Manual

Description

Bobcat T3071 T3071CD T3093S T3093CD Spare Parts Catalogue 2002

This is the full Bobcat T3071 T3071CD T3093S T3093CD Spare Parts Catalogue released under Edition 02.2002, Revision B. It is the reference document used to identify and order components for the T3071, T3071CD, T3093S and T3093CD telescopic handlers, covering every major assembly on the machine from the chassis and counterweight through to the boom, hydraulic rams, axles, electrical system and quick-attach tooling. Each section combines an exploded illustration with a numbered parts table so that a component can be located visually, matched to its position number, and then ordered by part number.

File Details

• Manual type: Spare Parts Catalogue (Pieces de rechange)
• Brand: Bobcat
• Models covered: T3071, T3071CD, T3093S, T3093CD
• Engines referenced: 1004-40T and 1004-42
• Language: French and English (bilingual throughout)
• Edition: 02.2002 (February 2002)
• Revision: B
• Page count: 511 pages
• File format: PDF

Revision History Documented

The catalogue opens with its own update log, which is useful when cross-checking a part number against an earlier print. July 2001 is recorded as the provisional edition, September 2001 as the first edition, September 2001 again as Revision A with modifications to drawings 02.01.01, 02.01.11, 02.01.12, 03.01.01, 03.01.02, 03.01.05, 04.01.03, 05.02.02 and 06.02.01, and January 2002 as Revision B with modifications to drawings 02.02.12, 01.03.01, 05.01.05 and 05.01.10. If you are working on an early T3071 or T3093 and a number does not match, the revision trail tells you which drawings changed and when.

Chapters and Systems Covered

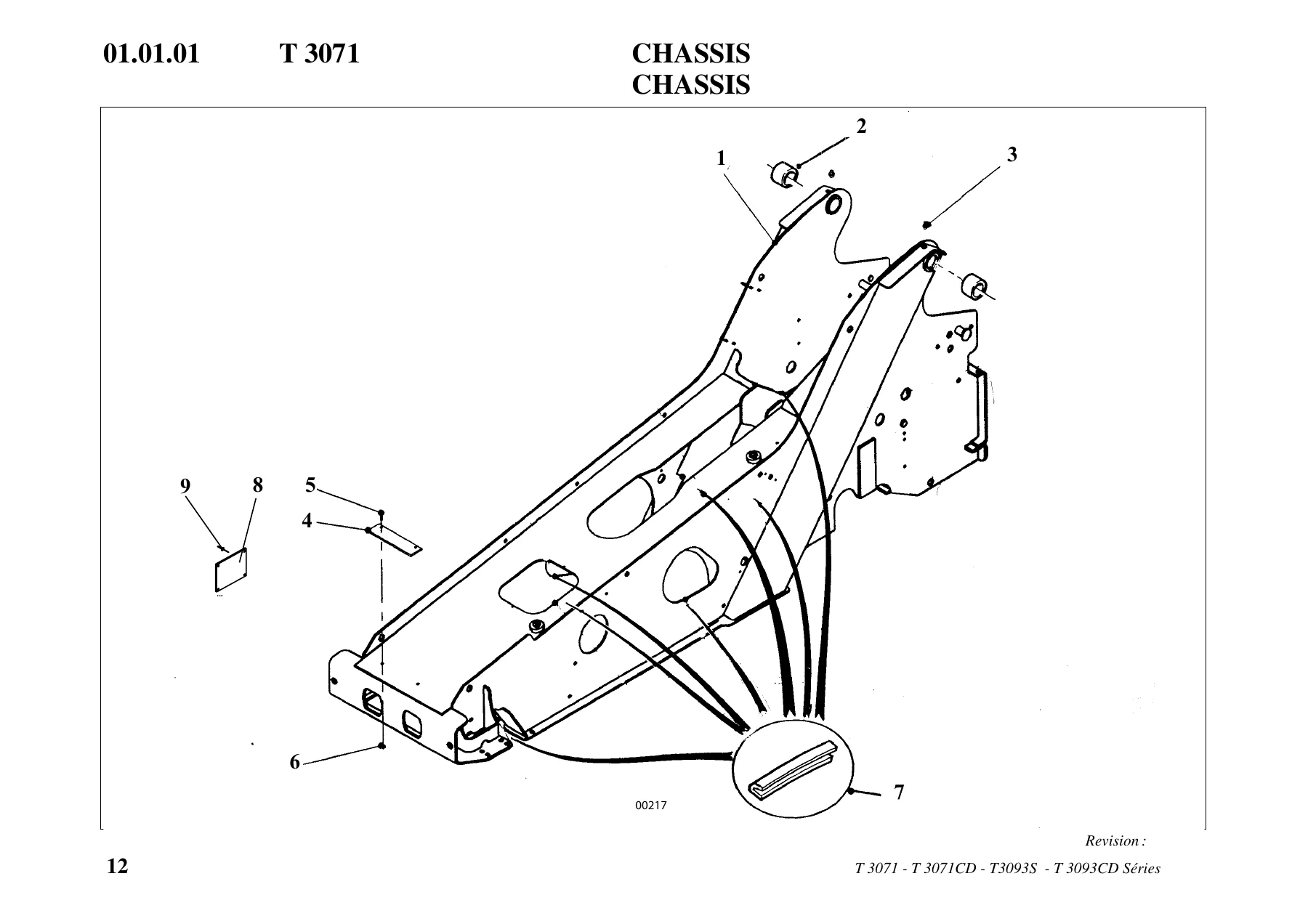

• 01.01 Chassis (T3071, T3071CD, T3093S, T3093CD) and ballast / counterweight assemblies
• 01.02 Body and bonnet panels, latches, locks and gas struts
• 01.03 Cab: cab shell, door, rear pane, protection grille, heating control, seat

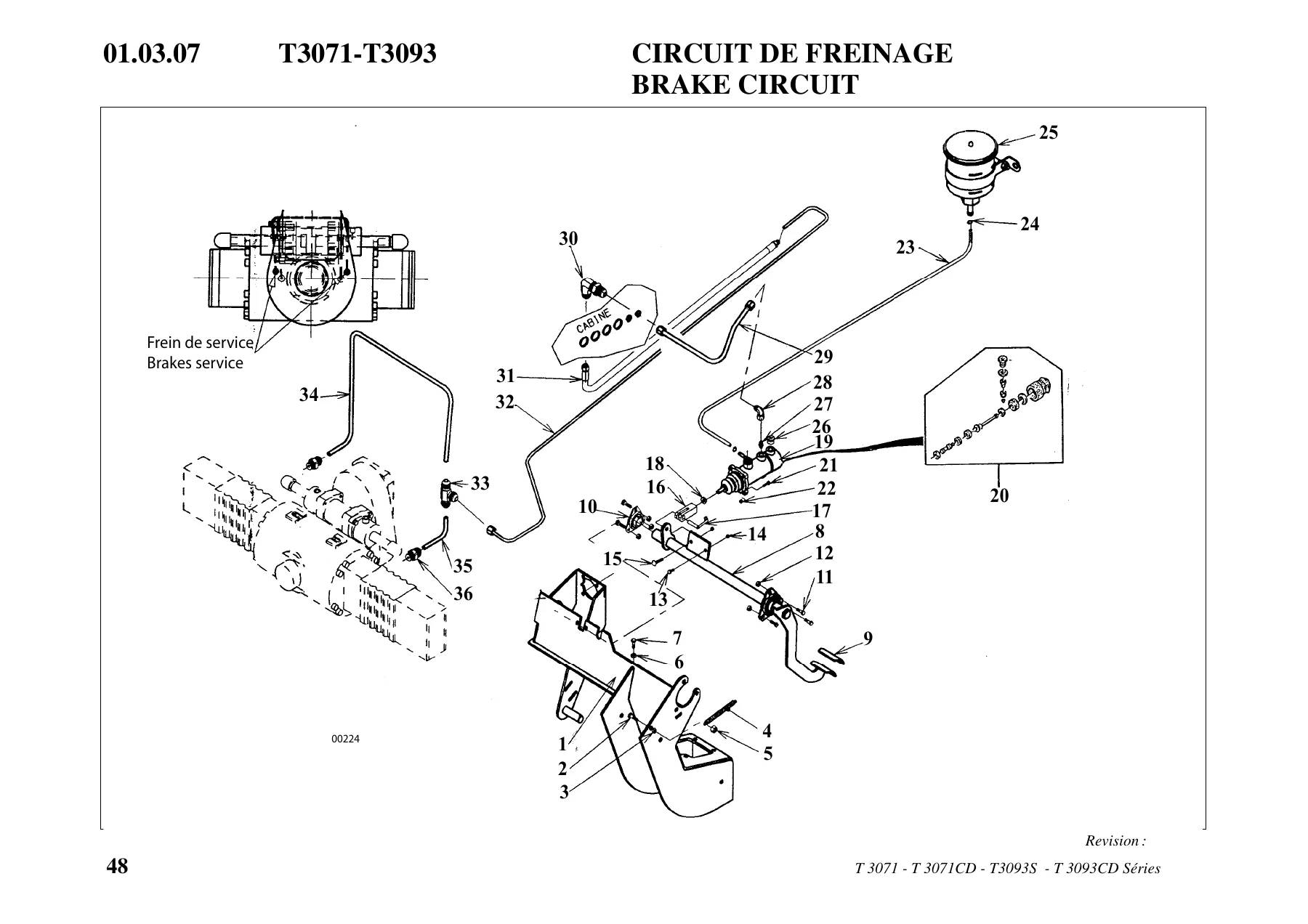

• 01.03.07 Brake circuit (standard and CD versions), parking brake and accumulator type
• 02.01 Fixed arm, intermediate arm and telescopic arm for both the T3071 and T3093 families
• 02.02 Arm hydraulic supply – hoses, pipes, tees and routing for each model variant
• 02.03 Rams: tilting, telescopic, compensation, lifting and telescoping cylinders with seal kits
• 02.05 Hydraulic locking (wide and narrow), locking ram and manual lock
• 03.01 1004-40T and 1004-42 engine fittings and installation parts
• 03.02 Fuel tank, sender, gauge and fuel lines
• 03.04 Engine internals: cylinder block, crankshaft and pistons, flywheel and pulley, cylinder head, rocker shaft, timing gear, oil pump, injection equipment, fuel feeding, oil sump, oil filler and breather, oil filter and cooler, water pump and thermostat, turbocharger, induction manifold and exhaust
• 03.04.28 Flywheel housing, alternator, set of seals and throttle controls
• 03.05 Ventilation and fan drive, including the reversible fan option
• 04.01 Mechanical transmission, front and rear axle housings, pivots and steering cylinder, differentials, brakes and wheel reducers
• 04.02 Wheels: 400/70-20, Dunlop 400/80-24, Michelin 17.5 LR 24 and Dunlop 405/70 R20 SPT9
• 04.03 Mudguards in 24″ and 20″ versions
• 05.01 Hydrostatic circuit, hydrostatic pump and hydrostatic motor
• 05.02 Steering hydraulic circuit and steering column
• 05.03 Hydraulic tank, distributor and fixation, hydraulic distributor block
• 05.04 Lateral trim correction and trim correction ram (CD models)
• 05.06 Distributor sections, control lever and selector block
• 06.01 Electrical control panel, instrument panel and fuse box layout
• 06.02 Electric circuit: battery, lights, harnesses, horn
• 06.03 Engine electrics: alternator, starter, senders, relays and fuses
• 06.05 Load control system
• 07.01 Rear hydraulic hook, hook mechanism and rear mirror
• 07.02 Rear option and rear power take-off
• 07.03 Trailer brake and trailer brake with rear option
• 07.04 Transmission by-pass and wheel wedge
• 07.05 Air conditioning, matriculation plates, Italy version and trailer fittings, blue lighting option and weighing option
• 07.06 Second hydraulic supply with cable winder and cable kits
• 07.08 Decals and shields, including Germany-specific and CE sets

Read as a whole, this catalogue gives a technician a complete parts-level map of the T3071 and T3093 platforms. Because the same document carries both the standard and the CD variants side by side, you can compare how the brake circuit, hydraulic tank and trim correction differ between a T3071CD / T3093CD and a standard T3071 or T3093S without switching documents. Boom assemblies are split into fixed arm, intermediate arm and telescopic arm, so a worn bush, pin or wear pad can be isolated to the correct section rather than the whole boom.

Attachments and Tooling Covered

The final section of the catalogue deals with the quick-attach tooling rather than the carrier machine. Narrow quick-attach and wide quick-attach variants are listed separately, and each attachment is exploded with its own parts table:

• Bale pikes (narrow and wide quick attach)
• Rigid fork holders and fork sets
• Buckets in multiple capacities, including toothed and bolt-on edge versions
• Grab buckets and hydraulic grab buckets
• Manure forks / grapple forks, mechanical and hydraulic
• Side-shifter assemblies in both narrow and wide widths
• Tool adaptor kits for cross-fitting attachments between the two hitch standards

This matters in practice: hydraulically operated grabs and side shifters share many wear parts with the machine’s own rams, and having the attachment breakdown in the same file means the seals, couplers and hoses for a grab bucket or side-shifter are no harder to identify than a boom pin.

How the Parts Tables Are Structured

Every illustrated section follows the same table format: position number, part number, designation in French and English, remarks, serial number where applicable, and quantity. That consistency makes the catalogue quick to work through once you are familiar with it. The remarks column carries the practical detail – where a part was superseded, where a shim is supplied in a range of thicknesses (the rear axle differential shims, for example, run from 2.50 mm to 3.40 mm), where a seal kit replaces individual seals, and where a cylinder is only available complete. Order numbers and series references printed alongside axle and transmission entries help confirm that the parts you are ordering match the unit actually fitted to the machine.

Who This Catalogue Is For

This Bobcat T3071 T3071CD T3093S T3093CD spare parts catalogue is aimed at workshop technicians, fleet maintenance staff, parts departments and owners who carry out their own repair work on these telehandlers. It is a parts identification document rather than a repair procedure manual – it tells you which component and which part number you need, not how to torque a cylinder head or bleed a brake circuit. Used alongside a service manual it lets you raise an accurate parts order the first time, check that a superseded number has been replaced correctly, and confirm whether a repair needs a single seal, a full seal kit or a complete assembly.
