Description

This Bobcat T3571 T3571L Telescopic Handler Parts Manual is the illustrated parts catalogue for the T3571 (S/N 3628 12001 & above) and the T3571L (S/N 3629 12001 & above) telescopic handlers. Every major assembly of the machine is broken down into exploded illustrations with itemised part number tables, so a part can be located visually on the drawing and then ordered from the matching line in the table. The Bobcat T3571 T3571L parts manual covers the main frame, drive system, hydraulics, hydrostatics, electrical system, power unit and the complete accessories and options range.

File Details

• Manual type: Illustrated parts manual / parts catalogue
• Brand: Bobcat
• Models covered: T3571 (S/N 3628 12001 & above), T3571L (S/N 3629 12001 & above)
• Machine family: T3571(L) Telescopic Handlers
• Language: English
• Format: PDF
• Length: 404 pages, including a 52-page numerical index

Chapters Covered in the Bobcat T3571 T3571L Parts Manual

• Main Frame – Chassis; Ballast; Fuel Tank Installation; Engine Cover; Engine Sound Proofing; Engine Basket; Cab & Fixations; Cab Assy; Cab Assy II; Seat & Suspension; Heating/Ventilation Installation; Heating/Ventilation Fan Assy; Pedals Installation; Steering Column Installation; Cowling Installation; Control Panel Switches; Door Assy; Rear Window Installation; Wiper Installation; Parking Brake Lever; Fixed Boom Assy; End Boom Assy; Manual Quick Attach Lock
• Drive System – Axle Installation; Cardan Shaft; Hub Reduction (Front Axle / Rear Axle); Reducer Box – Front Axle; Housing – Front Axle; Differential – Front Axle; Steering – Front Axle; Brakes – Front Axle; Housing – Rear Axle; Differential – Rear Axle; Steering – Rear Axle
• Hydraulic System – Boom Hydraulic Installation; Boom Hydraulic Supply; Lift & Compensation Cylinder Installation; Steering Hose & Fittings (with and without damper); Steering Hydraulics Cab; Joystick Installation (without AMA and with AMA); AMA Installation; Service Brake Hydraulic Installation; Parking Brake Hydraulic Installation; Hydraulic Control Valve sections; Telescope Cylinder; Tilt Cylinder; Frame Level Installation; Hydraulic Pump Installation; Quick Attach Installation
• Hydrostatic System – Hydrostatic Hoses and Fittings; Hydrostatic Pump Assy; Hydrostatic Motor Assy
• Electrical System – Electrical Circuit Chassis; Electrical Circuit Cab; Electrical Circuit Engine; Ventilation Reverse Electrical; Joystick; Joystick / Susmic Installation; Security Circuit
• Power Unit – Engine Installation; Exhaust System; Cooling System Installation; Cooling Fan Circuit (with optional reverse); Cylinder Block; Crankshaft – Pistons; Flywheel and Drive Pulley; Cylinder Head; Rocker Shaft; Timing Gear; Oil Sump – Oil Pump; Fuel Injection Equipment; Fuel Feeding; Cylinder Head Cover; Oil Cooler and Filter; Water Pump and Thermostat; Turbocharger; Alternator; Flywheel Housing and Starter; Engine Gaskets Sets
• Accessories & Options – Air Conditioning Installation; Wheels (DUNLOP, TITAN, MICHELIN and BFGOODRICH fitments); Mudguard 20″ and 24″; Tow Valve Installation; Wheel Wedge Option; Valve Braking Switch Option; Matriculation Plate Option; Trailer Plug; Tow Hitch; Rear View Mirror; Backup Alarm; Windshield Protection Grill; 2nd Hydraulic Function On Boom; Rear Hydraulic Function; Rear Hydraulic Hook; Hook; Trailer Brake; Bobcat Decals; Germany Version; Italy Version; Italy Version with hook; Special hook for Italy; Fuel Pre-Filter Kit; Hydraulic Tank Filling Kit; Damper Kit; Boom Head Reinforcement kits; Pressure Retaining Kit for Rear Hydraulic Function; Lift Cylinder Accumulator Kit; Tool Adaptor Kit; Concrete Bucket; Jig + Hook; Floating Pallet Forks; Bales Pikes; Rigid Forks Holder; Toothless and Toothed Buckets
• Numerical Index – a 52-page part number index sorted numerically, each entry pointing to the page and subgroup where the part is listed

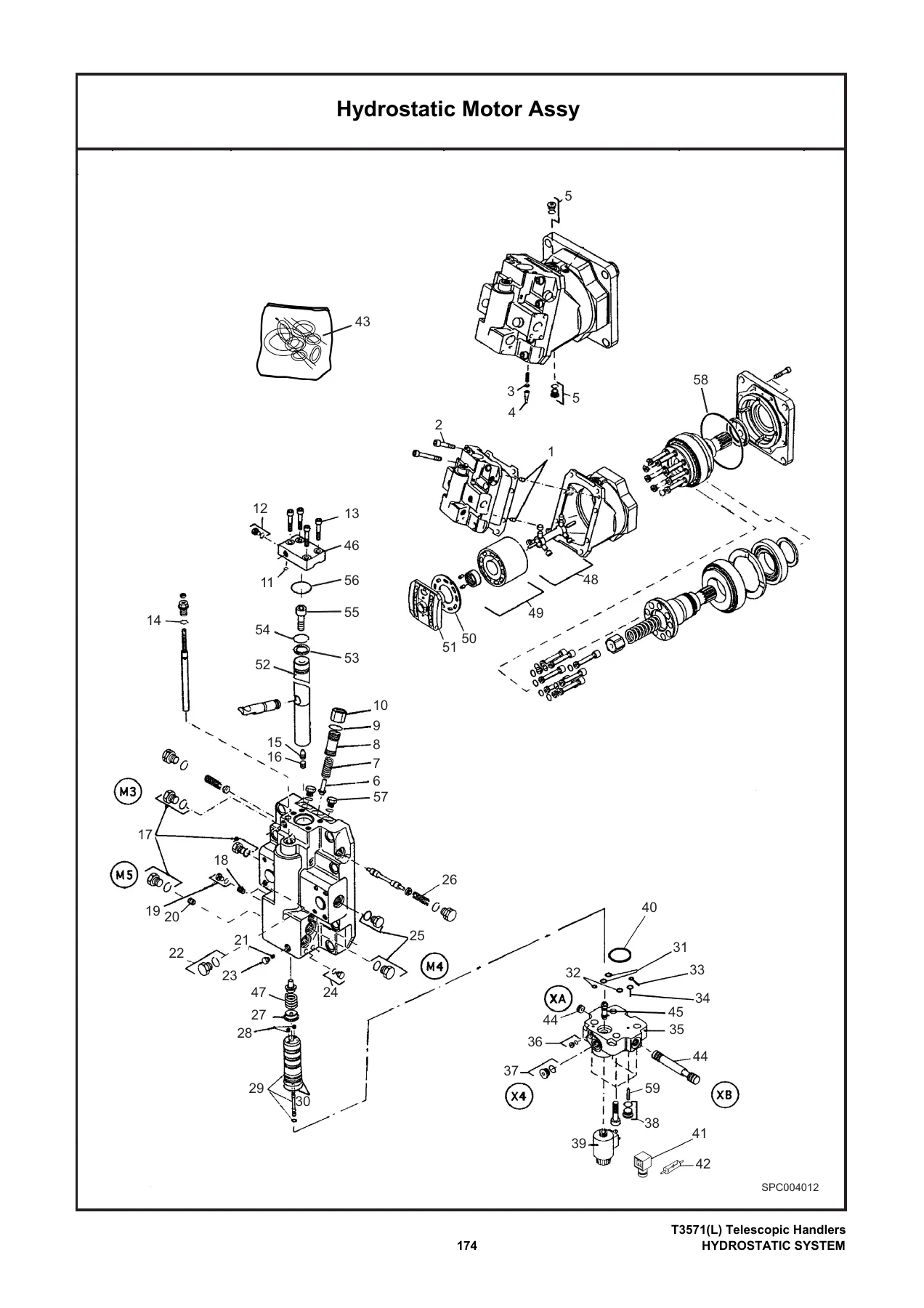

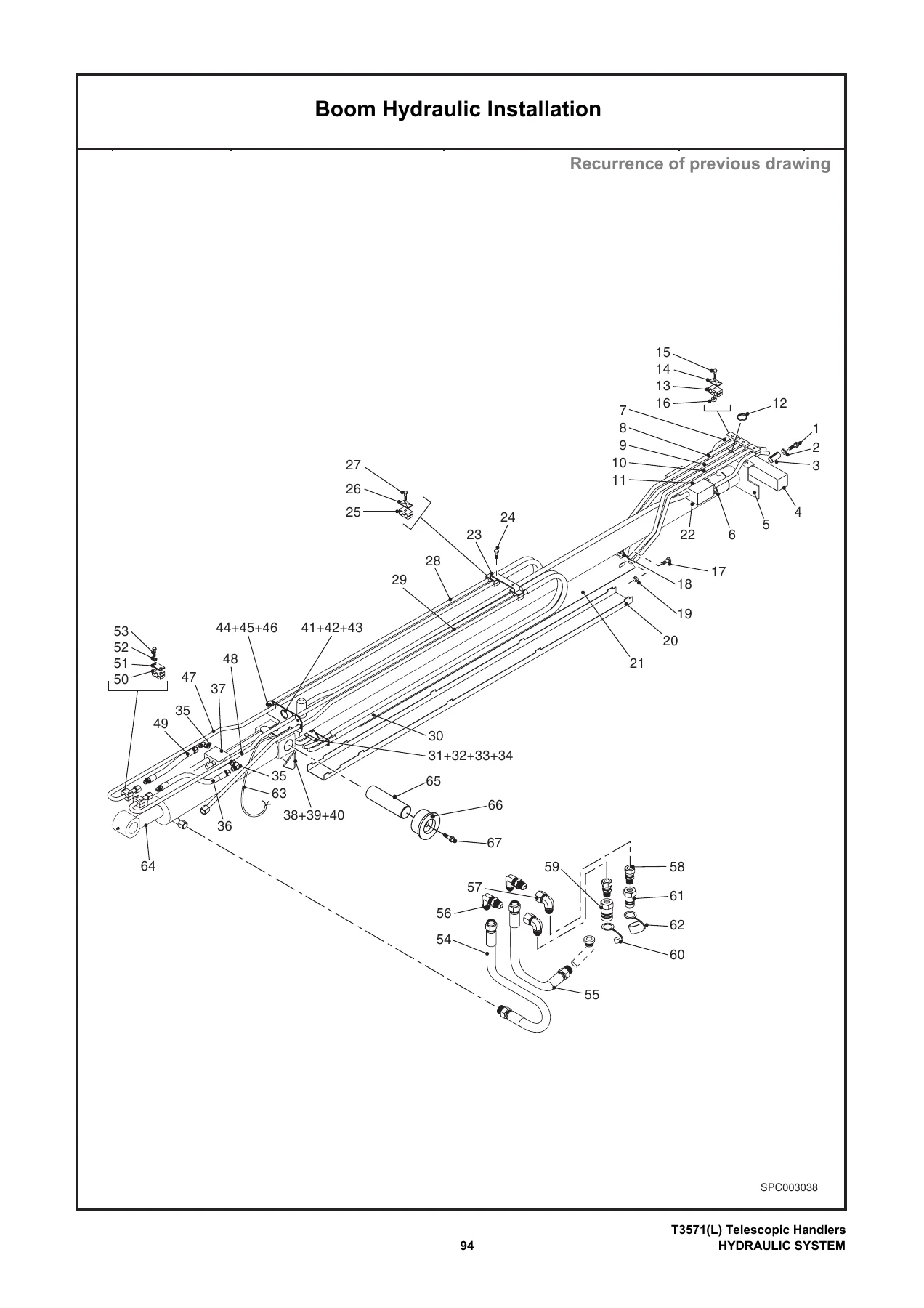

Taken as a whole, this Bobcat T3571 T3571L parts manual works as a complete visual map of the machine. Each subgroup opens with an exploded drawing that shows how the components relate to one another, followed by a table listing item number, part number, denomination, remarks, serial number applicability and quantity. Because the tables carry serial number columns, a part can be checked against the exact machine on the bench rather than against a generic listing. Assemblies that exist in more than one build – for example the hydrostatic motor in one-speed and two-speed form, or the cooling fan circuit with and without the optional reverse – are split into separate sections so the correct variant is used. Sub-assemblies such as the lift cylinder, tilt cylinder, telescope cylinder, compensating cylinder, frame level cylinder, quick attach cylinder, hydraulic motor, hydraulic control valve and the engine’s internal components are broken down further, with seal kits, repair kits, bushes, pistons, rods and gasket sets listed individually.

Using the Exploded Views and Part Tables

The layout rewards a systematic approach. Locate the system in the contents, open the subgroup, identify the item on the exploded illustration, then read the matching item number in the table for the part number and the quantity required for that illustration. Cross-references such as “For details, see page …” point to the deeper breakdown where a component is serviced, and serial number notes show where a part applies only to a particular machine range. The numerical index at the back of the Bobcat T3571 T3571L parts manual reverses the process: when a part number is already known, the index leads straight to the page and subgroup where it belongs, which is the fastest route when a number is legible on a failed component.

Wheels, Attachments and Regional Configurations

The accessories and options chapter is unusually broad and covers the configurations these handlers were supplied in. Wheel sections list complete assemblies, rims, air valves, tyres, shields and abacus cards for the DUNLOP 400/80-R24 156B, TITAN 400/70-R20, DUNLOP 400/70-R20 150B, MICHELIN 440/70 XM37, BFGOODRICH 400/70-20 and DUNLOP 405/70-20 SPT9 fitments, with left-hand and right-hand wheel assemblies separated. Attachment coverage runs through concrete buckets, floating pallet forks, bales pikes, rigid forks holders, toothless and toothed buckets with their blades, wedges, tooth supports, teeth and locking parts, along with the jigs, hooks, shackles and spindles used with them. Regional build sections for the Germany and Italy versions group the parts specific to those markets, including matriculation plate options, reflectors, speed adhesives and the Italy-specific hook.

Who This Parts Manual Helps

Anyone maintaining or rebuilding a T3571 or T3571L benefits from having the correct numbers on hand: workshop technicians ordering replacement components, parts counter staff confirming that a number suits the serial range in front of them, and owners running a machine who want to identify a broken bracket, hose, bush or seal before contacting a supplier. The hydraulics, hydrostatics and drive system chapters are detailed enough to support rebuild work on the axles, differentials, brakes and steering assemblies, while the power unit chapter carries the engine internals, fuel injection equipment, cooling system and turbocharger breakdowns needed when a repair reaches beyond the bolt-on parts. Because the parts data is organised by assembly rather than by description alone, a full component group can be worked through without guessing which fasteners, washers, seals or clips are needed alongside the main part.
