Description

Sennebogen 835 Material Handler Spare Parts List – Project 835.0.1384

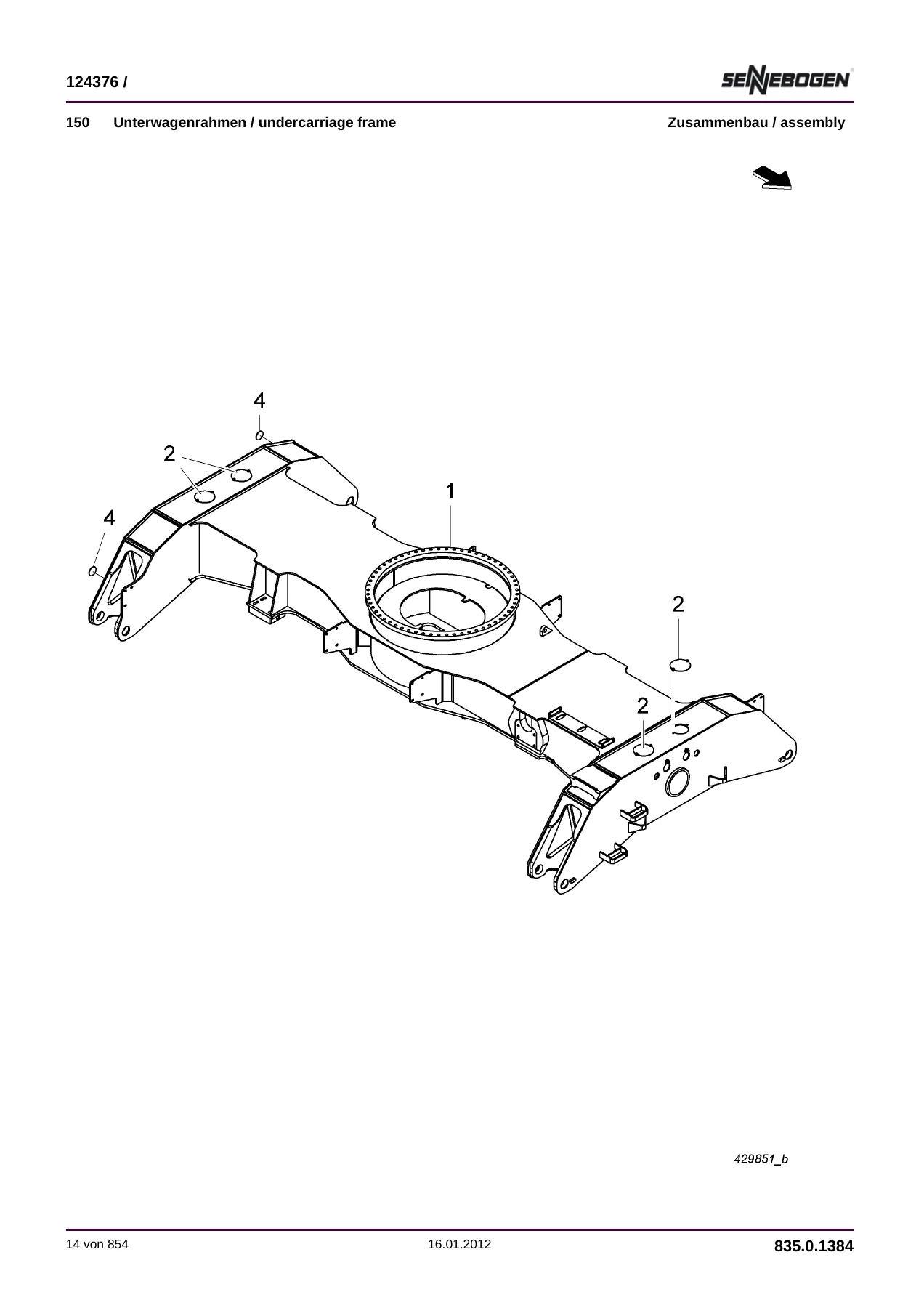

This Sennebogen 835 Material Handler Spare Parts List is the factory-issued parts catalog (ETK format) for Project 835.0.1384, a wheeled Sennebogen 835 material handler built around a Cummins QSB6.7-C260 engine. Running to 854 pages, this Sennebogen 835 parts manual pairs an exploded component drawing on the left-hand page with the matching parts table, item number, part number, quantity, and page cross-reference on the right, exactly as it left the factory print room in January 2012.

File Details

• Manual type: Factory spare parts list (ETK-format parts catalog)
• Brand / Model: Sennebogen 835 material handler
• Project / document number: 835.0.1384
• Publication date: 16.01.2012
• Page count: 854 pages
• Languages: German designations with English, French, Spanish, Italian and Portuguese nomenclature columns
• File format: Digital PDF download

Chapters Covered

• Undercarriage frame and axle installations (front axle, rear axle)
• Swing axle cylinder assembly and pendulum axle release kit
• Outriggers, outrigger pads and distributor installation
• Undercarriage lubrication, drive unit and tyres
• Access ladder, rotor installation and slewing lock
• Swivelling connection and upper structure frame
• Control block installation and slewing drive
• Counterweight and upper structure covering
• Fuel tank, hydraulic oil tank and suction line assembly
• Engine drive unit, fuel system and output unit
• Cooling system, fan fin installation, air filter and exhaust system
• Battery installation and HydroClean oil-cleaning system
• Collector, lubrication points and fastening elements
• Cab adjustment, cab mounting kit and cab assembly
• Base plate mechanical and mechatronic parts, driver’s seat
• Air conditioning system and cab heating hose assemblies
• Cab accessories
• Compact boom, boom pipe work, stick and stick pipe work
• Hoist cylinder, stick cylinder and lift limit shutdown systems
• Lubrication installation kit and multi-shell grab
• Mechatronics, illumination and label set
• Anti-slip surfacing
• Special accessories: grabber mounting kit, magnet unit, generator attachment, tensioner, refueling pump, lubrication pump and slewing ring protector
• Tool kit and tool box

Taken together, these sections give a workshop everything needed to identify and order the correct part for the 835’s undercarriage, upper structure, powertrain, cab, and material-handling attachments without guessing at a substitute part number.

Engine and Powertrain Coverage

The inspection-set data at the front of this Sennebogen 835 parts manual confirms the machine is fitted with a Cummins QSB6.7-C260 engine rated at 194 kW (engine no. 2202 2945), and the same section lists the exact filter, belt and fluid part numbers needed for scheduled service: return filters, leakage oil filter, ventilation filter, HydroClean element, engine oil filter, fuel filter, water separator, cab heating elements, air filter cartridges and V-belts. Further into the document, dedicated sections break down the drive unit, fuel system, output unit, cooling system and exhaust system into individually numbered components.

How the Parts List Is Organized

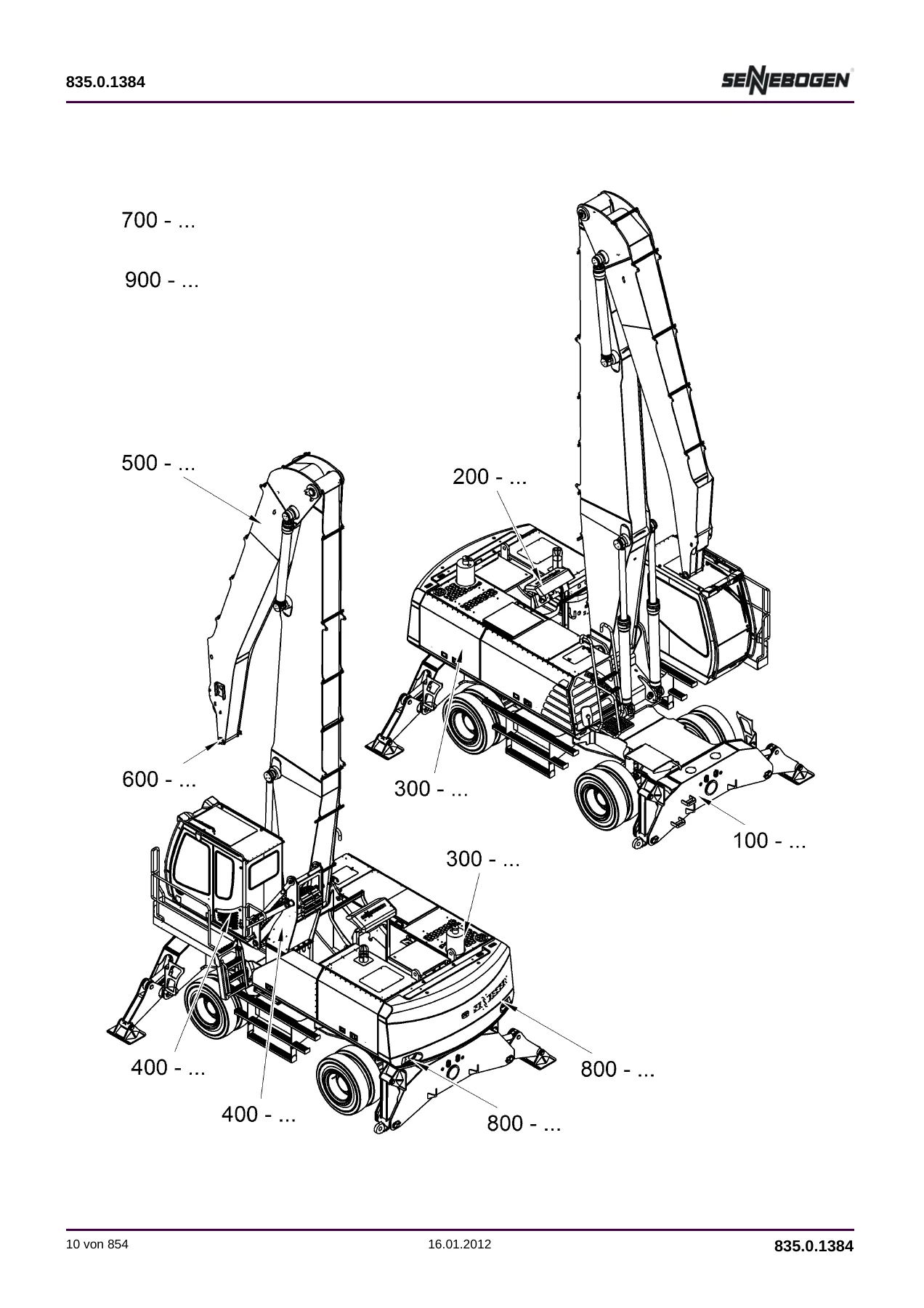

Every assembly in this 835.0.1384 spare parts list is numbered by module (100–199 for the undercarriage, 200–299 for the upper structure, 300 for the frame, 400s for the cab, 500s for the boom/stick, 700s for mechatronics, 800s for lighting and labels, 900s for special accessories), so a part can be traced from the machine overview diagram straight to its drawing and table. Assemblies that cannot be individually ordered are flagged in the page header, and orderable modules are marked accordingly, so nothing is mis-ordered from a sub-component that Sennebogen only supplies as a complete unit.

IMAGES PREVIEW

Multi-Shell Grab and Attachment Coverage

Beyond the base machine, this Sennebogen 835 material handler parts manual also documents the multi-shell grab installation and the special-accessories range fitted to this project: grabber mounting kit, magnet unit with generator attachment and tensioner, refueling pump and hose set, lubrication pump, and slewing ring protector — the parts most likely to need replacement on a machine working scrap or bulk material handling duty.

Why Technicians Rely on This Sennebogen 835 Parts Manual

With this Sennebogen 835 Material Handler Spare Parts List on hand, a technician can pull the exact part number for an undercarriage bearing, a hydraulic cylinder seal kit, a cab air-conditioning hose, or a multi-shell grab pivot pin instead of guessing from a generic catalog. Ordering the correct part the first time avoids downtime waiting on a returned incorrect part, and using Sennebogen’s own specified components keeps the machine’s hydraulic and structural tolerances within factory limits. This manual downloads instantly as a PDF after purchase, works on a phone, tablet, laptop or shop PC, needs no special software beyond a standard PDF reader, and can be printed page-by-page for use on the shop floor.
