Bomag BW 213 D Parts Catalogue – Illustrated Spare Parts Manual PDF

Description

Bomag BW 213 D Parts Catalogue – Illustrated Spare Parts Manual

This Bomag BW 213 D Parts Catalogue is the illustrated spare parts reference for the BW 213 D tandem roller, issued under document number 00810043. Every assembly on the machine is broken down into its individual components and listed with a part number, a description and a quantity, so a workshop, a parts counter or an owner can identify and order exactly the right item instead of guessing from a generic breakdown. The catalogue runs to 468 pages and spans the whole machine – from the cylinder head and engine internals through the hydraulic travel and vibration systems, the rear axle, the roller drum, the single-disc brake, the cab, the sprinkler system and the electrical equipment.

File Details

• Manual type: Illustrated parts catalogue / spare parts manual
• Brand: Bomag
• Model: BW 213 D (also listed as BW 213 AD and BW 213)
• Document number: 00810043
• Language: English
• Page count: 468 pages
• File format: PDF
• Coverage: Complete machine – engine, hydraulics, drive, frame, drum, cab and electrics

Chapters Covered

The Bomag BW 213 D parts catalogue is organised into numbered assembly groups, each with its own illustrated page and parts table:

• Cylinder head and control pieces – cylinder head, cover, valve rotators, spring cups, taper collets, valve springs, inlet and outlet valves, valve guides and seat rings in standard and oversize dimensions, studs, shims and hexagon hardware

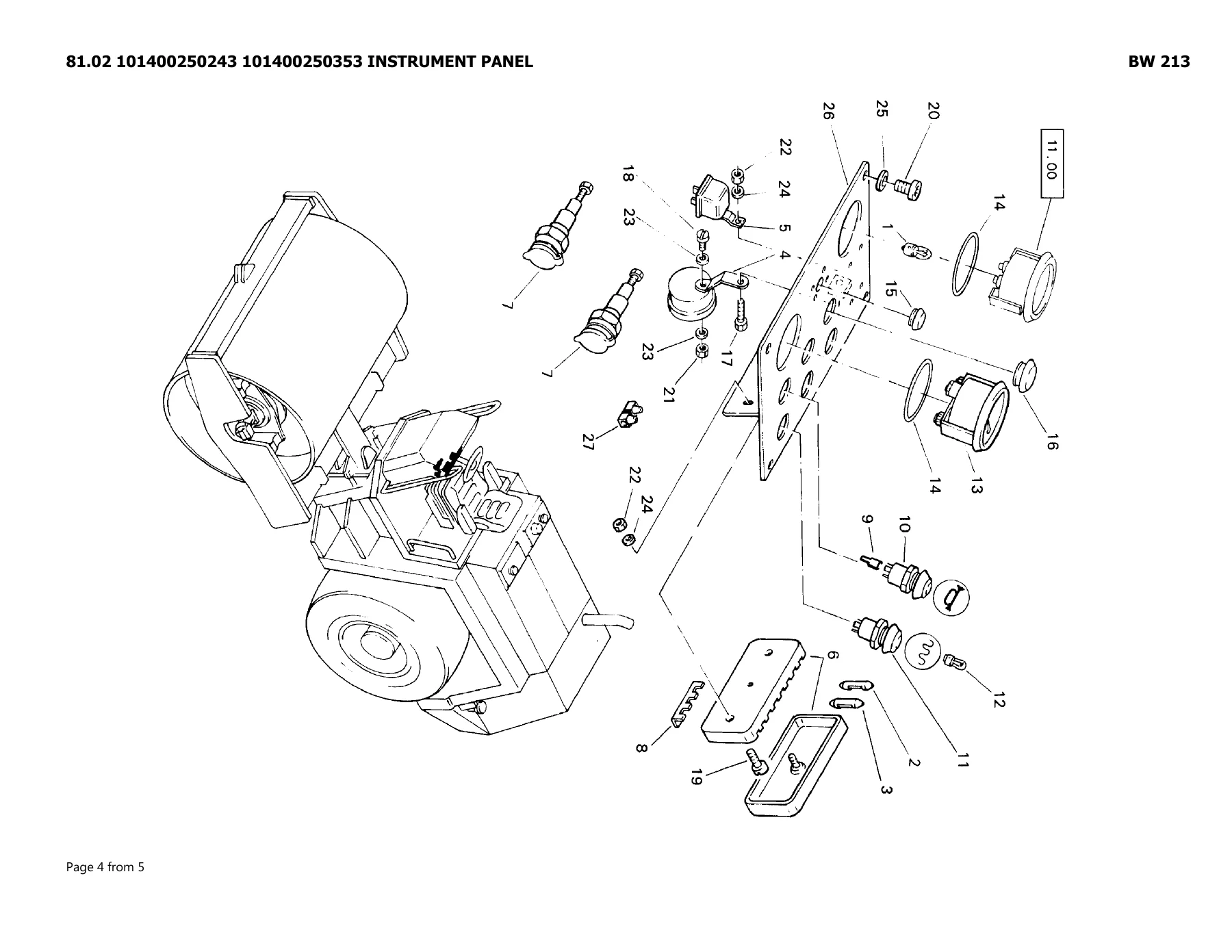

• Instrument panel – relays, ignition switch and key, protection covers, clamp plug connections, push buttons, incandescent bulbs, hourmeter, loop rings, plugs, indicator plate, lenses for battery, air filter, engine oil pressure, hydraulic pressure and brake
• Electrical equipment – tube clamps, fastening clamps, protection caps, end spouts, steel armoured tube, battery and battery holder, earth strap, pole clamps, insulating hose, horn, limit switches, connecting clamps and ground wires
• Accessories and supplies – high pressure hand press, hose, grease cartridge, tool case, socket wrench, mandrel, open-end spanners from 10×11 up to 46×50, Allen keys, pin key, screwdrivers, gland nut pliers and hammer
• Decals and manuals – decal kit, type designation decals, travel fast/slow, travel actuation, ear protection, loading device, start-stop, steam cleaner, first aid, plus operating and maintenance instructions and repair instructions
• Protection roof / sun roof – sun roof panel and mounting hardware
• ROPS-FOPS – ROPS-FOPS bow, stiffening left and right hand, seat belt kit, spacer plates in 1 mm, 2 mm and 3 mm
• Cab – plugs, floor mat, insulating mat, stop buffers, door assemblies, wiper motor, wiper arm and blade, guiding arm, blower, switches, mirrors, handle bars, discharge nozzle, inside light and ventilator screens
• Heating – hose clips, tube clamps, nipples, air discharge, heating box, cable sockets, supports, insulating material, control, spare cable and heater hose
• Lighting, working light and STVZO lighting – incandescent bulbs, reflector kits, flash and tail lights, frames, pillow blocks, indicator relays, hazard and indicator push buttons, indicator brackets, headlights, lamp boxes and glass for lamp
• Ballast – additional weights left and right hand, carrier frame and mounting hardware

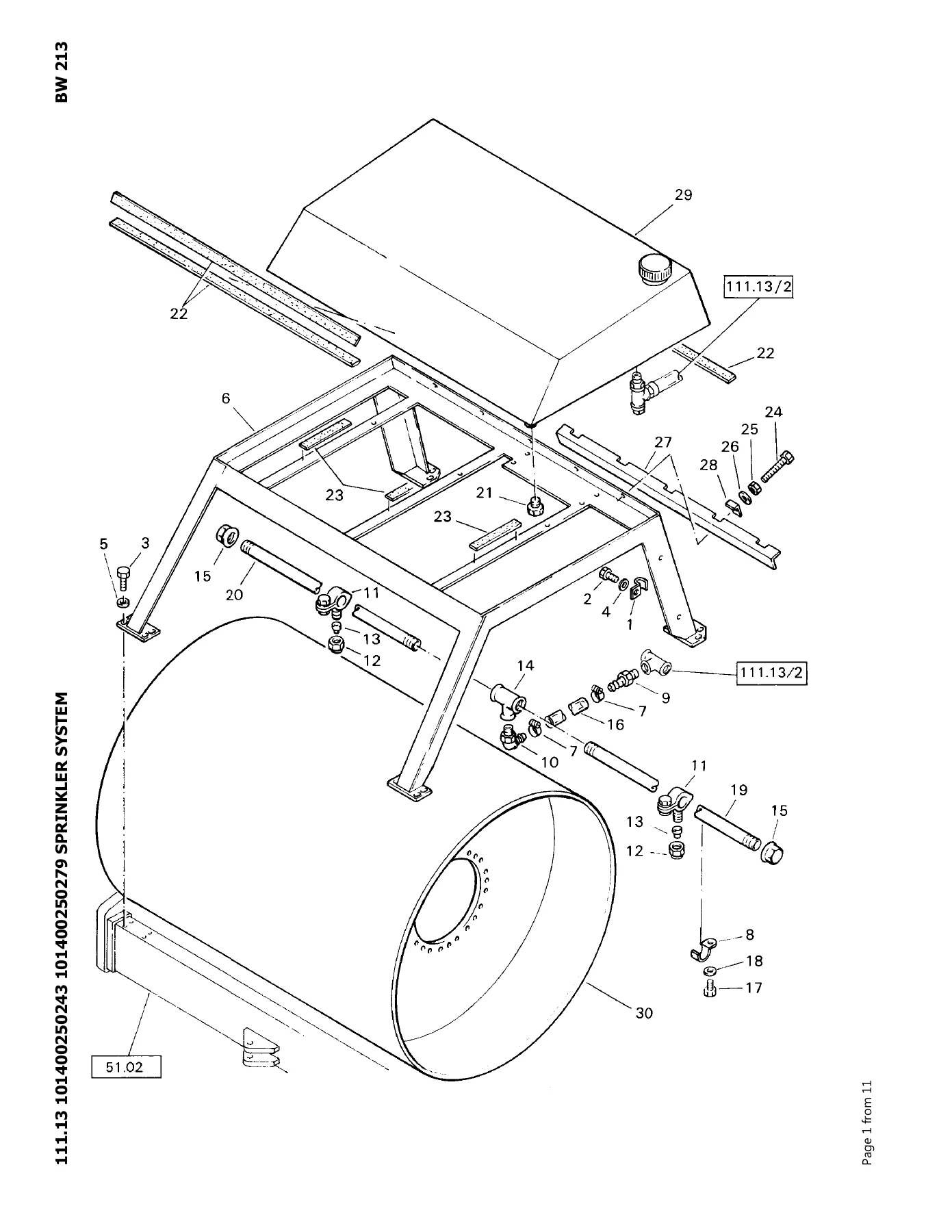

• Sprinkler system – tank support, hose clips, tube clamps, double-ended unions, angular unions, assembling clamps, cap nuts, nozzles, T-reductions, nozzle tubes, water tank, roller drum, filter, strainer, filter cup and head, pressure switch, interval switch, warning buzzer and control box
• Water pump – sprinkler pump, sliding gasket, suction housing and cover, pressure housing, running wheel, loop rings, splash rings, discs, motor, carbon brushes, ventilation valve, radial seals and pump part
• Lubrication oil pump and lube oil cooler – lubrication oil pump, screen, suction pipe, cap screws, double bevel ring, tube clamp, oil pipe, loop rings and spring; lubrication oil cooler with cap nut, duplex ring and sealing ring
• Lube oil tube – leakage line, sealing rings, hollow screws, hose, backleakage sump, springs and gaskets
• Dry air filter, oil bath air filter and suction device – filter element, collar nut, oil tank with locking device, locks, felt discs, safety cartridge, dust discharge valve, prefilter, cup, air filter brackets, bows, elbows and cover plates
• Brake – brake linings, gudgeon pins, bearing bushes, brake shoes, supports, base plate, spring guiding, rod end bearings, discs, pressure springs, quad rings, Belleville springs, pistons, piston rod, cylinder tube and cover
• Noise proofing – covering plates, base plates, reducing fittings, double-ended unions, hose assemblies, screw plugs, sealing rings, sealing sections, sponge rubber, weather cap and tube
• Solenoid valve – solenoid valve, fastening nut, coil, spring washer, plunger, plunger guide and spring
• Scraper – scraper blades, flat steel, bars, spacer tubes, scraper holders and plates
• Seats – comfortable seat with arm rests, operator’s seat upper part with seat rails, cushions and star knob, operator’s seat lower part with bellows and gas spring

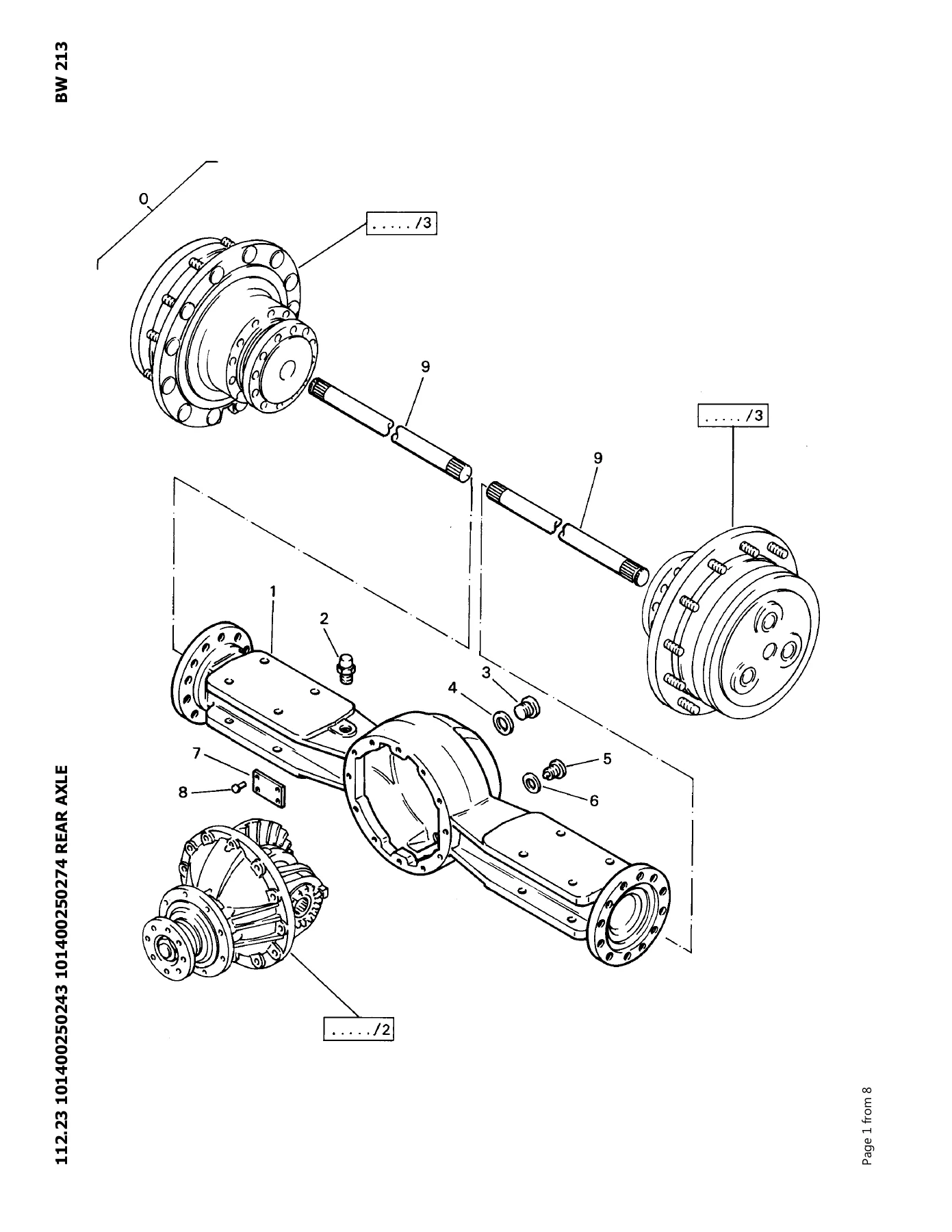

• Rear axle – drive axle, axle housing, bleed valve, screw plugs, magnetic plug, axle shafts, differential, intermediate ring, drive flange, taper roller bearings, bevel gear sets, differential housing, hub carriers, grooved nuts, oil seals, hubs, wheel bolts, internal geared wheels, sun gears, planetary gear carriers and planetary gears
• Back up alarm and rotary beacon – wall ducts, supports, buzzers, screens, limit switches, control levers, base plates and beacons
• Omegameter – interference suppressor kit, transducer, electronic unit, potential transformer, indicator, analogue display, decals, padlock and mounting hardware
• Burglary protection and water filter – tank covers and keys, locks, square keys, flat steel, hooks, filter, strainer, filter cup and drain cock
• Roller drum, travel bearing sealing and pad foot wheel – additional weights, carrier frame, roller drum, sealing sections, lubrication hoses, grease nipples, rings, coverings, pad foot rings and scrapers
• Service kit 1000 H – gaskets, engine oil filter cartridge, fuel filter cartridge, sealing rings, air filter element, hydraulic oil filter cartridge, loop rings and hydraulic oil filter element
• Engine parts – crankcase, main bearings in graded sizes, cylinder and piston assemblies in 100.00 mm and 100.50 mm, piston rings, crankshaft, flywheel, ring gear, V-belt pulleys, conrods, conrod bearings in graded sizes, camshaft, front cover and tensioning pulley, oil pan
• Cylinder head and engine ancillaries – cylinder head components, cooling blower and cooling air duct, injection pump, injection valve, fuel prefilter, fuel pipes, exhaust system, throttle regulation, generator and starter, engine holder, measuring instruments, connecting housing, hydraulic pump and gasket kit
• Power transmission – engine connection, coupling and coupling elements, drive shaft and brake disc, roller drum drive front, hydraulic pump for travel system, hydraulic pump for vibration, hydraulic travel system, hydraulic motors for vibration and travel, way valve, hydraulic oil filter and hydraulic cylinder
• Travel and brake actuation – travel actuation levers, push buttons, rubber handles, covering plates, control cables, ball joints, bellows, brake lever, brake cable, fork joints and clevises
• Steering – steering column, steering unit, valve block with seal kits and pressure relief valve, oscillating articulation joint with spherical plain bearings, consoles, shafts and grease nipples, hydraulic steering system with hoses and unions
• Frame and attachments – frame in front with scraper holders and flat steel, frame rear with rubber straps, level sending units and tank covers, engine hood with hinges and shock absorbers, covering with gas spring and hood lock, operator’s platform, handles, vandalism protection, hydraulic oil tank with breather filter and float switch
• Roller drum and tyres – vibrating roller drum smooth with cylinder roller bearings, Nilos rings, eccentric weights, flanged hubs and housings, ring gears, coupling hubs and shafts, profiled tyre rear with wheel, rim, valve and tyre
• Hydraulic vibration circuit – hose assemblies, double-ended unions, angular unions, T-unions, reducing unions, test connections, control valve, magneto and oil temperature regulator

Read as a whole, this Bomag BW 213 D parts catalogue gives a technician or parts interpreter a complete, assembly-by-assembly map of the machine. Each illustrated page shows the components in exploded view with item numbers that tie directly to the parts table beside it, so a part can be traced from its position in the assembly to its part number, description and required quantity. Where a component exists in several sizes – valve guides, valve seat rings, main bearings, conrod bearings, thrust discs and shims – the alternatives are listed together so the correct variant can be selected for the build in front of you. Consumables and service items such as filters, gaskets, sealing rings, loop rings and the 1000-hour service kit are catalogued alongside the hard parts, which means routine servicing and major overhaul parts can be ordered from the same reference.

What This Parts Catalogue Lets You Do

With the Bomag BW 213 D spare parts manual open, the jobs it supports run the full length of the machine. You can strip and rebuild the cylinder head, select the right oversize valve guide or seat ring, match a graded main bearing or conrod bearing shell to the crank, or identify every seal in a hydraulic travel motor before it is opened. On the chassis side, the exploded rear axle pages cover the differential, bevel gear set, hub carriers, planetary gears and internal geared wheels down to individual thrust discs and needles, while the roller drum sections show the eccentric weight, bearings, flanged hubs and coupling hubs. The brake, steering, sprinkler, lighting, cab and instrument panel groups are all drawn and tabulated the same way.

Working from the BW 213 D parts catalogue rather than a photograph or a guess matters because the machine uses many similar-looking fasteners, shims and seal rings in different positions. The catalogue separates them by part number and by assembly, so a shim of the wrong thickness or a seal of the wrong section is not substituted by accident. That is the difference between a repair that lasts and one that comes back.
