2018 Kalmar Empty Container Handler H30500011 Parts Catalogue PDF

The 2018 Kalmar Empty Container Handler H30500011 Parts Catalogue PDF is a machine-specific spare-parts reference for the Kalmar EMPTY CONTAINER HANDLER identified by serial number H30500011. Dated 31/08/18, this 736-page catalogue is built around illustrated assemblies and corresponding parts lists so technicians, parts departments, fleet operators, and maintenance teams can identify components before ordering replacements. The catalogue itself states that its information applies to the machine whose serial number and model are specified on the front page, making the serial-number match an important point to check before purchase.

Serial-Specific Parts Identification

This Kalmar Empty Container Handler parts catalogue is not a generic overview of an entire product family. It follows the configuration represented by S/N H30500011, including the assemblies and options listed for that machine. That makes it particularly useful when a component must be traced from its installed location down to a part number, quantity, or subassembly rather than selected only from a broad model description.

The catalogue explains that its content is arranged as illustration pages and parts-list pages. Exploded views and plane views show the relationship and position of components, while the associated lists provide position numbers, part numbers, descriptions, quantities, units, and notes. This structure lets you move from a visual assembly to the matching orderable component and also distinguish complete assemblies from subcomponents or items that are not sold as assemblies.

Powertrain and Engine Assemblies

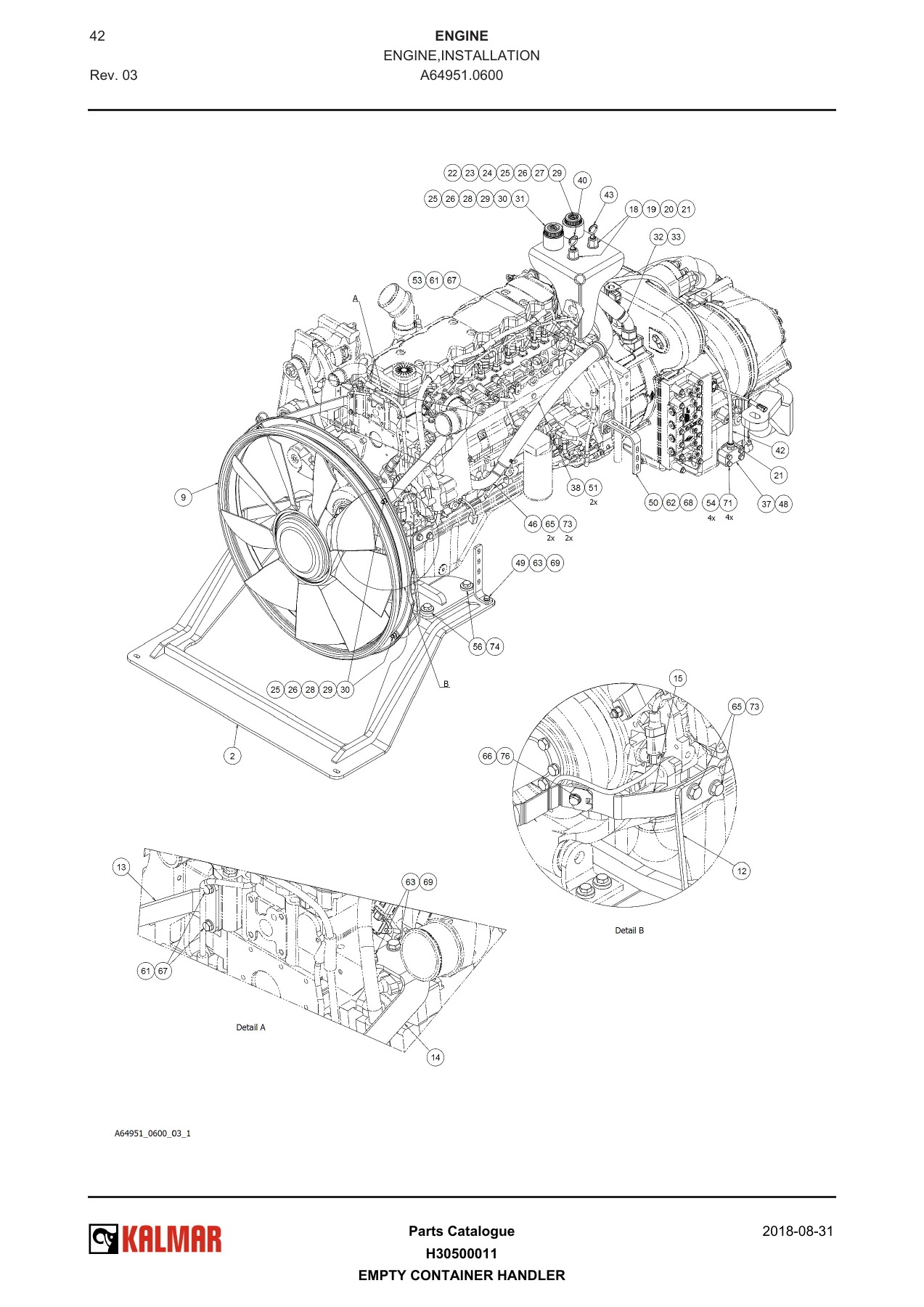

A substantial portion of the 2018 Kalmar Empty Container Handler H30500011 Parts Catalogue PDF is devoted to the powertrain. The engine section identifies a QSB6.7 164kW 3A engine and breaks its parts coverage into engine brackets, fuel filter and fuel-pipe groups, fuel pump, water separator, injectors, crankshaft, cylinder block, tappets, vibration damper, flywheel housing, flywheel, gear case, camshaft, cylinder head, crank mechanism, rocker assembly, valve cover, air breather, intake manifold, turbocharger, exhaust manifold, oil system, thermostat, water pump, starter motor, alternator, control unit, wiring harness, engine heater, and related installation hardware.

The transmission section identifies a complete DANA 3016FTE14310-5 gearbox and then separates the gearbox into the torque converter, transmission case, drive plate kit, drive pump, clutch groups, gears, turbine shaft, oil filter, rear cover, speed sensor, charge pump, pump connection, and control-valve assemblies. A separate transmission-control installation lists the gearbox control unit and transmission wiring components. This level of breakdown is useful when a repair has already been diagnosed and the next task is identifying the correct component or assembly reference.

Driveline, Brakes, Steering and Running Gear

The driveline coverage includes the universal drive shaft and cardan axle, followed by the drive axle and its internal groups. The drive axle is identified as a complete Kessler D81 assembly, with catalogue sections for the axle casing, differential, planetary gearing, drive-wheel brake, and parking brake. Brake coverage continues with the power-assisted brake system, brake valve assembly, hydraulic brake circuits on the drive-shaft and frame sides, and the hydraulic pressure filter.

Steering coverage includes the steering axle, wheel hubs, steering cylinder and seal components, servo hydraulics, and steering hydraulics. The suspension section covers tyres and rims; the wheel listing specifies an 8,50×24/1,7 GKN rim and 12,00×24/20 Continental tyre. These sections help connect major running-gear assemblies to their individual bearings, seals, hoses, fasteners, valves, and replacement parts.

Load Handling, Mast and Container Attachment

The load-handling chapter is especially detailed. It covers the mast, lifting cylinder, hose routing, mast electrical equipment, mast lubrication, lifting carriage, lift hydraulics, lift accumulator, lifting-cylinder damping electrics, side-shift hydraulics, tilt hydraulics, tilt cylinder, and the load carrier/attachment. The mast entry specifies a lifting height of 16500 mm, while the lifting carriage entry specifies a carriage width of 1600 mm. The mast parts include outer and inner mast groups, slide pieces, chain wheels, chains, mast wheels, hose wheels, and related hardware.

The attachment section goes further into the container-handling equipment with spreader electrical equipment, hydraulic assemblies, mechanical mounting, cylinders, working-lamp mounting, twistlock head packages, right- and left-hand twistlock assemblies, and associated hydraulic cylinders. For maintenance teams working around the lifting and container-locking equipment, these illustrated groups can make it far easier to identify which component belongs to a particular mechanism before a parts request is raised.

Cab, Body, Hydraulics and Electrical Equipment

Coverage is not limited to the drivetrain and mast. The frame, body, cab and accessories chapter includes controls and instruments, joystick and switch panels, steering-column components, safety and emergency equipment, driver’s seats, heating/ventilation/air-conditioning parts, lighting, signalling, entertainment and communication installations, mirrors and glazing, cab suspension and cab structure, frame and body parts, counterweight, left and right sweeps, fuel-tank components, battery protection, hydraulic-oil tank components, filters, breathing filter, and fender items.

Common hydraulics are organized around pumps plus hoses, pipes, and valves, including the main hydraulic pump arrangement, cab hydraulics, control valve, and directional control valve groups. Common electrics include chassis electrical installation, main switch and power-switch components, front lamp supports, electric cabinet, cab electrical distribution, display equipment, lifting-carriage electrical installation, and cabin communication wiring. A numerical register at the end provides an additional route through the catalogue when working from a known part-number reference.

File Details

• Manual type: Parts Catalogue
• Brand: Kalmar
• Model: EMPTY CONTAINER HANDLER
• Serial number: H30500011
• Publication date: 31/08/18
• Language: English
• Page count: 736 pages
• File format: PDF

Chapters Covered

• Catalogue Instructions
  • How to read the parts catalogue
  • Spare part orders and machine card information
• 00 Complete Machine
  • Additional information

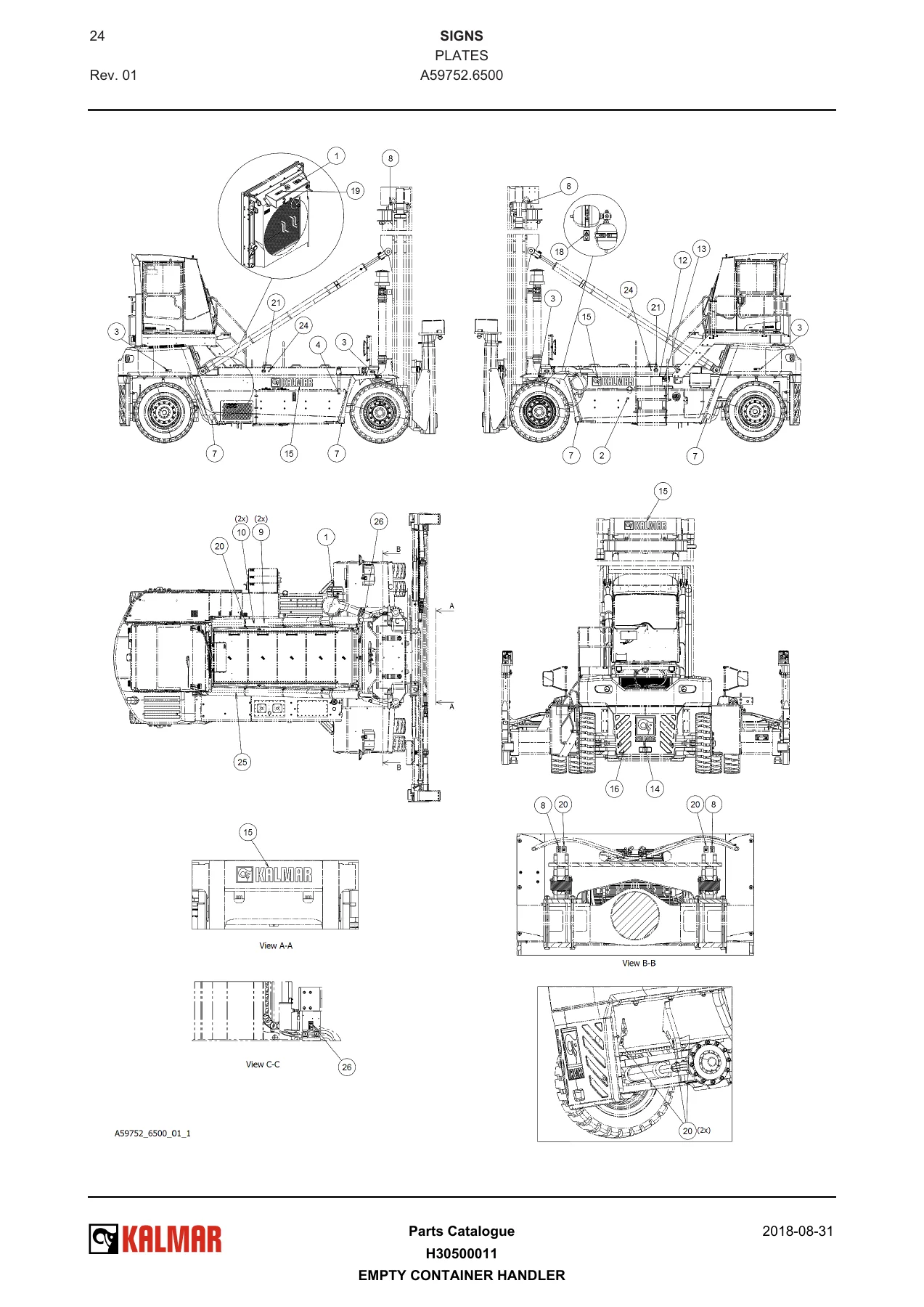

  • Catalogue instructions, signs and diagrams
• 01 Engine
  • Engine
  • Fuel system
  • Air intake and exhaust outlet
  • Cooling system
  • Engine control system
• 02 Transmission
  • Transmission
  • Transmission control system
• 03 Driveline/Axle
  • Propeller shaft
  • Drive axle
• 04 Brakes
  • Power-assisted brake system
• 05 Steering
  • Power assisted system
• 06 Suspension
  • Tyres and rims
• 07 Load Handling
  • Lifting/lowering
  • Side shift
  • Tilt
  • Load carrier
• 09 Frame, Body, Cab and Accessories
  • Controls and instruments
  • Safety and emergency equipment
  • Seat
  • Heating, ventilation and air conditioning
  • Lighting system
  • Signalling system
  • Entertainment and communication
  • Glass/windows/mirrors
  • Cab structure and suspension
  • Frame
  • Body
• 10 Common Hydraulics
  • Pumps
  • Hoses, pipes and valves
• 11 Common Electrics
  • Electric protection
  • Distribution of electricity
  • Communication
• Numerical Register

Taken together, these chapters give a component-level map of the machine from the QSB6.7 engine and DANA transmission through the Kessler drive axle, brake and steering hydraulics, mast and spreader equipment, operator cab, common hydraulic circuits, and electrical installations. The emphasis is parts identification and assembly relationships: it is a parts catalogue rather than a workshop procedure manual.

Identify the Right Components Before Ordering

IMAGES PREVIEW

The 2018 Kalmar Empty Container Handler H30500011 Parts Catalogue PDF helps you trace assemblies, compare exploded views with installed components, identify part numbers, check listed quantities, and prepare more accurate spare-parts requests for the machine configuration represented by S/N H30500011. Correct part identification matters because closely related machines can use different revisions, assemblies, or option-specific components, and this catalogue keeps the visual reference and parts list together. After payment, the PDF is available for instant download with no physical shipping required; it can be viewed on compatible phones, tablets, and computers and printed when a paper reference is useful in the workshop or parts department.
