Description
Kalmar Ottawa T2 Parts Catalogue 2020 – S/N 355456-355491
This is the complete Kalmar Ottawa T2 Parts Catalogue for the 2020 model, covering machine serial numbers 355456 through 355491. The 818-page PDF is the spare parts reference used to identify, locate and order components for the Ottawa T2 terminal tractor. Every chapter pairs an exploded illustration with a parts list that gives position numbers, part numbers, descriptions, quantities, units and ordering notes.
File Details
- Manual type: Parts Catalogue / Spare Parts Manual
- Brand: Kalmar
- Model: Ottawa T2
- Covered serial numbers: 355456 – 355491
- Publication date: 2020-11-02
- Language: English
- Page count: 818 pages
- File format: PDF
Chapters Covered
- 0000 Complete Machine – Preventive Maintenance, Service Kit, Signs, Wiring Diagram, Brake Diagram, Hydraulic Diagram
- 0100 Engine – Engine Assembly 12V, Mounting Bracket Installation, Controls and Instruments, Fuel System, Additional Exhaust Cleaning System, Mechanical Parts, Air Intake and Exhaust Outlet, Cooling System
- 0200 Transmission – Mechanical Transmission, Shifter Panel, Transmission Installation, Adaptation, Rear Mounting Assembly, Lubrication System, Dipstick Installation, Cooling System, Transmission Control System, ECU Installation
- 0300 Driveline/Axle – Propeller Shaft, Driveline Installation, Drive Shaft, Drive Axle, Rear Axle, Axle Housing, Planetary Gearing, Wheel Hub and Brake Assembly
- 0400 Brakes – Controls and Instruments, Brake Valve Installation, Dash Panel Valve, Power-Assisted Brake System, Brake Valve Assembly, Quick Release Valve, Trailer Brake Connections, Gladhand Hose Installation
- 0500 Steering – Column Support, Column Assembly, Front Axle, Steering Gearbox Installation, Steering Arm, Draglink Assembly
- 0600 Suspension – Front Suspension, Rear Fixed Suspension, Tyres and Rims
- 0700 Load Handling – Fifth Wheel Unlatch, Electrical Installation, Fifth Wheel Control, Hydraulic Control Valve, Lift Boom Installation, Fifth Wheel Plate
- 0900 Frame, Body, Cab and Accessories – Dash Panel, Engine Controls, Cab Tilt Switch, Seat and Interlock, Climate Unit, Heater, Air Conditioning Compressor, Wiper/Washer System, Lighting System, Signalling System, Entertainment and Communication, Glass/Windows/Mirrors, Cab Structure and Suspension, Cab Interior, Frame, Body Panels, Paint/Coating
- 1000 Common Hydraulics – Oil Tank Installation, Hydraulic Tank Assembly, Cab Tilt Pump, Power Take Off Pump, Lift Boom Hose Installation, Hydraulic Pump Hose Installation, Cab Tilt Hose Installation
- 1100 Common Electrics – Electric Protection, Electrical Components, Trailer Circuit Breaker, Battery Installation, Battery Pad, Alternator Installation 12V, Distribution of Electricity, Grounding Harness, Relay Mounting, Distribution Block
- 1200 Common Pneumatics – Air Compressor Discharge, Air Tank Installation, Fifth Wheel Unlatch, Draining Valve Installation, Air Compressor Piping, Air Dryer Installation
- Numerical Register – Complete part number index with page references
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “Kalmar Ottawa T2 Parts Catalogue 2020 – S/N 355456-355491 Spare Parts Manual PDF” are as follows:
Kalmar MyPartsp. 3
Table Of Contentp. 5
Catalogue Update Requestp. 7
Catalogue Instructionsp. 9
+0000 COMPLETE MACHINEp. 17
+0004 PREVENTIVE MAINTENANCEp. 19
SERVICE KIT,T2 (PARTS_LIST_12685)p. 21
+0002 SIGNSp. 23

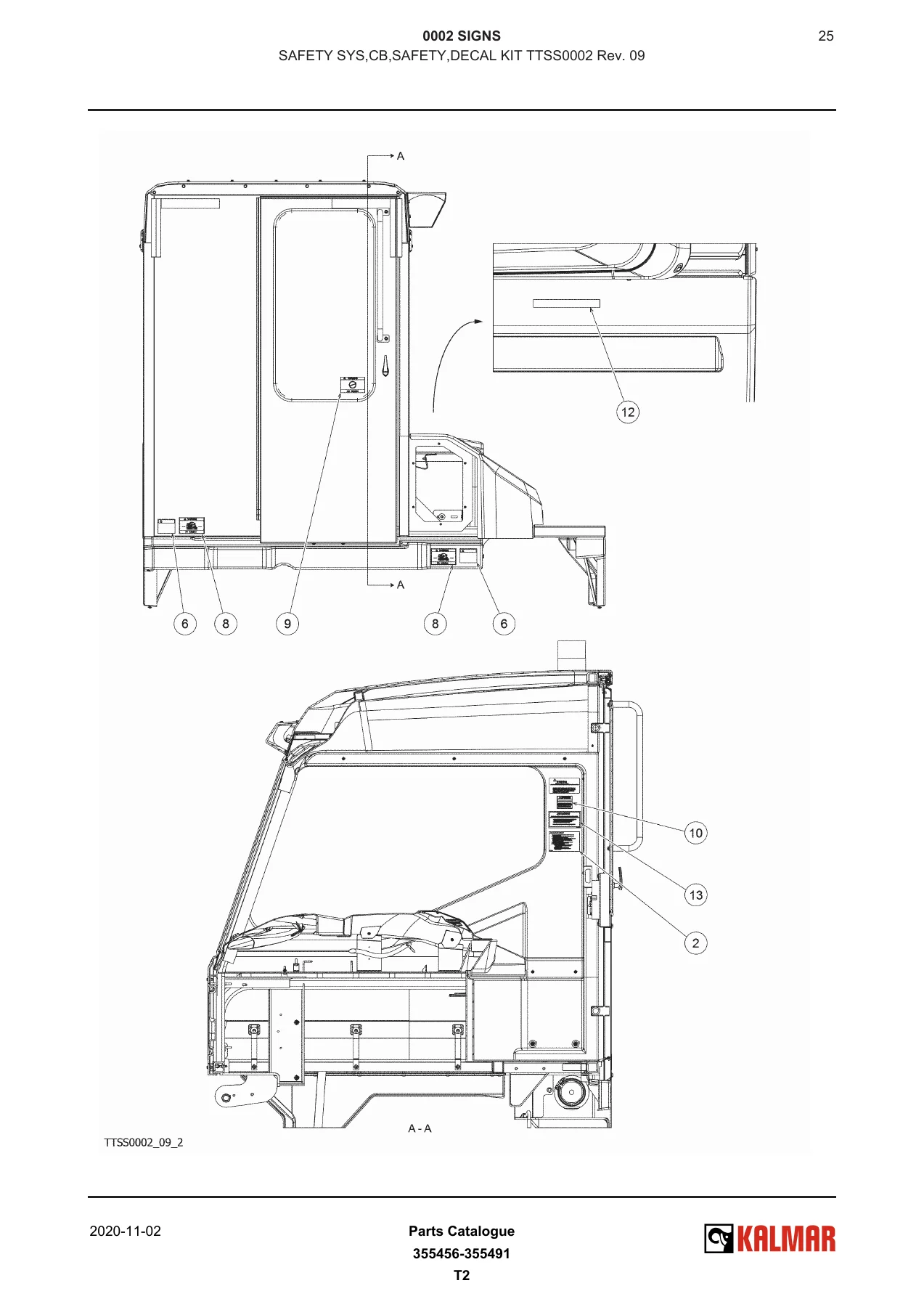

SAFETY SYS,CB,SAFETY,DECAL KIT (TTSS0002)p. 27
SAFETY SYS,CB,VEHICLE DATA,PLATE (TTSS0003)p. 29
SAFETY SYS,CB,OTTAWA (TTSS0191)p. 31
SAFETY SYSTEM,INSTALLATION (TTSS0026)p. 33
SAFETY SYS,CH,SAFETY,DECAL (TTSS0015)p. 37
SAFETY SYS,CH,REFLECTIVE,TAPE (TTSS3006)p. 39
SAFETY SYSTEM,INSTALLATION (TTSS0023)p. 41
SAFETY SYSTEM,INSTALLATION (TTSS0027)p. 43
SAFETY SYSTEM,CHASSIS (TTSS0025)p. 45
+0003 DIAGRAMSp. 47

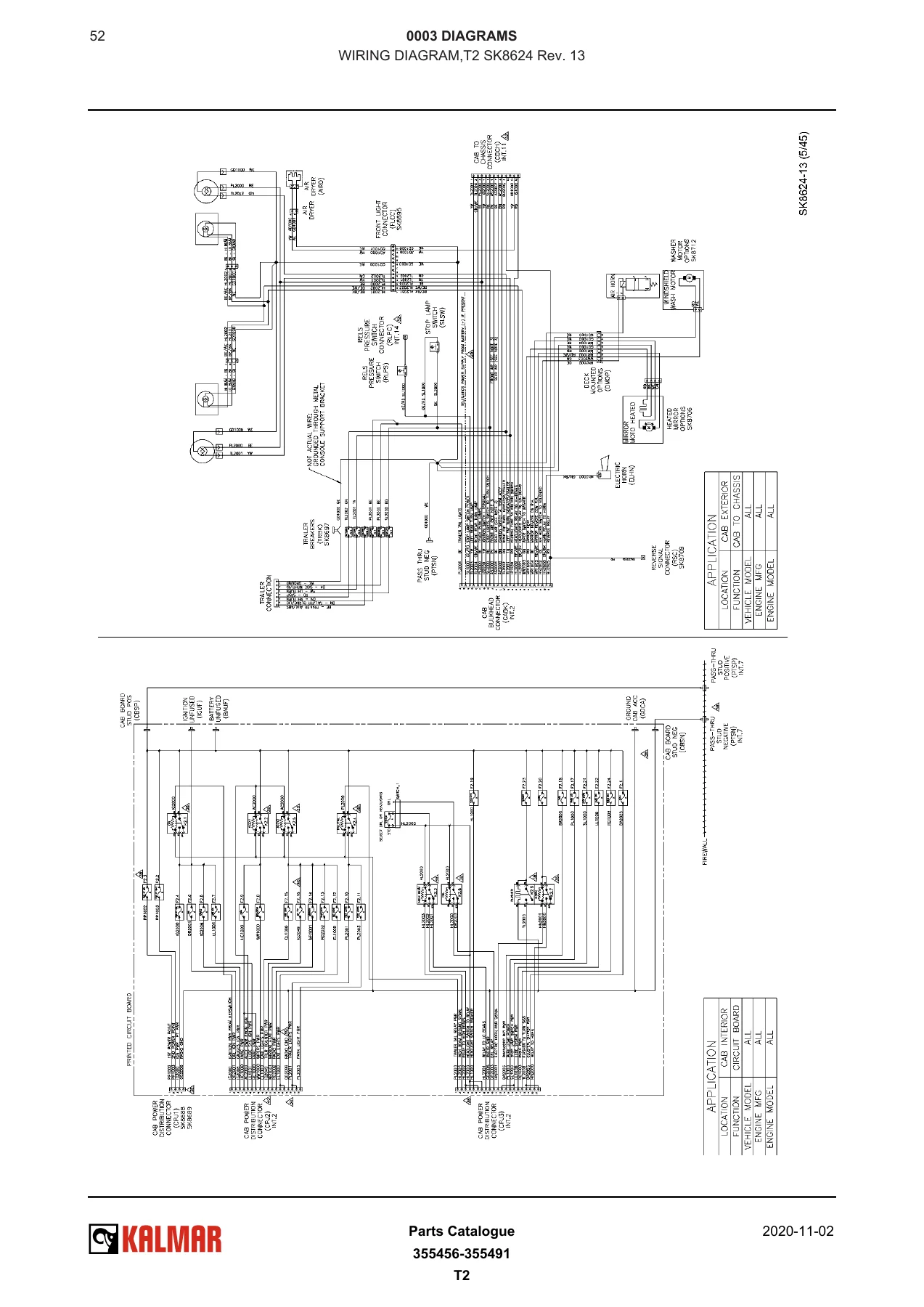

+WIRING DIAGRAM,T2 (SK8624)p. 93
WIRING DIAGRAM (SK8600)p. 97
WIRING DIAGRAM (SK8688)p. 101
WIRING DIAGRAM (SK8689)p. 107
WIRING DIAGRAM (SK8690)p. 111
WIRING DIAGRAM (SK8691)p. 113
WIRING DIAGRAM (SK8692)p. 119
WIRING DIAGRAM (SK8693)p. 123
WIRING DIAGRAM (SK8694)p. 125
WIRING DIAGRAM (SK8695)p. 129
WIRING DIAGRAM (SK8696)p. 133
WIRING DIAGRAM (SK8697)p. 139
WIRING DIAGRAM (SK8698)p. 143
WIRING DIAGRAM (SK8699)p. 145
WIRING DIAGRAM (SK8705)p. 147
WIRING DIAGRAM (SK8706)p. 151
WIRING DIAGRAM (SK8707)p. 153
WIRING DIAGRAM (SK8708)p. 157
WIRING DIAGRAM (SK8709)p. 165
WIRING DIAGRAM (SK8710)p. 167
WIRING DIAGRAM (SK8711)p. 169
WIRING DIAGRAM (SK8712)p. 175
BRAKE DIAGRAM (CTT00002200)p. 183
HYDRAULIC DIAGRAM (SK8719)p. 193
+0100 ENGINEp. 195
+0100 ENGINEp. 197
ENGINE,CH,ENGINE ASSEMBLY,12V (TTEG0303)p. 201
ENGINE,CH,MOUNTING BRACKET,INSTALLATION (TTEG0029)p. 205
+0101 CONTROLS AND INSTRUMENTSp. 207
CAB ACC,CB (TTCA0022)p. 209
CAB ACC,CB (TTCA0055)p. 211
CAB ACC,CB (TTCA0068)p. 213
ENGINE OPT,CB,DIAGNOSTICS,CONNECTION (TTEO0017)p. 215
SPEEDO,CB,CALIBRATION (TTSP0171)p. 217
ENGINE OPT,CH (TTEO0026)p. 221
ELECT SYS,CH (TTES0046)p. 223
+0102 FUEL SYSTEMp. 225
ENGINE OPT,CH (TTEO0021)p. 227
FUEL LINE,CH (TTFL0020)p. 229
FUEL TANK,CH,INSTALLATION,STEP (TTFT0021)p. 231
+0103 ADDITIONAL EXHAUST CLEANING SYSTEMp. 233
EXHAUST,CH,PIPING (TTEX0201)p. 235
EXHAUST,CH,AFTER TREATMENT (TTEX0200)p. 239
EXHAUST,CH,DEF,TANK (TTEX0194)p. 241
EXHAUST,CH,DEF,COOLANT (TTEX0193)p. 245
+0105 MECHANICAL PARTSp. 247
ENGINE,CH (TTEG0300)p. 249
+0106 AIR INTAKE AND EXHAUST OUTLETp. 251
AIR INTAKE,CH,PIPING,INSTALLATION (TTAI3000)p. 253
AIR INTAKE,CH,AIR CLEANER,PRE-CLEANER (TTAI0008)p. 257
AIR INTAKE,CH,RESTRICTION INDICATOR,INSTALLATION (TTAI3002)p. 259
+0107 COOLING SYSTEMp. 261
COOLING SYS,CH,COOLANT TUBING,INSTALLATION (TTCS0023)p. 263
COOLING SYS,CH,BAFFLE,INSTALLATION (TTCS0026)p. 267
+COOLING SYS,CH,RADIATOR,INSTALLATION (TTCS0038)p. 269
+RADIATOR,ENGINE (CTT00003846)p. 271
RADIATOR (PARTS_LIST_06222)p. 273
COOLING SYS,CH,FAN,RADIATOR SHROUD (TTCS0041)p. 275
COOLING SYS,CH (TTCS0074)p. 277
+COOLING SYS,CH,EXPANSION TANK,INSTALLATION (TTCS0077)p. 281
EXPANSION TANK,ASSEMBLY (CTT00003312)p. 283
ENGINE,CH,COOLING FAN,INSTALLATION (TTEG0011)p. 285
+0200 TRANSMISSIONp. 287
+0203 MECHANICAL TRANSMISSIONp. 289
TRANS,CB,SHIFTER,PANEL (TTTR0045)p. 291
TRANS,CH,TRANSMISSION,INSTALLATION (TTTR0005)p. 293
TRANS,CH,ADAPTATION,INSTALLATION (TTTR3001)p. 295
TRANS,CH,MOUNTING ASSEMBLY,REAR (TTTR0063)p. 297
+0206 LUBRICATION SYSTEMp. 299
+TRANS,CH,DIPSTICK,INSTALLATION (TTTR0051)p. 301
ASSEMBLY,DIPSTICK,TUBE (53569175)p. 303
DIPSTICK,ASSEMBLY,TRANSMISSION (CTT00023065)p. 305
+0207 COOLING SYSTEMp. 307
TRANS,CH,COOLING SYSTEM,INSTALLATION (TTTR0104)p. 309
+0208 TRANSMISSION CONTROL SYSTEMp. 311
TRANS,CH,ECU,INSTALLATION (TTTR0132)p. 315
+0300 DRIVELINE/AXLEp. 317
+0302 PROPELLER SHAFTp. 319
+DRIVELINE,CH,INSTALLATION (TTDL0019)p. 321
DRIVE SHAFT (90022417)p. 323
+0303 DRIVE AXLEp. 325
+REAR AXLE,CH (TTRA0143)p. 327
+ASSEMBLY (CTT00009345)p. 329
+REAR AXLE,KALMAR (CTT00009153)p. 331
+REAR AXLE,KALMAR (PARTS_LIST_06287)p. 333
AXLE HOUSING (PARTS_LIST_06282)p. 335
PLANETARY GEARING (PARTS_LIST_06284)p. 337
WHEEL HUB,BRAKE,ASSEMBLY (PARTS_LIST_06286)p. 343
+0400 BRAKESp. 345
+0401 CONTROLS AND INSTRUMENTSp. 347
+AIR SYS,CB,BRAKE VALVE,INSTALLATION (TTAS0191)p. 349
ASSEMBLY,BRAKE,PEDAL (CTT00023471)p. 351
+AIR SYS,CB,DASH PANEL,VALVE (TTAS0015)p. 353
VALVE,ASSEMBLY (CTT00002188)p. 355
+0403 POWER-ASSISTED BRAKE SYSTEMp. 357
+BRAKE SYS,CH (TTBS0176)p. 361
BRAKE VALVE,ASSEMBLY (CTT00002581)p. 363
+BRAKE SYS,CH,CHASSIS (TTBS0010)p. 365
BRAKE VALVE,ASSEMBLY,QUICK RELEASE (CTT00001941)p. 367
BRAKE VALVE,ASSEMBLY (CTT00001940)p. 369
+0407 TRAILER BRAKE CONNECTIONSp. 371
BRAKE SYS,CB (TTBS0015)p. 373
BRAKE SYS,CB (TTBS0025)p. 375
BRAKE SYS,CB,HOSE INSTALLATION,GLADHAND (TTBS0030)p. 377
BRAKE SYS,CB (TTBS0095)p. 379
BRAKE SYS,CB,GLADHAND,HANDLE (TTBS0210)p. 381
+0500 STEERINGp. 383
+0501 CONTROLS AND INSTRUMENTSp. 385
STEERING,CB,COLUMN,SUPPORT (TTST0051)p. 387
+0502 POWER ASSISTED SYSTEMp. 389
STEERING,CB,COLUMN ASSEMBLY (TTST0037)p. 391
+FRONT AXLE,CH (TTFA0077)p. 393
+FRONT AXLE (CTT00009150)p. 395
FRONT AXLE (PARTS_LIST_06316)p. 401
+STEERING,CH,INSTALLATION,GEARBOX (TTST0000)p. 407
STEERING ARM (53573752)p. 409
DRAGLINK,ASSEMBLY (CTT00002298)p. 411
+0600 SUSPENSIONp. 413
+0602 SUSPENSIONp. 415
FRONT SUSPENSION,CH (TTFS0005)p. 417
REAR SUSP,CH,FIXED,INSTALLATION (TTRS0002)p. 419
+0603 TYRES AND RIMSp. 421
WHL & TIRE,CH,CHASSIS (TTWT0004)p. 423
+0700 LOAD HANDLINGp. 425
+0701 CONTROLS AND INSTRUMENTSp. 427
AIR SYS,CB,FIFTH WHEEL,UNLATCH (TTAS0013)p. 429
ELECT SYS,CB,INSTALLATION,T2 (TTES0040)p. 431
+HYD,CB,FIFTH WHEEL,CONTROL (TTHS0023)p. 433
CONTROL LEVER,FIFTH WHEEL,ELEVATION (CTT00003401)p. 435
+HYD,CH (TTHS0045)p. 437
CONTROL VALVE,HYDRAULIC (90016497)p. 439
+0709 LOAD CARRIERp. 441
+FIFTH WHEEL,CH,LIFT BOOM,INSTALLATION (TTFW0206)p. 445
BOOM,FIFTH WHEEL,HEAVY DUTY (CTT00002257)p. 447
+FIFTH WHEEL (CTT00008828)p. 449
+FIFTH WHEEL PLATE (CTT00008812)p. 451
FIFTH WHEEL PLATE (PARTS_LIST_03994)p. 455
+0900 FRAME, BODY, CAB AND ACCESSORIESp. 457
+0901 CONTROLS AND INSTRUMENTSp. 461
DASH PANEL,CB,CORNER,CONSOLE (TTDP0007)p. 463
ENGINE,CB (TTEG0265)p. 467
CAB MTG,CH,TILT,SWITCH (TTCM0010)p. 469
+0903 SEATp. 471
CAB ACC,CB,IGNITION SYSTEM,INTERLOCK (TTCA0125)p. 475
DRIVERS SEAT,CB,INSTALLATION,T2 (TTDS0083)p. 477
DRIVERS SEAT,CB (TTDS0044)p. 479
+0904 HEATING, VENTILATION AND AIR CONDITIONINGp. 481
CAB FAN,CB,UPPER,12V (TTCF0002)p. 483
+HEATER,CB,CLIMATE UNIT,INSTALLATION (TTHC0007)p. 487
HEATER,AIR CONDITIONING,CAB (CTT00009071)p. 491
MODULE,CONTROL PANEL (CTT00009075)p. 493
HEATER,CH,HEATER (TTHC0072)p. 495
HEATER,AIR CONDITIONING,COMPRESSOR (TTHC0075)p. 497
HEATER,CHASSIS (TTHC0020)p. 499
HEATER,CHASSIS (TTHC0021)p. 501
+0905 WIPER/WASHER SYSTEMp. 503
+WIPER,CB,INSTALLATION,12V (TTWP0005)p. 507
WIPER MOTOR (CTT00009146)p. 509
+0906 LIGHTING SYSTEMp. 511
FLOOD LIGHT,CB,REAR,FACING (TTEF0010)p. 513
+FLOOD LIGHT,CB (TTEF0069)p. 515
ASSEMBLY (CTT00008449)p. 517
FLOOD LIGHT,CB,ADDITIONAL LIGHT,HARNESS (TTEF0005)p. 519
FLOOD LIGHT,CB,FRONT,FACING (TTEF0017)p. 521
ELECT LIGHT,CB,DOME,LIGHT (TTEL0001)p. 523
ELECT LIGHT,CB,CAB (TTEL0009)p. 525
FLOOD LIGHT,CH,UPPER,EXHAUST (TTEF0089)p. 527
ELECT LIGHT,CH (TTEL0017)p. 531
+0907 SIGNALLING SYSTEMp. 533
HORN,CB,ELECTRIC,12V (TTHN0001)p. 535
HORN,CB,AIR,12V (TTHN0002)p. 537
STROBE LIGHT,CB,CAB (TTSL0025)p. 539
SAFETY SYS,CH,REVERSE ALARM,INSTALLATION (TTSS0090)p. 541
+0908 ENTERTAINMENT AND COMMUNICATIONp. 543
CAB,CB (TTCA0093)p. 545
CAB ACC,CB,TELEMATICS UNIT,INSTALLATION (TTCA0142)p. 547
+0909 GLASS/WINDOWS/MIRRORSp. 549
CAB (TTCB0017)p. 551
CAB GLASS,CB,T2 (TTCG0001)p. 553
+MIRRORS,CB (TTMR0058)p. 555
MIRROR (CTT00004493)p. 557
+MIRROR (CTT00004925)p. 559
MIRROR (CTT00004493)p. 561
WIRING DIAGRAM (SK8706)p. 565
+MIRRORS,CB (TTMR0003)p. 567
WIRING DIAGRAM (SK8706)p. 571
+0910 CAB STRUCTURE AND SUSPENSIONp. 573
CAB,CB (TTCB0137)p. 575
+CAB,CB,REAR DOOR,T2 (TTCB0100)p. 579
ASSEMBLY (CTT00009978)p. 581
+CAB,CB,DRIVER,SIDE DOOR (TTCB0011)p. 583
SIDE DOOR,ASSEMBLY,LEFT (CTT00001979)p. 585
CAB,CB (TTCB0021)p. 587
CAB MTG,CB,AIR SUSPENSION,UPPER LATCH (TTCM0006)p. 589
CAB PROTEC,CB (TTCP0004)p. 591
GRAB HANDLE,CAB (TTGH0006)p. 593
+CAB MTG,CH,CAB SUSPENSION,INSTALLATION (TTCM0005)p. 595
+CAB SUSPENSION,AIR,LEVELLING (CTT00008705)p. 597
CAB SUSPENSION (PARTS_LIST_06247)p. 599
+CAB MTG,CH,TILT CYLINDER,INSTALLATION (TTCM0027)p. 601
+CYLINDER (90037310)p. 603
CYLINDER (PARTS_LIST_06224)p. 605
CAB MTG,CH,PIVOT PIN,INSTALLATION (TTCM0034)p. 607
CAB MTG,CH,TILT,SOLENOID (TTCM0032)p. 609
GRAB HANDLE,CHASSIS (TTGH0004)p. 611
+0911 CAB INTERIORp. 613
CAB ACC,CB,DATA TERMINAL,MOUNTING PLATE (TTCA0009)p. 615
+CAB CONSOLE,CB,INSTALLATION,T2 (TTCC0026)p. 617
CONSOLE,ASSEMBLY,DRIVER (CTT00002448)p. 619
COVER PANEL,ASSEMBLY,AIR DISTRIBUTION DUCT (CTT00002450)p. 621
CAB UPHOLSTERY,CB,INSULATION,T2 (TTCU0031)p. 623
CAB UPHOLSTERY,CB (TTCU0044)p. 627
DASH PANEL,CB,MAIN,LIGHT SWITCH (TTDP0111)p. 629
DASH PANEL,CB (TTDP0082)p. 631
+0912 FRAMEp. 633
CAB PROTEC,CH,CONTAINER,GUARD (TTCP0001)p. 635
FRAME,CH (TTFR0012)p. 637
FRAME,CH,FRONT,CROSSMEMBER (TTFR0038)p. 639
FRAME,CH,REAR,CROSSMEMBER (TTFR0003)p. 641
FRAME,CH,SKID,RAMP (TTFR0006)p. 643
+FRAME,CH,RAIL,LEFT AND RIGHT (TTFR0005)p. 645
BRACKET,BOOM,PIVOT (CTT00001526)p. 647
BRACKET,BOOM,PIVOT (CTT00001528)p. 649
FRAME,CHASSIS (TTFR0007)p. 651
+0913 BODYp. 653
CAB,CB,ROOF,WHITE (TTCB0004)p. 655
+CAB,CB,PLASTICS,FRONT COVER (TTCB0023)p. 657
+ENGINE HOUSING,ASSEMBLY,CAB (CTT00002704)p. 659
ASSEMBLY (CTT00005329)p. 661
CAB,FRONT COVER,PANEL (CTT00002705)p. 663
CAB DRESS,CB (TTCD0017)p. 665
PLATFORM,CB,SIDE STEP,INSTALLATION (TTPF0043)p. 667
BUMPER,CH (TTBP0008)p. 669
CAB DRESS,CH,FRONT,SKIRTING (TTCD0016)p. 671
FNDR & FLAP,CH,STEERING AXLE,MUD FLAP (TTFF0008)p. 673
FENDER & FLAP,CHASSIS (TTFF0003)p. 675
PLATFORM,CH (TTPF0071)p. 677
PLATFORM,CH,FRAME,SIDE STEP (TTPF0007)p. 679
+0915 PAINT/COATINGSp. 681
PAINT OPTION,CB (TTPO0001)p. 683
PAINT OPTION,CH (TTPO0002)p. 685
+1000 COMMON HYDRAULICSp. 687
+1003 TANKS AND ACCUMULATORSp. 689
+HYD,CH,OIL TANK,INSTALLATION (TTHS0007)p. 691
+HYDRAULIC TANK,ASSEMBLY (CTT00002416)p. 693
+PUMP,CAB TILT,12V (CTT00001819)p. 695
PUMP,CAB TILT,12V (PARTS_LIST_11270)p. 697
+1004 PUMPSp. 699
+HYD,CH,POWER TAKE OFF,PUMP (TTHS0009)p. 701
+POWER TAKE OFF (CTT00002271)p. 703
POWER TAKE OFF (PARTS_LIST_06223)p. 707
+1005 HOSES, PIPES AND VALVESp. 709
HYD,CH,LIFT BOOM,HOSE INSTALLATION (TTHS0012)p. 711
HYD,CH (TTHS0086)p. 713
HYD,CH,HYDRAULIC PUMP,HOSE INSTALLATION (TTHS0016)p. 715
HYD,CH,CAB TILT,HOSE INSTALLATION (TTHS0017)p. 719
+1100 COMMON ELECTRICSp. 721
+1102 ELECTRIC PROTECTIONp. 723
ELECT SYS,CB,ELECTRICAL COMPONENT,T2 (TTES0106)p. 727
ELECT SYS,CB,TRAILER,CIRCUIT BREAKER (TTES0005)p. 731
+1103 BATTERIESp. 733
BATTERY,CH (TTEB0026)p. 737
BATTERY,CH,BATTERY,INSTALLATION (TTEB0004)p. 739
BATTERY,CHASSIS (TTEB0013)p. 741
BATTERY,CH,BATTERY PAD,INSTALLATION (TTEB0005)p. 743
+1104 ALTERNATORp. 745
ALTERNATOR,CH,INSTALLATION,12V (TTEA0008)p. 747
+1105 DISTRIBUTION OF ELECTRICITYp. 749
CAB ACC,CB,GROUNDING,HARNESS (TTCA0097)p. 751
ELECT SYS,CB (TTES0088)p. 753
ELECT SYS,CB,RELAY MOUNTING,BRACKET (TTES0030)p. 755
ELECT SYS,CH,DISTRIBUTION BLOCK,INSTALLATION (TTES0061)p. 759
ELECT SYS,CH (TTES0110)p. 761
ELECT SYS,CH (TTES0091)p. 763
ELECT SYS,CH (TTES0065)p. 765
+1200 COMMON PNEUMATICSp. 767
+1201 CONTROLS AND INSTRUMENTSp. 769
AIR SYS,CH,AIR COMPRESSOR,DISCHARGE (TTAS0216)p. 771
+1202 TANKS AND ACCUMULATORSp. 773
AIR SYS,CH,AIR TANK,INSTALLATION (TTAS0201)p. 779
AIR SYS,CH,FIFTH WHEEL,UNLATCH (TTAS0207)p. 781
AIR SYS,CH,DRAINING VALVE,INSTALLATION (TTAS0127)p. 783
+1204 HOSES, PIPES AND VALVESp. 785
DRAWING (TTAS0219)p. 787
ENGINE,CH,AIR COMPRESSOR,PIPING (TTEG0238)p. 789
+1205 FILTERS, AIR DRYER AND PRESSURE RELEASEp. 791
+AIR SYS,CH,AIR DRYER,INSTALLATION (TTAS0158)p. 795
AIR DRYER (90025672)p. 797
Numerical Registerp. 799
Working through the catalogue, the technician can trace any assembly from its illustration to its parts list and then to the exact part number required for the order. The diagrams and parts lists are structured programmatically, so a chapter may skip numbers where a machine is not equipped with that option, and underlined descriptions indicate subcomponents that open on click in the PDF or appear on the following pages in print.
Why This Parts Catalogue Matters
Ordering the wrong part costs time and money. This Kalmar Ottawa T2 Parts Catalogue eliminates guesswork by pairing every illustration with the exact part number, quantity and unit of sale. Whether you are rebuilding a fifth wheel, replacing a cab door latch, tracing a brake valve, or sourcing a DEF tank component, the correct number is listed with the assembly it belongs to.
What You Can Do With It
- Identify and order spare parts for any system on the Ottawa T2
- Look up exploded views of engine, transmission, axle, brake, steering, suspension, cab and hydraulic assemblies
- Cross-reference part numbers using the Numerical Register
- Confirm quantities and units before placing an order
- Check which parts are sold as assemblies and which must be ordered separately
- Use wiring, brake and hydraulic schematics to understand component relationships
- Reference decal and safety sign part numbers for cab and chassis
- Locate fasteners, clamps, brackets and fittings by assembly
Instant PDF Delivery
The Kalmar Ottawa T2 Parts Catalogue is delivered as an instant PDF download after payment. There is no shipping, no waiting, and no physical book to lose. Open it on any device, print the pages you need for the workshop, and keep the complete spare parts reference on hand whenever a component needs replacing.
Reviews
There are no reviews yet.
