Manitou MT 1135 100P ST4 S1 Genuine Parts Catalogue 647593 PDF

Description

Manitou MT 1135 100P ST4 S1 Genuine Parts Catalogue 647593 PDF

The Manitou MT 1135 100P ST4 S1 Genuine Parts Catalogue 647593 PDF is a detailed illustrated parts reference for identifying components throughout the MT 1135 100P ST4 S1 machine. It combines exploded assembly drawings with item numbers, Manitou part numbers, descriptions, quantities and machine-applicability information, allowing individual components to be traced within the assembly in which they are installed.

This catalogue goes well beyond a short replacement-parts list. Its 491 PDF pages move through the machine system by system, covering service filters, engine assemblies, transmission and driveline, front and rear axles, braking, the boom structure, extensive hydraulic circuits and cylinders, electrical equipment, operator-station and cab assemblies, and chassis/bodywork. Where component versions change, the catalogue separates the relevant assemblies and identifies the applicable engine, axle, gearbox or cab reference.

File Details

• Manual type: Genuine Parts Catalogue
• Brand: Manitou
• Model: MT 1135 100P ST4 S1
• Catalogue reference: 647593
• Languages: English, French, German, Spanish and Italian
• Page count: 491 pages
• File format: PDF
• Print date shown in the catalogue: 27 March 2025

Illustrated Parts Identification

A major strength of this Manitou MT 1135 100P ST4 S1 parts catalogue is the relationship between the exploded illustrations and the corresponding component lists. The figure pages show assemblies broken down into their individual parts, while the following listings provide the item number, part number, description, quantity and, where applicable, machine compatibility. This makes the catalogue useful when a technician can identify the physical location of a component but needs the corresponding reference number, or when a known part number needs to be related back to its surrounding assembly.

The introductory ordering guidance explains the information used for spare-parts identification: catalogue reference, figure number, item position and required quantity, together with the machine type and serial information. The document also provides multilingual pictogram legends used throughout the catalogue to distinguish such conditions as left- and right-hand parts, options, kits, serial-dependent parts, cab-related parts and components supplied only under particular configurations.

Engine Coverage and Version Changes

The engine section is especially extensive. The catalogue identifies the JJ8J230 engine under two engine references: 52527802 for the earlier range through engine serial 990359 and 52572613 from engine serial 990360. Separate illustrated groups are provided so that parts can be matched against the appropriate engine version rather than treating the engine as one undifferentiated assembly.

Engine illustrations and lists cover the cylinder block, pistons, connecting rods and crankshaft, cylinder head, rocker mechanism, camshaft and timing components, timing housing, oil sump and oil pump, rocker cover and breather, integral oil filter and cooler, pressure and temperature sensing components, thermostat, exhaust manifold, particulate-filter equipment, intake manifold, mixer, alternator, flywheel, starter, turbocharger, reduction-system components, electronic engine-control module, fuel circuits, fuel-system electrical components and fuel prefilter. The catalogue also shows the engine-to-machine installation and associated intake, exhaust, fuel and cooling arrangements.

Chapters Covered

• 00 – General Instructions and Safety
  • Machine decals and identification labels
  • Decal groups 12AA907, 12AA908 and 12AA1243
• 5 – Service Parts and Filters
  • Filters and belts
  • Engine/transmission adaptation
  • Hydraulic filter and accumulator details
• 10 – Engine
  • JJ8J230 engine reference 52527802 through serial 990359
  • JJ8J230 engine reference 52572613 from serial 990360
  • Cylinder block, pistons, connecting rods and crankshaft
  • Cylinder head, rocker gear, camshaft and timing
  • Oil sump, oil pump, filtration and cooling
  • Intake, exhaust, turbocharger and particulate-filter assemblies
  • Alternator, flywheel and starter
  • Engine-control module and sensors
  • Fuel injection, fuel circuits and fuel prefilter
  • Engine/transmission mounting and adaptation
  • Air-intake and exhaust installation
  • Fuel tank and supply system
  • Radiator and engine-cooling installation
• 20 – Transmission
  • Gearbox-to-front-axle driveshaft
  • Gearbox-to-rear-axle driveshaft
  • Gearbox reference 278124
  • Gearbox assembly and internal details
  • Gear mechanism and pinions
  • Electrical control valve
  • Forward clutch and reverse clutch

  IMAGES PREVIEW







• 30 – Axles
  • Front axle reference 52521262
  • Front axle housing, differential and reduction gear
  • Front oil-bath disc brake and steering system
  • Rear axle reference 52519250
  • Rear axle housing, differential, reduction gear, brake and steering
  • Rear axle reference 52517928 and associated components
  • Wheels
• 40 – Brake System
  • Braking circuit
  • Pedals and linkages
• 50 – Lifting Structure

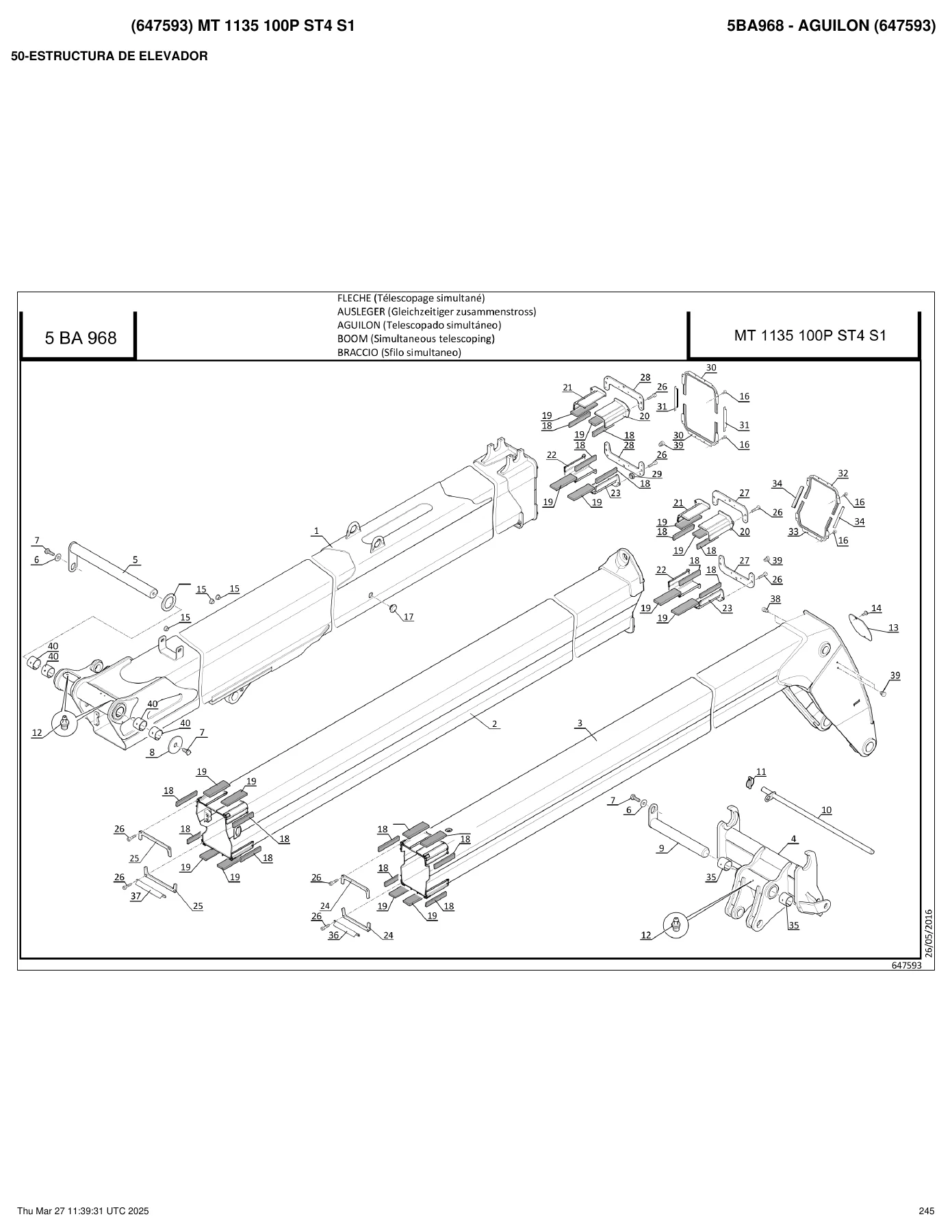

  • Boom assembly and its component parts
• 70 – Hydraulic System
  • Main hydraulic circuits
  • Lift circuit
  • Telescoping circuits
  • Compensation and boom-supply circuit
  • Boom hydraulic circuit
  • Stabilizer circuit
  • Inclination-correction circuit
  • Steering circuit
  • Greasing arrangement
  • Hydraulic filter, accumulator and valve details
  • Hydraulic distributors
  • Control/manipulator assembly
  • Compensation cylinder
  • Tilt cylinder
  • Stabilizer cylinder
  • Inner and outer telescoping cylinders
  • Lift cylinder
• 80 – Electrical System
  • Electrical circuits and wiring harnesses
  • Electrical component details
  • Selector and manipulator-related components
• 85 – Operator Station
  • Cab assemblies and serial-dependent cab versions
  • Seat and cab installation components
  • Heating and air-conditioning circuit
  • Driver-station electrical components
• 90 – Chassis and Bodywork
  • Frame and counterweight
  • Body panels, covers and associated hardware
  • Engine compartment and bodywork assemblies

Taken together, these chapters provide a component-level map of the MT 1135 100P ST4 S1. The engine and hydraulic sections are particularly detailed, but the catalogue continues through the drivetrain, axles, boom, electrical installation, cab and exterior structure, making it possible to follow parts from major assemblies down to brackets, hoses, seals, fasteners, sensors and other individual items shown in the figures.

Hydraulic, Boom and Steering Component Reference

The Manitou MT 1135 100P ST4 S1 Genuine Parts Catalogue 647593 PDF devotes a substantial part of the document to hydraulic equipment. Separate exploded figures cover the principal hydraulic circuits as well as lift, telescoping, compensation, boom, stabilizer, frame-level correction and steering functions. Hydraulic distributors and the machine control manipulator are shown independently, followed by component breakdowns for the compensation, tilt, stabilizer, telescopic and lift cylinders.

This structure is useful when a repair involves more than one assembly. A technician tracing a boom or stabilizer component can move from the overall hydraulic circuit to the relevant cylinder or valve-bank illustration and then identify hoses, fittings, seals, mounting hardware or related parts from the associated item list. The boom itself is also illustrated as a major lifting-structure assembly rather than being represented only by isolated part numbers.

Transmission, Axles and Brake Assemblies

The drivetrain portion includes both propeller shafts, the gearbox and its detailed component groups. Gearbox coverage includes the main assembly, internal mechanism and pinion components, an electrical control valve, and the forward and reverse clutch groups. Front and rear axle chapters then break the assemblies into axle housings, differentials, reduction gears, oil-bath disc brake components, steering components and supports.

Because separate axle references are used in the catalogue, the illustrated breakdowns help distinguish components belonging to the front axle and the different rear-axle assemblies. Wheel components, the machine braking circuit, pedals and associated linkage are also catalogued in their own sections.

Electrical System, Cab and Bodywork

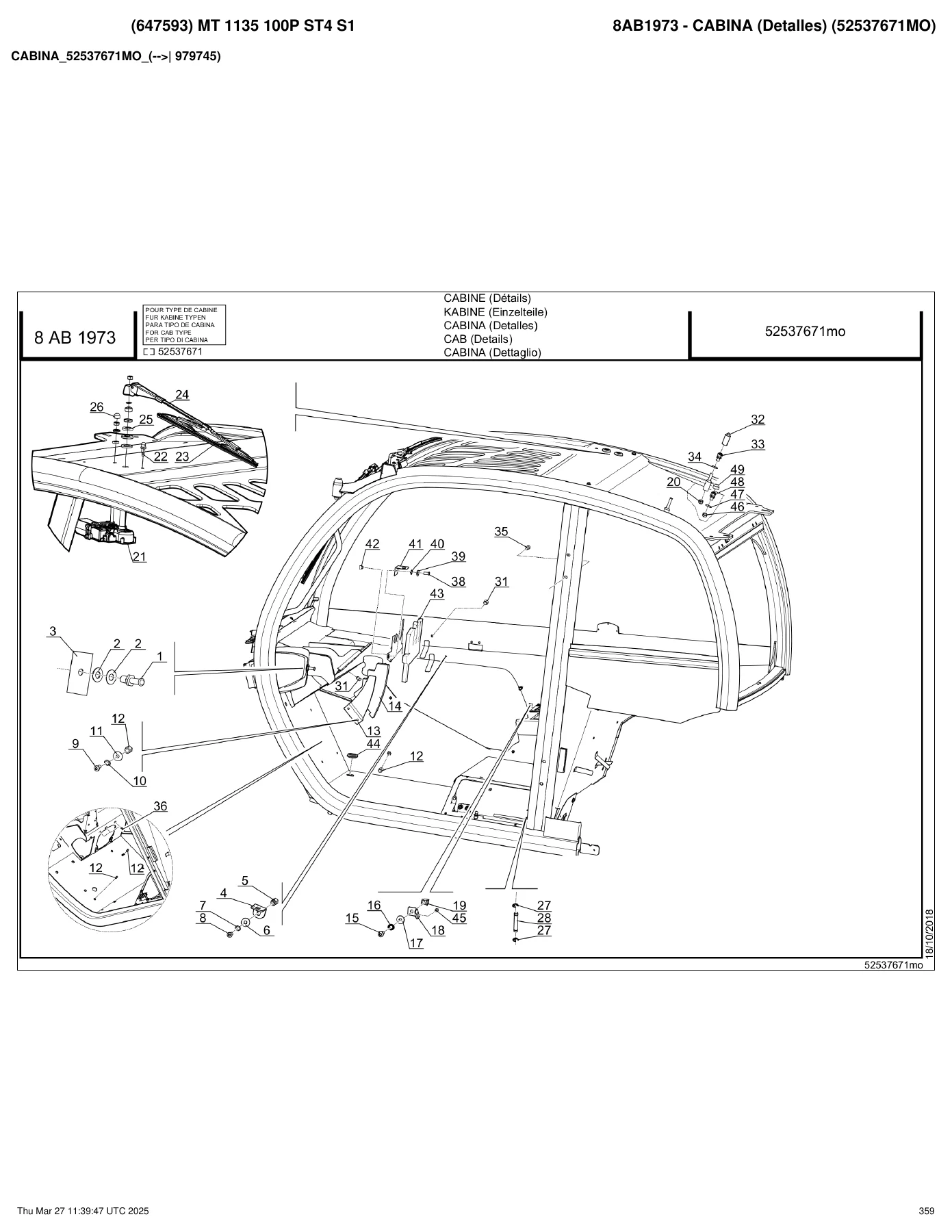

Electrical coverage includes several complete circuit and wiring-harness figures, followed by detailed electrical components. The operator-station section is extensive, with multiple cab configurations distinguished by cab reference and serial applicability. Cab illustrations cover structural and interior components, with additional groups for the seat, cab adaptations, heating/air-conditioning and driver-station electrical equipment.

The final chassis and bodywork section covers frame and counterweight assemblies together with body panels, engine covers, supports, mirrors, brackets, guards, insulation-related parts and the hardware used to install them. These later chapters are useful when the required component is not part of the powertrain or hydraulics but belongs to the machine structure, access panels or operator environment.

Parts Catalogue for Maintenance and Repair Planning

This is a parts catalogue rather than a workshop repair procedure manual. Its purpose is component identification: locating an assembly, seeing how its parts relate to one another, finding the corresponding item and part number, checking quantity and recognising version or applicability differences shown by the catalogue. That makes it valuable when preparing a repair, ordering replacement components, checking what belongs in an assembly or confirming the reference of a removed or damaged part.

The Manitou MT 1135 100P ST4 S1 Genuine Parts Catalogue 647593 PDF gives owners, workshops and parts personnel a detailed illustrated reference across the major machine systems. Correct part identification matters when maintenance or repair work depends on selecting the right component for the applicable engine, axle, cab or machine configuration. Exploded drawings also provide a clear visual reference for component relationships before parts are ordered or an assembly is taken apart.

Instant PDF Download

Use this Manitou MT 1135 100P ST4 S1 parts catalogue to identify replacement components for engine, transmission, axle, braking, boom, hydraulic, electrical, cab, chassis and bodywork work with the correct catalogue figures and part references at hand. The detailed illustrations and itemised parts lists reduce the uncertainty of working from component appearance alone and help match the required part to its position in the machine.

After payment, the catalogue is supplied as an instant PDF download. There is no physical book and no shipping delay. You can open the PDF on a computer, tablet or phone and print the pages or sections you need for workshop or parts-counter use.
