BOMAG BW 216 D-4 Vibratory Roller Spare Parts Catalogue 2007 – PDF Download

Description

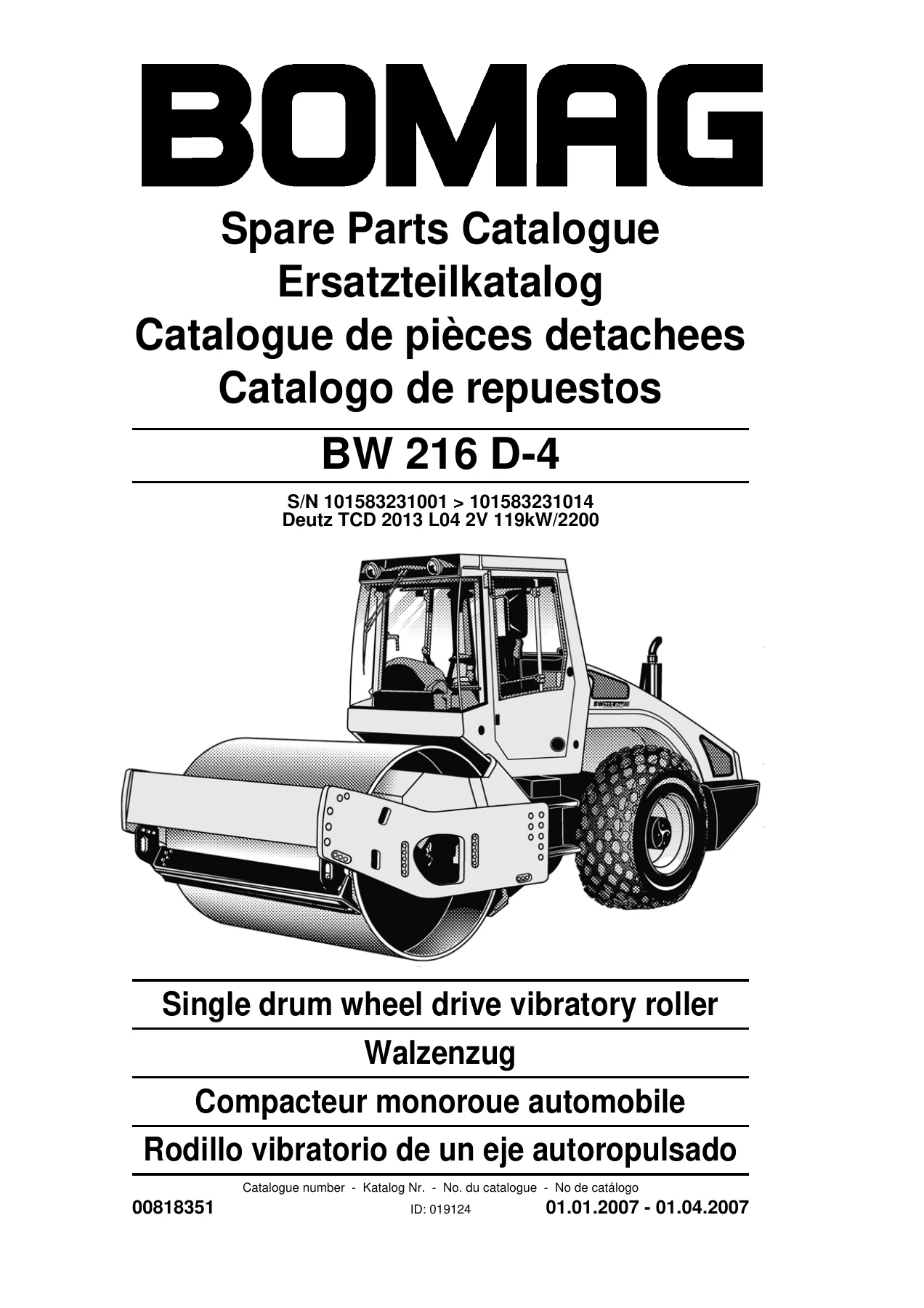

BOMAG BW 216 D-4 Spare Parts Catalogue – Catalogue No. 00818351

This is the complete BOMAG spare parts catalogue for the BW 216 D-4 single drum wheel drive vibratory roller, covering machines within serial number range S/N 101583231001 > 101583231014 and fitted with the Deutz TCD 2013 L04 2V engine rated at 119 kW / 2200 rpm. The catalogue carries document number 00818351 with ID 019124 and is dated for the period 01.01.2007 to 01.04.2007. Every assembly group is broken down into exploded-view illustrations with itemised part numbers, quantities, and multilingual descriptions so that any component on this roller can be positively identified and ordered.

File Details

• Manual type: Spare Parts Catalogue / Ersatzteilkatalog / Catalogue de pieces detachees / Catalogo de repuestos
• Brand: BOMAG
• Model: BW 216 D-4
• Machine type: Single drum wheel drive vibratory roller
• Serial number range: 101583231001 > 101583231014
• Engine: Deutz TCD 2013 L04 2V 119 kW / 2200 rpm
• Catalogue number: 00818351
• Catalogue ID: 019124
• Date range: 01.01.2007 – 01.04.2007
• Language: Multilingual (English, German, French, Spanish)
• File format: PDF
• Page count: 708 pages

Chapters Covered

The BOMAG BW 216 D-4 parts book is organised into main assembly groups, each with its own exploded-view plates and parts lists. The catalogue is divided as follows:

• 10 – Engine / Fitting Parts (Motor / Anbauteile)
  • 11.00 Engine Parts List

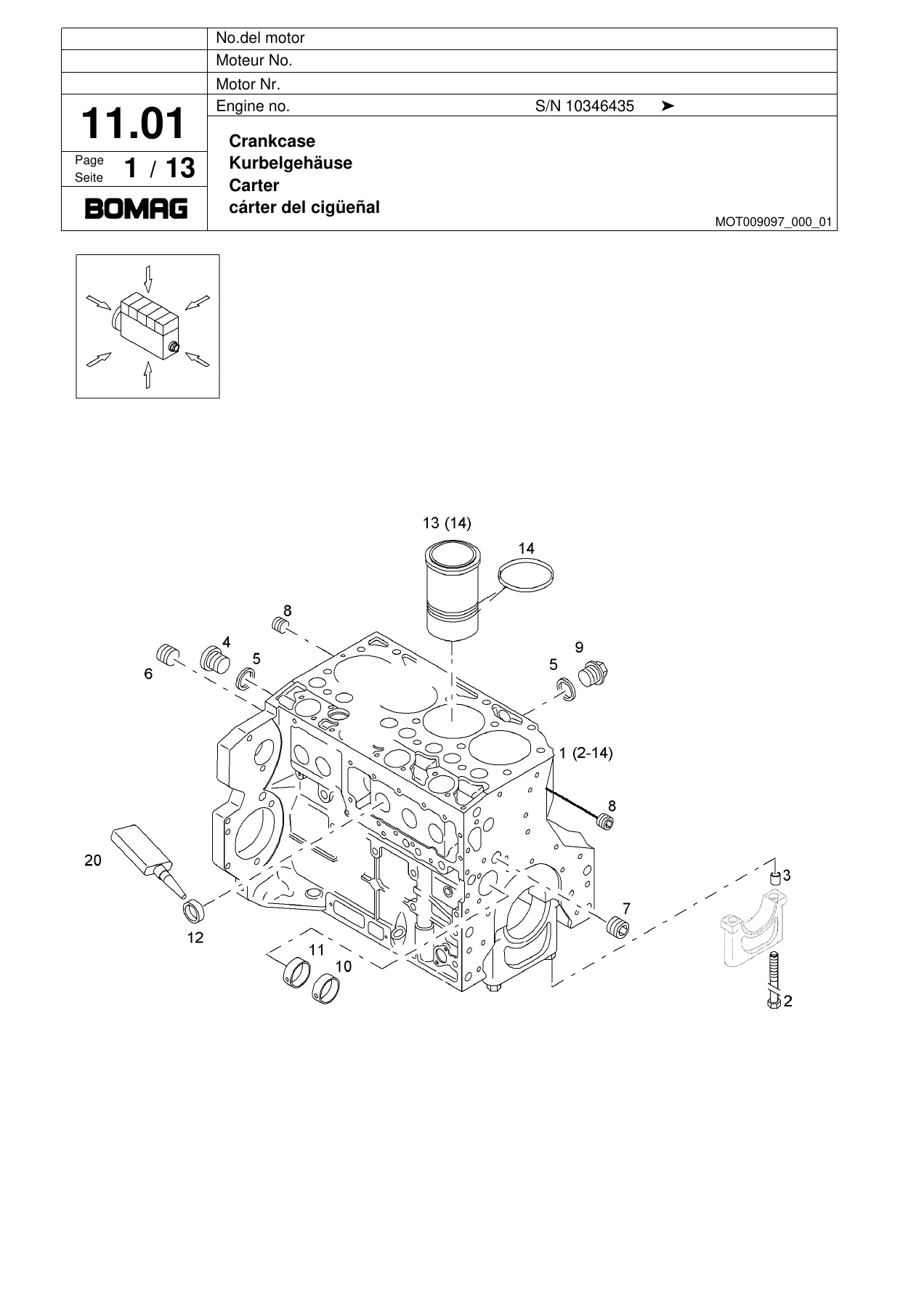

  • 11.01 Crankcase
  • 11.02 Front cover
  • 11.04 Oil pan
  • 11.05 Cylinder and piston
  • 11.06 Crankshaft

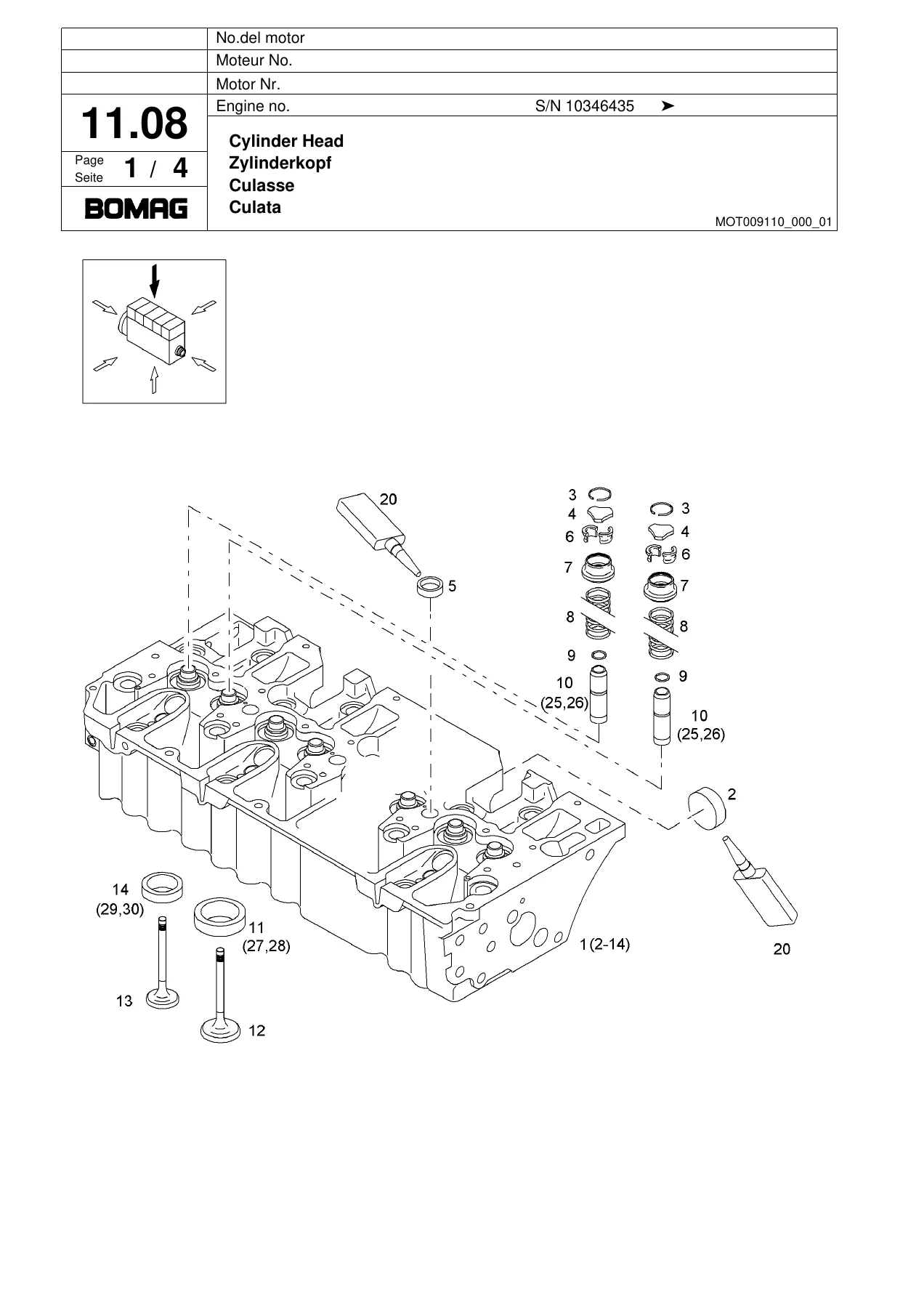

  • 11.08 Cylinder head
  • 11.09 Camshaft
  • 11.10 Control pieces
  • 11.12 Oil and fuel filter
  • 11.13 Lube oil cooler
  • 11.15 Lube oil tube
  • 11.16 Injection pump
  • 11.18 Injection valve
  • 11.20 Fuel pipes
  • 11.23 Suction pipe and exhaust
  • 11.25 Throttle control
  • 11.29 Cooling blower
  • 11.33 Turbocharger
  • 11.34 Generator and starter
  • 11.35 Engine mounts
  • 11.36 Electrical equipment
  • 11.38 Connecting housing
  • 11.45 Hydraulic pump
  • 11.50 Fuel lift pump
  • 11.51 Boost fuel supply
  • 11.56 Water cooling
  • 11.63 Aircleaner and exhaust
  • 12.13 Engine
  • 12.14 Pump mounting
  • 12.31 Exhaust system
  • 12.42 Radiator
  • 12.73 Air duct
  • 19.01 Fuel prefilter
  • 19.04 Dry air filter
  • 19.10 Clutch
  • 19.13 Combination radiator
  • 19.15 Exhaust system
• 20 – Power Transmission / Actuation (Kraftubertragung / Betatigungen)
  • 27.00 Actuation
  • 28.00 Axle
  • 29.12 Drive axle
  • 29.31 Actuation cable, travel
• 40 – Steering System (Lenksystem)
  • 41.00 Steering
  • 41.10 Joint mounting
  • 41.16 Link, assembled
• 50 – Frame with Attachment Parts (Rahmen mit Anbauteilen)
  • 51.02 Front frame
  • 51.03 Rear frame
  • 51.04 Front frame, assembled
  • 51.09 Access steps
  • 51.10 Access steps, assembled
  • 53.21 Operator’s platform
  • 53.32 Hood
  • 53.36 Operator’s seat
  • 53.43 Seat contact, assembled
  • 53.51 Fuel tank
  • 53.56 Oil tank
  • 53.61 Scraper
  • 53.68 Scraper, assembled
  • 53.69 Fuel tank, assembled
  • 53.78 Oil tank, assembled
  • 53.82 Right arm rest, assembled
  • 53.83 Left arm rest, assembled
  • 59.01 Operator’s seat
  • 59.04 Engine hood
• 60 – Drum / Tyres (Bandage / Bereifung)
  • 61.24 Exciter unit right, assembled
  • 61.25 Exciter unit left, assembled
  • 61.27 Roller drum and drum drive
  • 62.06 Tyres
• 80 – Electrical System (Elektrische Anlage)
  • 81.03 Instruments
  • 81.26 Electrical box, assembled
  • 81.29 Display, assembled
• 90 – Hydraulic (Hydraulik)
  • 91.00 Hydraulics
  • 99.01 Hydraulic pump, travel system
  • 99.04 Hydraulic pump, vibration
  • 99.20 Hydraulic motor
  • 99.24 Hydraulic motor, vibration
  • 99.31 Transmission with brake
  • 99.45 Way valve
  • 99.48 Hydraulic oil filter
  • 99.67 Steering cylinder
  • 99.72 Steering pump
• 100 – Accessories (Sonstiges)
  • 101.03 Decals
• 110 – Special Equipment (Sonderausfuhrungen)
  • 113.08 M5 V-belt protection cover
  • 150.02 S5 ROPS-FOPS
  • 150.05 K2 Heating
  • 150.17 K10 Protective ventilation 12V
  • 150.27 E21 Radio
  • 150.34 FS10 Railing
  • 150.41 SP1 TUV approval
  • 150.50 S21 ROPS cabin with heater
  • 150.66 J6 Additional weight
  • 150.97 Protection in front, assembled
  • 150.98 Protection right, assembled
  • 153.64 Q8 Plate scraper
  • 153.66 Scraper, assembled
  • 159.50 Cab
  • 159.51 Heating unit
  • 159.52 Heating climatic unit
  • 159.55 Operator’s seat
  • 160.30 Basic weight, assembled
  • 161.03 B5 Pad foot segment kit
  • 162.06 T6 Tractor-profiled tyres
  • 162.07 T29 Rock tyres
  • 162.08 T43 Radial tyres
  • 180.02 E1 Working lighting
  • 180.03 E2 Lighting StVZO
  • 180.06 E24 Worklight operator stand
  • 182.02 AZ9 Speedometer
  • 182.05 AZ5 RPM meter
  • 182.06 AZ10 Vibration frequency meter
  • 182.17 AZ15 Voltmeter
  • 182.19 AZ12 Tachograph with connector
  • 182.37 VM8-BEM
  • 182.38 VM9-BTM plus
  • 182.40 VM11-BTM prof
  • 182.41 VM12-BCM 05
  • 182.48 VM19 Device BCM05 support interface
  • 182.80 Printer, assembled
  • 189.06 Headlight

What This Parts Catalogue Gives You

This is not a repair manual and it does not contain step-by-step service procedures. What it delivers is the complete BOMAG factory parts breakdown for the BW 216 D-4 roller – every component and assembly on the machine is illustrated in exploded-view form and tied to its genuine BOMAG part number. Each plate shows the position references, the part number column, the quantity required, and the description in four languages. Sub-assembly relationships are marked with one or more “>” symbols so you can see which parts belong to a larger assembly. Cross-references to other assembly groups are flagged where a component is shared between sections. Serial number breakpoints are stated where a part changed during production, so you always order the version that matches your machine.

The catalogue opens with a frequently-used-parts list covering filters, seals, gaskets, filler caps, fuses, incandescent bulbs and glow plugs – the items most often required for routine servicing. This makes it a practical first-stop reference before you dig into the full assembly plates. A numerical index at the back lists every part number with its group and position reference, so if you already know the part number you need you can jump straight to the correct page. The index makes it a fully cross-referenced resource rather than a stack of disconnected diagrams.

Why This Parts Catalogue Matters for BW 216 D-4 Owners

The BW 216 D-4 is a heavy single drum roller used in compaction work, and when a component fails or wears out, guessing at the part number is costly. Ordering the wrong seal, bearing, hydraulic fitting or electrical component leads to downtime, return shipping and sometimes a machine that still does not work. This catalogue removes that guesswork. Each part is illustrated in its correct position within the assembly, so you can confirm you are looking at the right component before you commit to an order. The serial number range statement means you can verify that the parts shown apply to your specific machine – critical when BOMAG made running changes within the same model designation.

The exploded views also serve as a disassembly and reassembly guide when read alongside a workshop manual. You can see the order in which components stack, which fasteners hold what, and how sub-assemblies relate to one another. This is particularly useful for the hydraulic pump and motor assemblies, the drive axle, the exciter units and the drum drive, where internal components must go back in the correct sequence. The hydraulic section alone covers the travel pump, vibration pump, travel motor, vibration motor, transmission with brake, way valve, steering cylinder and steering pump – the entire hydraulic system is documented.

For the engine, the catalogue breaks down the Deutz TCD 2013 L04 2V into crankcase, front cover, oil pan, cylinder and piston, crankshaft, cylinder head, camshaft, control pieces, oil and fuel filters, lube oil cooler, lube oil tube, injection pump, injection valve, fuel pipes, suction pipe and exhaust, throttle control, cooling blower, turbocharger, generator and starter, engine mounts, electrical equipment, connecting housing, hydraulic pump, fuel lift pump, boost fuel supply, water cooling and air cleaner. Every external and internal engine component that BOMAG supplies as a spare is listed.

Who This Catalogue Is For

This BOMAG BW 216 D-4 spare parts catalogue is intended for machine owners, fleet maintenance managers, workshop technicians, parts counter staff and anyone responsible for keeping a BW 216 D-4 roller in service. It is also valuable for buyers of used machines who want to understand the parts breakdown before committing to a purchase, and for independent repair shops that need accurate part numbers to order components from BOMAG or aftermarket suppliers.

The multilingual format – English, German, French and Spanish – makes it usable across international markets. Part numbers and quantities are language-independent, so even if you work in a language not covered, the illustrations and numerical index still let you identify and order the correct part.

Special Equipment Coverage

The BW 216 D-4 could be configured with a wide range of optional equipment, and this catalogue documents the parts for each. Covered options include ROPS and FOPS structures, ROPS cabin with heater, heating units, climate control, radio, railing, TUV approval kit, additional weight, front and side protection, plate scraper, cab, various seat configurations, pad foot segment kit, three different tyre options (tractor profile, rock, radial), working lighting, StVZO lighting, worklight for the operator stand, speedometer, RPM meter, vibration frequency meter, voltmeter, tachograph, BEM and BTM plus and BTM prof machine control systems, BCM 05 complete system, BCM05 interface support, printer and headlights. Each option is broken down to component level with part numbers.

How This Catalogue Is Organised

The document uses BOMAG’s standard assembly group numbering. The first digit indicates the main group – 10 for engine, 20 for power transmission, 40 for steering, 50 for frame, 60 for drum and tyres, 80 for electrical, 90 for hydraulic, 100 for accessories and 110 for special equipment. Within each main group, sub-groups are numbered in two parts, such as 11.01 for crankcase or 61.27 for roller drum and drum drive. This numbering appears on every page header so you always know where you are.

Each exploded-view plate carries position numbers that correspond to the parts table below it. Parts that belong to a higher assembly are marked with one or more “>” characters. Where a part is shown in more than one place, a cross-reference box points to the other assembly group. Serial number breakpoints are stated with “>” for from-serial-number and “<" for up-to-serial-number, so you can confirm whether a given part applies to your machine.

Get Instant Access

IMAGES PREVIEW

This BOMAG BW 216 D-4 spare parts catalogue is delivered as a PDF download immediately after payment. There is no shipping, no waiting for a physical book, and no customs delay. You can open it on any device – laptop, tablet, desktop or smartphone – and print the pages you need for the workshop. Having the complete parts breakdown on hand means faster diagnosis, accurate ordering and less machine downtime. Whether you are rebuilding a hydraulic pump, replacing a seal kit, ordering filters for a service or sourcing a one-off bracket for a special equipment option, the correct part number is always within reach.
