Bose FreeSpace E4 Series II Business Music System Service Manual (PDF)

Description

Bose FreeSpace E4 Series II Business Music System Service Manual

This is the full service documentation set for the Bose FreeSpace E4 Series II Business Music System, the integrated four-channel digital signal processor and 400-watt power amplifier built for 70V and 100V business music installations. At 109 pages, the file goes well past a wiring diagram: it carries the safety and leakage-current checks, the complete electrical part lists down to reference designator level, step-by-step disassembly, bench test procedures with pass limits, an extended troubleshooting section with flowchart logic, and the full theory of operation for both the power supply and the Class-D amplifier channels. The revision 01 release also folds in service bulletin 278977-B2, which is the document that matters most on older units because the original E4 Series II amplifier board is no longer stocked.

File Details

• Manual type: Service manual with service bulletin
• Brand: Bose
• Model: FreeSpace E4 Series II Business Music System
• Reference number: 278977-SM
• Revision: Level 01, dated 3/08 (original release 11/04)
• Included bulletin: 278977-B2, Amplifier Module Replacement
• Language: English
• Page count: 109
• File format: PDF

Chapters Covered

• Safety Information and Warranty
• Product Description
• Specifications
  • Line Input Source 1 and 2
  • Page and Aux/Mic Inputs
  • Sense Mic Inputs
  • Line Outputs and Music on Hold
• Electrostatic Discharge Sensitive (ESDS) Device Handling
• Part List Notes and Amplifier Module Repair Information

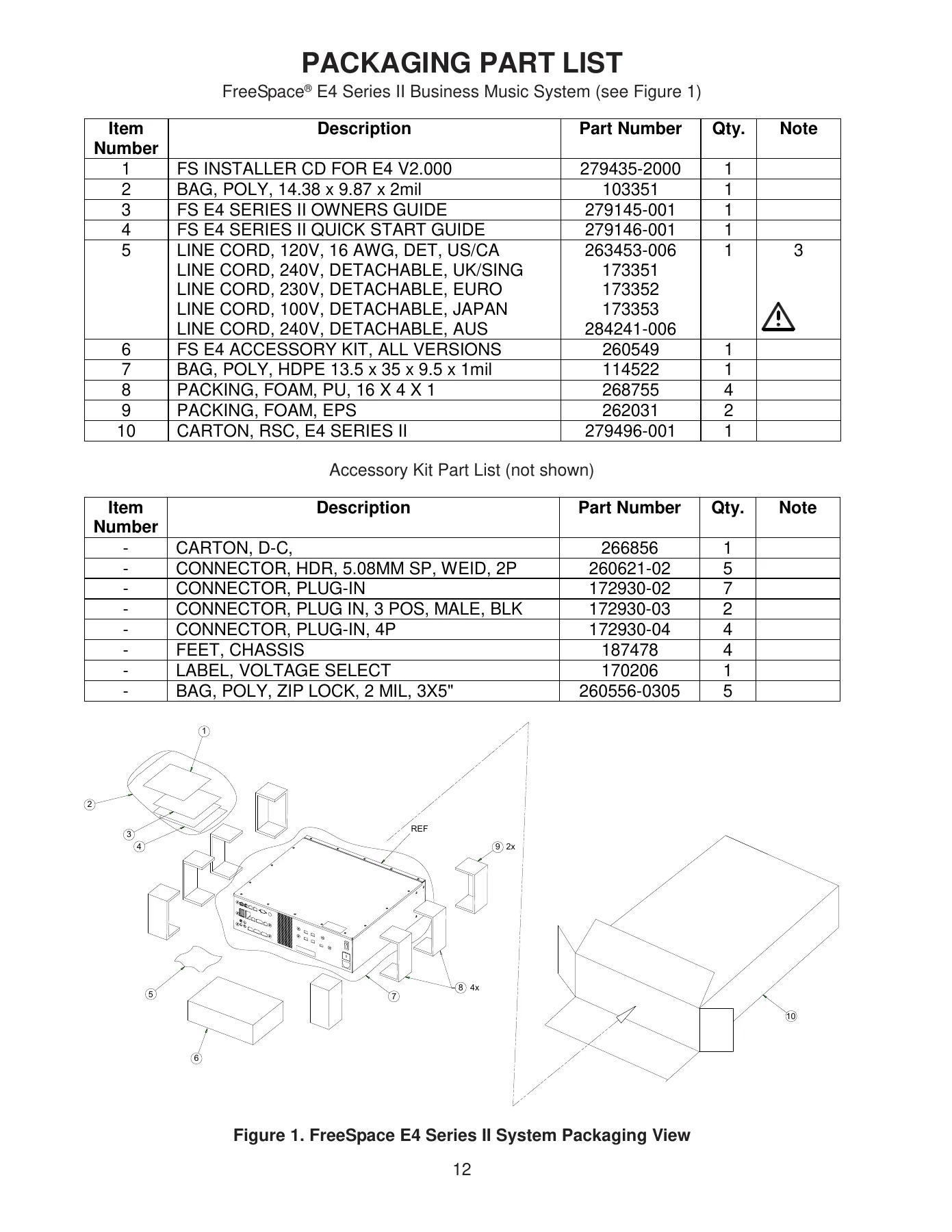

• Packaging Part List and Accessory Kit Part List

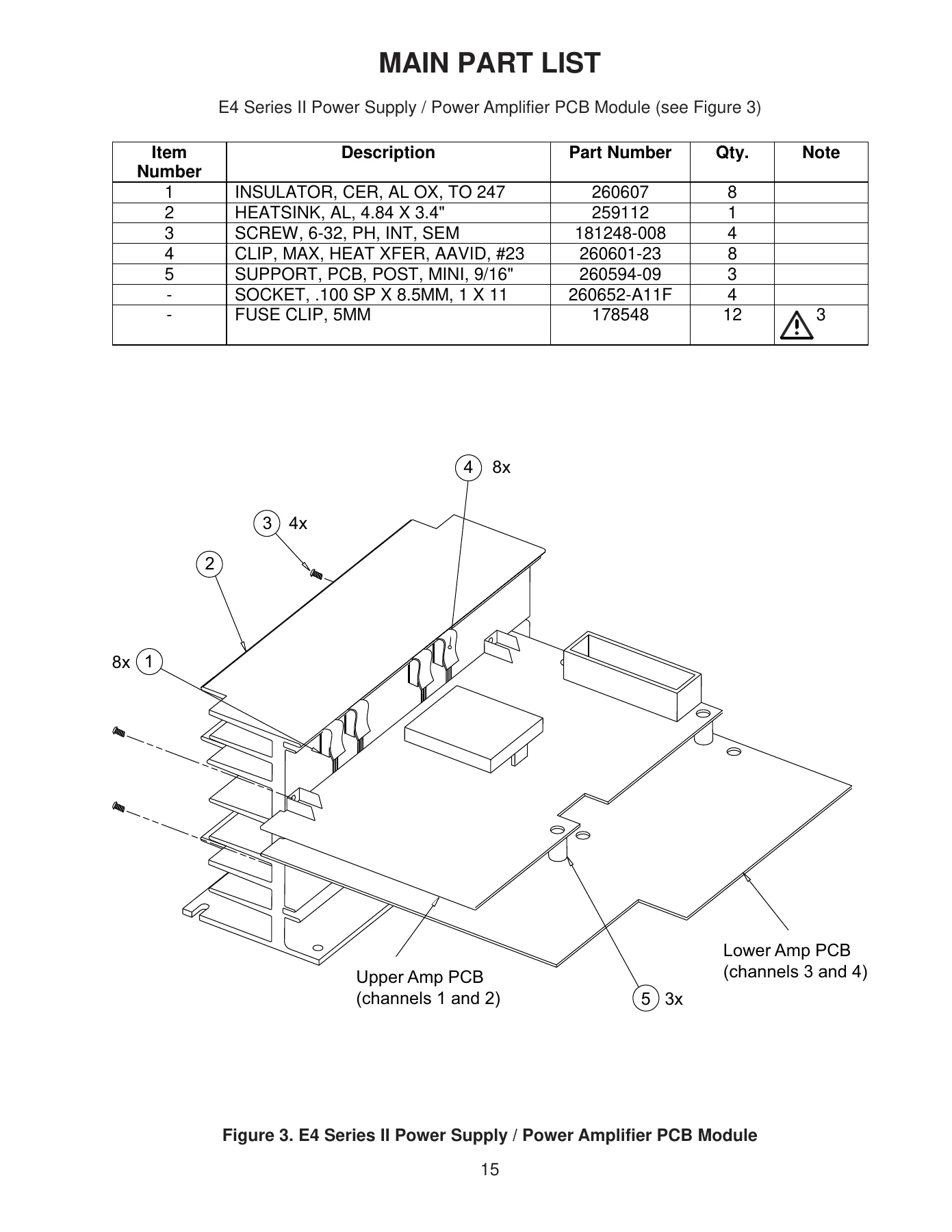

• Main Part List, FreeSpace E4 Series II Business Music System
• Main Part List, E4 Series II Power Supply / Power Amplifier PCB Module
• Electrical Part Lists
  • Digital Signal Processor / User Interface PCB Assembly
  • E4 Series II Power Supply / Power Amplifier PCB Assembly
  • FreeSpace 4400 Power Supply / Power Amplifier PCB Assembly
  • FreeSpace 4400 Power Amplifier Driver PCB Assembly
• Disassembly Procedures
• Test Procedure Setup and Test Procedures
• Troubleshooting
• Theory of Operation
• Accessories
• Component Layouts and PCB Etch Drawings
• Service Bulletin 278977-B2
• Service Manual Revision History

Taken as a whole, this document gives a technician a complete repair loop rather than a single answer. The specifications pages establish the electrical targets the unit should meet; the electrical part lists let you identify and order individual resistors, capacitors, diodes, transistors and ICs by reference designator across the DSP/UI board, the E4 Series II amplifier board and the FreeSpace 4400 boards; the disassembly procedures walk through top cover, LED display PCB, fan, the DSP/Wall Plate Sense/Auto Volume board stack, the amplifier module, the transformer and both amplifier PCBs; and the test procedures give you measurable pass or fail criteria instead of guesswork.

Diagnostics and Fault Tracing

The troubleshooting chapter is built around the front panel indicators and the system Error Log. It documents what a normal start-up looks like, what a red SYSTEM STATUS LED means, and how to interpret the amplifier alarm records, including rail voltage, internal temperature, output voltage and current, input and output status, fan speed and the 70V/100V operating mode. Fault conditions such as a DC sense fault, amplifier module fault, AC power fault, sleep mode, high-frequency sense fault and retry fault are each explained so you can narrow a failure to a specific cause rather than swapping boards until something works. There are also decision charts for no audio in a zone, user interface keypads that behave strangely, bad sound in a zone, and Auto Volume calibration failures.

Theory of Operation

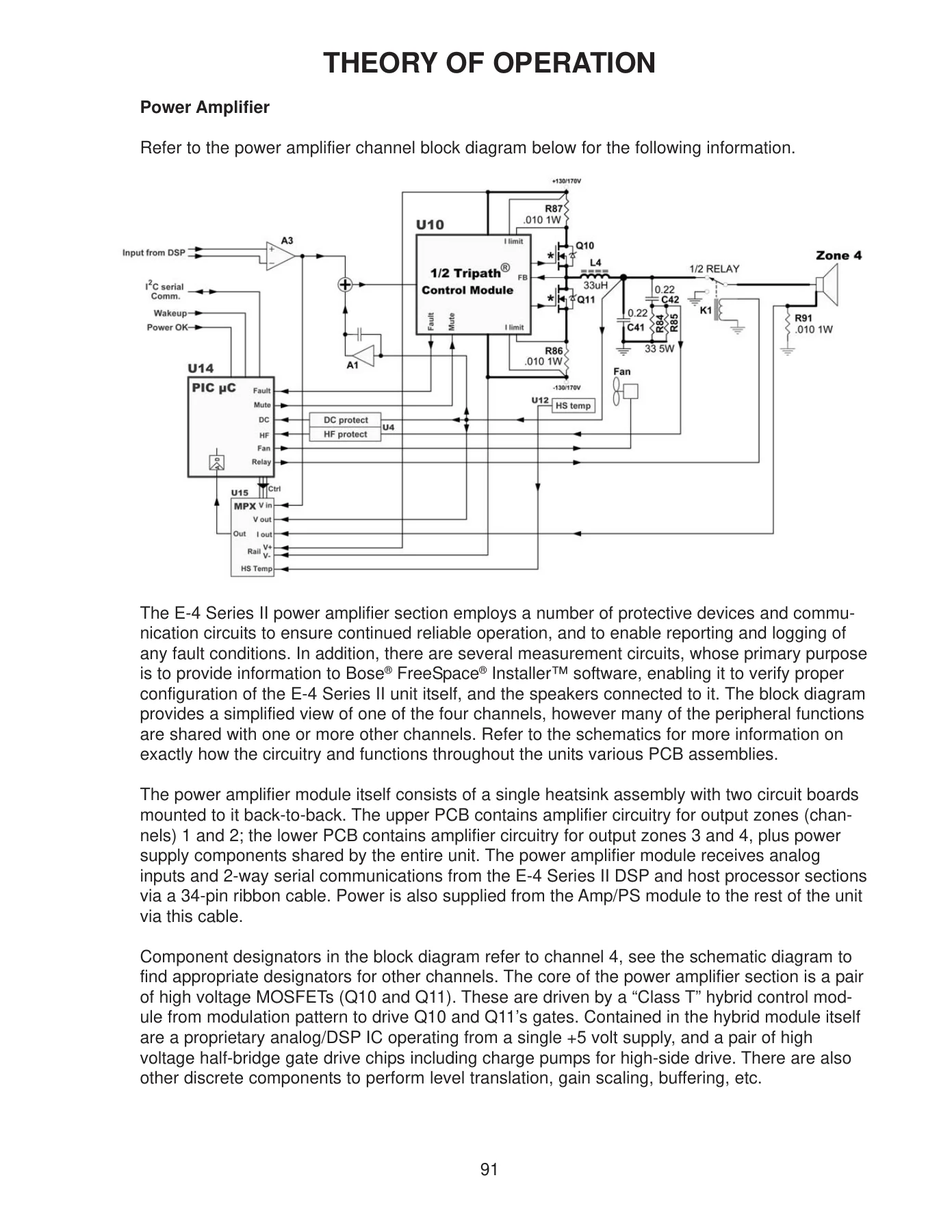

A large part of the manual explains how the hardware actually works: the standby supply built around the TOPswitch regulator and its transformer, the second flyback supply that wakes up on command from the host processor, the main unregulated split supply with its 70V and 100V transformer taps, and the Class-T hybrid control module that drives the high-voltage MOSFETs in each channel. The DC servo feedback, the output LC filter and Zobel network, the current sensing across the source resistors, and the microcontroller-based protection chain are all described, along with the six operating states the amplifier walks through at start-up and the retry logic that follows a fault.

Amplifier Module Replacement Coverage

Service bulletin 278977-B2 is included in full. It explains that the original Amplifier / Power Supply PCB assembly, part number 278982-001, is no longer available because the amplifier driver module went obsolete, and that the FreeSpace 4400 amplifier module assembly (part number 301391) with the adapter kit (part number 311963) is the replacement path. The bulletin covers the chassis modification to remove the centre stud, installation of the heatsink adapter brackets, the amplifier module mounting sequence, and the EMI gasket installation over the RCA analog input jacks. It also states clearly that the procedure does not apply to E4 Series I versions or to the E4 Series II Japan version, product code 036006.

What This Manual Lets You Do

With this service manual on hand you can run the leakage current and insulation resistance safety checks before a unit goes back to a customer, verify amplifier output relays, confirm front panel LED behaviour, measure wall plate connector voltages, check output noise and gain against stated tolerances, test the sequence output and contact closure input, confirm short circuit protection on all four zones and read the code revision levels for the host microcode, DSP code, peripheral PIC code and both amplifier PICs. You can identify a failed component from the part lists, follow the correct disassembly order so you do not damage the PCB standoffs or the ceramic insulators, and understand why the amplifier shut down instead of just seeing that it did.

Why the Correct Procedures Matter

This is a 400-watt Class-D amplifier running from a split supply that reaches roughly 170 volts DC on the 100V setting. The manual warns that dangerous voltages remain on the supply and amplifier circuitry for five to ten minutes after power is removed, and that the board stack and chassis grounding screws form part of the design rather than being incidental hardware. Following the documented test sequence, the specified load resistors and the stated measurement limits is what separates a repair that holds up in a restaurant or retail site from one that comes back a month later. The part lists also flag which components carry safety-critical characteristics and which are not stocked as repair parts, so you order the right thing the first time.

IMAGES PREVIEW

Instant PDF Delivery

The file is delivered as a PDF immediately after checkout, with no shipping and nothing to wait for. It opens on a laptop, tablet or phone, prints cleanly for the bench, and can be kept alongside the unit for the next service visit. Whether you are servicing a single zone, replacing an obsolete amplifier module or troubleshooting an error logged in the Installer software, the whole procedure is in the file before you open the chassis.
