BT PRIME MOVER RCX Electric Stand-up Rider Truck Operator’s Manual 2810857 – PDF DOWNLOAD

Description

BT PRIME MOVER RCX Electric Stand-up Rider Truck Operator’s Manual 2810857 – PDF DOWNLOAD

FILE DETAILS:

BT PRIME MOVER RCX Electric Stand-up Rider Truck Operator’s Manual 2810857 – PDF DOWNLOAD

Language : English
Pages : 108
Downloadable : Yes
File Type : PDF

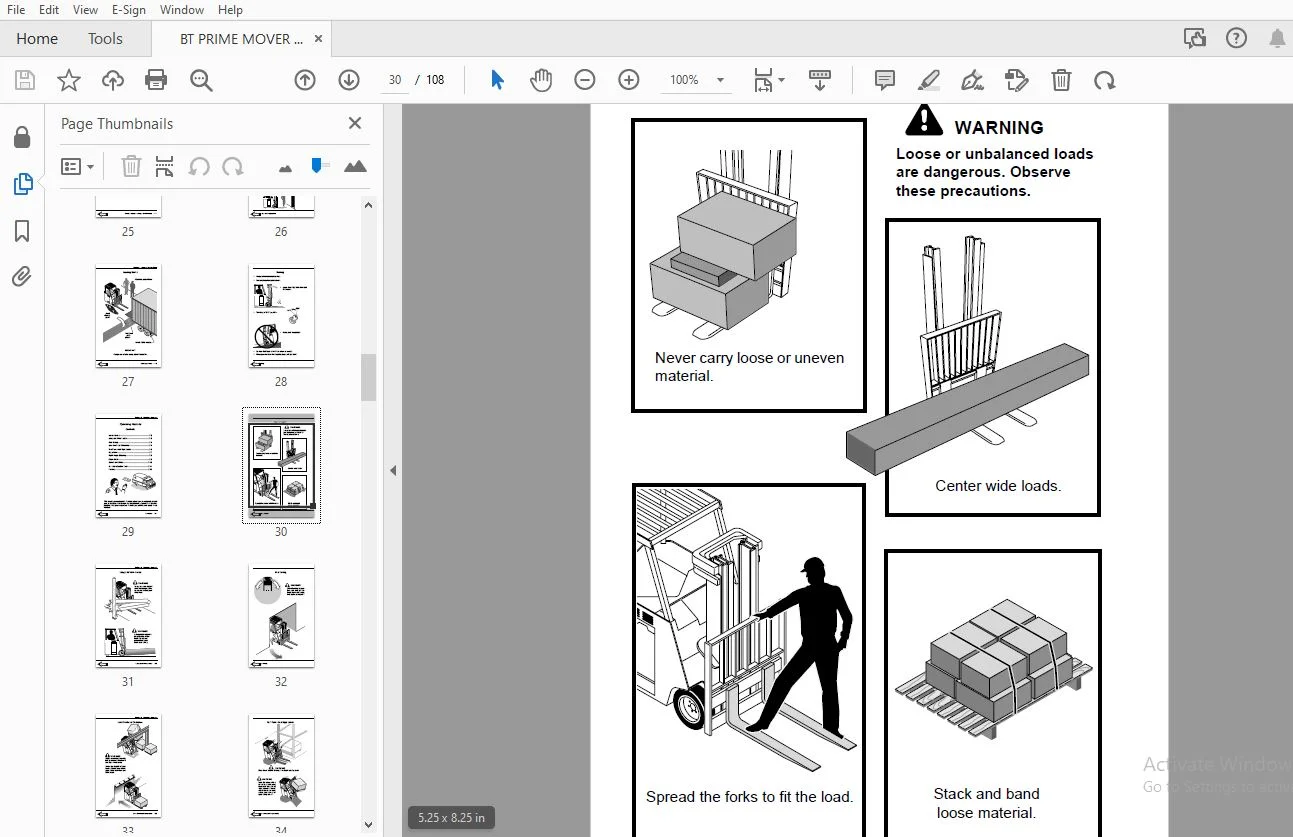

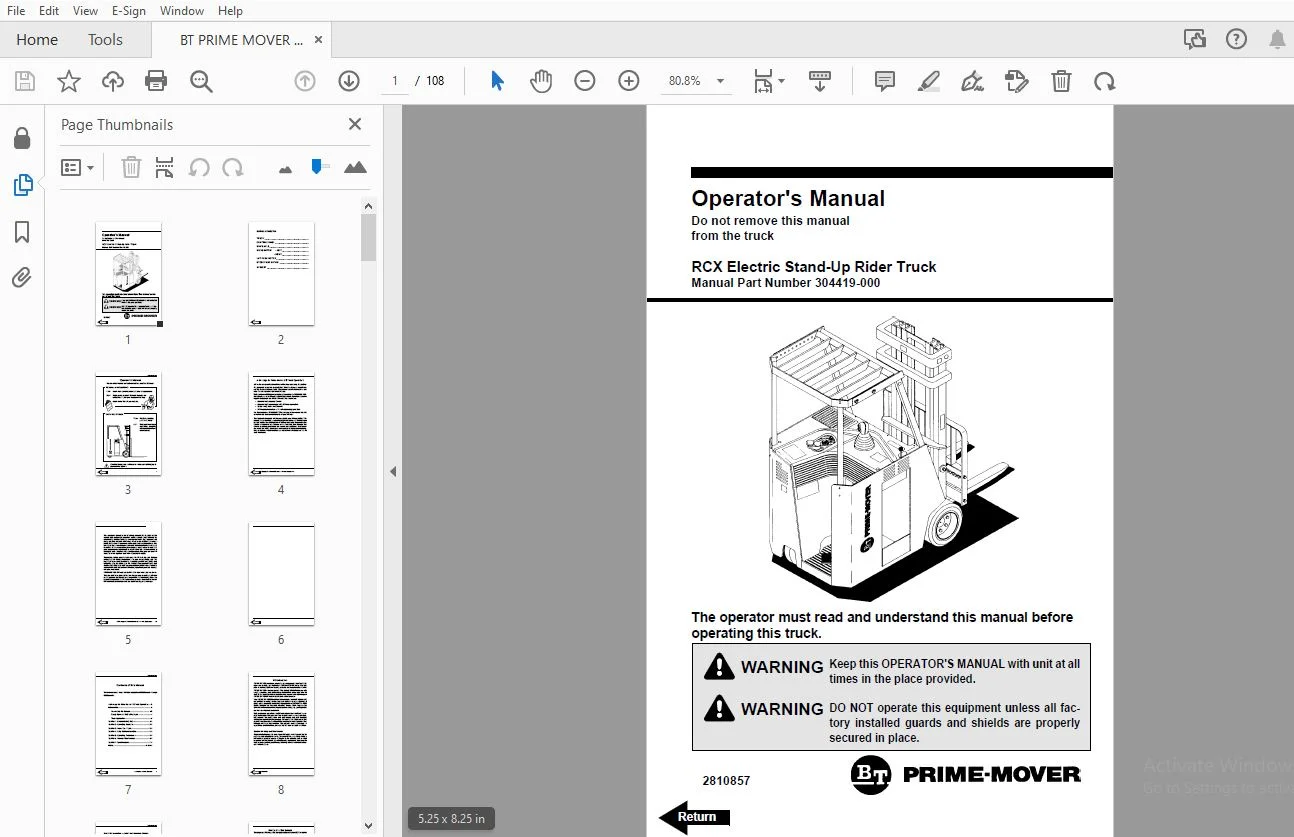

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT PRIME MOVER RCX Electric Stand-up Rider Truck Operator’s Manual 2810857 – PDF DOWNLOAD

Front Cover................................................  1
Serial Numbers.............................................  2
Introduction...............................................  3
	A Message to Prime-Mover Lift Truck Operators..........  4
Contents...................................................  7
Introduction...............................................  8
	Routine Servicing and Maintenance......................  8
	User Daily Inspection - Safety and Operating Checks....  9
	Planned Maintenance....................................  9
How To Use This Manual..................................... 10
Safety Signs and Safety Messages........................... 12
Truck Application.......................................... 13
Section 1 - General Safety Rules........................... 15
	Contents............................................... 15
	Daily Inspection....................................... 16
	Do's and Don'ts........................................ 17
	Tip Over............................................... 18
	No Riders.............................................. 19
	Pedestrians............................................ 20
	Operator Protection.................................... 21
	Fork Safety............................................ 22
	Pinch Points........................................... 23
	Travel................................................. 24
	Grades, Ramps, Slopes and Inclines..................... 25
	Surface and Capacities................................. 26
	Loading Docks.......................................... 27
	Parking................................................ 28
Section 2 - Operating Hazards.............................. 29
	Contents............................................... 29
	Loose Loads............................................ 30
	Long and Wide Loads.................................... 31
	Rear Swing............................................. 32
	Low Overhead Clearance................................. 33
	Fast Turns and High Loads.............................. 34
	Drop Offs.............................................. 35
	Right-Angle Stacking................................... 36
	Chain Slack............................................ 37
	Pallets and Skids...................................... 38
	UL Construction Type................................... 39
	Towing................................................. 40
Section 3 - Know Your Truck................................ 41
	Contents............................................... 41
	Truck Model Description................................ 42
	Truck Data and Capacity Plate.......................... 43
	Safety Warning Decal................................... 44
	Type Designation....................................... 45
	UL Classification Label................................ 45
	Battery Disconnect Decal............................... 45
	Battery Connector Warning Decal........................ 45
	Upright Warning Decal.................................. 46
	Keep Away From Forks Decal............................. 46
	Multi Function Handle Decal............................ 46
	Operator Compartment Layout............................ 47
	Instrument Panel....................................... 48
		Diagnostic Display................................. 48
		Multi-Function Handle.............................. 49
		Plugging........................................... 49
		Brake System....................................... 49
		Lift Control....................................... 50
		Tilt Control....................................... 50
		Auxiliary Valve Control............................ 50
		Horn Button........................................ 50
	Electrical Circuit..................................... 51
Section 4 - Daily Safety Inspection........................ 53
	Contents............................................... 53
	Inspecting Your Truck.................................. 54
	Visual Checks.......................................... 55
	Functional Checks...................................... 56
	Concluding the Inspection.............................. 57
Section 5 - Operating Procedures........................... 59
	Contents............................................... 59
	Before Operating the Truck............................. 60
	Starting from a Safe Condition......................... 61
	Starting the Truck..................................... 61
	Using the Diagnostic Display........................... 62
	Positioning Forks and Upright.......................... 63
	Controlling Speed...................................... 64
	Plugging (Electric Braking)............................ 64
	Parking Brake.......................................... 64
	Operating Safely....................................... 65
	Adjusting the Load Forks............................... 68
	Load Handling.......................................... 68
	Traveling with a Load.................................. 69
	Picking Up and Moving Loads............................ 70
	Unloading.............................................. 71
	Stacking............................................... 72
	After Operating the Truck.............................. 74
Section 6 - Planned Maintenance............................ 75
	Contents............................................... 75
	Lift Truck Maintenance................................. 76
	Planned Maintenance.................................... 76
	Planned Maintenance Intervals.......................... 77
	Component Locations.................................... 78
	Daily Maintenance Checks............................... 79
	Periodic Maintenance Checks............................ 80
	Safe Maintenance Practices............................. 81
	PM Report Form......................................... 85
	Visual Inspection...................................... 86
		Overhead Guard..................................... 87
		Load Backrest...................................... 87
		Upright Assembly................................... 87
		Lift Chain......................................... 87
		Forks.............................................. 88
		Wheels and Tires................................... 89
	Functional Tests....................................... 89
	Diagnostic Display..................................... 90
	Parking Brakes......................................... 91
	Lift Mechanisms and Controls........................... 92
		Auxiliary Controls................................. 92
		Steering System.................................... 93
		Direction Control and Brakes....................... 93
		SCR Traction Control............................... 94
	Checking the Hydraulic Fluid........................... 95
	Air Cleaning the Truck................................. 96
	Electric Truck Battery Maintenance..................... 97
	Battery Handling....................................... 98
	Battery Charging....................................... 99
	Battery Removal from Truck.............................100
	Battery Cleaning and Care..............................101
	Battery Service Records................................101
	How to Get Maximum Battery Life........................102
	Battery Installation...................................102
Section 7 - Specifications.................................103
Index......................................................105
Back Cover.................................................108

DESCRIPTION:

BT PRIME MOVER RCX Electric Stand-up Rider Truck Operator’s Manual 2810857 – PDF DOWNLOAD

The purpose of this manual is to provide a digest of essential information about the safe operation of your lift truck and to acquaint you with its features, how they function, and how they are maintained. This manual is organized into seven major parts for easy reference:
Section 1, General Safety Rules, reviews and illustrates accepted practices for safe operation of a lift truck.
Section 2, Operating Hazards, warns of conditions that could cause damage to the truck or injury to the operator or other personnel.
Section 3, Know Your Truck, describes the major operating components, systems, controls, and other features of your truck and tells how they function.
Section 4, Daily Safety Inspection, presents added details on how to perform the operator’s daily safety inspection.
Section 5, Operating Procedures, discusses more specific instructions on the safe, efficient operation of your lift truck.
Section 6, Planned Maintenance, describes the PM program.
Section 7, Specifications, provides reference information and data on features, components, and maintenance items.

S.S 06/01/2025
