BT Prime-Mover RR-40B Reach Truck Repair Manual – PDF DOWNLOAD

Description

BT Prime-Mover RR-40B Reach Truck Repair Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover RR-40B Reach Truck Repair Manual – PDF DOWNLOAD

Language : English
Pages : 204
Downloadable : Yes
File Type : PDF

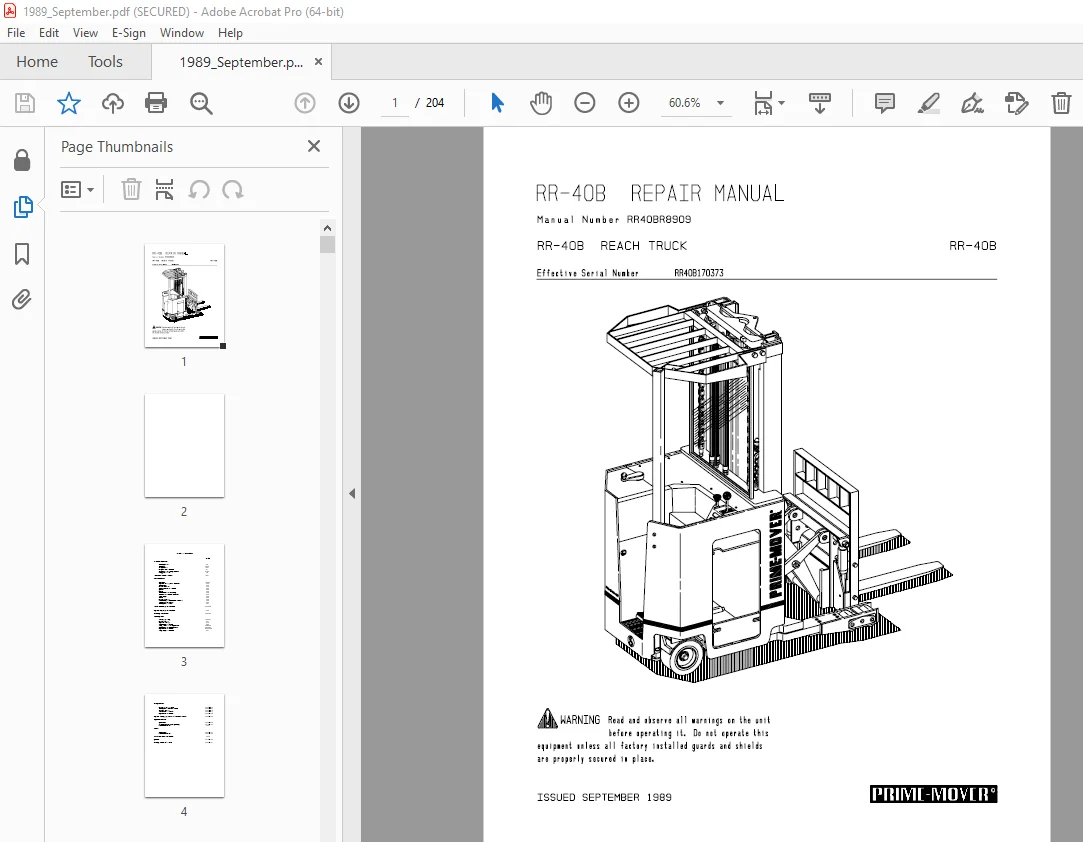

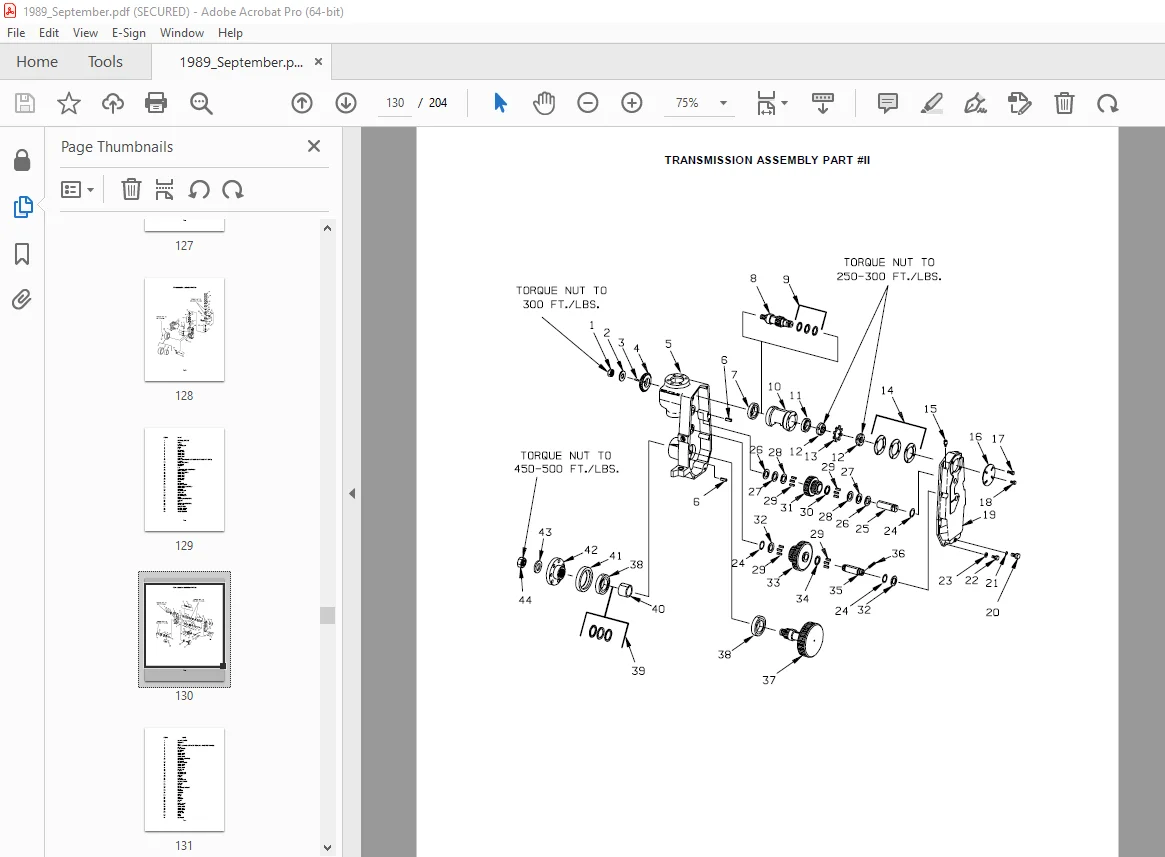

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover RR-40B Reach Truck Repair Manual – PDF DOWNLOAD

SPECIFICATIONS
ELECTRICAL 1
SPEEDS 1-2
HYDRAULIC 2-3
TIRES AND WHEELS 3
FLUIDS AND LUBRICANTS 3-4
TORQUE SPECS 5
PLANNED MAINTENANCE 6-8
ADJUSTMENTS
BRAKES 9-10
BRAKE INTERLOCK SWITCH 10
STEERING 10
LIFT CHAINS 10
ARTICULATING PLATE 11
REACH 11
TILT 11
STABILIZING CASTER 11
SPEED LIMITING SWITCH 11
SCR CARD 11
MAST 11
LIFT SWITCH 11
AUXILIARY FUNCTION SWITCH 12
CONTROL LINKAGE 12
STEERING CHAIN 13
LOAD WHEEL REPLACEMENT 14-15
DRIVE TIRE REPLACEMENT 16
CASTER ASSEMBLY 17-19
ELECTRICAL
MOTOR REPAIR 20-23
LIFT MOTOR 33
DRIVE MOTOR 32
AUXILIARY MOTOR 34
SCR, EV-100 OPERATION 35-40
ELECTRICAL SCHEMATIC 41-42
TROUBLESHOOTING 44-105
SCR CARD SETTING 43
HYDRAULICS
LIFT SYSTEM PUMP 106-110
STEERING SYSTEM PUMP 111-113
SPOOL VALVE 113-116
SOLENOID VALVES 117-118
TROUBLESHOOTING 119-125
DRIVE MOTOR REMOVAL & INSTALLATION 126-127
TRANSMISSION
REMOVAL 129-135
DISASSEMBLY AND REPAIR 136-178
INSTALLATION 178
MAST
SHIMMING 179-183
INSTALLATION 183-184
JACKING AND HOISTING 185
REACH 186-190
STEER AXLE ASSEMBLY 191-198
